Kongsberg RAD-E-TBX_00 RADius Ex Transponder Replacement Battery Pack | 3.67V/19Ah | Intrinsically Safe | Stainless Steel Enclosure | IP66 | In Stock

Original Kongsberg Seatex (Norway) RAD-E-TBX_00 (RAD-E-TBX 00/405446-03) RADius Ex transponder replacement battery pack, for RADius 550X and RADius 700X transponders. Xeno Energy XL205F/T1 thionyl chloride lithium battery (IEC R20 D-cell), nominal voltage 3.67V, capacity 19Ah, non-rechargeable. Intrinsically safe design with built-in 390Ω current limiting resistor, fully moulded in stainless steel container, IP66 protection, operating temperature -25~+60°C, certified by ATEX/IECEx/DNV. In stock,

online consultation

Product Details

1. Product Overview

The Kongsberg RAD-E-TBX_00 (also written as RAD-E-TBX 00/405446-03) is a RADius Ex transponder replacement battery pack manufactured by Kongsberg Seatex AS (Norway). It is designed for the RADius 550X and RADius 700X long-range transponders, used for powering relative positioning transponders in Dynamic Positioning (DP) systems.

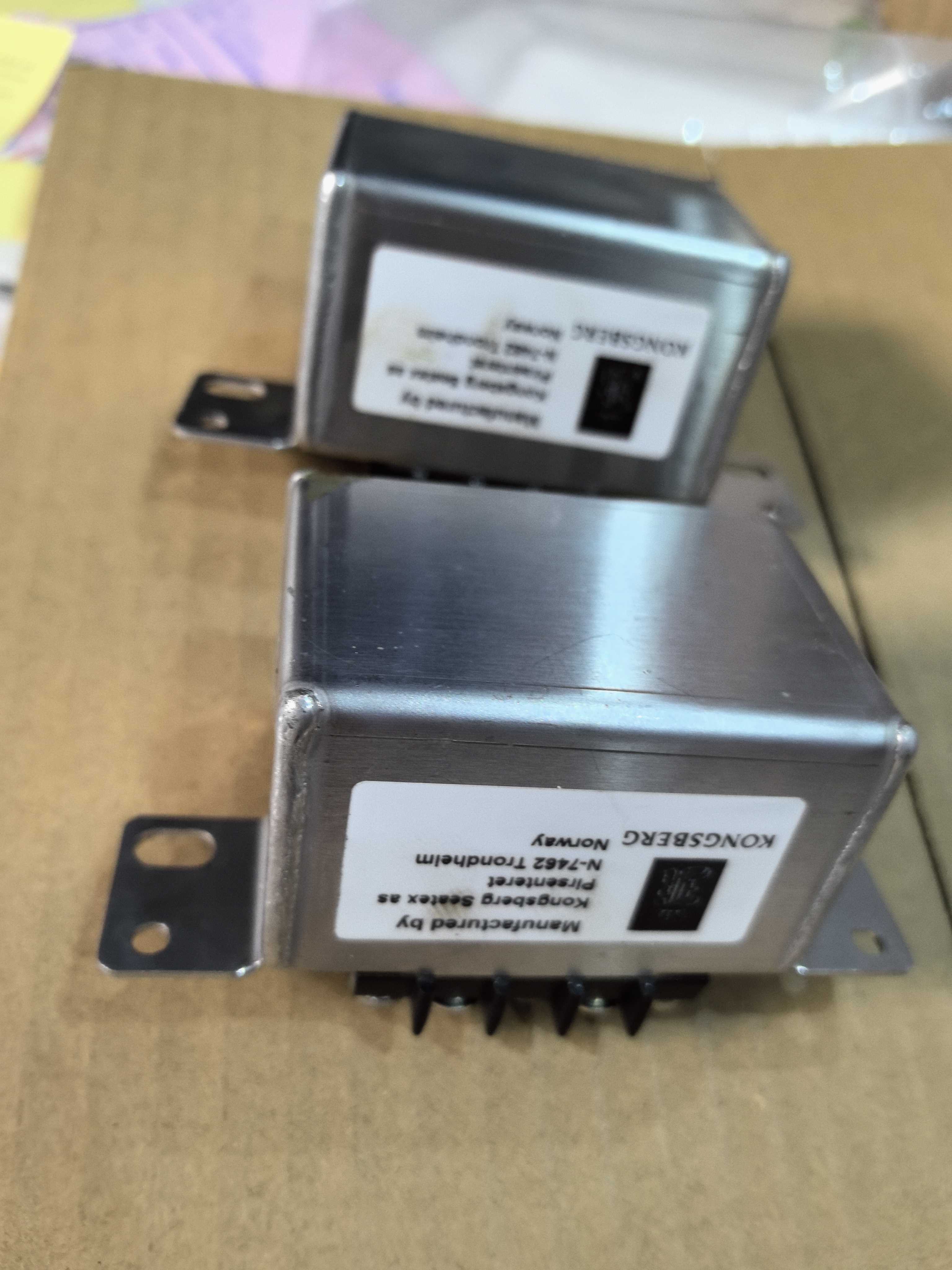

This battery pack consists of a primary cell and a series resistor, and is non-rechargeable. The battery pack is of intrinsically safe design. The cell with its infallible resistor is completely moulded inside a stainless steel container, ensuring safe use in explosive hazardous environments.

The battery cell uses a Xeno Energy XL205F/T1 thionyl chloride lithium battery (IEC R20 D-cell), with 4.8g lithium metal content, nominal voltage 3.67V, and capacity 19Ah. It has a built-in 390Ω infallible current limiting resistor, with maximum output current of 101mA and maximum available power of 39.4mW, ensuring intrinsic safety explosion-proof performance.

This battery pack is certified by ATEX (PREGATEX ATEX 10742X), IECEx (IECEX PRE 70044X), and DNV (DNV 13.0035.X), with IP66 protection rating and operating temperature range of -25°C to +60°C, suitable for harsh marine, ship, and offshore platform environments.

2. Specifications (per Official Datasheet)

表格

Parameter	Value
Brand	Kongsberg Seatex AS (Norway)
Model	RAD-E-TBX_00 (RAD-E-TBX 00/40546-03)
Product Type	RADius Ex Transponder Replacement Battery Pack
Compatible Devices	RADius 550X, RADius 700X Transponders
Cell Model	Xeno Energy XL205F/T1
Cell Chemistry	Thionyl chloride lithium battery
Cell Size	IEC R20 (D-cell primary battery)
Lithium Metal Content	4.8 g
Nominal Voltage (no load)	Max 3.67 V (3.9 V IEC 60079-0)
Built-in Current Limiting Resistor	390 Ω (infallible)
Max Output Current	101 mA
Max Available Power	39.4 mW
Capacity	19 Ah
Rechargeable	Non-rechargeable (primary cell)
Self Discharge Rate	1-2 % per year (at room temperature)
Explosion Protection Type	Intrinsically Safe
ATEX Certification	PREGATEX ATEX 10742X
IECEx Certification	IECEX PRE 70044X
DNV Certification	DNV 13.0035.X
Operating Temperature	-25°C ~ +60°C
Short Term Storage Temperature	+5°C ~ +40°C
Long Term Storage Temperature	+30°C (recommended)
Protection Degree	IP66
Humidity	95% non-condensing
Vibration Standard	IEC 60045 / IEC 60945
Drop Test	4 times onto concrete floor from 1m height (at -30°C ambient), no physical damage below +30°C
Enclosure Material	Stainless steel
Encapsulation	Cell and resistor fully moulded inside metal container with 3M Scotch-Weld™ DP190 Grey Epoxy Adhesives
Total Weight	0.34 kg
Cell Weight	98 g
Dimensions	108 × 57 × 48 mm (incl. mounting tabs)
Transport Classification	Cell subject to Class 9, UN 3090/3091; may be waived due to complete encapsulation
Country of Origin	Norway (Ålesund)
Stock Status	In stock

3. Key Features

Intrinsically Safe Explosion-Proof Design — The battery pack is intrinsically safe, with a built-in 390Ω infallible current limiting resistor, limiting maximum output current to 101mA and maximum available power to 39.4mW, ensuring it cannot ignite hazardous gases in explosive atmospheres. Certified by ATEX, IECEx, and DNV.
Thionyl Chloride Lithium Battery — Uses Xeno Energy XL205F/T1 thionyl chloride lithium battery (IEC R20 D-cell), nominal voltage 3.67V, capacity up to 19Ah, lithium metal content 4.8g, self discharge rate only 1-2% per year, suitable for long-term standby and low-power applications.
Stainless Steel Fully Moulded Enclosure — The cell and current limiting resistor are completely moulded inside a stainless steel container, encapsulated with 3M Scotch-Weld™ DP190 Grey epoxy adhesive, IP66 protection rating, with excellent waterproof, dustproof, corrosion-resistant, and mechanical shock resistance performance.
Wide Temperature Range Operation — Operating temperature range of -25°C to +60°C, capable of normal operation in extreme cold and high temperature environments, suitable for ship and offshore platform applications in various climate conditions from Arctic to tropical.
Strict Reliability Testing — Passed IEC 60045/IEC 60945 vibration standard tests, and passed drop test of 4 times from 1m height onto concrete floor (at -30°C ambient temperature), with no physical damage below +30°C, ensuring reliable operation in harsh marine environments.
Dedicated for RADius Transponders — Specifically designed for RADius 550X and RADius 700X long-range transponders, it is the standard replacement battery for relative positioning transponders in Dynamic Positioning (DP) systems, plug-and-play, easy to replace.
Non-Rechargeable Primary Battery — Uses primary cell design, no charging required, maintenance-free, extremely low self discharge rate (1-2% per year), retains most of its capacity after long-term storage, suitable as emergency and standby power source.
Norwegian Original Quality — Designed and manufactured by Kongsberg Seatex AS (Ålesund, Norway), Kongsberg is a global leading marine technology company, products comply with Norwegian and international maritime safety standards, validated through long-term marine field operation.

4. Typical Applications

Ship Dynamic Positioning (DP) Systems: Replacement battery for RADius 550X/700X transponders, used for relative positioning in DP systems
Offshore Platform Positioning Systems: Relative positioning transponder power for offshore oil & gas platforms, wind installation vessels, etc.
Marine Engineering Vessels: Pipe-laying vessels, crane vessels, drilling vessels and other engineering vessels' positioning transponder backup batteries
Research Vessels and Oceanographic Surveys: Positioning transponder power for oceanographic research vessels
Ports and Offshore Operations: Harbour tugs, offshore supply vessels and other positioning system backup power
RADius System Maintenance and Spare Parts: Regular battery replacement and spare parts inventory for RADius 550X/700X transponders
Emergency Backup Power: Marine applications requiring intrinsically safe, low-power, long-life backup batteries
Other Ex Transponder Applications: Other explosion-proof transponder devices matching the same battery specifications

5. Model Explanation

Model RAD-E-TBX_00:

RAD: RADius series (Kongsberg relative positioning system)
E: Ex explosion-proof type (Intrinsically Safe)
TBX: Battery Pack
_00: Revision/configuration code

Other Model Designations:

RAD-E-TBX 00/405446-03 (with article number suffix)

Compatible Transponder Models:

RADius 550X
RADius 700X

Manufacturer:

Kongsberg Seatex AS, Postboks 89, Kongsbakken, 6005 Ålesund, Norway

6. Why Choose Us

In Stock, Fast Shipping — This model is in stock, no long waiting required. Ships within 1-3 business days after order confirmation. All products sourced directly from Kongsberg factory or authorized channels, ensuring genuine originals with factory packaging and quality certificates.
Worldwide Delivery — Supports DHL, FedEx, UPS and other international couriers. Can also ship via your designated freight forwarder to 200+ countries. Battery products are shipped in compliance with UN 3090/3091 regulations.
Professional Technical Support — Selection consultation (confirming compatible transponder models), compatible model confirmation, technical parameter answers, and alternative model recommendation services to help you quickly identify the correct battery model.
Flexible Procurement — Supports small-batch sample orders and large-volume project orders with tiered pricing discounts. Project-specific quotations available.
Pre-shipment Inspection — Appearance check, packaging verification, model confirmation, and voltage test performed before shipment to ensure delivered batteries are intact, model-accurate, and voltage-normal.

7. Frequently Asked Questions (FAQ)

Q1: Can this battery pack be recharged?

A: No. According to the official datasheet, the RAD-E-TBX_00 battery pack consists of a primary cell and a series resistor, and is non-rechargeable. It uses a Xeno Energy XL205F/T1 thionyl chloride lithium battery, which is a disposable lithium battery. Charging would cause danger. When the battery is depleted, please replace the entire battery pack with a new one.

Q2: Which transponder models is this battery pack compatible with?

A: According to the official datasheet, RAD-E-TBX_00 is compatible with RADius 550X and RADius 700X long-range transponders. These transponders are part of the Kongsberg RADius short-range relative positioning system, used in Dynamic Positioning (DP) systems. If you are using other transponder models, please confirm if the battery specifications match, or contact our sales team for assistance.

Q3: What is the explosion-proof certification? In which hazardous areas can it be used?

A: According to the official datasheet, RAD-E-TBX_00 is an intrinsically safe battery pack, certified by:

ATEX: PREGATEX ATEX 10742X
IECEx: IECEX PRE 70044X
DNV: DNV 13.0035.X Intrinsically safe design means the battery pack cannot ignite an explosive gas atmosphere under normal operation and specified fault conditions, and can be used in hazardous areas on ships and offshore platforms. For specific zone ratings (e.g., Zone 0/1/2), please refer to the detailed content of the certification certificates.

Q4: What are the capacity and voltage? How long is the service life?

A: According to the official datasheet:

Nominal voltage (no load): Max 3.67V (3.9V per IEC 60079-0)
Capacity: 19Ah
Self discharge rate: 1-2% per year (at room temperature)
Max output current: 101mA (limited by built-in 390Ω resistor)
Max available power: 39.4mW Since the RADius transponder is a low-power device, the 19Ah capacity can support operation for a long time. The specific service life depends on the transponder's operating mode and usage frequency. It is recommended to replace the battery regularly as suggested in the RADius 550X/700X instruction manuals.

Q5: What are the storage conditions and shelf life?

A: According to the official datasheet:

Self discharge rate: 1-2% per year (at room temperature)
Short term storage temperature: +5°C ~ +40°C
Long term storage temperature: +30°C (recommended)
Operating temperature: -25°C ~ +60°C Due to the extremely low self discharge rate (only 1-2% per year), under recommended storage conditions, the battery pack can be stored for a long time without significant capacity loss. It is recommended to store in a cool, dry place, avoiding extreme temperatures and humid environments.

Q6: Are there any transportation restrictions for this battery pack?

A: According to the official datasheet, the cell is subject to Class 9, UN 3090/3091 (lithium battery transport classification). However, due to complete encapsulation inside the stainless steel container, moulding compound, mechanical protection, and energy limitation, these transport regulations may be waived. Specific transport requirements should be confirmed according to the destination country's regulations and the courier company's policies. We will properly package and ship in compliance with relevant regulations to ensure compliant transportation.

Q7: How fast can in-stock items ship?

A: This model is in stock. After order confirmation and payment receipt, it typically ships within 1-3 business days. Specific shipping time depends on order quantity and current stock status. Contact sales before ordering to confirm real-time stock. We will coordinate the fastest shipping option available.
