Micropump L22462 GC-M35.PF5S.5 Magnetic Drive Gear Pump | 3.48ml/rev | 1500psi System Pressure | 3/8NPT Ports | Leak-Free | Order Available

Original Micropump (USA) L22462 (GC-M35.PF5S.5) GC Series magnetic drive gear pump, M35 gear set, displacement 3.48ml/rev, recommended speed 500-4000RPM, max flow 13.9L/min, max differential pressure 8.6bar(125psi), max system pressure 103bar(1500psi). Suction shoe design, stationary shafts, helical gears, O-ring seal, completely leak-free. 3/8 inch NPT female inlet/outlet ports, requires IEC 71-B5 motor, drive magnet hub sold separately. Temperature range -46~+177°C, viscosity 0.5-1500cP, weigh

online consultation

Product Details

1. Product Overview

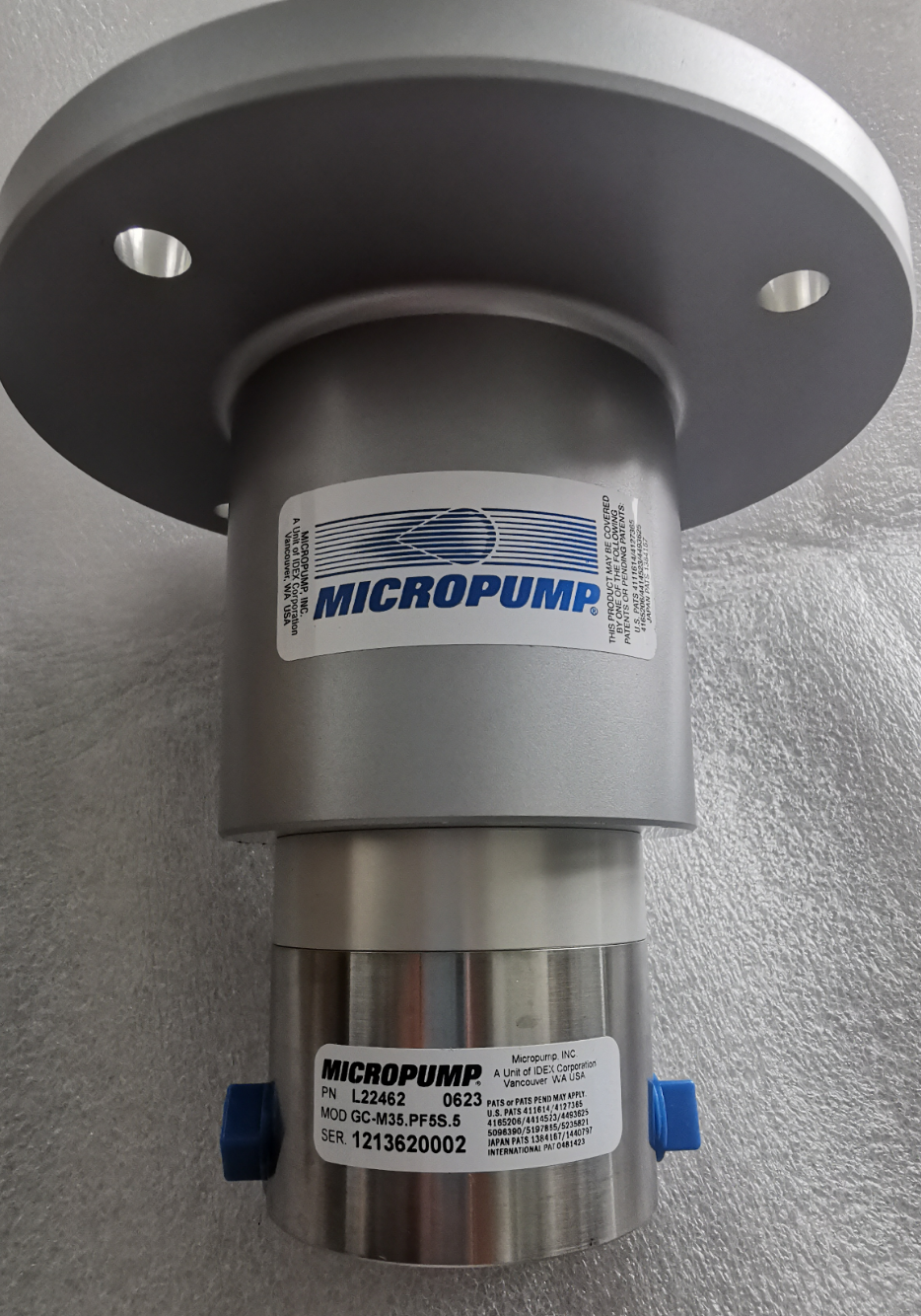

The Micropump L22462 (model GC-M35.PF5S.5) is a GC Series magnetic drive gear pump manufactured by Micropump (USA), featuring suction shoe style magnetically coupled gear pump technology. This pump uses magnetic coupling drive with no shaft seal, achieving zero leakage, making it ideal for transferring corrosive, toxic, flammable, valuable, or high-purity liquids.

This pump is equipped with an M35 gear set with a displacement of 3.48 ml/rev (0.92 US gal/1000 rev), recommended speed range of 500-4000 RPM, maximum flow up to 13.9 L/min (3.7 US gpm), and minimum flow of 405 mL/min. Maximum differential pressure is 8.6 bar (125 psi), and maximum system pressure is as high as 103 bar (1500 psi), suitable for high-pressure system applications.

The GC-M35.PF5S.5 features suction shoe design with stationary shafts, two to three helical gears, and O-ring static seals. The pump body uses advanced pump technology with a wide range of base, gear, and static seal material options, and can be used in OEM mounting configurations. The pump end is the pump head only, requiring a motor conforming to IEC 71-B5 standard, with the drive magnet hub sold separately.

This pump has 3/8 inch NPT female ports for both inlet and outlet, operating temperature range of -46°C to +177°C (-50°F to +350°F), liquid viscosity range of 0.5-1500 cP, and weighs approximately 6 lbs (2.72 kg). It is widely used in industries such as aerospace, automotive, biotechnology, chemical processing, clinical laboratories, electronics, energy/fuel, environmental, food & beverage, general industry, medical devices, paints & inks, pharmaceuticals, and cosmetics.

2. Specifications

表格

Parameter	Value
Brand	Micropump (USA)
Part Number	L22462
Model	GC-M35.PF5S.5
Product Type	Magnetic Drive Gear Pump
Series	GC Series (Suction Shoe Style)
Gear Set	M35
Displacement	3.48 ml/rev (0.92 US gal/1000 rev)
Recommended Speed Range	500 - 4000 RPM
Max Flow (2-pole/4000RPM)	13.9 L/min (3.7 US gpm)
Max Flow (4-pole/1750RPM)	5.1 L/min (1.35 US gpm)
Min Flow	405 mL/min (0.11 US gpm)
Max Differential Pressure	8.6 bar (125 psi)
Max System Pressure (MAWP)	103 bar (1500 psi)
Temperature Range	-46°C ~ +177°C (-50°F ~ +350°F)
Viscosity Range	0.5 - 1500 cP
Drive Method	Magnetic coupling drive (sealless)
Construction	Suction shoe, stationary shafts, helical gears, O-ring seal
Number of Gears	Two to three helical gears
Self-Priming	Yes
Dry Suction Lift	~1.52 m (5 ft)
Wet Suction Lift	Higher than dry lift
NIPR (Absolute Inlet Pressure)	180 mBar (2.5 psia)
Inlet Port	3/8 inch NPT female
Outlet Port	3/8 inch NPT female
Motor Mounting Standard	IEC 71-B5
Motor	Required separately (IEC 71-B5 compliant)
Drive Magnet Hub	Sold separately
Wetted Materials	316 stainless steel (standard), gears PEEK/PPS/PTFE optional
Seal Type	O-ring static seal (sealless)
Weight	6 lbs (~2.72 kg)
Country of Origin	USA
Stock Status	Order available

3. Key Features

Magnetic Drive Zero Leakage — Magnetic coupling drive technology, completely sealless, liquid inside pump fully isolated from outside, achieving zero leakage. Ideal for transferring corrosive, toxic, flammable, valuable, or high-purity liquids, meeting environmental and safety requirements.
Suction Shoe High-Efficiency Design — Micropump patented Suction Shoe technology, stationary shafts with two to three helical gears, providing smooth, pulseless fluid delivery, high efficiency, low wear, and extended service life.
High System Pressure Capability — Maximum system pressure up to 103 bar (1500 psi), maximum differential pressure 8.6 bar (125 psi), can be used in high-pressure systems and high back-pressure applications, adapting to various industrial high-pressure conditions.
Wide Flow Range — M35 gear set displacement 3.48 ml/rev, recommended speed 500-4000 RPM, flow range 405 mL/min to 13.9 L/min. Flow precisely controlled by adjusting speed, suitable for applications from small dosing to medium flow rates.
Wide Temperature Range Chemical Resistance — Operating temperature range -46°C to +177°C, can transfer high and low temperature liquids. Multiple wetted material options (316 stainless steel, PEEK, PPS, PTFE, etc.), chemical corrosion resistant, adapting to various corrosive liquids.
Smooth Pulseless Delivery — Helical gear design provides smooth, pulseless fluid delivery with high flow accuracy and repeatability, especially suitable for analytical instruments, medical devices, and dosing/filling applications requiring high flow stability.
Compact and Easy to Maintain — Small size, easy to use, pump end replaceable without changing motor. O-ring static seal, simple structure, easy maintenance, quick replacement of pump head and gear set.
OEM Custom Configuration — Multiple base, gear, and static seal material options, can be used in OEM mounting configurations, customized materials and configurations according to customer requirements, meeting specific application needs.
Strong Self-Priming Capability — Self-priming capability, dry suction lift ~1.52 m (5 ft), wet suction lift higher, no additional priming or liquid introduction needed, easy installation and use.
USA Original Quality — Designed and manufactured by Micropump (USA), a global leading manufacturer of miniature magnetic drive gear pumps, products passed strict quality inspection, widely used in industries worldwide.

4. Typical Applications

Aerospace & Aircraft: Aviation fuel transfer, hydraulic systems, cooling systems, test benches
Automotive Industry: Fuel injection testing, lubricant transfer, coolant circulation, automotive test equipment
Biotechnology: Bioreactor feed, media transfer, buffer circulation, sample transfer
Chemical Processing: Corrosive chemical transfer, dosing, reactor feed, solvent recovery
Clinical & Analytical Laboratories: Analytical instrument infusion, chromatography, mass spectrometry, sample preparation
Electronics Industry: Photoresist transfer, chemical transfer, cooling systems, semiconductor manufacturing
Energy/Fuel: Fuel cell fuel transfer, biodiesel, fuel additives, lubricants
Environmental Monitoring: Water quality analysis sampling, exhaust gas monitoring, environmental detection instruments
Food & Beverage: Food additives, flavors & fragrances, CIP cleaning solutions, beverage filling
General Industry: Lubrication systems, cooling circulation, dosing, industrial cleaning
Medical Devices & Equipment: Medical instrument infusion, dialysis equipment, diagnostic devices, pharmaceutical equipment
Paints & Inks: Paint transfer, ink circulation, coating dosing, printing equipment
Pharmaceuticals & Cosmetics: API transfer, formulation filling, cosmetic ingredients, sterile transfer
Other applications requiring leak-free, high-precision, low-flow transfer

5. Model Explanation

Model GC-M35.PF5S.5:

GC: GC Series magnetic drive gear pump (Suction Shoe Style)
M35: Gear set model M35, displacement 3.48 ml/rev
PF5S: Material/seal configuration code (specific material combination to be confirmed by manufacturer)
.5: Revision/mounting configuration code

Part Number: L22462

Gear Set Comparison (Same Series):

表格

Gear Set	Displacement	Max Flow (4000RPM)
M23	0.811 ml/rev	~3.2 L/min
M25	1.82 ml/rev	~7.3 L/min
M35	3.48 ml/rev	13.9 L/min

Brand: Micropump, USA professional miniature magnetic drive gear pump manufacturer

6. Installation & Usage Instructions

Motor Configuration:

This product is pump head (pump end) only, motor not included
Requires a motor conforming to IEC 71-B5 standard
Drive magnet hub must be purchased separately
Recommended speed range: 500 - 4000 RPM

Port Connection:

Inlet: 3/8 inch NPT female
Outlet: 3/8 inch NPT female
Recommended to use compatible NPT fittings and tubing to ensure reliable sealing

Usage Notes:

Maximum system pressure not exceeding 103 bar (1500 psi)
Maximum differential pressure not exceeding 8.6 bar (125 psi)
Liquid viscosity not exceeding 1500 cP
Operating temperature within -46°C ~ +177°C
Not suitable for liquids containing particles (magnetic gear pumps are sensitive to particles)
Before first use, evacuate air from pump, wet start recommended

7. Why Choose Us

Factory Order, Quality Guaranteed — All products sourced directly from Micropump USA factory or authorized channels, ensuring genuine originals with factory packaging and quality certificates. Standard lead time 4-8 weeks, rush orders can be coordinated for expedited delivery.
Worldwide Delivery — Supports DHL, FedEx, UPS and other international couriers. Can also ship via your designated freight forwarder to 200+ countries.
Professional Technical Support — Selection consultation (gear set displacement confirmation, material configuration selection, motor matching), technical parameter answers, and alternative model recommendation services to help you quickly identify the correct pump model and configuration.
Flexible Procurement — Supports small-batch sample orders and large-volume project orders with tiered pricing discounts. Project-specific quotations available.
Pre-shipment Inspection — Appearance check, packaging verification, model confirmation, and rotation test performed before shipment to ensure delivered products are intact, model-accurate, and rotate smoothly.

8. Frequently Asked Questions (FAQ)

Q1: Does this pump include a motor? What motor is required?

A: No, motor is not included. According to product data, the Micropump L22462 (GC-M35.PF5S.5) is pump end (pump head) only, requiring a separate motor conforming to IEC 71-B5 standard. Additionally, the drive magnet hub must be purchased separately. Recommended speed range is 500-4000 RPM, select appropriate motor power and speed based on required flow. If you need a complete pump+motor combination, please contact our sales team, we can provide a matched solution.

Q2: What is the flow rate? Can flow be precisely controlled?

A: The GC-M35.PF5S.5 is equipped with M35 gear set, displacement 3.48 ml/rev. Within recommended speed range 500-4000 RPM:

Min flow: ~405 mL/min (@500 RPM)
Max flow: ~13.9 L/min (@4000 RPM, 2-pole motor)
4-pole motor (1750 RPM) max flow: ~5.1 L/min Magnetic gear pump flow is proportional to speed, flow can be precisely controlled by adjusting motor speed, with high accuracy and repeatability, suitable for dosing and quantitative transfer applications.

Q3: What is the maximum pressure? Can it be used in high-pressure systems?

A: According to official data, the GC-M35.PF5S.5 has maximum system pressure (MAWP) of 103 bar (1500 psi) and maximum differential pressure of 8.6 bar (125 psi). This means the pump can be installed in high-pressure systems with system pressure up to 1500 psi, but the pump's own generated differential pressure is maximum 125 psi. It is suitable for circulation, metering, and transfer in high-pressure systems, such as high-pressure reactor feed, high-pressure lubrication systems, etc. If higher differential pressure is needed, other series or models may be required.

Q4: Can this pump transfer corrosive liquids? What are the wetted materials?

A: Yes. GC Series magnetic drive gear pumps use multiple wetted material options, standard configuration is 316 stainless steel pump body, gear material options include PEEK, PPS, or PTFE, seal material options include various elastomers. The PF5S in the model represents a specific material/seal configuration (specific material combination to be confirmed by manufacturer). Magnetic drive sealless design combined with chemical-resistant materials makes it ideal for transferring corrosive, toxic, and flammable liquids. If you have a specific liquid to transfer, please provide liquid name and temperature, we can assist in confirming material compatibility.

Q5: What is Suction Shoe design? What are its advantages?

A: Suction Shoe is Micropump's patented design technology. Traditional gear pumps experience high radial forces on gears and shafts under high differential pressure, leading to increased wear and shortened life. Suction Shoe design uses a floating suction shoe component around the gears, utilizing inlet pressure to automatically compensate clearance, reducing wear between gears and pump body, improving volumetric efficiency, and extending service life. Advantages include: high efficiency, low wear, long life, smooth pulseless delivery, and ability to withstand high system pressure. GC Series uses suction shoe design with stationary shafts and two to three helical gears.

Q6: Is this pump self-priming? Does it need priming?

A: Yes, it is self-priming. According to official data, GC Series magnetic drive gear pumps have self-priming capability, dry suction lift ~1.52 m (5 ft), wet suction lift higher. For initial installation, it is recommended to pour a small amount of liquid into the pump (wet start) to reduce dry running and improve priming speed. After normal operation, as long as liquid remains in the pump, it can continuously self-prime. NIPR (absolute inlet pressure) is 180 mBar (2.5 psia), indicating good low inlet pressure adaptability.

Q7: What is the lead time? Can you provide stock?

A: This model is currently in order available status, standard lead time 4-8 weeks (ordered from Micropump USA factory). Magnetic gear pumps are typically custom configurations (materials, seals, ports, etc.), with limited stock inventory. If you have urgent needs, we can try to coordinate stock inventory or expedited ordering. Please indicate required quantity and desired delivery time when inquiring, and we will do our best to coordinate the fastest delivery solution. For large-volume project orders, advance procurement planning is recommended.
