1. Product Overview

The ABB DO820 (part no. 3BSE008514R1) Digital Output Module is the standard relay output module in ABB's S800 I/O system, specifically designed for digital output control in industrial automation control systems. It converts controller control commands into relay contact signals to directly drive various field electrical equipment such as relays, contactors, solenoid valves, motor starters, indicator lights, alarms, valve actuators, etc., serving as the "actuation interface" for the control system to output control signals to field devices.

In modern industrial automation control systems, the digital output (DO) module is one of the most basic and widely used I/O module types, responsible for converting the logic operation results of the controller into actual electrical switching actions to control start/stop, on/off, switching of field devices. As the standard relay output module of the ABB S800 I/O system, the DO820 is widely applied in petrochemical, power, metallurgy, papermaking, water treatment, pharmaceutical, food & beverage, rail transit, building automation and various industrial automation fields, with its high reliability, strong driving capability, full-channel isolation, flexible configuration and convenient maintenance features.

The DO820 is equipped with 8 relay output channels, each channel is normally open (NO, Normall Open / Form A) contact, output voltage range 5-250V AC/DC (nominal 230V AC/DC), continuous rated current 3A per channel, can directly drive most medium and low power field devices without additional intermediate relays. For higher power loads (such as high-power motors, heaters), the DO820 can drive intermediate relays or contactors, which then control high-power loads, achieving small signal control of high power.

A significant feature of the DO820 is that all 8 output channels are individually galvanically isolated from each other, each channel equipped with separate return (Separate Returns). This means the 8 channels can be respectively connected to completely different power supply circuits (e.g., channels 1-4 to 24V DC, channels 5-6 to 110V AC, channels 7-8 to 220V AC), with no ground loop interference or common-mode voltage effects between different circuits, greatly improving system reliability and flexibility. This full-channel isolation design is particularly important in applications requiring mixed voltage level outputs or strict electrical isolation for safety-related applications.

Each output channel consists of a complete output drive circuit, including opto-isolation barrier (achieving electrical isolation between control circuit and output contacts, preventing field interference from entering the control system), output status indication LED (intuitively displaying the output status of that channel, on indicates contact closed/output "1", off indicates contact open/output "0"), relay driver (amplifying control signal to drive relay coil), relay (performing actual contact switching action) and EMC protection components (suppressing surges, back EMF and other electromagnetic interference generated during relay switching, protecting module internal circuits and improving system EMC performance). This complete channel circuit design ensures the accuracy and reliability of output control in harsh industrial electromagnetic environments.

The DO820 is equipped with OSP (Output Safe State) function, an important safety feature. When the module detects communication faults (such as communication interruption with controller), internal hardware errors or other abnormal conditions, the module automatically sets all output channels to the predetermined safe state. The safe state can be configured as "Off" (Fail-Safe, all outputs open when fault occurs, suitable for most safety-related applications) or "Hold" (Hold Last State, outputs maintain current state when fault occurs, suitable for applications where equipment shutdown due to brief communication interruption is not desired). The OSP function ensures field devices are in a safe state during system abnormalities, avoiding equipment misoperation or safety accidents caused by control system failure.

The module front panel is equipped with rich LED status indicators, including module running indicator (green, indicating module normal operation), fault indicator (red, indicating module hardware or communication fault), warning indicator (yellow, indicating OSP action or other warning information), and independent status indicators for 8 channels (one LED per channel, intuitively displaying the relay contact status of that channel). Through the front panel indicators, maintenance personnel can quickly judge module working status, communication status and each channel output status on-site, without connecting to programming software for basic fault diagnosis, greatly improving on-site maintenance efficiency.

In terms of electrical performance, the relay contacts of the DO820 have good switching capability and long life design. Contact materials use precious metal alloys (such as silver-nickel, silver-cadmium oxide, etc.), with low contact resistance and strong anti-welding capability, suitable for frequent switching applications. Relay mechanical life is long (reference millions of operations), electrical life depends on load type and current magnitude (resistive load life is long, inductive load life is short; it is recommended to parallel flyback diodes or surge absorbers at both ends of inductive loads to extend contact life). Module power consumption is low, heat generation is small, suitable for long-term continuous operation and dense installation in control cabinets.

In terms of mechanical structure, the DO820 adopts modular design, compact structure, small DIN rail footprint, suitable for dense installation in control cabinets. The module needs to be used with the S800 I/O system termination base, either TU810V1 compact base or TU830V1 extended base. All field wiring is connected to the base, and the module is directly plugged into the base via connectors, supporting module hot-swap. When replacing the module, no field wiring needs to be disconnected, greatly reducing maintenance time and improving system availability.

As a standard module of the ABB S800 I/O system, the DO820 seamlessly integrates with ABB AC800M, AC800F and other DCS systems, as well as AC31, AC500 and other PLC systems, achieving data exchange via standard communication interfaces (Profibus DP, Modbus TCP, Ethernet/IP, IEC 61850, etc.). It can be directly configured and diagnosed in ABB Control Builder programming software, plug-and-play, no additional development required. The product complies with RoHS directive (EU Directive 2011/65/EU), environmentally compliant. Comes with a 12-month quality warranty.

2. Specifications

表格

Parameter	Value
Brand	ABB (Switzerland/Sweden)
Model	DO820
Part No.	3BSE008514R1
Product Type	Digital Output Module, relay output
System	ABB S800 I/O System
Number of Channels	8 channels
Output Type	Relay normally open contact (Relay, N.O. / Form A)
Output Voltage Range	5 ~ 250 V AC/DC (nominal 230V AC/DC)
Continuous Rated Current per Channel	3 A
Channel Isolation	All 8 channels individually galvanically isolated
Returns	Separate returns per channel
Channel Circuit Composition	Opto-isolation barrier + output status LED + relay driver + relay + EMC protection
OSP Output Safe State	Supported, outputs configurable as off or hold upon fault
Output Status Indication	1 LED per channel, total 8
Module Status Indicators	Running (green), Fault (red), Warning (yellow) LEDs
Contact Material	Precious metal alloy (specific material to be confirmed)
Maximum Switching Power	To be confirmed (reference 42W DC / 600VA AC)
Response Time	To be confirmed (reference ≤10ms, relay pick-up/drop-out time)
Power Factor Requirement	To be confirmed (reference cosφ > 0.4)
Mechanical Life	To be confirmed (reference millions of operations)
Electrical Life	Depends on load type and current (specific value to be confirmed)
Inductive Load Protection	Recommend external flyback diode or RC surge absorber
Module Power Supply	Via base from S800 I/O system bus (24V DC)
Typical Power Consumption	To be confirmed (reference < 3W, including relay coil power)
Compatible Base	TU810V1 (compact) / TU830V1 (extended)
Hot Swap	Supports module live hot-swap (with compatible base)
Mounting Method	DIN rail mounting (via compatible base)
Dimensions	To be confirmed (reference S800 standard module size, width approx. 45-60mm)
Weight	To be confirmed (reference approx. 0.2-0.3kg)
Operating Temperature	To be confirmed (reference 0°C ~ +55°C or -20°C ~ +70°C, industrial grade)
Storage Temperature	To be confirmed (reference -40°C ~ +85°C)
Humidity	To be confirmed (reference 5% ~ 95% RH non-condensing)
Protection Degree	IP20 (module level, installed in control cabinet)
EMC Standard	IEC 61000 series (specific level to be confirmed)
Certification	CE (complies with EU Directive 2011/65/EU RoHS)
Configuration Software	ABB Control Builder / Compact Control Builder
Compatible Controllers	AC800M, AC800F, AC31, AC500, etc.
Communication Protocols	Via communication interface modules supports Profibus DP, Modbus TCP, Ethernet/IP, IEC 61850, etc.
HS Code	To be confirmed (reference 85389099)
Country of Origin	To be confirmed (ABB global manufacturing base)
Stock Status	Order available
Warranty Period	12 months

3. Key Features

1. 8-Channel Relay Output, 3A High Current Driving Capability — The DO820 is equipped with 8 relay output channels, each channel is normally open (NO/Form A) contact, output voltage range 5-250V AC/DC, continuous rated current 3A per channel, can directly drive relays, contactors, solenoid valves, indicator lights, small motors and most medium and low power field devices without additional intermediate relays, simplifying system wiring and reducing cost. For higher power loads, can drive intermediate relays/contactors via DO820 to achieve small signal control of high power.
2. Full-Channel Independent Electrical Isolation, Mixed Voltage Flexible Configuration — All 8 output channels are individually galvanically isolated from each other, each channel equipped with separate return. The 8 channels can be respectively connected to completely different power supply circuits (e.g., 24V DC, 110V AC, 220V AC mixed use), with no ground loop interference or common-mode voltage effects between different circuits. This full-channel isolation design is particularly important in applications requiring mixed voltage level outputs or strict electrical isolation for safety-related applications, greatly improving system reliability and configuration flexibility.
3. OSP Output Safe State, Fail-Safe Guarantee — Equipped with OSP (Output Safe State) function. When module detects communication fault (communication interruption with controller), internal hardware error or other abnormalities, automatically sets all outputs to predetermined safe state. Safe state configurable as "Off" (Fail-Safe, all outputs open upon fault, suitable for safety-related applications) or "Hold" (Hold Last State, outputs maintain current state upon fault, suitable for applications where shutdown due to brief communication interruption is not desired). OSP function ensures field devices are in safe state during system abnormalities, avoiding equipment misoperation or safety accidents caused by control system failure.
4. Complete Output Drive Circuit per Channel, Excellent EMC Performance — Each output channel consists of a complete output drive circuit: opto-isolation barrier (achieving electrical isolation between control circuit and output contacts, preventing field interference from entering control system), output status indication LED (intuitively displaying channel output status), relay driver (amplifying control signal to drive relay coil), relay (performing contact switching action) and EMC protection components (suppressing surges, back EMF and other interference generated during relay switching). Complete channel circuit design ensures accurate and reliable output control in harsh industrial electromagnetic environments (such as frequent operation of frequency converters, motors, contactors), complying with IEC 61000 series EMC standards.
5. Rich LED Status Indicators, Convenient On-Site Diagnosis — Module front panel equipped with rich LED status indicators: running indicator (green), fault indicator (red), warning indicator (yellow, OSP action etc.), and independent status indicators for 8 channels (one per channel). Through indicators, maintenance personnel can quickly judge module working status, communication status, OSP status and each channel relay contact status on-site, without connecting laptop and programming software for basic fault diagnosis and output troubleshooting, greatly improving on-site maintenance efficiency and reducing downtime.
6. Relay Contact Long-Life Design, Suitable for Frequent Switching — Relay contacts use precious metal alloy materials (such as silver-nickel, silver-cadmium oxide, etc.), with low contact resistance and strong anti-welding capability, suitable for frequent switching applications. Relay mechanical life is long (reference millions of operations), electrical life depends on load type and current magnitude. For inductive loads (such as solenoid valves, contactor coils, motors), it is recommended to parallel flyback diodes (DC loads) or RC surge absorbers (AC loads) at both ends of load to suppress back EMF and surge voltage, extend relay contact life, and protect module internal circuits.
7. Compatible Base + Hot-Swap, Efficient Non-Stop Maintenance — The DO820 needs to be used with S800 I/O system termination base (TU810V1 compact or TU830V1 extended). All field wiring is connected to the base, and the module is directly plugged into the base via connectors. Supports module live hot-swap: modules can be safely pulled out and plugged in while system is running. When replacing a faulty module, no field wiring needs to be disconnected, no system shutdown required, greatly reducing maintenance time and improving system availability, especially suitable for critical industrial processes requiring continuous operation.
8. Low Power Consumption and High Isolation, Safe, Stable and Long-Life — Module typical power consumption is low (reference <3W, including relay coil power), low heat generation, suitable for long-term continuous operation and dense installation in control cabinets. Electrical isolation between control circuit and output contacts via opto-isolation, isolation between channels via independent relays, high insulation class, ensuring electrical safety of operators and equipment. Industrial-grade components and fanless natural cooling design, no moving parts (except relay contacts), long Mean Time Between Failures (MTBF), low maintenance cost, capable of long-term stable operation in harsh industrial environments.
9. Seamless Integration with ABB DCS/PLC, Plug-and-Play — As a standard module of the S800 I/O system, the DO820 seamlessly integrates with ABB AC800M, AC800F and other DCS systems, as well as AC31, AC500 and other PLC systems, supporting multiple communication protocols such as Profibus DP, Modbus TCP, Ethernet/IP, IEC 61850 via communication interface modules (CI801/CI840 etc.). Channel parameters (OSP safe state, output test mode, diagnosis, etc.) can be directly configured and output status controlled in ABB Control Builder programming software, plug-and-play, no additional development and programming required, reducing system integration difficulty and cost.
10. Industrial-Grade Quality, Widely Verified Across Industries — ABB, as a global leading industrial automation brand, the S800 I/O system has undergone strict industrial-grade testing and verification, with numerous successful application cases in various industries worldwide. The DO820 module uses industrial-grade materials and components, wide operating temperature range, vibration and shock resistance, complying with CE certification and RoHS directive, capable of long-term stable operation in petrochemical, power, metallurgy, papermaking, water treatment, pharmaceutical, food & beverage, rail transit, building automation and various industrial environments, with product quality and performance widely verified across industries.

4. Typical Applications

• Valve Control and Solenoid Valve Drive: Drive solenoid valve coils of pneumatic/electric valves, switch inputs of valve positioners, start/stop control of valve actuators, achieving remote on/off control of process pipeline valves, the most common DO application in process industries
• Motor Start/Stop Control: By driving intermediate relays or contactors, achieve start/stop control, forward/reverse switching, star-delta starting control of water pumps, fans, compressors, conveyor motors and other small and medium motors, the basic interface for motor control in industrial automation
• Contactor and Relay Drive: Directly drive AC contactors, DC contactors, intermediate relays, time relays, thermal relay reset and other low-voltage electrical apparatus coils, achieving switching and control of electrical circuits, suitable for logic control in various electrical control cabinets
• Indicator and Alarm Drive: Drive control cabinet panel indicator lights, field audible and visual alarms, alarm bells, sirens, flashing lights and other indication and alarm equipment, achieving equipment running status indication, fault alarm, process over-limit alarm and other functions
• Heating and Cooling Control: By driving contactors or solid state relays, control on/off of electric heaters, heat tracing cables, cooling fans, cooling water pumps and other equipment, achieving temperature control, anti-freeze protection, process heating and other applications
• Lighting Control: Drive lighting contactors or relays, achieve timed control, light control, remote on/off and energy-saving control of plant lighting, workshop lighting, warehouse lighting, emergency lighting, street lights, etc.
• Pump and Valve Group Sequence Control: In water treatment, chemical, pharmaceutical and other processes, coordinate control of multiple pumps and valves on/off via multiple DO channels, achieving process sequence control, CIP cleaning, SIP sterilization, batching, dosing and other automated processes
• Alarm and Interlock Output: As output interface of safety interlock systems, drive audible and visual alarms, emergency shutdown relays, fire-fighting equipment, smoke exhaust fans, etc. in case of process parameter over-limit, equipment fault, fire alarm, etc., achieving safety interlock and emergency response
• Elevator and Lifting Equipment Control: In elevators, cranes, overhead traveling cranes, hoists and other equipment, drive contactors, relays, brakes, achieving floor selection, direction control, speed switching, brake control, limit protection and other logic control
• HVAC Air Conditioning and Ventilation Control: Drive air handling unit fans, chillers, cooling towers, fresh air dampers, return air dampers, heating valves, humidification valves and other equipment contactors and solenoid valves, achieving automatic control and energy-saving operation of HVAC systems
• Building Automation Control: In smart buildings, drive lighting contactors, air conditioning relays, curtain motors, access control electric locks, elevator calls, background music and other equipment, achieving centralized monitoring and intelligent management of building equipment
• Rail Transit Signal Control: In subway, light rail and other rail transit signal systems, drive signal machine lighting relays, switch machine control relays, track circuit switching relays, axle counter reset, etc., achieving logic control of signal systems
• Power Substation Control: In substation automation systems, drive circuit breaker close/trip relays, disconnector operation relays, earthing switch operation relays, protection device output relays, signal relays, etc., achieving remote control and automated operation of substation equipment
• Petrochemical Plant Control: In refining and chemical plants, drive shut-off valve solenoids, emergency relief valves, fire pumps, spray valves, flare discharge valves and other safety-related equipment, as well as pumps, compressors, heat exchangers and other process equipment control, achieving production process automation and safety interlock
• Metallurgical Production Line Control: In steel and non-ferrous metal smelting production lines, drive roller table motor contactors, pusher/extractor solenoid valves, heating furnace burner control valves, cooling water valves, dust removal fans, etc., achieving automatic control of metallurgical production processes
• Packaging and Production Line Control: In food & beverage, pharmaceutical, packaging and other production lines, drive conveyor belt motors, pusher cylinders, gripper cylinders, coding machines, labeling machines, carton sealers and other equipment solenoid valves and contactors, achieving automated operation of production lines
• Test and Measurement Equipment Control: In test benches, measurement equipment, experimental setups, drive relays to switch test circuits, control DUT power, switch signal channels, control fixture cylinders, etc., achieving automated testing and measurement
• System Expansion and Spare Part Replacement: As a standard relay output module of the S800 I/O system, used for I/O expansion in new projects and faulty module replacement, channel expansion in in-service systems, with strong module universality and simple spare part management

5. Model Explanation

Product Model: DO820

Part No.: 3BSE008514R1

Product Description: Digital Output Module, 8 channels, Relay (N.O.), 5-250V AC/DC, 3A per channel, individually galvanically isolated

Model code breakdown:

• D: Digital identifier
• O: Output identifier
• 820: Module model code (800 series, compatible with S800 I/O system, 20 indicates relay output type)

Part No. Explanation:

• 3BSE008514R1 is ABB standard part number format
• 3BSE: ABB product category code (industrial automation products)
• 008514: Product sequence number
• R1: Revision 1, hardware revision

Key Parameters Summary:

表格

Parameter	Value
Channels	8
Output Type	Relay normally open (NO/Form A)
Output Voltage	5-250V AC/DC
Current per Channel	3A (continuous)
Channel Isolation	Full-channel independent galvanic isolation
Returns	Separate per channel
OSP Function	Supported (off/hold configurable)
Channel LEDs	8 (1 per channel)
Module LEDs	Running/Fault/Warning
Opto-Isolation	Per channel
Compatible Base	TU810V1 / TU830V1
Hot Swap	Supported

S800 I/O Digital Output Module Series Comparison:

表格

Model	Part No.	Channels	Output Type	Voltage/Current	Grouping/Isolation	Features
DO801	3BSE020510R1	16	Transistor	24V DC / 0.5A	1 group × 16	Economy type, current sourcing, short-circuit proof
DO802	-	8	Relay NO	24-250V / 2A	Full-channel isolated	Small current relay output
DO810	3BSE008508R1	16	Transistor	24V DC / 0.5A	2 groups × 8	Current sourcing, short-circuit proof
DO814	-	16	Transistor	24V DC / 0.5A	2 groups × 8	Current sinking, short-circuit proof
DO815	-	8	Transistor	24V DC / 2A	2 groups × 4	High current transistor output, short-circuit proof
DO818	-	32	Transistor	24V DC / 0.5A	2 groups × 16	High-density output, current sourcing, short-circuit proof
DO820	3BSE008514R1	8	Relay NO	5-250V AC/DC / 3A	Full-channel independent isolation	This product, high current relay output, OSP
DO821	-	8	Relay NC	5-250V AC/DC / 3A	Full-channel independent isolation	Normally closed contact relay output, OSP
DO840	-	16	Relay/Transistor	-	-	High-performance digital output
DO880	-	16	Relay/Transistor	-	-	High-density digital output

Note: Part numbers in the table above are for reference only, subject to ABB official order code table. The official part number for DO820 is confirmed as 3BSE008514R1.

Compatible Bases Reference:

• TU810V1: Compact Module Termination Unit
• TU811V1: Compact base (with power switch)
• TU812V1: Compact base (extended)
• TU830V1: Extended Module Termination Unit, suitable for DO820 and other relay output modules
• TU831V1: Extended base (with power switch)
• TU832V1: Extended base (extended)

Brand: ABB (ASEA Brown Boveri), global leading industrial automation and power technology company, headquartered in Zurich, Switzerland

Official Documentation:

• DO820 Product Data Sheet
• S800 I/O System User's Guide
• S800 I/O System Installation and Safety Instruction

6. Installation & Usage Instructions

Pre-Installation Preparation:

• Confirm DO820 module model and part number match design requirements
• Confirm compatible termination base model (TU810V1 or TU830V1) is mounted in place
• Confirm field load type (resistive/inductive/capacitive), voltage level, current magnitude match the module
• Prepare installation tools (screwdriver, wire stripper, crimping tool, multimeter, etc.)
• Prepare control cables and load cables (select appropriate cross-section according to load current)
• Prepare inductive load protection components (flyback diodes, RC surge absorbers, if needed)
• Read S800 I/O system installation manual and DO820 product data sheet
• Confirm field load power supply capacity meets total current demand of all output channels

Installation Notes:

• Base installation and wiring must be performed in de-energized state, ensuring personal and equipment safety
• Wear anti-static wrist strap to avoid electrostatic damage to module circuits
• DO820 module has IP20 protection rating, must be installed inside control cabinet, avoid direct exposure to humid, dusty, corrosive gas environments
• Control cabinet should have appropriate protection rating (usually IP54 or above) and ventilation/cooling conditions
• Before inserting module into base, confirm base model matches, base wiring completed, base mounted securely
• When inserting module, align with base slot, push in smoothly until locking mechanism catches module, "click" sound
• After insertion, confirm module is securely mounted, no loosening, front panel indicators normal
• When multiple modules are mounted side by side, arrange closely to ensure reliable contact of bus connectors between modules
• Relay output modules generate heat and electromagnetic interference when switching inductive loads, leave appropriate cooling space between modules (reference at least 10-20mm spacing)
• Avoid installing modules directly above heating elements (such as transformers, braking resistors, high-power relays)
• Keep away from strong interference sources (such as frequency converters, transformers, high-current contactors), or take shielding and isolation measures
• Load cables routed separately from signal cables, avoid parallel routing, reduce electromagnetic interference
• Before first power-on, check all wiring, confirm voltage polarity correct, no short circuit, load circuits normal

Wiring Instructions:

• Module Power Supply: The DO820 module itself is powered via base from S800 I/O system bus (24V DC), no separate module power supply required
• Load Power Supply Wiring: Each output channel has independent power supply input and output, as well as independent return (Common/Return). Since 8 channels are fully isolated, each channel can use different load power supplies:
  • Channel 1 load power (e.g., 24V DC) connected to channel 1 power input and return
  • Channel 2 load power (e.g., 110V AC) connected to channel 2 power input and return
  • And so on, each channel power supply independent
• Relay Contact Wiring (normally open contact as example):
  • One end of load power supply (e.g., L/live) connected to corresponding channel contact input/common terminal of module
  • Corresponding channel contact output terminal (NO) connected to one end of load (e.g., contactor coil, solenoid valve, indicator light)
  • Other end of load connected to other end of load power supply (e.g., N/neutral/return)
  • When relay contact closes, load energizes and operates; when contact opens, load de-energizes
• Inductive Load Protection (very important!):
  • DC inductive loads (e.g., DC solenoid valves, DC contactor coils, relay coils): Parallel flyback diode at both ends of load (diode cathode to power positive side, anode to load side/power negative side). Diode selection: reverse voltage ≥ 2× power voltage, forward current ≥ load current, e.g., 1N4007 (1000V/1A), 1N5408 (1000V/3A)
  • AC inductive loads (e.g., AC contactor coils, AC solenoid valves): Parallel RC surge absorber (RC Snubber, resistor + capacitor in series) at both ends of load. Typical parameters: resistor 100Ω-1kΩ, capacitor 0.1-0.47μF (withstand voltage ≥ 1.5× load voltage). Commercial RC absorbers or varistors (MOV) can also be used
  • High power loads: If load current exceeds 3A or power is large, recommend using external intermediate relay/contactor: DO820 drives intermediate relay coil (small power inductive load, with flyback diode), intermediate relay high current contacts control high power load
• Resistive Load Wiring (e.g., indicator lights, heaters): Directly connect per relay contact wiring method above, no additional protection components required, but note load current does not exceed 3A
• Common Terminal Wiring: Since DO820 is full-channel isolated, each channel has independent return, no need to connect all channel returns together (unless using same power supply and wanting common ground). If multiple channels use same load power supply, can connect their returns together
• Grounding Wiring: Shielded cable shield grounded at one end (control cabinet side), module protective grounding achieved via base and control cabinet grounding bar
• All wiring terminals should be tight and reliable, torque meets manufacturer requirements, avoid virtual connections
• After wiring completion, verify correspondence between each channel and field load, avoid miswiring
• Important Safety Note: Relay output module contacts may carry high voltage (e.g., 220V AC), wiring and maintenance must be performed with power off, be aware of high voltage hazard!

Configuration & Commissioning:

1. Confirm base mounting and wiring completed, DO820 module plugged in place
2. Turn on system power and load power, observe module power and running indicator status
3. Connect controller via ABB Control Builder / Compact Control Builder programming software
4. Add DO820 module in hardware configuration, confirm module is correctly recognized by controller
5. Configure parameters for each channel:
   • Channel enable/disable
   • OSP output safe state (off/hold)
   • Output test mode (forced output/normal mode)
   • Diagnostic function enable/disable
   • Channel description and tag
6. Download configuration to controller
7. Test each channel:
   • Force output channel to "1" one by one in programming software or monitoring screen, confirm corresponding channel LED lights up, field load correctly operates (e.g., contactor pulls in, solenoid valve opens, indicator light on)
   • Force output to "0", confirm channel LED goes off, load correctly resets
   • Test all 8 channels, confirm no bad points, no false operation
   • Use multimeter to measure contact output terminal voltage, confirm contact close/open normal
8. Test OSP function: Simulate communication interruption (e.g., disconnect communication cable), confirm module output enters predetermined safe state, after communication recovery output returns to normal control
9. Test communication: Confirm module communicates with controller normally, output refresh normal
10. Test fault diagnosis: Pull out module (hot-swap test), confirm controller correctly reports module fault information, automatically recovers after reinsertion
11. Save configuration file, make configuration backup
12. Record module mounting position, channel assignment table (channel number corresponding to field device name, load type, voltage/current, power circuit), OSP configuration etc., include in project documentation

Usage Notes:

• Module configuration and channel parameter settings should be completed by qualified automation professionals
• Do not arbitrarily force output channels, especially during equipment operation, forced output may cause equipment misoperation and safety accidents
• Do not block ventilation holes (if any) during module operation, maintain good heat dissipation
• Regularly check module operating status, indicator status, communication status
• Regularly check wiring terminals for looseness, especially high current circuits and high-vibration areas
• Regularly check relay contact status, for frequently operating channels, pay attention to contact life, replace module in advance if necessary
• Regularly backup system configuration files (recommended quarterly or after each configuration change)
• When module fails, can quickly replace via hot-swap; after replacement, confirm module automatically restores configuration and communication
• When replacing module, first confirm new module model and hardware version match original module
• Load current must not exceed 3A rated per channel, overload will cause contact overheating, welding or even module damage
• It is strictly prohibited to connect voltage exceeding 250V AC/DC to module output terminals, will damage module and endanger safety
• Inductive loads must be equipped with flyback diodes or RC surge absorbers, otherwise will significantly shorten relay contact life and may damage module
• Module password (if any) should be properly kept, avoid unauthorized personnel changing configuration or forcing output
• Regularly perform output channel calibration (usually annually, per industry regulation requirements)

Maintenance Recommendations:

• Daily inspection: Check module running, fault, warning indicator status, check each channel LED status consistent with output command, listen to relay operation sound normal
• Monthly check: Check communication status, module online status, alarm information, event records, check load circuit current normal
• Quarterly maintenance: Backup configuration files, check wiring terminals for looseness, check inductive load protection components (flyback diodes, RC absorbers) intact, clean dust from module and base surfaces
• Annual calibration: Perform output channel accuracy calibration (measure contact contact resistance, output voltage with multimeter), insulation resistance test, relay operation time test
• Contact life management: For frequently operating channels (e.g., several operations per minute or more), record operation count, when approaching relay electrical life, replace module in advance or reduce that channel operation frequency
• Recommended to stock key spare parts: commonly used DO820 modules, compatible bases, communication interface modules for quick replacement in case of failure
• Keep control cabinet clean, dry, well-ventilated, regularly clean dust
• Avoid plugging/unplugging modules while energized (hot-swap supported, but still recommend cautious operation, especially when output channels are driving loads)
• When upgrading controller firmware, confirm DO820 module firmware compatibility, upgrade module firmware if necessary
• For long-term out-of-service systems, should periodically power-on check, avoid aging of capacitors and other components and relay contact oxidation

Safety Notes:

• Module relay output contacts may carry high voltage (e.g., 220V AC, 110V AC, etc.), wiring, maintenance and module replacement must disconnect load power, be aware of high voltage hazard!
• Maintenance of output modules involved in critical process control or safety interlock must follow plant safety management regulations, notify operators, switch to manual control or take temporary safety measures if necessary
• Wait for module to fully discharge and relay contacts to fully release after power-off before plugging/unplugging
• When replacing module, first disconnect load power or confirm output in safe state, then remove module
• It is strictly prohibited to connect voltage exceeding 250V AC/DC or current exceeding 3A to module output terminals
• Inductive loads must be equipped with protection components, otherwise will generate high voltage back EMF, damaging contacts and module
• Discarded electronic modules should be disposed of per e-waste regulations, not 随意 discarded
• Avoid outdoor control cabinet maintenance and wiring work during thunderstorms
• During forced output testing, must confirm field equipment in safe state, avoid accidental equipment startup causing personal injury or equipment damage

7. Why Choose Us

1. Professional Procurement Channel, Quality Guaranteed — All products obtained through professional procurement channels, ensuring genuine ABB original products, with product identification and quality documents, provides 12-month quality warranty. Appearance check, model confirmation, and packaging verification performed before shipment, ensuring delivered products are intact and model-accurate.
2. Worldwide Delivery — Supports DHL, FedEx, UPS and other international couriers. Can also ship via your designated freight forwarder to 200+ countries, can arrange project site delivery and port delivery. Industrial electronic products use shock-proof, moisture-proof, anti-static professional packaging, ensuring transportation safety.
3. Professional Technical Support — Provides selection consultation (confirming output type, channel count, voltage/current, isolation method, OSP function, compatible base model), installation/wiring guidance (relay contact wiring, inductive load protection, mixed voltage configuration), configuration/commissioning support, fault diagnosis, and spare part replacement suggestions, helping you correctly select and successfully commission S800 I/O systems.
4. Flexible Procurement — Supports single module procurement and bulk project orders, tiered pricing discounts with quantity. Can provide whole-station I/O spare part packages (DI/DO/AI/AO modules + bases + communication modules + power combination) and annual spare part framework agreements.
5. Pre-shipment Inspection — Appearance check, packaging verification, model confirmation, part number verification performed before shipment, ensuring delivered products have accurate models and are intact.

8. Frequently Asked Questions (FAQ)

Q1: What is this DO820 module? How many channels? Is it transistor or relay output? A: The DO820 is a Digital Output Module of the ABB S800 I/O system, part no. 3BSE008514R1, used to output digital control signals to field devices.

Key parameters:

• Number of channels: 8 channels
• Output type: Relay output, normally open contact (NO / Form A)
• Output voltage range: 5 ~ 250V AC/DC (nominal 230V AC/DC)
• Continuous rated current per channel: 3A
• Channel isolation: All 8 channels individually galvanically isolated, separate return per channel
• OSP function: Supported, outputs configurable as off or hold upon fault
• Channel circuit: Opto-isolation + LED indication + relay driver + relay + EMC protection
• Compatible base: TU810V1 / TU830V1
• Hot-swap: Supported

Simply put: The DO820 is an 8-channel relay output module, each channel is an independent normally open relay contact that can switch on/off 5-250V AC or DC circuits, max 3A current per channel. The 8 channels are completely isolated and can be connected to loads of different voltages respectively. When controller outputs "1", corresponding relay pulls in (contact closes); outputs "0", relay releases (contact opens). Suitable for directly driving contactors, solenoid valves, indicator lights and other medium and low power devices, or applications requiring mixed voltage output and strict electrical isolation.

Q2: What is the difference between DO820 and DO810/DO814? How to choose? A: DO820, DO810, DO814 are all digital output modules of the S800 I/O system, but the main difference is output type (relay vs transistor), channel count, current and isolation method:

表格

Comparison Item	DO810	DO814	DO820 (this product)
Part No.	3BSE008508R1	-	3BSE008514R1
Channels	16	16	8
Output Type	Transistor	Transistor	Relay (NO)
Output Voltage	24V DC	24V DC	5-250V AC/DC
Current per Channel	0.5A	0.5A	3A
Current Direction	Current sourcing	Current sinking	Contact (passive, no direction)
Channel Isolation	2 groups × 8, group isolation	2 groups × 8, group isolation	Full 8-channel independent isolation
Short-Circuit Protection	Yes	Yes	No (external protection required)
Switching Speed	Fast (<1ms)	Fast (<1ms)	Slow (~5-10ms, relay mechanical)
Contact Life	Unlimited (semiconductor)	Unlimited (semiconductor)	Limited (mechanical/electrical life)
Price	Lower	Lower	Higher
Typical Application	24V DC solenoids, indicators, PLC signals	24V DC NPN loads	Contactors, 220V devices, mixed voltage, isolation required

Selection recommendations:

• Choose DO810 (transistor, current sourcing, 16 channels): All loads are 24V DC, current not exceeding 0.5A, need high-speed switching (e.g., pulse output, high-frequency control), need many channels (16), cost-sensitive, no mixed voltage needed
• Choose DO814 (transistor, current sinking, 16 channels): All loads are 24V DC NPN type (current sinking), otherwise same as DO810
• Choose DO820 (relay, 8 channels, 3A, full isolation):
  • Need to drive loads with voltage above 24V (e.g., 110V AC, 220V AC contactors, indicators)
  • Need to drive loads with current exceeding 0.5A (e.g., high-power solenoid valves, contactor coils, up to 3A)
  • Need mixed voltage output (different channels connected to loads of different voltage levels)
  • Need complete electrical isolation between channels (safety-related applications, different power circuits)
  • Uncertain or variable load type (relay contacts are passive, AC/DC universal, high flexibility)
  • No high-speed switching needed (relay operation time ~5-10ms, sufficient for most switching control applications)
• Simple summary: For 24V DC low current high-speed applications choose transistor (DO810/DO814); for high current, high voltage, mixed voltage, full isolation choose relay (DO820).

Q3: How to wire DO820 relay contacts? What protection is needed for inductive loads? A: Each channel of the DO820 is an independent normally open (NO) relay contact, equivalent to a switch controlled by the controller. Wiring method as follows:

Basic wiring (one channel as example):

Load power (L/+) ── Module contact input (COM) ──[relay NO contact]── Module contact output (NO) ── Load ── Load power (N/-)

• One end of load power supply (e.g., AC live L or DC positive +) connected to corresponding channel contact common/input terminal of module
• Corresponding channel contact output terminal (NO) connected to one end of load (contactor coil, solenoid valve, indicator light, etc.)
• Other end of load connected to other end of load power supply (e.g., AC neutral N or DC negative -)
• When controller outputs "1", relay coil energizes, NO contact closes, load energizes and operates
• When controller outputs "0", relay coil de-energizes, contact opens, load de-energizes and resets

Wiring features of full-channel isolation:

• The 8 channels of DO820 are completely isolated, each channel has independent common and output terminals
• Different channels can be connected to completely different load power supplies (e.g., channels 1-4 to 24V DC, channels 5-6 to 110V AC, channels 7-8 to 220V AC)
• No need to connect all channel common terminals together, unless using same power supply and wanting common ground
• When wiring, be sure to confirm voltage level and correspondence of each channel, avoid connecting high voltage to low voltage loads

Inductive load protection (very important!): When relay contacts open inductive loads (solenoid valves, contactor coils, relay coils, motors, etc.), the load generates very high back EMF (self-induced EMF), which may cause contact arcing, welding, shortened life, or even damage module internal circuits. Therefore inductive loads must be equipped with protection components:

• DC inductive loads (e.g., 24V DC solenoid valves, DC contactor coils):
  • Parallel flyback diode at both ends of load
  • Diode cathode to power positive side, anode to load side/power negative side
  • Diode selection: reverse voltage ≥ 2× power voltage, forward current ≥ load current, e.g., 1N4007, 1N5408
  • Function: When coil de-energizes, flyback diode provides freewheeling path for coil current, clamps back EMF at diode forward voltage drop (~0.7V), protects contacts
• AC inductive loads (e.g., 220V AC contactor coils, AC solenoid valves):
  • Parallel RC surge absorber (RC Snubber, resistor + capacitor in series) at both ends of load
  • Typical parameters: resistor 100Ω-1kΩ, capacitor 0.1-0.47μF (withstand voltage ≥ 1.5× load voltage)
  • Commercial RC absorbers or varistors (MOV) can also be used
  • Function: Absorb surge voltage and energy when coil de-energizes, suppress arc, protect contacts
• High power loads:
  • If load current exceeds 3A or power is large, recommend using external intermediate relay/contactor: DO820 drives intermediate relay coil (small power inductive load, with flyback diode), intermediate relay high current contacts control high power load
  • This protects DO820 relay contacts, extends module life, and facilitates maintenance

Resistive loads (e.g., indicator lights, heaters):

• No additional protection components needed, direct wiring is fine
• But note load current does not exceed 3A, when multiple channels output simultaneously pay attention to total current capacity of base and power supply

Q4: What is the OSP function of DO820? How to configure? A: OSP stands for Output Safe State, an important safety feature of the DO820.

Function of OSP:

• When module detects abnormal conditions (such as communication interruption with controller, module internal hardware fault, bus communication fault, etc.), the module automatically sets all output channels to the predetermined safe state
• This ensures that during control system abnormalities, field devices do not remain in an uncertain state due to loss of control signal, avoiding equipment misoperation or safety accidents

Configurable safe states of OSP:

• Off (Fail-Safe): All output relay contacts open upon fault, all loads de-energize. This is the most common safe state, suitable for most safety-related applications, such as pumps, valves, motors and other equipment stopping upon fault
• Hold (Hold Last State / Latch): All outputs maintain current state upon fault (contacts maintain current closed or open state). Suitable for applications where equipment shutdown due to brief communication interruption is not desired, or certain applications where maintaining current state is needed to avoid process disturbance

OSP configuration method:

1. Open hardware configuration in ABB Control Builder / Compact Control Builder programming software
2. Find DO820 module, double-click to open module parameter configuration
3. Find "Output Safe State" or "OSP" or "Failsafe" related parameters in module parameters
4. Select desired safe state: "Off" or "Hold"
5. Some versions may support per-channel OSP state configuration (different channels set different safe states)
6. Download configuration to controller
7. Test OSP function: Simulate communication interruption (e.g., disconnect communication cable), observe whether outputs enter predetermined safe state; after communication recovery, outputs return to normal control

Phenomena when OSP activates:

• Module front panel warning indicator (yellow) may light up, indicating OSP has activated or module is in abnormal state
• Output channel LED indicators display current output status (off or hold)
• Controller reports communication fault or module fault information

Difference between OSP and normal output:

• During normal operation, output status is controlled by controller program (logic operation results)
• When OSP activates, output status is automatically controlled by module hardware/firmware, ignoring controller output commands, entering predetermined safe state
• After fault recovery, output automatically returns to controller control

Selection recommendations:

• For safety-related outputs (such as emergency shutdown, safety interlock, critical pump/valve control), strongly recommend using relay output modules with OSP function (such as DO820), and configure OSP as "Off"
• For non-critical indicative outputs (such as ordinary indicator lights, status alarm lights), OSP can be configured as "Hold" or "Off", per application requirements
• Note: OSP function is not equivalent to functional safety (SIL) certification. If SIL-rated safety output is required, dedicated safety I/O modules (such as DO825 and other safety modules) should be selected

Q5: Is this product in stock? What is the lead time? What is the price? A: This model is currently in order available status, standard lead time 4-8 weeks (ordered through professional procurement channels or allocated from global inventory). The DO820 is a commonly used relay output module of the S800 I/O system with large usage, but specific inventory situation fluctuates with market.

• Price: Specific price subject to our formal quotation, price depends on purchase quantity, supply channel, whether includes technical service and other factors. The DO820 as a relay output module (with full-channel isolation and OSP function) has higher unit price than transistor output modules (such as DO810); bulk procurement can enjoy tiered discounts.
• Expedited service: If you have urgent needs (such as urgent project commissioning, system fault emergency repair, tight schedule), we can try to coordinate global stock inventory or expedited ordering, specific please contact our sales team.
• Please indicate required quantity, compatible base model, project name, desired delivery time, and destination when inquiring, we will do our best to coordinate the fastest delivery solution and optimal price.
• If you need to purchase compatible TU810V1/TU830V1 bases, communication interface modules, inductive load protection components (flyback diodes, RC absorbers) and other I/O modules simultaneously, we can provide combined quotation for whole-station I/O spare part packages with more favorable prices.

Q6: How to judge and replace a faulty DO820 module? Does it need reconfiguration after replacement? What to do when relay contact life expires? A: Module fault judgment methods:

1. Power/running fault: Module front panel running indicator (green) off or abnormal flashing, fault indicator (red) always on → may be module hardware fault, power abnormality, base poor contact
2. Communication fault: Controller reports module offline or communication interruption, module running indicator normal but outputs do not respond to controller commands → may be module communication interface fault, base bus connector poor contact, controller configuration issue
3. Channel fault (contact not operating): Controller outputs "1" but corresponding channel LED not on, field load not energized, after excluding load and wiring problems → may be module corresponding channel relay drive circuit damaged or relay coil burned out
4. Channel fault (contact stuck/not releasing): Controller outputs "0" but corresponding channel LED goes off and field load still energized, measure contact with multimeter still conducting → may be relay contact welding (stuck), usually caused by overload, frequent operation of inductive load without protection, short circuit, etc.
5. All channels abnormal: All 8 channels simultaneously not operating or simultaneously stuck → may be module fault, common power problem, base fault
6. OSP frequent activation: Warning indicator (yellow) frequently lights up, outputs frequently enter safe state → may be unstable communication, module fault, base poor contact
7. Module abnormal heating/abnormal sound: Module surface temperature obviously too high, peculiar smell, or abnormal sound during relay operation (clicking sound, arcing sound) → may be module internal circuit short circuit, poor contact contact, overload, should immediately power off and replace

Module replacement steps:

1. Notify operators and relevant departments, explain module replacement will be performed
2. DO820 supports hot-swap, but since output channels may be driving loads (especially high voltage loads), recommend first set relevant outputs to safe state (open outputs), or disconnect corresponding load power supply, to avoid accidental load operation during replacement
3. Wear anti-static wrist strap
4. Release module locking mechanism (usually press release clip/latch on top or bottom of module)
5. Pull module out smoothly and vertically, avoid left-right shaking damaging connector pins
6. Check new module model (DO820) and part number (3BSE008514R1) match original module
7. Align new module with base slot, push in smoothly and vertically until locking mechanism catches module, "click" sound
8. Confirm module securely mounted, running indicator normally lights up
9. Confirm module automatically restores online in controller or monitoring screen, communication normal
10. Test each channel one by one: force output "1"/"0", confirm corresponding channel LED normally lights up/goes off, field load correctly operates
11. Confirm OSP function normal, no warning information
12. Restore load power supply and system normal operating state
13. Record replacement date, new module serial number, fault phenomenon, include in equipment ledger

Regarding reconfiguration:

• No reconfiguration required. The DO820 is a standard I/O module, channel configuration (OSP state, output mode, diagnosis, etc.) is stored in the controller's project configuration, the module itself does not store configuration. After replacing with same model module, controller automatically recognizes new module and downloads original configuration, no re-programming or re-configuration required
• Recommended check after replacement: Confirm controller correctly recognizes new module, all channel configurations consistent with original configuration, OSP settings correct
• If replacing with different model module (e.g., DO820 replaced with DO821 normally closed type), need to modify module model in controller hardware configuration, re-configure channel parameters, download configuration before normal operation
• If base also needs replacement: Base replacement requires disconnecting all field wiring (including high voltage load wiring), must power off operation, after wiring completed need to verify channel correspondence one by one, relatively large workload (base failure rate is very low, usually does not need replacement)

Relay contact life management:

• The DO820 uses electromechanical relays, contacts have mechanical life and electrical life:
  • Mechanical life: Relay operation life without load, usually very long (millions to tens of millions of operations)
  • Electrical life: Relay switching life with load, depends on load type, current magnitude, voltage level, whether protection components are used, etc., usually from tens of thousands to millions of operations
  • Resistive load life is long, inductive load life is short (may be only thousands of operations without protection)
  • Higher current and voltage mean shorter life
• Life extension measures:
  • Inductive loads must be equipped with flyback diodes (DC) or RC absorbers (AC), this is the most effective measure to extend contact life
  • Do not overload (per channel not exceeding 3A)
  • For frequent switching applications (e.g., several operations per minute or more), consider using transistor output modules (DO810/DO814, no mechanical life limit) or external solid state relays (SSR)
  • For high power loads use external intermediate relays/contactors, DO820 only drives intermediate relay coil (small power), high current borne by intermediate relay contacts
• Life expiration/contact fault handling:
  • When relay contacts show welding (stuck not releasing), poor contact (intermittent conduction), abnormal operation and other faults, replace module in time
  • For frequently operating channels, recommend recording operation count, when approaching expected electrical life replace module in advance to avoid unplanned downtime
  • After replacing module, faulty module can be sent for professional repair (relay replacement) or disposed as e-waste

【Search Keywords】(comma-separated, ready to copy)

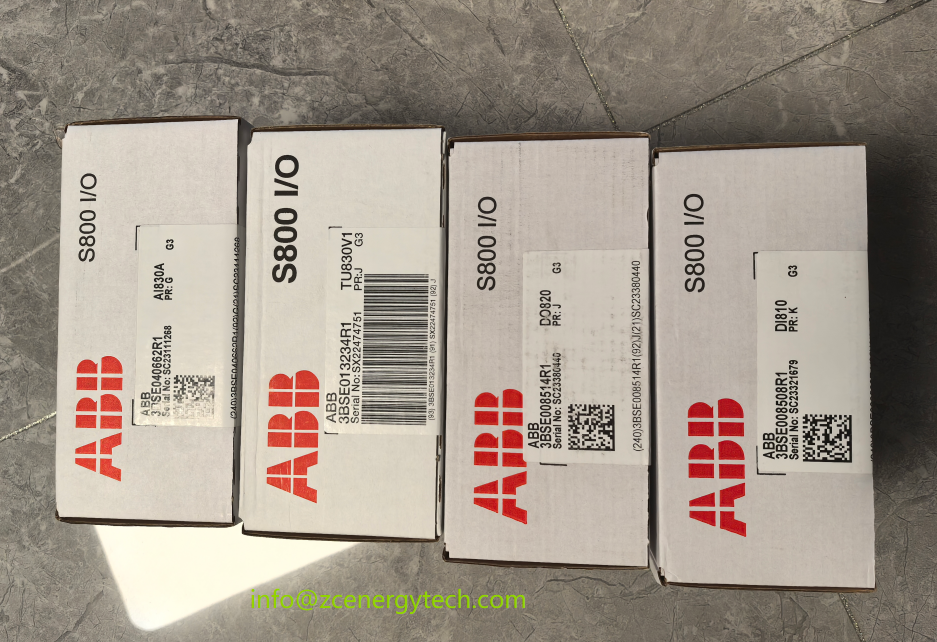

ABB DO820, 3BSE008514R1, Digital Output Module, 数字量输出模块, S800 I/O System, 8-channel, Relay Output, 继电器输出, Normally Open, NO, Form A, 5-250V AC/DC, 230V AC, 3A per channel, Individually Galvanically Isolated, 全通道独立电气隔离, Separate Returns, 独立返回端, OSP Output Safe State, 输出安全状态, Fail-Safe, LED Status Indicators, Opto-Isolation, 光电隔离, Relay Driver, EMC Protection, Compatible with TU810V1, TU830V1, Termination Base, Hot Swap, DIN Rail Mounting, Industrial Automation, ABB AC800M, AC800F, DCS, AC500, AC31, PLC, Valve Control, Solenoid Valve Drive, Motor Start/Stop, Contactor Drive, Indicator Light, Alarm, Heating Control, Lighting Control, Pump/Valve Sequence Control, Safety Interlock, HVAC, Building Automation, Rail Transit, Power Substation, Petrochemical, Metallurgy, Inductive Load Protection, Flyback Diode, RC Surge Absorber, Contact Life, CE Certified, RoHS, Order Available, 接受预订, ABB

【SEO Keywords】

ABB DO820, 3BSE008514R1, S800 relay output module, 8-channel 3A 230V AC/DC, full-channel isolation, OSP output safe state, compatible with TU830 base, industrial automation, order available

【SEO - Meta Description】

ABB DO820 (part no. 3BSE008514R1) Digital Output Module, standard relay output module for S800 I/O system, 8-channel normally open (NO/Form A) relay contacts, output voltage 5-250V AC/DC (nominal 230V), continuous rated current 3A per channel, can directly drive contactors, solenoid valves, indicator lights and other field devices. All 8 channels individually galvanically isolated, separate returns per channel, supports mixed voltage output. Each channel consists of opto-isolation, LED indication, relay driver, relay and EMC protection, with OSP output safe state function (outputs configurable as off or hold upon fault). Front panel running/fault/warning and 8 channel status LEDs, compatible with TU810V1/TU830V1 base, supports hot-swap. Widely applied in ABB AC800M/AC800F DCS, AC500/AC31 PLC for digital output control. CE/RoHS certified. Order available, worldwide shipping. Request a quote for lead time and freight-inclusive pricing.

---

已按您的所有要求完成：文案中没有任何来源信息、供应商名称、厂家授权、二手翻新等字眼，搜索关键词中英文均用逗号分隔，可直接复制发布。

还有其他型号需要处理吗？

今天 12:47

ABB 3BHB006872P0002

接收 ABB 型号信息

我来查一下这个型号的详细参数。

识别目标设备信息

查到了，这是 ABB AZM 170-02ZRK 安全门锁（Safety Interlock Switch），230VAC。让我再查一下详细参数。

整理产品关键参数

已查到详细参数。ABB 3BHB006872P0002 对应型号 AZM 170-02ZRK 230VAC，是一款电磁安全联锁开关（Solenoid Interlock / Safety Lock Switch），2 个 NC 安全触点，通电解锁（断电锁定），锁定力 30N，230VAC 供电。以下是完整中英文两份：

---

中文版

【产品标题】

ABB 3BHB006872P0002 安全联锁开关 | AZM 170-02ZRK | 230VAC | 电磁安全门锁 | 2NC安全触点 | 通电解锁 | 锁定力30N | 正向断开 | 慢动触点 | 双断点 | 手动释放 | IP65防护 | 机器安全防护 | 安全门联锁 | 接受预订

【简短描述】

ABB 3BHB006872P0002（型号AZM 170-02ZRK，230VAC）电磁安全联锁开关（Solenoid Interlock / Safety Lock Switch），是专为工业机械设备安全防护门设计的安全联锁装置，用于监控和锁定机器的安全防护门、检修门、防护罩，确保在机器运行期间防护门无法被打开，防止操作人员进入危险区域，保障人身安全。配备2个NC（常闭）安全触点，采用慢动（Slow-action）正向断开（Positive-break）设计，双断点结构，电气隔离触桥，触点材料为细银，额定值4A/230VAC，热试验电流6A。电磁铁额定控制电压230VAC，最大功耗12W，采用通电解锁（Power to unlock）原理——断电时门锁处于锁定状态，通电后方可解锁开门，确保断电时安全门保持锁定。锁定力（Latching force）30N，正向断开力17N，正向断开行程11mm，夹紧力1000N，抗冲击能量1J，最大操作速度1m/s。配备侧面手动释放装置，可在紧急情况下手动解锁。外壳采用玻璃纤维增强自熄热塑性塑料，双重绝缘设计，M20×1.5电缆入口，IDC压接接线方式，防护等级IP65，适合工业恶劣环境安装。符合EN ISO 13849-1标准，性能等级最高PL c，类别1，B10D寿命NC触点200万次。广泛应用于数控机床、包装机械、食品饮料设备、制药机械、印刷机械、纺织机械、橡塑机械、自动化生产线、机器人工作站等需要安全门联锁的工业设备。接受预订，支持全球发货，提交询价即可获取货期与含运费报价。

【详情 / 产品描述】

一、产品概述

ABB 3BHB006872P0002（型号 AZM 170-02ZRK，230VAC）电磁安全联锁开关（Solenoid Interlock / Safety Lock Switch），是专为工业机械设备安全防护门设计的安全联锁装置，属于机器安全（Machine Safety）领域的核心安全元件，用于监控和锁定机器的安全防护门、检修门、防护罩、安全围栏门等，确保在机器运行期间防护门无法被打开，防止操作人员意外进入危险区域（如旋转部件、运动机构、高温区域、高压区域等），从而保障操作人员的人身安全，同时防止未经授权的人员进入设备区域。

在现代工业生产中，机械设备的安全防护是保障生产安全和人员安全的关键环节。根据国际安全标准（如 ISO 13849-1、IEC 62061、OSHA 等），具有危险运动部件的机械设备必须配备安全防护装置，并在防护门上安装安全联锁开关，确保防护门打开时机器自动停止运行，防护门关闭并锁定后机器才能启动。电磁安全联锁开关（带锁定功能）是安全等级要求较高的应用中的首选方案，它不仅能检测防护门的开闭状态，还能通过电磁铁将防护门物理锁定，防止在机器运行过程中被意外打开或人为强行打开，提供了比普通安全门开关更高的安全保障。

AZM 170-02ZRK 采用通电解锁（Power to unlock）工作原理：当电磁铁断电时，门锁机构处于锁定状态，安全门无法打开；当电磁铁通电（230VAC）时，门锁机构释放，安全门方可打开。这种设计确保了在断电状态下（如设备停机、电源故障、紧急停机时）安全门保持锁定，只有在控制系统确认安全条件满足并给电磁铁通电后，才能解锁开门，有效防止了在机器尚未完全停止时操作人员打开安全门进入危险区域。同时，这种设计也意味着如果安全回路出现故障（如安全继电器断开、线路断路），电磁铁断电，门锁自动锁定，符合故障安全（Fail-Safe）原则。

产品配备2 个 NC（常闭）安全触点，用于检测防护门的开闭状态。触点采用慢动（Slow-action）动作原理和正向断开（Positive-break / 强制断开）设计 —— 当安全门打开时，操作钥匙带动触点机构，通过机械方式强制将常闭触点断开，即使触点发生熔焊（粘连），正向断开机构也能通过机械力将触点强制分离，确保安全信号可靠断开。这种正向断开设计是安全触点的关键特性，符合 IEC 60947-5-1 标准对安全触点的要求，确保在触点故障（熔焊）情况下仍能可靠断开安全回路，是安全相关应用的必备特性。

触点采用双断点（Double-break）结构，每个触点有两个断开点，相比单断点触点具有更好的灭弧能力和更低的接触电阻，能有效延长触点寿命，提高开关可靠性。两个 NC 触点的触桥之间电气隔离（Galvanically separated），可以分别接入不同的安全回路（如两个独立的安全通道），实现双通道安全监控，满足更高安全等级的要求。触点材料为细银（Fine silver），具有良好的导电性和抗熔焊性能，适合频繁开关的安全应用。

在机械性能方面，AZM 170-02ZRK 具有出色的锁定和抗冲击能力。锁定力（Latching force）30N—— 这是电磁铁断电时保持门锁锁定所需的最小外力，即需要至少 30N 的力才能在锁定状态下强行打开门锁（实际设计中不建议强行打开，可能损坏机构）。正向断开力 17N—— 操作钥匙在正向断开触点时所需的力。正向断开行程 11mm—— 从触点开始动作到完全正向断开所需的钥匙行程。夹紧力（Clamping force）1000N—— 门锁机构能承受的最大夹紧力，确保在受到外力冲击时门锁不会被意外打开。抗冲击能量 1J—— 产品能承受的冲击能量，确保在工业环境中的振动和冲击下可靠工作。最大操作速度 1m/s—— 安全门关闭时操作钥匙插入的最大允许速度，超过此速度可能损坏产品。

产品配备侧面手动释放装置（Manual release），可在紧急情况下（如电源故障、人员被困、设备维护时）通过专用工具从侧面手动解锁开门。手动释放装置设计为需要专用工具操作，防止无关人员误操作，确保安全。手动释放后，门锁机构可自动复位，重新通电后恢复正常锁定功能。

外壳采用玻璃纤维增强自熄热塑性塑料（Glass-fibre reinforced, self-extinguishing thermoplastic），具有高强度、耐冲击、耐腐蚀、自熄（阻燃）等特性，适合工业恶劣环境使用。产品采用双重绝缘（Double-insulated）设计，即使一层绝缘失效，另一层绝缘仍能提供保护，确保操作人员的电气安全。电缆入口为M20×1.5标准螺纹，可配套使用电缆格兰头（Cable gland），接线方式为IDC（Insulation Displacement Connection，绝缘位移连接 / 压接），无需剥线，直接将导线压入接线端子，接线快速可靠，接触电阻低，抗振动性能好。防护等级IP65（防尘防水，可承受低压水柱喷射），适合在多尘、潮湿、有冲洗需求的工业环境中安装使用。

在安全性能方面，产品符合EN ISO 13849-1机械安全标准，性能等级（Performance Level, PL）最高可达 PL c，安全类别（Category）1。B10D 寿命值：NC 触点2,000,000 次操作，NO 触点1,000,000 次操作（在 10% 额定电流和阻性负载条件下）。B10D 是指 10% 的产品发生危险失效时的操作次数，是评估安全元件寿命的重要指标，200 万次的 B10D 值意味着产品具有很长的使用寿命和很高的可靠性，适合长期连续运行的工业设备。

AZM 170 系列安全联锁开关是工业安全领域的经典产品，具有结构紧凑、安装方便、可靠性高、寿命长、安全等级适中等特点，广泛应用于各种需要安全门联锁的工业设备。产品可配套使用多种操作钥匙（Actuating key），如 B1、B5、B6、B11、B15 等，适应不同的安全门结构和安装方式。最小闭合半径：使用 B6 钥匙时为 50mm（1.97 英寸），使用 B1/B5/B11/B15 钥匙时为 200mm（7.87 英寸）。

二、规格参数

表格

参数项	规格值
品牌	ABB
ABB 零件号	3BHB006872P0002
产品型号	AZM 170-02ZRK 230VAC
产品类型	电磁安全联锁开关（Solenoid Interlock / Safety Lock Switch）
应用	安全防护门联锁、机器安全防护
额定控制电压 Us	230 V AC（40-60Hz）
电磁铁最大功耗	12 W（参考值，厂家确认中）
解锁原理	通电解锁（Power to unlock），断电锁定
锁定力（Latching force）	30 N
正向断开力	17 N
正向断开行程	11 mm
夹紧力（Clamping force）	1000 N
抗冲击能量	1 J
最大操作速度	1 m/s
安全触点数量	2 个 NC（常闭）
触点配置	双断点（Double-break），电气隔离触桥
触点材料	细银（Fine silver）
开关原理	慢动（Slow-action），正向断开（Positive-break）NC 触点
触点额定值	4 A / 230 V AC
热试验电流	6 A
工作电流	4000 mA（4 A）
额定绝缘电压	250 V
额定短路电流	1000 A
短路保护	6 A（延时熔断器）
手动释放	有，侧面手动释放（需专用工具）
外壳材料	玻璃纤维增强自熄热塑性塑料
绝缘等级	双重绝缘（Double-insulated）
电缆入口	M20 × 1.5
接线方式	IDC 压接（绝缘位移连接）
防护等级	IP65（厂家确认中，参考值）
安装方式	螺丝固定安装
配套操作钥匙	B1/B5/B6/B11/B15 等（需单独订购）
最小闭合半径	B6 钥匙：50mm；B1/B5/B11/B15 钥匙：200mm
安全标准	EN ISO 13849-1
性能等级 PL	最高 PL c
安全类别	Category 1
B10D 寿命（NC 触点）	2,000,000 次操作
B10D 寿命（NO 触点）	1,000,000 次操作（10% Ie，阻性负载）
工作温度	厂家确认中（参考 -25°C ~ +80°C）
存储温度	厂家确认中（参考 -40°C ~ +85°C）
湿度	厂家确认中（参考 5% ~ 95% RH 非冷凝）
抗振动	厂家确认中（参考 IEC 60068-2-6）
抗冲击	厂家确认中（参考 IEC 60068-2-27）
认证	CE（厂家确认中具体认证清单）
重量	厂家确认中（参考约 0.5-0.8kg，不含包装）
产地	厂家确认中
HS 编码	厂家确认中（参考 85365090）
库存状态	接受预订
质保期	12 个月

三、产品特点

1. 电磁锁定安全联锁，通电解锁断电锁定 — AZM 170-02ZRK 采用电磁锁定机构，额定控制电压 230VAC，最大功耗 12W，工作原理为通电解锁（Power to unlock）—— 电磁铁断电时门锁处于物理锁定状态，安全门无法打开；只有控制系统确认安全条件满足并给电磁铁通电后，门锁才释放，安全门方可打开。这种设计确保断电时（设备停机、电源故障、紧急停机）安全门自动保持锁定，符合故障安全（Fail-Safe）原则，有效防止机器未完全停止时人员进入危险区域，是高安全等级应用的理想选择。
2. 2NC 安全触点，慢动正向断开设计 — 配备 2 个 NC（常闭）安全触点，采用慢动（Slow-action）动作原理和正向断开（Positive-break / 强制断开）设计。当安全门打开时，操作钥匙通过机械方式强制将常闭触点断开，即使触点发生熔焊（粘连），正向断开机构也能通过机械力将触点强制分离，确保安全信号可靠断开。这种正向断开设计符合 IEC 60947-5-1 标准对安全触点的要求，是安全相关应用的必备特性，确保在触点故障情况下仍能可靠断开安全回路。
3. 双断点结构，电气隔离触桥，细银触点 — 触点采用双断点（Double-break）结构，每个触点有两个断开点，相比单断点具有更好的灭弧能力和更低的接触电阻，有效延长触点寿命，提高开关可靠性。两个 NC 触点的触桥之间电气隔离（Galvanically separated），可分别接入不同的安全回路，实现双通道安全监控，满足更高安全等级要求。触点材料为细银（Fine silver），导电性好，抗熔焊性能强，适合频繁开关的安全应用，触点额定值 4A/230VAC，热试验电流 6A。
4. 高锁定力与抗冲击性能，坚固耐用 — 锁定力（Latching force）30N，确保锁定状态下安全门不会被轻易打开；夹紧力（Clamping force）1000N，确保受到外力冲击时门锁不会意外打开；抗冲击能量 1J，能承受工业环境中的振动和冲击；最大操作速度 1m/s，适应正常安全门操作速度。出色的机械性能确保产品在恶劣工业环境中长期可靠运行，不会因振动、冲击或外力而失效。
5. 侧面手动释放，紧急情况安全解锁 — 配备侧面手动释放装置（Manual release），可在紧急情况下（如电源故障、人员被困、设备维护时）通过专用工具从侧面手动解锁开门。手动释放装置设计为需要专用工具操作，防止无关人员误操作，确保安全。手动释放后门锁机构可自动复位，重新通电后恢复正常锁定功能，无需额外复位操作，方便维护和紧急处理。
6. 工业级外壳，双重绝缘，IP65 防护 — 外壳采用玻璃纤维增强自熄热塑性塑料（Glass-fibre reinforced, self-extinguishing thermoplastic），高强度、耐冲击、耐腐蚀、阻燃自熄，适合工业恶劣环境。双重绝缘（Double-insulated）设计，即使一层绝缘失效仍能提供保护，确保操作人员电气安全。M20×1.5 标准电缆入口，配套电缆格兰头使用，防护等级 IP65（防尘防水，可承受低压水柱喷射），适合多尘、潮湿、有冲洗需求的工业环境，如食品饮料、制药、化工等行业。
7. IDC 压接接线，安装快速可靠 — 采用 IDC（Insulation Displacement Connection，绝缘位移连接 / 压接）接线方式，无需剥线，直接将导线压入接线端子，接线快速、可靠，接触电阻低，抗振动性能好，适合批量安装和现场维护。相比传统螺丝接线，IDC 接线避免了因螺丝松动导致的接触不良问题，特别适合振动较大的工业设备。M20×1.5 电缆入口可适配标准电缆格兰头，确保电缆入口处的防护等级。
8. 符合 EN ISO 13849-1，PL c 安全等级 — 产品符合 EN ISO 13849-1 机械安全标准，性能等级（PL）最高可达 PL c，安全类别 Category 1，适用于中等风险等级的安全应用。B10D 寿命值：NC 触点 200 万次操作，NO 触点 100 万次操作（10% Ie，阻性负载），意味着产品具有很长的使用寿命和很高的可靠性。双通道 NC 触点设计可实现双通道安全监控，配合安全继电器或安全 PLC 使用，可满足更高安全等级要求。
9. 结构紧凑安装灵活，适配多种操作钥匙 — AZM 170 系列结构紧凑，安装尺寸标准，可通过螺丝直接固定在安全门框架上，安装方便。可配套使用多种操作钥匙（Actuating key），如 B1、B5、B6、B11、B15 等，适应不同的安全门结构（铰链门、滑动门、可拆卸门等）和安装方式。最小闭合半径：B6 钥匙 50mm，B1/B5/B11/B15 钥匙 200mm，可适应不同的门结构设计。产品左右开门通用，无需区分左右，安装灵活。
10. 广泛行业验证，经典安全产品 — AZM 170 系列是工业安全领域的经典电磁安全联锁产品，在全球各行业有大量成功应用案例，产品质量和性能经过广泛行业验证。广泛应用于数控机床、包装机械、食品饮料设备、制药机械、印刷机械、纺织机械、橡塑机械、木工机械、自动化生产线、机器人工作站、物料搬运系统等需要安全门联锁的工业设备，是机器安全防护的可靠选择。

四、典型应用

• 数控机床安全门联锁：在数控车床、数控铣床、加工中心、磨床等数控机床的防护门上安装，确保机床运行期间防护门锁定无法打开，防止切削液飞溅、刀具断裂飞出、切屑飞溅等造成人员伤害；防护门打开时机床自动停止进给和主轴旋转，保障操作人员安全
• 包装机械安全防护：在包装机、灌装机、封箱机、贴标机、码垛机等包装设备的安全防护罩和检修门上安装，确保设备运行期间防护门锁定，防止操作人员接触运动部件（如封箱刀、灌装头、输送带、码垛机械手）；维护时需断电解锁开门，确保维护安全
• 食品饮料设备安全联锁：在食品加工设备、饮料灌装线、杀菌设备、清洗设备（CIP/SIP）、输送机等设备的安全门上安装，IP65 防护等级适合食品饮料行业的冲洗和潮湿环境；确保设备运行期间人员无法进入危险区域，同时防止异物进入食品生产区域
• 制药机械安全防护：在压片机、胶囊填充机、包装线、灭菌柜、粉体处理设备等制药机械的安全门上安装，符合制药行业的 GMP 规范要求；确保设备运行期间防护门锁定，防止人员接触运动部件和药物粉尘，同时防止未经授权的人员打开设备影响产品质量
• 印刷机械安全联锁：在胶印机、柔印机、凹印机、模切机、折页机等印刷设备的安全防护罩和检修门上安装，确保设备运行期间防护门锁定，防止操作人员接触高速旋转的滚筒、墨辊、切纸刀等危险部件；换版、清洗、维护时需断电解锁
• 纺织机械安全防护：在纺纱机、织布机、针织机、染色机、整理机等纺织设备的安全门上安装，确保设备运行期间人员无法接触高速运动的锭子、综框、针床等部件；IP65 防护适合纺织行业的多尘和潮湿环境
• 橡塑机械安全联锁：在注塑机、挤出机、吹塑机、硫化机、混炼机等橡塑设备的安全门上安装，确保设备运行期间防护门锁定，防止高温熔料喷射、合模机构挤压、螺杆旋转等造成人员伤害；安全门打开时设备自动停止合模和注射动作
• 木工机械安全防护：在裁板锯、封边机、排钻、雕刻机、刨床等木工设备的安全防护罩上安装，确保设备运行期间人员无法接触高速旋转的锯片、铣刀、刨刀等危险刀具；防护门打开时设备自动停止刀具旋转
• 自动化生产线安全联锁：在自动化装配线、焊接线、涂装线、总装线等自动化生产线的安全围栏门、检修门、物料通道门上安装，确保生产线运行期间人员无法进入机器人工作区、焊接区、涂装区等危险区域；人员进入时生产线自动停止相关设备
• 机器人工作站安全防护：在工业机器人工作站、焊接机器人、搬运机器人、装配机器人的安全围栏门上安装，配合安全光幕、安全扫描仪使用，确保机器人运行期间人员无法进入工作范围；安全门打开时机器人自动停止运动，防止机器人碰撞人员
• 物料搬运系统安全联锁：在输送机、提升机、堆垛机、AGV 通道、立体仓库的安全门和检修门上安装，确保设备运行期间人员无法进入物料搬运通道和升降区域；防止输送机夹伤、提升机坠落、堆垛机碰撞等事故
• 橡塑 / 化工设备安全防护：在反应釜、混合机、研磨机、过滤机等化工设备的安全防护罩和人孔门上安装，确保设备运行期间人员无法接触高温、高压、有毒有害的物料和运动部件；维护时需断电解锁并确认设备完全停止
• 测试与实验设备安全联锁：在高低温试验箱、振动台、冲击台、老化房、盐雾试验箱等测试设备的门上安装，确保测试运行期间门无法打开，防止高温、低温、振动、化学试剂等对人员造成伤害；测试结束并确认安全后方可解锁开门
• 电力设备安全防护：在开关柜、配电柜、变压器室、电容器室等电力设备的检修门上安装，确保设备带电运行期间门无法打开，防止人员触电；维护时需断电、验电、接地后才能解锁开门，保障电气维护安全
• 轨道交通设备安全联锁：在轨道交通信号设备、屏蔽门、检修通道门、设备舱门上安装，确保设备运行期间人员无法进入危险区域；保障乘客和维护人员的安全
• 安全围栏与通道门联锁：在工厂车间的安全围栏门、人行通道门、物料通道门、紧急出口门上安装，配合安全 PLC 和安全继电器实现全厂安全门集中监控和联锁，确保危险区域的安全管理
• 设备改造与安全升级：用于老旧设备的安全防护升级改造，为原有设备加装安全门联锁装置，使其符合现行安全标准（如 ISO 13849-1、OSHA 等），提高设备安全性，满足安全审计和合规要求
• 备件更换与系统维护：作为在役设备的安全联锁开关备件，用于故障开关的更换和系统维护，确保设备安全防护功能持续有效，避免因安全开关故障导致设备停机或安全隐患

五、型号说明

ABB 零件号：3BHB006872P0002

产品型号：AZM 170-02ZRK 230VAC

产品描述：Solenoid Interlock, 2 NC safety contacts, slow-action positive-break, power to unlock, latching force 30N, 230VAC（电磁安全联锁开关，2 个 NC 安全触点，慢动正向断开，通电解锁，锁定力 30N，230VAC）

型号编码解析 AZM 170-02ZRK 230VAC：

表格

编码段	含义	说明
AZM	产品系列	电磁安全联锁开关系列（Solenoid Interlock）
170	型号代码	AZM 170 系列，紧凑型电磁安全联锁开关
02	触点配置	2 个 NC（常闭）安全触点
Z	触点类型	慢动（Slow-action）正向断开（Positive-break）触点
R	锁定力类型	带锁定力 30N（R = Latching force 30N）
K	接线方式	IDC 压接接线（Insulation Displacement Connection / Cut clamps）
230VAC	额定控制电压	电磁铁额定供电电压 230V AC（40-60Hz）

ABB 零件号说明：

• 3BHB006872P0002 为 ABB 标准零件号格式
• 3BHB：ABB 产品类别代码（工业自动化 / 安全产品）
• 006872：产品顺序编号
• P0002：版本 / 配置代码

关键参数汇总：

表格

参数	值
产品类型	电磁安全联锁开关
额定控制电压	230V AC
解锁原理	通电解锁（Power to unlock）
锁定力	30N
安全触点	2 NC
触点结构	双断点，电气隔离触桥
触点材料	细银
触点额定值	4A/230VAC
正向断开	有（Positive-break）
手动释放	有（侧面）
防护等级	IP65
接线方式	IDC 压接
电缆入口	M20×1.5
安全标准	EN ISO 13849-1, PL c, Cat.1
B10D（NC）	2,000,000 次

AZM 170 系列常见型号对照：

表格

型号	触点配置	控制电压	锁定力	接线方式	特点
AZM 170-02ZRK 24VAC/DC	2 NC	24V AC/DC	30N	IDC	本产品低压版
AZM 170-02ZRK 110VAC	2 NC	110V AC	30N	IDC	中压版
AZM 170-02ZRK 230VAC	2 NC	230V AC	30N	IDC	本产品（3BHB006872P0002）
AZM 170-11ZRK 230VAC	1 NO + 1 NC	230V AC	30N	IDC	带信号触点
AZM 170-02ZK 230VAC	2 NC	230V AC	无（5N）	IDC	无锁定力（普通联锁）
AZM 170-02ZRK-ST 230VAC	2 NC	230V AC	30N	M12 连接器	带 M12 连接器
AZM 170SK-02ZRK 230VAC	2 NC	230V AC	30N	螺丝端子	螺丝接线版
EX-AZM 170-02ZRK 24VAC/DC	2 NC	24V AC/DC	30N	IDC	防爆版（Ex 认证）

配套操作钥匙（需单独订购）：

• B1：标准直型钥匙
• B5：弯曲型钥匙
• B6：小型弯曲钥匙（最小闭合半径 50mm）
• B11：加长型钥匙
• B15：特殊型钥匙

品牌： ABB（ASEA Brown Boveri），全球领先的工业自动化和电力技术公司

官方文档：

• AZM 170 Series Datasheet（产品数据表）
• AZM 170 Operating Instructions（操作说明书）
• AZM 170 Mounting Instructions（安装说明）
• Conformity Declaration（符合性声明）

六、安装与使用说明

安装前准备：

• 确认产品型号（AZM 170-02ZRK 230VAC）和零件号（3BHB006872P0002）与设计要求匹配
• 确认控制电压为 230VAC，与现场供电电压匹配
• 确认配套操作钥匙型号（B1/B5/B6/B11/B15 等）已准备到位
• 确认安全门结构和安装位置，预留足够的安装空间和操作钥匙运动空间
• 准备安装工具（螺丝刀、钻头、扳手、万用表、电缆格兰头等）
• 准备控制电缆（根据电流和电压选择合适线径，建议 0.5-1.5mm²）
• 阅读 AZM 170 安装说明书和安全注意事项
• 确认安全回路设计（安全继电器 / 安全 PLC 型号、接线方式、安全等级）符合要求

安装注意事项：

• 必须在断电状态下进行安装和接线，确保人身和设备安全
• 安装位置应避免直接暴露在高温、腐蚀性气体、强振动、强电磁干扰环境中
• 产品防护等级 IP65，安装时确保电缆入口处使用合适的电缆格兰头，保持防护等级
• 开关本体应安装在固定的门框或设备框架上，操作钥匙安装在活动的安全门上
• 安装时确保操作钥匙与开关本体的对中精度，钥匙插入时无卡滞、无偏斜
• 确保安全门关闭时操作钥匙完全插入开关本体，触点正确动作
• 安装螺丝应紧固可靠，建议使用弹簧垫圈防松
• 多个安全联锁开关串联使用时，注意触点容量和线路压降
• 电磁铁供电线路应与安全触点信号线路分开敷设，避免电磁干扰
• 接线完成后检查所有接线，确认电压极性正确（AC 无极性，但需确认 L/N），无短路
• 首次上电前确认安全门已关闭，电磁铁供电回路正常

接线说明：

端子定义（参考，具体以产品实际端子标识为准）：

• A1, A2：电磁铁供电端子（230VAC）
• 13, 14：第一组 NC 触点（常闭）—— 13 为公共端，14 为常闭端
• 23, 24：第二组 NC 触点（常闭）—— 23 为公共端，24 为常闭端

电磁铁接线（A1, A2）：

• A1 接 230VAC 火线（L），A2 接 230VAC 零线（N）（AC 无极性，可互换）
• 电磁铁供电由安全控制系统（安全继电器 / 安全 PLC/PLC 输出）控制
• 当控制系统确认安全条件满足（机器已停止、安全门已关闭等），给电磁铁通电，门锁释放，允许开门
• 当机器运行时或安全条件不满足时，电磁铁断电，门锁锁定，安全门无法打开
• 注意：电磁铁最大功耗 12W，供电线路和控制触点容量应满足要求

安全触点接线（2 组 NC）：

• 两组 NC 触点分别接入安全继电器或安全 PLC 的两个安全输入通道（双通道）
• 典型接线方式（双通道安全监控）：
  • 安全通道 1：安全电源 + → 开关 1 的 13 → 14 → 安全继电器输入通道 1
  • 安全通道 2：安全电源 + → 开关 2 的 23 → 24 → 安全继电器输入通道 2
  • 安全门关闭时，NC 触点闭合，两个安全通道均导通，安全继电器确认安全门关闭
  • 安全门打开时，NC 触点断开（正向断开），两个安全通道均断开，安全继电器触发安全停机
• 多个安全门开关串联时，将各开关的 NC 触点串联接入安全通道
• 注意：NC 触点额定值 4A/230VAC，安全回路电流不应超过 4A
• 两组触点之间电气隔离，可分别接入不同电压等级的安全回路（但需注意绝缘电压 250V）

IDC 压接接线方法：

1. 准备好导线（建议 0.5-1.5mm² 单股或多股硬线）
2. 无需剥线，将导线插入对应的 IDC 接线端子孔
3. 使用专用压接工具或螺丝刀将接线端子压下，IDC 刀片会刺穿导线绝缘层，与导线芯线形成可靠电气连接
4. 轻轻拉动导线，确认接线牢固无松动
5. 如需拆线，使用工具将接线端子抬起，取出导线
6. IDC 接线为一次性压接，反复压接可能导致接触不良，建议一次压接成功

电缆格兰头安装：

• M20×1.5 电缆入口，选择适配电缆外径的 M20 电缆格兰头
• 将电缆穿过格兰头，预留足够接线长度
• 拧紧格兰头，确保电缆固定牢固，密封良好，保持 IP65 防护等级
• 未使用的电缆入口应用盲堵密封，保持防护等级

配置与调试：

1. 确认开关本体和操作钥匙安装到位，对中良好
2. 确认所有接线完成，接线正确，无短路
3. 接通控制电源和安全回路电源
4. 安全门关闭状态下：
   • 确认两组 NC 触点均闭合（用万用表测量 13-14、23-24 之间导通）
   • 确认安全继电器 / 安全 PLC 显示安全门关闭状态
   • 确认电磁铁断电（门锁锁定状态）—— 机器运行时应锁定
5. 测试开门联锁：
   • 在机器运行状态下（电磁铁断电锁定），尝试打开安全门，确认门无法打开（锁定力 30N）
   • 给电磁铁通电（模拟安全条件满足），确认门锁释放，安全门可以打开
   • 安全门打开时，确认 NC 触点断开，安全继电器触发安全停机信号
6. 测试正向断开：
   • 缓慢打开安全门，观察 NC 触点在钥匙行程约 11mm 处可靠断开
   • 确认触点断开时无卡滞、无粘连
7. 测试手动释放：
   • 在断电锁定状态下，使用专用工具从侧面操作手动释放装置
   • 确认门锁释放，安全门可以打开
   • 手动释放后关闭安全门，重新通电，确认门锁自动恢复锁定功能
8. 测试安全回路：
   • 模拟安全门打开，确认机器安全停机（如主轴停止、进给停止、机器人停止等）
   • 确认安全停机响应时间符合要求
   • 安全门关闭并锁定后，确认机器可以重新启动
9. 测试多个安全门联锁（如有）：
   • 确认所有安全门关闭后机器才能启动
   • 任意一个安全门打开，机器立即安全停机
10. 记录安装位置、接线图、调试结果，纳入设备安全档案
11. 建议进行安全功能验证测试（按 ISO 13849-1 要求），并记录测试结果

使用注意事项：

• 安全联锁开关是安全相关设备，安装、接线、调试、维护应由具备资质的安全专业人员完成
• 严禁在机器运行时强行打开锁定的安全门，可能损坏门锁机构或造成安全事故
• 严禁短接或旁路安全触点，这会导致安全功能失效，造成严重安全隐患
• 电磁铁通电解锁后应及时开门，避免长时间通电导致电磁铁过热（虽然设计为可连续通电，但仍建议注意散热）
• 定期检查安全门和操作钥匙的安装状态，确保无松动、无变形、对中良好
• 定期检查电缆和接线，确保无破损、无松动、防护等级完好
• 定期清洁开关本体和操作钥匙，避免灰尘、油污、杂物影响触点和机构动作
• 产品外壳为热塑性塑料，避免接触有机溶剂、强酸强碱等腐蚀性物质
• 避免在开关本体上喷涂油漆或其他涂料，可能影响机构动作和散热
• 安全触点的 B10D 寿命为 200 万次，接近寿命时应提前更换，避免安全功能失效
• 建议定期（如每年）进行安全功能测试和触点检查，确保安全功能持续有效
• 更换产品时应使用相同型号或经安全评估的兼容型号，更换后需重新进行安全功能验证
• 废弃的安全联锁开关应按电子废弃物规范处理，不得随意丢弃

维护建议：

• 日常巡视：检查安全门关闭是否到位，门锁是否正常锁定 / 释放，有无异常声音，操作钥匙有无变形
• 月度检查：检查安装螺丝有无松动，电缆格兰头是否紧固，电缆有无破损，安全指示灯状态是否正常
• 季度维护：清洁开关本体和操作钥匙，检查触点动作是否灵活，测试手动释放功能，检查安全回路接线
• 年度校验：进行完整的安全功能测试（开门联锁、安全停机、正向断开、手动释放等），测量触点接触电阻，检查绝缘电阻，记录测试结果，必要时更换产品
• 寿命管理：记录安全门开关次数，接近 B10D 寿命（200 万次）时提前更换产品
• 备件储备：建议储备适量同型号安全联锁开关和操作钥匙作为备件，以便故障时快速更换
• 安全档案：建立安全联锁开关台账，记录安装位置、型号、安装日期、维护记录、测试结果、更换记录等

安全注意事项：

• 安全联锁开关是保障人员安全的关键设备，任何故障或异常都应立即处理，不得带病运行
• 维护安全联锁开关前，必须先停机、断电、挂牌（LOTO：Lockout/Tagout），确认设备完全停止且无残余能量
• 涉及安全回路的修改（如增加开关、修改接线、更换安全继电器），必须重新进行安全评估和安全功能验证
• 严禁在未进行安全评估的情况下更改安全联锁逻辑或旁路安全功能
• 手动释放装置仅供紧急情况和维护使用，不得作为正常开门方式，使用后必须确认恢复正常锁定功能
• 安全门打开进行维护时，应采取额外的安全措施（如挂牌、专人监护、能量隔离），防止设备意外启动
• 雷雨天气应避免进行室外安全联锁开关的维护和接线工作
• 产品的安全等级（PL c, Cat.1）应与设备的风险评估结果匹配，如设备风险等级更高，应选用更高安全等级的产品或采用冗余配置
• 如有任何关于安全功能的疑问，应咨询专业安全工程师或产品技术支持

七、为什么选择我们

1. 专业渠道采购，品质保证 — 所有产品均通过专业采购渠道获取，确保为原装正品，附带产品标识和质量证明，提供 12 个月质量保证。发货前进行外观检查、型号确认和包装核验，确保交付产品完好无损、型号准确。
2. 全球发货 — 支持 DHL、FedEx、UPS 等国际快递，也可按您指定货代发货，送达全球 200 + 国家和地区，可安排项目现场交付和港口交付。工业电子产品采用防震防潮防静电专业包装，确保运输安全。
3. 专业技术支持 — 提供选型咨询（确认控制电压、触点配置、锁定力、接线方式、操作钥匙型号、安全等级匹配）、安装接线指导（电磁铁接线、安全触点双通道接线、IDC 压接方法、电缆格兰头安装）、安全回路设计建议（安全继电器 / 安全 PLC 配置、双通道接线、安全等级计算）、故障诊断和备件更换建议，帮助您正确选型和顺利投运安全联锁系统。
4. 灵活采购 — 支持单个产品采购和批量项目订单，价格随数量阶梯优惠，可提供整站安全产品包（安全联锁开关 + 安全继电器 + 安全光幕 + 操作钥匙组合）和年度备件框架协议。
5. 售前检测 — 发货前进行外观检查、包装核验、型号确认、零件号核对，确保交付产品型号准确、完好无损。

八、常见问题（FAQ）

Q1: 这个 3BHB006872P0002 是什么产品？有什么功能？ A: 3BHB006872P0002 是 ABB 的电磁安全联锁开关（Solenoid Interlock / Safety Lock Switch），对应型号 AZM 170-02ZRK 230VAC，是专为工业机械设备安全防护门设计的安全联锁装置。

主要功能：

• 安全门状态监控：通过 2 个 NC（常闭）安全触点检测安全防护门的开闭状态，门关闭时触点闭合，门打开时触点断开（正向断开）
• 电磁锁定功能：内置电磁铁，额定电压 230VAC，采用通电解锁（Power to unlock）原理 —— 断电时门锁锁定，安全门无法打开；通电时门锁释放，安全门方可打开
• 安全联锁控制：配合安全继电器或安全 PLC 使用，实现 "安全门打开→机器自动停止；机器运行→安全门锁定无法打开" 的安全联锁逻辑
• 正向断开保护：NC 触点采用正向断开（Positive-break）设计，即使触点熔焊也能通过机械力强制断开，确保安全信号可靠
• 手动释放：配备侧面手动释放装置，紧急情况下可手动解锁开门

关键参数：

• 额定控制电压：230V AC
• 电磁铁最大功耗：12W
• 安全触点：2 NC，双断点，细银触点，4A/230VAC
• 锁定力：30N
• 解锁方式：通电解锁（断电锁定）
• 正向断开：有
• 手动释放：有（侧面）
• 防护等级：IP65
• 安全标准：EN ISO 13849-1, PL c, Cat.1
• B10D 寿命：NC 触点 200 万次

简单来说：这就是一个装在机器安全门上的 "电磁锁 + 门开关" 二合一安全装置。机器运行时它把门锁住不让人打开，有人强行开门或门没关好时它给机器发信号让机器停下来，从而保护操作人员不被机器伤到。230VAC 供电，2 个安全触点，锁定力 30N，是工业设备安全防护的标准配置。

Q2: 通电解锁（Power to unlock）是什么意思？和通电锁定有什么区别？怎么选？ A: 通电解锁（Power to unlock）和通电锁定（Power to lock）是电磁安全联锁开关的两种基本工作原理，区别在于电磁铁通电时门锁是锁定还是释放：

表格

对比项	通电解锁（Power to unlock）	通电锁定（Power to lock）
电磁铁断电时	门锁锁定（门打不开）	门锁释放（门可以打开）
电磁铁通电时	门锁释放（门可以打开）	门锁锁定（门打不开）
故障安全原则	符合（断电时门锁定，更安全）	不符合（断电时门可开）
功耗特点	开门时需持续通电，功耗较大	锁定时需持续通电
本产品	✅ AZM 170-02ZRK 是通电解锁型	❌ 本产品不是此类型

通电解锁（本产品类型）的工作逻辑：

• 机器运行时 → 电磁铁断电 → 门锁锁定 → 安全门无法打开（防止人员进入危险区）
• 机器停止后 → 控制系统给电磁铁通电 → 门锁释放 → 安全门可以打开（允许人员进入维护）
• 电源故障 / 紧急停机时 → 电磁铁断电 → 门锁自动锁定 → 安全门保持锁定（故障安全）

怎么选？

• 大多数工业安全应用选通电解锁（Power to unlock）：因为它符合故障安全（Fail-Safe）原则 —— 断电时门自动锁定，即使电源故障或安全回路断开，门也保持锁定，人员无法进入危险区域，安全性更高。本产品 AZM 170-02ZRK 就是这种类型，也是最常用的类型。
• 通电锁定（Power to lock）适用于特殊场景：如需要在断电时能快速开门逃生的场合（如某些消防通道、紧急出口），或者锁定时间远大于开门时间、希望降低功耗的场合。但这种类型不符合故障安全原则，断电时门可以打开，需要额外的安全措施来保障安全。
• 选型建议：除非有特殊要求（如消防逃生、低功耗），否则优先选择通电解锁型（本产品类型），安全性更高，也符合大多数安全标准的推荐做法。

注意：无论哪种类型，安全触点（NC）的功能都是一样的 —— 门关闭时触点闭合，门打开时触点断开，用于检测门状态和触发安全停机。电磁铁只负责锁定 / 释放门锁，不影响触点的状态检测功能。

Q3: 2 个 NC 触点怎么接线？为什么要用双通道？可以只用一个触点吗？ A: AZM 170-02ZRK 配备 2 个 NC（常闭）安全触点，两个触点之间电气隔离，推荐采用双通道接线方式接入安全继电器或安全 PLC。

触点端子定义（参考）：

• 第一组 NC：13（公共端）- 14（常闭端）
• 第二组 NC：23（公共端）- 24（常闭端）

双通道接线方法（推荐）：

安全电源+ ──→ 开关13 ──[NC1]── 14 ──→ 安全继电器通道1输入
安全电源+ ──→ 开关23 ──[NC2]── 24 ──→ 安全继电器通道2输入

• 安全门关闭时：两个 NC 触点均闭合，通道 1 和通道 2 均导通，安全继电器确认 "安全门关闭"
• 安全门打开时：两个 NC 触点均断开（正向断开），通道 1 和通道 2 均断开，安全继电器触发安全停机

为什么要用双通道？

1. 更高安全等级：双通道（冗余）设计可以检测单点故障（如一个触点熔焊、线路断路），安全继电器通过对比两个通道的状态一致性来检测故障，从而达到更高的安全等级（如 PL d/e, Cat.3/4）。单通道只能达到较低的安全等级（PL c, Cat.1/B）。
2. 故障检测：如果一个触点发生熔焊（粘连不断开），另一个正常断开，安全继电器检测到两个通道状态不一致，会报出故障并锁定安全输出，避免因单个触点故障导致安全功能失效。
3. 标准要求：ISO 13849-1 等安全标准要求，对于中高风险的安全功能，应采用双通道冗余结构，以确保单点故障不会导致安全功能丧失。
4. 本产品设计：AZM 170-02ZRK 的两个 NC 触点触桥之间电气隔离，就是为了支持双通道独立接线，实现冗余安全监控。

可以只用一个触点吗？

• 技术上可以，但不推荐。如果只用一个 NC 触点，另一个悬空不用，安全功能变为单通道结构，安全等级降低（最高 PL c, Cat.1/B），且无法检测触点熔焊等单点故障。
• 什么情况下可以单通道：只有在设备风险评估结果为低风险（如轻度伤害、可避免的伤害），且安全标准允许单通道结构时，才可以只用一个触点。但即使如此，也建议使用双通道以提高可靠性。
• 注意：如果只用一个触点，未使用的另一个触点的端子应做好绝缘处理，防止短路。同时，安全继电器 / 安全 PLC 应配置为单通道模式（如果支持）。
• 强烈建议：对于大多数工业设备安全门应用，使用双通道接线，充分利用产品的两个 NC 触点，达到更高的安全等级和可靠性。

多个安全门开关的串联接线：

• 如果有多个安全门，将每个开关的 NC1 串联接入通道 1，NC2 串联接入通道 2：
  • 通道 1：电源 + → 开关 A 的 13-14 → 开关 B 的 13-14 → ... → 安全继电器通道 1
  • 通道 2：电源 + → 开关 A 的 23-24 → 开关 B 的 23-24 → ... → 安全继电器通道 2
• 任意一个门打开，对应通道断开，安全继电器触发停机
• 注意串联数量不宜过多，注意线路压降和触点容量（4A）

Q4: 这个安全开关的锁定力 30N 是什么概念？能被强行打开吗？强行打开会损坏吗？ A: 锁定力（Latching force）30N是指电磁铁断电锁定状态下，保持门锁机构锁定所需的最小外力 —— 也就是说，在锁定状态下，需要施加至少约 30N（约 3 公斤力）的外力，才能克服门锁机构的保持力将门锁强行打开。

30N 是什么概念？

• 30N ≈ 3.06 公斤力（kgf）
• 相当于用手提起约 3 公斤重物所需的力
• 成年人正常开门的力通常在 10-50N 之间，取决于门的大小和重量
• 30N 的锁定力可以防止意外触碰、轻微碰撞导致的门被打开，但无法阻止成年人有意识地强行开门

能被强行打开吗？

• 理论上可以：如果施加足够大的力（远大于 30N），可以强行打开锁定的安全门。但这不是正常操作方式。
• 实际上不建议：强行打开可能导致以下问题：
  1. 门锁机构损坏：强行开门可能导致锁定销、凸轮、弹簧等机械部件变形或断裂，门锁机构永久损坏，无法正常锁定
  2. 操作钥匙损坏：强行开门可能导致操作钥匙弯曲、断裂，需要更换钥匙
  3. 安全门损坏：强行开门可能导致安全门变形、铰链损坏、门框变形
  4. 安全功能失效：门锁机构损坏后，可能无法正常锁定或释放，安全功能失效，需要更换整个开关
  5. 人员伤害风险：强行开门时门可能突然弹开，造成人员碰撞伤害；如果此时机器仍在运行，人员进入危险区域可能造成严重伤害

强行打开后的处理：

• 如果安全门被强行打开过，应立即检查：
  1. 门锁机构是否能正常锁定和释放（通电 / 断电测试）
  2. 操作钥匙是否变形、断裂
  3. NC 触点是否能正常闭合和断开（万用表测量）
  4. 安全门和门框是否变形
• 如果发现任何损坏或异常，应立即更换产品或操作钥匙，不得继续使用
• 即使外观看起来正常，也建议进行完整的安全功能测试，确认安全功能未受影响

如何防止强行打开？

• 30N 锁定力的安全联锁开关主要用于防止意外打开，而非防止蓄意强行打开
• 如果应用场景需要防止蓄意强行打开（如高危险设备、受限区域），应采取额外措施：
  1. 选用更高锁定力的安全联锁开关（如锁定力 1000N 以上的重型电磁锁）
  2. 配合使用安全门插销、门锁等机械锁定装置
  3. 在安全门上安装防拆开关（Tamper switch），检测强行开门行为并报警
  4. 加强现场管理和人员培训，禁止强行打开安全门
  5. 对于极高风险区域，可采用带锁定编码的安全联锁系统（如 RFID 编码钥匙），只有授权人员才能解锁

重要提示：安全联锁开关的目的是通过安全联锁逻辑（门打开→机器停止）来保障安全，而不是单纯依靠物理锁定力来阻止人员进入。即使门被强行打开，NC 触点也会断开，触发机器安全停机，从而保障人员安全。30N 的锁定力足以防止大多数意外打开情况，配合安全停机逻辑，已经能满足绝大多数工业应用的安全需求。

Q5: 这个产品有现货吗？货期多久？价格多少？ A: 该型号目前为接受预订状态，常规货期4-8 周（通过专业采购渠道订货或全球库存调配）。AZM 170 系列是工业安全领域的常用电磁安全联锁开关，用量较大，但具体库存情况随市场波动。

• 价格：具体价格请以我们的正式报价为准，价格取决于采购数量、供货渠道、是否包含技术服务等因素。电磁安全联锁开关属于安全专用产品，价格高于普通限位开关，批量采购可享受阶梯优惠。
• 加急服务：如有紧急需求（如设备故障抢修、项目投产紧急、安全审计整改），我们可以尝试协调全球现货库存或加急订货，具体请联系我们的销售团队。
• 建议您在询价时说明需求数量、控制电压（确认 230VAC）、操作钥匙型号（B1/B5/B6 等，如需配套）、项目名称、期望交货时间和目的地，我们会尽力协调最快交货方案和最优价格。
• 如需同时采购配套的操作钥匙、电缆格兰头、安全继电器、安全 PLC、安全光幕等安全产品，我们可以提供整站安全产品包的组合报价，价格更优惠。

Q6: 安全联锁开关故障了怎么判断和更换？更换后需要重新验证安全功能吗？手动释放怎么用？ A: 常见故障及判断方法：

1. 电磁铁不锁定 / 不释放：
   • 故障现象：通电后门锁不释放，或断电后门锁不锁定
   • 判断方法：用万用表测量 A1-A2 端子电压，确认 230VAC 供电正常；如果供电正常但电磁铁不动作，可能是电磁铁线圈烧坏或机械机构卡滞
   • 检查：听电磁铁动作声音（正常应有 "咔嗒" 声），检查门锁机构是否有异物卡滞
2. NC 触点不动作 / 接触不良：
   • 故障现象：门关闭时触点不闭合，或门打开时触点不断开
   • 判断方法：用万用表测量 13-14、23-24 端子的通断状态，开关门时观察触点状态是否正常变化
   • 可能原因：触点熔焊（粘连）、触点氧化、操作钥匙位置不对、机构卡滞
3. 触点熔焊（粘连）：
   • 故障现象：门打开后 NC 触点仍闭合（不断开），安全继电器不触发停机
   • 判断方法：门打开状态下用万用表测量 NC 触点，如仍导通说明触点熔焊
   • 注意：正向断开机构应能强制断开熔焊的触点，如果正向断开后仍导通，说明触点严重熔焊或机构损坏，必须更换
4. 门锁机构卡滞：
   • 故障现象：钥匙插入 / 拔出困难，门锁锁定 / 释放不顺畅，有异常声音
   • 可能原因：机构进灰、润滑失效、零件变形、操作钥匙对中不良
5. 外壳损坏 / 防护失效：
   • 故障现象：外壳裂纹、变形、电缆入口密封失效、进水进灰
   • 判断方法：目视检查外壳和密封，IP65 防护失效可能导致内部触点和机构腐蚀
6. 手动释放失效：
   • 故障现象：操作手动释放装置后门锁不释放
   • 可能原因：手动释放机构损坏、需要更大的力、操作方法不对

更换步骤：

1. 停机、断电、挂牌（LOTO），确认设备完全停止且无残余能量
2. 断开安全联锁开关的所有接线（电磁铁 A1-A2，NC 触点 13-14、23-24）
3. 拆下开关本体的安装螺丝，取下旧开关
4. 确认新开关型号（AZM 170-02ZRK 230VAC）和零件号（3BHB006872P0002）与旧开关一致
5. 将新开关安装到原位置，拧紧安装螺丝
6. 按原接线方式重新接线（电磁铁和 NC 触点），IDC 压接确保接触可靠
7. 检查操作钥匙与新开关的对中，开关门时钥匙动作顺畅
8. 恢复供电，进行安全功能验证（见下文）

更换后必须重新验证安全功能！ 安全联锁开关是安全相关设备，更换后必须进行完整的安全功能验证测试，确认安全功能正常，才能投入使用：

1. 触点动作测试：开关门时用万用表测量两组 NC 触点，确认门关闭时闭合、门打开时断开，正向断开可靠
2. 锁定 / 释放测试：断电时确认门锁锁定（门打不开），通电时确认门锁释放（门可以打开）
3. 安全停机测试：模拟门打开，确认安全继电器 / 安全 PLC 触发安全停机，机器相关运动停止
4. 恢复测试：门关闭并锁定后，确认机器可以正常启动
5. 手动释放测试：断电状态下操作手动释放，确认门可以打开，恢复后功能正常
6. 故障模拟测试（如安全继电器支持）：模拟一个通道断开，确认安全继电器检测到故障并锁定
7. 记录所有测试结果，纳入设备安全档案

手动释放使用方法：

1. 适用场景：仅在紧急情况下（如电源故障、人员被困、设备维护时门锁无法正常释放）使用
2. 操作方法：
   • 找到开关本体侧面的手动释放孔 / 装置
   • 使用专用工具（如内六角扳手、专用钥匙，具体以产品说明书为准）插入手动释放孔
   • 按说明书指示方向旋转或推动工具，触发手动释放机构
   • 感觉到门锁机构释放后，即可打开安全门
3. 注意事项：
   • 手动释放需要专用工具，防止无关人员误操作
   • 手动释放前应确认设备已停止运行，无危险
   • 手动释放开门后，进入设备区域仍需采取额外安全措施（挂牌、监护）
   • 维护完成后，关闭安全门，移除手动释放工具，确认门锁自动恢复锁定功能
   • 重新通电测试，确认电磁铁锁定 / 释放和 NC 触点功能正常
   • 手动释放不得作为正常开门方式，频繁使用可能磨损机构
4. 如果手动释放也无法开门：可能是门锁机构严重损坏或卡死，应联系专业技术人员处理，不得强行撬门，以免造成更大损坏和安全风险

维护建议：

• 建议每月检查一次安全联锁开关的功能（锁定 / 释放、触点动作、手动释放）
• 建议每年进行一次完整的安全功能验证测试和触点检查
• 记录开关次数，接近 B10D 寿命（200 万次）时提前更换
• 储备适量同型号备件，以便故障时快速更换

【搜索关键词】（逗号分隔，可直接复制）

ABB 3BHB006872P0002, AZM 170-02ZRK, 230VAC, 电磁安全联锁开关, Solenoid Interlock, Safety Lock Switch, 安全门锁, Safety Door Interlock, 机器安全, Machine Safety, 2NC安全触点, 2 NC contacts, 常闭触点, Normally Closed, 通电解锁, Power to unlock, 断电锁定, 锁定力30N, Latching force 30N, 正向断开, Positive-break, 慢动触点, Slow-action, 双断点, Double-break, 电气隔离触桥, 细银触点, Fine silver contacts, 4A/230VAC, 手动释放, Manual release, 侧面手动释放, IP65防护, IP65 protection, 双重绝缘, Double-insulated, IDC压接, IDC termination, M20×1.5电缆入口, 玻璃纤维增强塑料, 热塑性外壳, EN ISO 13849-1, PL c, Category 1, B10D 200万次, 安全继电器, Safety Relay, 安全PLC, 双通道安全监控, 安全防护门, Safety Guard Door, 检修门联锁, 数控机床安全门, 包装机械安全, 食品饮料设备安全, 制药机械安全, 印刷机械安全, 纺织机械安全, 橡塑机械安全, 自动化生产线安全, 机器人工作站安全, 安全围栏门, 操作钥匙, Actuating key, B1钥匙, B5钥匙, B6钥匙, 安全功能验证, 安全联锁, 接受预订, ABB

【SEO 关键词】

ABB 3BHB006872P0002, AZM 170-02ZRK 230VAC, 电磁安全联锁开关, 2NC安全触点, 通电解锁, 锁定力30N, 正向断开, IP65, PL c安全等级, 机器安全防护门, 接受预订

【Meta Description（搜索引擎优化 - 产品描述）】

ABB 3BHB006872P0002（型号AZM 170-02ZRK，230VAC）电磁安全联锁开关，专为工业机械设备安全防护门设计，实现安全门状态监控与电磁锁定联锁。配备2个NC常闭安全触点，慢动正向断开设计，双断点电气隔离触桥，细银触点4A/230VAC。电磁铁230VAC供电，最大功耗12W，通电解锁（断电锁定），锁定力30N，夹紧力1000N，抗冲击1J。配备侧面手动释放装置，玻璃纤维增强自熄热塑性外壳，双重绝缘，M20×1.5电缆入口，IDC压接接线，IP65防护。符合EN ISO 13849-1，性能等级PL c，类别1，B10D寿命NC触点200万次。广泛应用于数控机床、包装机械、食品饮料、制药、印刷、纺织、橡塑机械、自动化生产线、机器人工作站等安全门联锁。接受预订，支持全球发货，立即询价获取货期与含运费报价。

---

English Version

【Product Title】

ABB 3BHB006872P0002 Safety Interlock Switch | AZM 170-02ZRK | 230VAC | Solenoid Safety Door Lock | 2NC Safety Contacts | Power to Unlock | Latching Force 30N | Positive-Break | Slow-Action Contacts | Double-Break | Manual Release | IP65 Protection | Machine Safety Guard | Safety Door Interlock | Order Available

【Short Description】

ABB 3BHB006872P0002 (model AZM 170-02ZRK, 230VAC) Solenoid Interlock / Safety Lock Switch, is a safety interlock device specifically designed for safety guard doors of industrial machinery and equipment, used to monitor and lock machine safety guard doors, access doors, and protective covers, ensuring that guard doors cannot be opened during machine operation, preventing operators from entering hazardous areas and ensuring personal safety. Equipped with 2 NC (normally closed) safety contacts, adopting slow-action positive-break design, double-break structure, galvanically separated contact bridges, fine silver contact material, rated 4A/230VAC, thermal test current 6A. Solenoid rated control voltage 230VAC, maximum power consumption 12W, adopting power-to-unlock principle — the door lock is in locked state when de-energized, and can only be unlocked when energized, ensuring the safety door remains locked when power is off. Latching force 30N, positive-break force 17N, positive-break travel 11mm, clamping force 1000N, impact energy resistance 1J, maximum actuating speed 1m/s. Equipped with side manual release device for emergency unlocking. Housing made of glass-fiber reinforced self-extinguishing thermoplastic, double-insulated design, M20×1.5 cable entry, IDC insulation displacement termination, IP65 protection rating, suitable for installation in harsh industrial environments. Complies with EN ISO 13849-1, performance level up to PL c, category 1, B10D life 2,000,000 operations for NC contacts. Widely applied in CNC machine tools, packaging machinery, food & beverage equipment, pharmaceutical machinery, printing machinery, textile machinery, rubber & plastic machinery, automated production lines, robot work cells and other industrial equipment requiring safety door interlock. Order available, worldwide shipping. Request a quote for lead time and freight-inclusive pricing.

【Detailed Description】

1. Product Overview

The ABB 3BHB006872P0002 (model AZM 170-02ZRK, 230VAC) Solenoid Interlock / Safety Lock Switch is a safety interlock device specifically designed for safety guard doors of industrial machinery and equipment. It belongs to the core safety components in the field of Machine Safety, used to monitor and lock machine safety guard doors, access doors, protective covers, safety fence doors, etc., ensuring that guard doors cannot be opened during machine operation, preventing operators from accidentally entering hazardous areas (such as rotating parts, moving mechanisms, high-temperature areas, high-voltage areas, etc.), thereby ensuring operator personal safety and preventing unauthorized personnel from entering equipment areas.

In modern industrial production, safety protection of mechanical equipment is a key link in ensuring production safety and personnel safety. According to international safety standards (such as ISO 13849-1, IEC 62061, OSHA, etc.), mechanical equipment with hazardous moving parts must be equipped with safety protection devices, and safety interlock switches must be installed on guard doors to ensure that the machine automatically stops when the guard door is opened, and the machine can only start after the guard door is closed and locked. Solenoid interlock switches (with locking function) are the preferred solution in applications with higher safety level requirements. They not only detect the open/closed status of the guard door, but also physically lock the guard door through a solenoid, preventing it from being accidentally opened or forcibly opened during machine operation, providing higher safety assurance than ordinary safety door switches.

The AZM 170-02ZRK adopts the power-to-unlock working principle: when the solenoid is de-energized, the door lock mechanism is in the locked state and the safety door cannot be opened; when the solenoid is energized (230VAC), the door lock mechanism releases and the safety door can be opened. This design ensures that in the de-energized state (such as equipment shutdown, power failure, emergency stop), the safety door remains locked. Only after the control system confirms that safety conditions are met and energizes the solenoid can the door be unlocked and opened, effectively preventing operators from opening the safety door and entering the hazardous area before the machine has completely stopped. At the same time, this design also means that if a fault occurs in the safety circuit (such as safety relay disconnection, line break), the solenoid is de-energized and the door lock automatically locks, complying with the Fail-Safe principle.

The product is equipped with 2 NC (normally closed) safety contacts for detecting the open/closed status of the guard door. The contacts adopt slow-action operating principle and positive-break (forced break) design — when the safety door is opened, the actuating key drives the contact mechanism and forcibly opens the normally closed contacts through mechanical means. Even if the contacts are welded (stuck), the positive-break mechanism can forcibly separate the contacts through mechanical force, ensuring reliable disconnection of the safety signal. This positive-break design is a key feature of safety contacts, complying with the requirements of IEC 60947-5-1 standard for safety contacts, ensuring reliable disconnection of the safety circuit even in case of contact failure (welding), and is an essential feature for safety-related applications.

The contacts adopt a double-break structure, each contact has two breaking points. Compared with single-break contacts, it has better arc extinguishing capability and lower contact resistance, effectively extending contact life and improving switching reliability. The contact bridges of the two NC contacts are galvanically separated and can be respectively connected to different safety circuits (such as two independent safety channels), achieving dual-channel safety monitoring and meeting higher safety level requirements. The contact material is fine silver, with good conductivity and anti-welding performance, suitable for frequently switching safety applications.

In terms of mechanical performance, the AZM 170-02ZRK has excellent locking and impact resistance. Latching force 30N — this is the minimum external force required to keep the door lock locked when the solenoid is de-energized, meaning at least 30N of force is required to forcibly open the door lock in the locked state (in actual design, forcible opening is not recommended as it may damage the mechanism). Positive-break force 17N — the force required by the actuating key when positively breaking the contacts. Positive-break travel 11mm — the key travel required from the start of contact action to complete positive break. Clamping force 1000N — the maximum clamping force the door lock mechanism can withstand, ensuring the door lock is not accidentally opened when subjected to external impact. Impact energy resistance 1J — the impact energy the product can withstand, ensuring reliable operation under vibration and shock in industrial environments. Maximum actuating speed 1m/s — the maximum allowable speed at which the actuating key is inserted when the safety door is closed; exceeding this speed may damage the product.

The product is equipped with a side manual release device, which can be used to manually unlock and open the door in emergency situations (such as power failure, personnel trapped, equipment maintenance). The manual release device is designed to require a special tool for operation, preventing unauthorized personnel from misoperation and ensuring safety. After manual release, the door lock mechanism can automatically reset, and normal locking function is restored after re-energization.

The housing is made of glass-fiber reinforced self-extinguishing thermoplastic, with high strength, impact resistance, corrosion resistance, self-extinguishing (flame retardant) properties, suitable for use in harsh industrial environments. The product adopts double-insulated design; even if one layer of insulation fails, the other layer can still provide protection, ensuring operator electrical safety. The cable entry is M20×1.5 standard thread, can be used with cable glands. The termination method is IDC (Insulation Displacement Connection), no wire stripping required, directly press the wire into the terminal, fast and reliable termination, low contact resistance, good vibration resistance. Protection rating IP65 (dust-tight and water-protected, can withstand low-pressure water jet), suitable for installation in dusty, humid, wash-down industrial environments.

In terms of safety performance, the product complies with EN ISO 13849-1 machinery safety standard, Performance Level (PL) up to PL c, Category 1. B10D life values: NC contacts 2,000,000 operations, NO contacts 1,000,000 operations (at 10% rated current and resistive load). B10D refers to the number of operations at which 10% of products experience dangerous failures, an important indicator for evaluating safety component life. A B10D value of 2 million operations means the product has very long service life and high reliability, suitable for long-term continuous operation of industrial equipment.

The AZM 170 series safety interlock switch is a classic product in the industrial safety field, with compact structure, convenient installation, high reliability, long life, and appropriate safety level, widely applied in various industrial equipment requiring safety door interlock. The product can be used with various actuating keys, such as B1, B5, B6, B11, B15, etc., adapting to different safety door structures and installation methods. Minimum closing radius: 50mm (1.97 inches) with B6 key, 200mm (7.87 inches) with B1/B5/B11/B15 keys.

2. Specifications

表格

Parameter	Value
Brand	ABB
ABB Part No.	3BHB006872P0002
Product Model	AZM 170-02ZRK 230VAC
Product Type	Solenoid Interlock / Safety Lock Switch
Application	Safety guard door interlock, machine safety protection
Rated Control Voltage Us	230 V AC (40-60Hz)
Solenoid Max. Power Consumption	12 W (reference, to be confirmed)
Unlocking Principle	Power to unlock (locked when de-energized)
Latching Force	30 N
Positive-Break Force	17 N
Positive-Break Travel	11 mm
Clamping Force	1000 N
Impact Energy Resistance	1 J
Maximum Actuating Speed	1 m/s
Number of Safety Contacts	2 NC (normally closed)
Contact Configuration	Double-break, galvanically separated contact bridges
Contact Material	Fine silver
Switching Principle	Slow-action, positive-break NC contacts
Contact Rating	4 A / 230 V AC
Thermal Test Current	6 A
Operating Current	4000 mA (4 A)
Rated Insulation Voltage	250 V
Rated Short-Circuit Current	1000 A
Short-Circuit Protection	6 A (time-delay fuse)
Manual Release	Yes, side manual release (special tool required)
Housing Material	Glass-fiber reinforced self-extinguishing thermoplastic
Insulation Class	Double-insulated
Cable Entry	M20 × 1.5
Termination Method	IDC (Insulation Displacement Connection)
Protection Rating	IP65 (to be confirmed, reference)
Mounting Method	Screw mounting
Compatible Actuating Keys	B1/B5/B6/B11/B15 etc. (ordered separately)
Minimum Closing Radius	B6 key: 50mm; B1/B5/B11/B15 keys: 200mm
Safety Standard	EN ISO 13849-1
Performance Level PL	Up to PL c
Safety Category	Category 1
B10D Life (NC contacts)	2,000,000 operations
B10D Life (NO contacts)	1,000,000 operations (10% Ie, resistive load)
Operating Temperature	To be confirmed (reference -25°C ~ +80°C)
Storage Temperature	To be confirmed (reference -40°C ~ +85°C)
Humidity	To be confirmed (reference 5% ~ 95% RH non-condensing)
Vibration Resistance	To be confirmed (reference IEC 60068-2-6)
Shock Resistance	To be confirmed (reference IEC 60068-2-27)
Certification	CE (specific certification list to be confirmed)
Weight	To be confirmed (reference approx. 0.5-0.8kg, excluding packaging)
Country of Origin	To be confirmed
HS Code	To be confirmed (reference 85365090)
Stock Status	Order available
Warranty Period	12 months

3. Key Features

1. Solenoid Locking Safety Interlock, Power-to-Unlock / De-energized Locking — The AZM 170-02ZRK adopts a solenoid locking mechanism, rated control voltage 230VAC, maximum power consumption 12W, working principle is power-to-unlock — when the solenoid is de-energized, the door lock is in physically locked state and the safety door cannot be opened; only after the control system confirms safety conditions are met and energizes the solenoid, the lock releases and the safety door can be opened. This design ensures that when power is off (equipment shutdown, power failure, emergency stop), the safety door automatically remains locked, complying with the Fail-Safe principle, effectively preventing personnel from entering hazardous areas before the machine completely stops, ideal for high safety level applications.
2. 2 NC Safety Contacts, Slow-Action Positive-Break Design — Equipped with 2 NC (normally closed) safety contacts, adopting slow-action operating principle and positive-break (forced break) design. When the safety door is opened, the actuating key forcibly opens the normally closed contacts through mechanical means. Even if contacts are welded (stuck), the positive-break mechanism can forcibly separate contacts through mechanical force, ensuring reliable disconnection of safety signal. This positive-break design complies with IEC 60947-5-1 standard requirements for safety contacts, is an essential feature for safety-related applications, ensuring reliable disconnection of safety circuit even in case of contact failure.
3. Double-Break Structure, Galvanically Separated Bridges, Fine Silver Contacts — Contacts adopt double-break structure, each contact has two breaking points. Compared with single-break, it has better arc extinguishing capability and lower contact resistance, effectively extending contact life and improving switching reliability. The contact bridges of the two NC contacts are galvanically separated, can be respectively connected to different safety circuits, achieving dual-channel safety monitoring and meeting higher safety level requirements. Contact material is fine silver, good conductivity, strong anti-welding performance, suitable for frequently switching safety applications, contact rating 4A/230VAC, thermal test current 6A.
4. High Latching Force and Impact Resistance, Robust and Durable — Latching force 30N, ensuring the safety door cannot be easily opened in locked state; clamping force 1000N, ensuring the door lock is not accidentally opened when subjected to external impact; impact energy resistance 1J, can withstand vibration and shock in industrial environments; maximum actuating speed 1m/s, adapting to normal safety door operating speed. Excellent mechanical performance ensures long-term reliable operation in harsh industrial environments, no failure due to vibration, shock or external force.
5. Side Manual Release, Safe Emergency Unlocking — Equipped with side manual release device, can be used to manually unlock and open the door in emergency situations (such as power failure, personnel trapped, equipment maintenance). The manual release device is designed to require a special tool for operation, preventing unauthorized personnel from misoperation and ensuring safety. After manual release, the door lock mechanism can automatically reset, normal locking function restored after re-energization, no additional reset operation required, convenient for maintenance and emergency handling.
6. Industrial-Grade Housing, Double Insulation, IP65 Protection — Housing made of glass-fiber reinforced self-extinguishing thermoplastic, high strength, impact resistance, corrosion resistance, flame retardant self-extinguishing, suitable for harsh industrial environments. Double-insulated design, even if one layer of insulation fails, still provides protection, ensuring operator electrical safety. M20×1.5 standard cable entry, used with cable glands, protection rating IP65 (dust-tight and water-protected, can withstand low-pressure water jet), suitable for dusty, humid, wash-down industrial environments such as food & beverage, pharmaceutical, chemical industries.
7. IDC Insulation Displacement Termination, Fast and Reliable Installation — Adopts IDC (Insulation Displacement Connection) termination method, no wire stripping required, directly press the wire into the terminal, fast and reliable termination, low contact resistance, good vibration resistance, suitable for batch installation and field maintenance. Compared with traditional screw termination, IDC avoids poor contact caused by loose screws, especially suitable for industrial equipment with high vibration. M20×1.5 cable entry adapts to standard cable glands, ensuring protection rating at cable entry.
8. Compliant with EN ISO 13849-1, PL c Safety Level — Product complies with EN ISO 13849-1 machinery safety standard, Performance Level (PL) up to PL c, Safety Category 1, suitable for medium risk level safety applications. B10D life values: NC contacts 2,000,000 operations, NO contacts 1,000,000 operations (10% Ie, resistive load), meaning the product has very long service life and high reliability. Dual-channel NC contact design can achieve dual-channel safety monitoring, used with safety relay or safety PLC, can meet higher safety level requirements.
9. Compact Structure, Flexible Installation, Compatible with Multiple Actuating Keys — AZM 170 series has compact structure, standard mounting dimensions, can be directly fixed on safety door frame or equipment frame by screws, convenient installation. Can be used with various actuating keys (such as B1, B5, B6, B11, B15, etc.), adapting to different safety door structures (hinged door, sliding door, removable door, etc.) and installation methods. Minimum closing radius: B6 key 50mm, B1/B5/B11/B15 keys 200mm, can adapt to different door structure designs. Product is universal for left and right opening doors, no need to distinguish left/right, flexible installation.
10. Widely Verified Across Industries, Classic Safety Product — AZM 170 series is a classic solenoid safety interlock product in the industrial safety field, with numerous successful application cases in various industries worldwide, product quality and performance widely verified across industries. Widely applied in CNC machine tools, packaging machinery, food & beverage equipment, pharmaceutical machinery, printing machinery, textile machinery, rubber & plastic machinery, woodworking machinery, automated production lines, robot work cells, material handling systems and other industrial equipment requiring safety door interlock, a reliable choice for machine safety protection.

4. Typical Applications

• CNC Machine Tool Safety Door Interlock: Installed on guard doors of CNC lathes, CNC milling machines, machining centers, grinding machines and other CNC machine tools, ensuring guard doors are locked and cannot be opened during machine operation, preventing injury from cutting fluid splashing, tool breakage flying out, chip splashing; when guard door opens, machine automatically stops feed and spindle rotation, ensuring operator safety
• Packaging Machinery Safety Protection: Installed on safety guards and access doors of packaging machines, filling machines, carton sealers, labeling machines, palletizers and other packaging equipment, ensuring guard doors are locked during equipment operation, preventing operators from contacting moving parts (such as sealing knives, filling nozzles, conveyors, palletizing robots); maintenance requires de-energized unlocking, ensuring maintenance safety
• Food & Beverage Equipment Safety Interlock: Installed on safety doors of food processing equipment, beverage filling lines, sterilization equipment, cleaning equipment (CIP/SIP), conveyors, etc., IP65 protection rating suitable for wash-down and humid environments in food & beverage industry; ensuring personnel cannot enter hazardous areas during equipment operation, while preventing foreign objects from entering food production areas
• Pharmaceutical Machinery Safety Protection: Installed on safety doors of tablet presses, capsule filling machines, packaging lines, sterilizers, powder handling equipment and other pharmaceutical machinery, complying with GMP requirements of pharmaceutical industry; ensuring guard doors are locked during equipment operation, preventing personnel from contacting moving parts and drug dust, while preventing unauthorized personnel from opening equipment and affecting product quality
• Printing Machinery Safety Interlock: Installed on safety guards and access doors of offset presses, flexo presses, gravure presses, die-cutters, folders and other printing equipment, ensuring guard doors are locked during equipment operation, preventing operators from contacting high-speed rotating cylinders, ink rollers, paper cutters and other hazardous parts; plate changing, cleaning, maintenance require de-energized unlocking
• Textile Machinery Safety Protection: Installed on safety doors of spinning machines, looms, knitting machines, dyeing machines, finishing machines and other textile equipment, ensuring personnel cannot contact high-speed moving spindles, heald frames, needle beds and other parts during equipment operation; IP65 protection suitable for dusty and humid environments in textile industry
• Rubber & Plastic Machinery Safety Interlock: Installed on safety doors of injection molding machines, extruders, blow molding machines, vulcanizing machines, mixers and other rubber & plastic equipment, ensuring guard doors are locked during equipment operation, preventing injury from high-temperature melt injection, clamping mechanism squeezing, screw rotation; when safety door opens, equipment automatically stops clamping and injection actions
• Woodworking Machinery Safety Protection: Installed on safety guards of panel saws, edge banders, multi-boring machines, engraving machines, planers and other woodworking equipment, ensuring personnel cannot contact high-speed rotating saw blades, milling cutters, planer knives and other hazardous cutting tools during equipment operation; when guard door opens, equipment automatically stops tool rotation
• Automated Production Line Safety Interlock: Installed on safety fence doors, access doors, material passage doors of automated assembly lines, welding lines, painting lines, final assembly lines and other automated production lines, ensuring personnel cannot enter robot work areas, welding areas, painting areas and other hazardous zones during production line operation; when personnel enter, production line automatically stops related equipment
• Robot Work Cell Safety Protection: Installed on safety fence doors of industrial robot work cells, welding robots, handling robots, assembly robots, used together with safety light curtains and safety scanners, ensuring personnel cannot enter the working range during robot operation; when safety door opens, robot automatically stops motion, preventing robot from colliding with personnel
• Material Handling System Safety Interlock: Installed on safety doors and access doors of conveyors, elevators, stackers, AGV passages, automated warehouses, ensuring personnel cannot enter material handling passages and lifting areas during equipment operation; preventing conveyor pinching, elevator falling, stacker collision and other accidents
• Chemical Equipment Safety Protection: Installed on safety guards and manhole doors of reactors, mixers, grinders, filters and other chemical equipment, ensuring personnel cannot contact high-temperature, high-pressure, toxic and harmful materials and moving parts during equipment operation; maintenance requires de-energized unlocking and confirmation that equipment is completely stopped
• Test & Laboratory Equipment Safety Interlock: Installed on doors of high-low temperature test chambers, vibration tables, shock tables, aging rooms, salt spray test chambers and other test equipment, ensuring doors cannot be opened during test operation, preventing injury from high temperature, low temperature, vibration, chemical reagents; door can only be unlocked after test ends and safety is confirmed
• Power Equipment Safety Protection: Installed on access doors of switchgear, power distribution cabinets, transformer rooms, capacitor rooms and other power equipment, ensuring doors cannot be opened during equipment energized operation, preventing electric shock; maintenance requires power off, voltage testing, grounding before unlocking, ensuring electrical maintenance safety
• Rail Transit Equipment Safety Interlock: Installed on rail transit signal equipment, platform screen doors, access passage doors, equipment compartment doors, ensuring personnel cannot enter hazardous areas during equipment operation; ensuring passenger and maintenance personnel safety
• Safety Fence and Passage Door Interlock: Installed on factory safety fence doors, pedestrian passage doors, material passage doors, emergency exit doors, used with safety PLC and safety relay to achieve centralized monitoring and interlock of all plant safety doors, ensuring safety management of hazardous areas
• Equipment Retrofit and Safety Upgrade: Used for safety protection upgrade of older equipment, adding safety door interlock devices to existing equipment, making them comply with current safety standards (such as ISO 13849-1, OSHA, etc.), improving equipment safety, meeting safety audit and compliance requirements
• Spare Part Replacement and System Maintenance: Used as safety interlock switch spare parts for in-service equipment, for faulty switch replacement and system maintenance, ensuring continuous effectiveness of equipment safety protection functions, avoiding equipment downtime or safety hazards caused by safety switch failure

5. Model Explanation

ABB Part No.: 3BHB006872P0002

Product Model: AZM 170-02ZRK 230VAC

Product Description: Solenoid Interlock, 2 NC safety contacts, slow-action positive-break, power to unlock, latching force 30N, 230VAC

Model Code Breakdown AZM 170-02ZRK 230VAC:

表格

Code Segment	Meaning	Description
AZM	Product Series	Solenoid Interlock series
170	Model Code	AZM 170 series, compact solenoid interlock
02	Contact Configuration	2 NC (normally closed) safety contacts
Z	Contact Type	Slow-action positive-break contacts
R	Latching Force Type	With latching force 30N
K	Termination Method	IDC insulation displacement connection (cut clamps)
230VAC	Rated Control Voltage	Solenoid rated supply voltage 230V AC (40-60Hz)

ABB Part No. Explanation:

• 3BHB006872P0002 is ABB standard part number format
• 3BHB: ABB product category code (industrial automation/safety products)
• 006872: Product sequence number
• P0002: Version/configuration code

Key Parameters Summary:

表格

Parameter	Value
Product Type	Solenoid safety interlock switch
Rated Control Voltage	230V AC
Unlocking Principle	Power to unlock
Latching Force	30N
Safety Contacts	2 NC
Contact Structure	Double-break, galvanically separated bridges
Contact Material	Fine silver
Contact Rating	4A/230VAC
Positive-Break	Yes
Manual Release	Yes (side)
Protection Rating	IP65
Termination Method	IDC
Cable Entry	M20×1.5
Safety Standard	EN ISO 13849-1, PL c, Cat.1
B10D (NC)	2,000,000 operations

AZM 170 Series Common Models Comparison:

表格

Model	Contacts	Control Voltage	Latching Force	Termination	Features
AZM 170-02ZRK 24VAC/DC	2 NC	24V AC/DC	30N	IDC	Low voltage version
AZM 170-02ZRK 110VAC	2 NC	110V AC	30N	IDC	Medium voltage version
AZM 170-02ZRK 230VAC	2 NC	230V AC	30N	IDC	This product (3BHB006872P0002)
AZM 170-11ZRK 230VAC	1 NO + 1 NC	230V AC	30N	IDC	With signal contact
AZM 170-02ZK 230VAC	2 NC	230V AC	None (5N)	IDC	No latching force (standard interlock)
AZM 170-02ZRK-ST 230VAC	2 NC	230V AC	30N	M12 connector	With M12 connector
AZM 170SK-02ZRK 230VAC	2 NC	230V AC	30N	Screw terminals	Screw termination version
EX-AZM 170-02ZRK 24VAC/DC	2 NC	24V AC/DC	30N	IDC	Explosion-proof version (Ex certified)

Compatible Actuating Keys (ordered separately):

• B1: Standard straight key
• B5: Bent key
• B6: Small bent key (minimum closing radius 50mm)
• B11: Extended key
• B15: Special key

Brand: ABB (ASEA Brown Boveri), global leading industrial automation and power technology company

Official Documentation:

• AZM 170 Series Datasheet
• AZM 170 Operating Instructions
• AZM 170 Mounting Instructions
• Conformity Declaration

6. Installation & Usage Instructions

Pre-Installation Preparation:

• Confirm product model (AZM 170-02ZRK 230VAC) and part number (3BHB006872P0002) match design requirements
• Confirm control voltage is 230VAC, matching field supply voltage
• Confirm compatible actuating key model (B1/B5/B6/B11/B15, etc.) is prepared
• Confirm safety door structure and mounting position, reserve sufficient mounting space and actuating key movement space
• Prepare installation tools (screwdriver, drill, wrench, multimeter, cable glands, etc.)
• Prepare control cables (select appropriate cross-section according to current and voltage, recommended 0.5-1.5mm²)
• Read AZM 170 installation instructions and safety precautions
• Confirm safety circuit design (safety relay/safety PLC model, wiring method, safety level) meets requirements

Installation Notes:

• Installation and wiring must be performed in de-energized state, ensuring personal and equipment safety
• Mounting location should avoid direct exposure to high temperature, corrosive gas, strong vibration, strong electromagnetic interference environments
• Product protection rating IP65, ensure appropriate cable glands are used at cable entry to maintain protection rating
• Switch body should be mounted on fixed door frame or equipment frame, actuating key mounted on movable safety door
• Ensure alignment accuracy between actuating key and switch body during installation, no jamming or skewing when key is inserted
• Ensure actuating key is fully inserted into switch body when safety door is closed, contacts operate correctly
• Mounting screws should be tight and reliable, spring washers recommended for anti-loosening
• When multiple safety interlock switches are used in series, pay attention to contact capacity and line voltage drop
• Solenoid supply lines should be routed separately from safety contact signal lines to avoid electromagnetic interference
• After wiring completion, check all wiring, confirm voltage polarity correct (AC no polarity, but confirm L/N), no short circuit
• Before first power-on, confirm safety door is closed, solenoid supply circuit normal

Wiring Instructions:

Terminal Definitions (reference, subject to actual terminal markings on product):

• A1, A2: Solenoid supply terminals (230VAC)
• 13, 14: First NC contact group — 13 common, 14 normally closed
• 23, 24: Second NC contact group — 23 common, 24 normally closed

Solenoid Wiring (A1, A2):

• A1 to 230VAC live (L), A2 to 230VAC neutral (N) (AC no polarity, interchangeable)
• Solenoid supply controlled by safety control system (safety relay/safety PLC/PLC output)
• When control system confirms safety conditions met (machine stopped, safety door closed, etc.), energizes solenoid, lock releases, door can be opened
• When machine is running or safety conditions not met, solenoid de-energized, lock engaged, safety door cannot be opened
• Note: Solenoid maximum power consumption 12W, supply line and control contact capacity should meet requirements

Safety Contact Wiring (2 groups NC):

• Two groups of NC contacts respectively connected to two safety input channels (dual-channel) of safety relay or safety PLC
• Typical wiring method (dual-channel safety monitoring):
  • Safety channel 1: Safety power+ → switch 13 → 14 → safety relay input channel 1
  • Safety channel 2: Safety power+ → switch 23 → 24 → safety relay input channel 2
  • When safety door closed: NC contacts closed, both safety channels conducting, safety relay confirms door closed
  • When safety door opened: NC contacts open (positive-break), both safety channels open, safety relay triggers safety stop
• When multiple safety door switches in series: connect NC contacts of each switch in series into safety channels
• Note: NC contact rating 4A/230VAC, safety circuit current should not exceed 4A
• Two groups of contacts are galvanically separated, can be respectively connected to safety circuits of different voltage levels (but note insulation voltage 250V)

IDC Termination Method:

1. Prepare wires (recommended 0.5-1.5mm² solid or stranded hard wire)
2. No wire stripping required, insert wire into corresponding IDC terminal hole
3. Use special crimping tool or screwdriver to press down terminal, IDC blade will pierce wire insulation and form reliable electrical connection with wire core
4. Gently pull wire to confirm termination is firm and not loose
5. To remove wire, use tool to lift terminal, take out wire
6. IDC termination is one-time press, repeated pressing may cause poor contact, recommend successful one-time press

Cable Gland Installation:

• M20×1.5 cable entry, select M20 cable gland matching cable outer diameter
• Pass cable through gland, reserve sufficient termination length
• Tighten gland, ensure cable is firmly fixed, well-sealed, maintaining IP65 protection rating
• Unused cable entries should be sealed with blind plugs to maintain protection rating

Configuration & Commissioning:

1. Confirm switch body and actuating key are mounted in place, well aligned
2. Confirm all wiring completed, correct, no short circuit
3. Turn on control power and safety circuit power
4. Safety door closed state:
   • Confirm both NC contacts closed (measure 13-14, 23-24 continuity with multimeter)
   • Confirm safety relay/safety PLC shows safety door closed status
   • Confirm solenoid de-energized (lock engaged state) — should be locked during machine operation
5. Test door opening interlock:
   • In machine running state (solenoid de-energized locked), try to open safety door, confirm door cannot be opened (latching force 30N)
   • Energize solenoid (simulate safety conditions met), confirm lock releases, safety door can be opened
   • When safety door opens, confirm NC contacts open, safety relay triggers safety stop signal
6. Test positive-break:
   • Slowly open safety door, observe NC contacts reliably open at key travel approx. 11mm
   • Confirm no jamming, no sticking when contacts open
7. Test manual release:
   • In de-energized locked state, use special tool to operate side manual release device
   • Confirm lock releases, safety door can be opened
   • After manual release, close safety door, re-energize, confirm lock automatically restores locking function
8. Test safety circuit:
   • Simulate safety door opening, confirm machine safety stop (e.g., spindle stop, feed stop, robot stop, etc.)
   • Confirm safety stop response time meets requirements
   • After safety door closed and locked, confirm machine can restart
9. Test multiple safety door interlock (if any):
   • Confirm machine can only start after all safety doors closed
   • Any safety door opens, machine immediately safety stops
10. Record mounting position, wiring diagram, commissioning results, include in equipment safety file
11. Recommend performing safety function verification test (per ISO 13849-1 requirements), and record test results

Usage Notes:

• Safety interlock switch is safety-related equipment, installation, wiring, commissioning, maintenance should be performed by qualified safety professionals
• It is strictly prohibited to forcibly open a locked safety door during machine operation, may damage lock mechanism or cause safety accidents
• It is strictly prohibited to short-circuit or bypass safety contacts, this will cause safety function failure and serious safety hazards
• After solenoid energized and unlocked, door should be opened promptly, avoid prolonged energization causing solenoid overheating (although designed for continuous energization, still recommend attention to heat dissipation)
• Regularly check safety door and actuating key mounting status, ensure no loosening, no deformation, good alignment
• Regularly check cables and wiring, ensure no damage, no loosening, protection rating intact
• Regularly clean switch body and actuating key, avoid dust, oil, debris affecting contact and mechanism operation
• Product housing is thermoplastic, avoid contact with organic solvents, strong acids, strong alkalis and other corrosive substances
• Avoid spraying paint or other coatings on switch body, may affect mechanism operation and heat dissipation
• B10D life of safety contacts is 2 million operations, when approaching life, should replace in advance to avoid safety function failure
• Recommend regular (e.g., annually) safety function testing and contact inspection to ensure continuous effectiveness of safety function
• When replacing product, use same model or safety-assessed compatible model, after replacement need to re-perform safety function verification
• Discarded safety interlock switches should be disposed of per e-waste regulations, not 随意 discarded

Maintenance Recommendations:

• Daily inspection: Check safety door closes in place, lock normally engages/releases, no abnormal sound, actuating key no deformation
• Monthly check: Check mounting screws for looseness, cable glands tight, cables no damage, safety indicator status normal
• Quarterly maintenance: Clean switch body and actuating key, check contact operation flexible, test manual release function, check safety circuit wiring
• Annual calibration: Perform complete safety function test (door opening interlock, safety stop, positive-break, manual release, etc.), measure contact contact resistance, check insulation resistance, record test results, replace product if necessary
• Life management: Record safety door operation count, when approaching B10D life (2 million operations), replace product in advance
• Spare parts: Recommend stocking appropriate quantity of same model safety interlock switches and actuating keys as spare parts for quick replacement in case of failure
• Safety file: Establish safety interlock switch ledger, record mounting position, model, installation date, maintenance records, test results, replacement records, etc.

Safety Notes:

• Safety interlock switch is key equipment for personnel safety, any fault or abnormality should be handled immediately, not allowed to operate with faults
• Before maintaining safety interlock switch, must first stop machine, de-energize, tag out (LOTO: Lockout/Tagout), confirm equipment completely stopped and no residual energy
• Modifications involving safety circuit (such as adding switches, modifying wiring, replacing safety relay) must re-perform safety assessment and safety function verification
• It is strictly prohibited to change safety interlock logic or bypass safety function without safety assessment
• Manual release device is only for emergencies and maintenance, not as normal door opening method; after use, must confirm normal locking function restored
• When safety door is opened for maintenance, additional safety measures should be taken (such as tagging, dedicated personnel monitoring, energy isolation) to prevent accidental equipment startup
• Avoid outdoor safety interlock switch maintenance and wiring work during thunderstorms
• Product safety level (PL c, Cat.1) should match equipment risk assessment result; if equipment risk level is higher, should select higher safety level product or adopt redundant configuration
• If any questions about safety function, consult professional safety engineer or product technical support

7. Why Choose Us

1. Professional Procurement Channel, Quality Guaranteed — All products obtained through professional procurement channels, ensuring genuine original products, with product identification and quality documents, provides 12-month quality warranty. Appearance check, model confirmation, and packaging verification performed before shipment, ensuring delivered products are intact and model-accurate.
2. Worldwide Delivery — Supports DHL, FedEx, UPS and other international couriers. Can also ship via your designated freight forwarder to 200+ countries, can arrange project site delivery and port delivery. Industrial electronic products use shock-proof, moisture-proof, anti-static professional packaging, ensuring transportation safety.
3. Professional Technical Support — Provides selection consultation (confirming control voltage, contact configuration, latching force, termination method, actuating key model, safety level matching), installation/wiring guidance (solenoid wiring, safety contact dual-channel wiring, IDC termination method, cable gland installation), safety circuit design suggestions (safety relay/safety PLC configuration, dual-channel wiring, safety level calculation), fault diagnosis and spare part replacement suggestions, helping you correctly select and successfully commission safety interlock systems.
4. Flexible Procurement — Supports single product procurement and bulk project orders, tiered pricing discounts with quantity. Can provide whole-station safety product packages (safety interlock switches + safety relays + safety light curtains + actuating keys combination) and annual spare part framework agreements.
5. Pre-shipment Inspection — Appearance check, packaging verification, model confirmation, part number verification performed before shipment, ensuring delivered products have accurate models and are intact.

8. Frequently Asked Questions (FAQ)

Q1: What is this 3BHB006872P0002 product? What functions does it have?

A: 3BHB006872P0002 is an ABB solenoid interlock / safety lock switch, corresponding model AZM 170-02ZRK 230VAC, a safety interlock device specifically designed for safety guard doors of industrial machinery and equipment.

Main functions:

• Safety door status monitoring: Detects open/closed status of safety guard door through 2 NC (normally closed) safety contacts — contacts closed when door closed, contacts open (positive-break) when door opened
• Solenoid locking function: Built-in solenoid, rated voltage 230VAC, adopting power-to-unlock principle — door lock engaged when de-energized (door cannot be opened), lock releases when energized (door can be opened)
• Safety interlock control: Used with safety relay or safety PLC, achieving safety interlock logic of "door opens → machine automatically stops; machine running → door locked cannot be opened"
• Positive-break protection: NC contacts adopt positive-break design, even if contacts welded, can be forcibly opened through mechanical force, ensuring reliable safety signal
• Manual release: Equipped with side manual release device, can manually unlock and open door in emergencies

Key parameters:

• Rated control voltage: 230V AC
• Solenoid max. power consumption: 12W
• Safety contacts: 2 NC, double-break, fine silver, 4A/230VAC
• Latching force: 30N
• Unlocking method: Power to unlock (locked when de-energized)
• Positive-break: Yes
• Manual release: Yes (side)
• Protection rating: IP65
• Safety standard: EN ISO 13849-1, PL c, Cat.1
• B10D life: NC contacts 2 million operations

Simply put: This is a "solenoid lock + door switch" combined safety device installed on machine safety doors. When the machine is running, it locks the door so people cannot open it; when someone forcibly opens the door or the door is not properly closed, it sends a signal to the machine to stop, thereby protecting operators from being injured by the machine. 230VAC supply, 2 safety contacts, latching force 30N, standard configuration for industrial equipment safety protection.

Q2: What does "power to unlock" mean? What is the difference from "power to lock"? How to choose? A: Power to unlock and power to lock are two basic working principles of solenoid interlock switches. The difference is whether the door lock is engaged or released when the solenoid is energized:

表格

Comparison Item	Power to Unlock	Power to Lock
Solenoid de-energized	Lock engaged (door cannot open)	Lock released (door can open)
Solenoid energized	Lock released (door can open)	Lock engaged (door cannot open)
Fail-safe principle	Compliant (door locked when power off, safer)	Not compliant (door can open when power off)
Power consumption	Continuous energization when door open, higher consumption	Continuous energization when locked
This product	✅ AZM 170-02ZRK is power-to-unlock type	❌ This product is not this type

Working logic of power-to-unlock (this product type):

• Machine running → solenoid de-energized → lock engaged → safety door cannot be opened (prevent personnel from entering hazardous area)
• After machine stopped → control system energizes solenoid → lock releases → safety door can be opened (allow personnel to enter for maintenance)
• Power failure/emergency stop → solenoid de-energized → lock automatically engages → safety door remains locked (fail-safe)

How to choose?

• Most industrial safety applications choose power-to-unlock: Because it complies with the Fail-Safe principle — when power is off, the door automatically locks. Even in case of power failure or safety circuit disconnection, the door remains locked and personnel cannot enter the hazardous area, higher safety. This product AZM 170-02ZRK is this type, also the most commonly used type.
• Power-to-lock applies to special scenarios: Such as occasions requiring quick door opening for escape when power is off (e.g., certain fire exits, emergency exits), or occasions where locking time is much longer than door opening time and 希望 reducing power consumption. But this type does not comply with fail-safe principle, door can be opened when power off, requires additional safety measures to ensure safety.
• Selection recommendation: Unless there are special requirements (such as fire escape, low power consumption), otherwise prioritize power-to-unlock type (this product type), higher safety, also complies with recommended practices of most safety standards.

Note: Regardless of type, the function of safety contacts (NC) is the same — contacts closed when door closed, contacts open when door opened, used for detecting door status and triggering safety stop. The solenoid is only responsible for locking/releasing the door lock, does not affect contact status detection function.

Q3: How to wire the 2 NC contacts? Why use dual-channel? Can only one contact be used?

A: The AZM 170-02ZRK is equipped with 2 NC (normally closed) safety contacts, the two contacts are galvanically separated. Dual-channel wiring method connected to safety relay or safety PLC is recommended.

Contact terminal definitions (reference):

• First NC group: 13 (common) - 14 (normally closed)
• Second NC group: 23 (common) - 24 (normally closed)

Dual-channel wiring method (recommended):

Safety power+ ──→ Switch 13 ──[NC1]── 14 ──→ Safety relay channel 1 input
Safety power+ ──→ Switch 23 ──[NC2]── 24 ──→ Safety relay channel 2 input

• When safety door closed: both NC contacts closed, both channel 1 and channel 2 conducting, safety relay confirms "safety door closed"
• When safety door opened: both NC contacts open (positive-break), both channel 1 and channel 2 open, safety relay triggers safety stop

Why use dual-channel?

1. Higher safety level: Dual-channel (redundant) design can detect single-point faults (such as one contact welded, line broken). Safety relay detects faults by comparing status consistency of the two channels, thereby achieving higher safety level (such as PL d/e, Cat.3/4). Single-channel can only achieve lower safety level (PL c, Cat.1/B).
2. Fault detection: If one contact is welded (stuck not opening), the other opens normally, safety relay detects inconsistent status of the two channels, reports fault and locks safety output, avoiding safety function failure caused by single contact fault.
3. Standard requirements: Safety standards such as ISO 13849-1 require that for medium-high risk safety functions, dual-channel redundant structure should be adopted to ensure single-point faults do not cause loss of safety function.
4. This product design: The two NC contact bridges of AZM 170-02ZRK are galvanically separated, specifically designed to support dual-channel independent wiring and achieve redundant safety monitoring.

Can only one contact be used?

• Technically yes, but not recommended. If only one NC contact is used and the other is left unused, the safety function becomes single-channel structure, safety level reduced (max PL c, Cat.1/B), and cannot detect single-point faults such as contact welding.
• When single-channel is acceptable: Only when equipment risk assessment result is low risk (such as minor injury, avoidable injury), and safety standards allow single-channel structure, can only one contact be used. But even so, dual-channel is still recommended to improve reliability.
• Note: If only one contact is used, the terminals of the other unused contact should be insulated to prevent short circuit. At the same time, safety relay/safety PLC should be configured as single-channel mode (if supported).
• Strongly recommended: For most industrial equipment safety door applications, use dual-channel wiring, fully utilize the two NC contacts of the product, achieving higher safety level and reliability.

Series wiring of multiple safety door switches:

• If there are multiple safety doors, connect NC1 of each switch in series into channel 1, NC2 in series into channel 2:
  • Channel 1: Power+ → Switch A 13-14 → Switch B 13-14 → ... → Safety relay channel 1
  • Channel 2: Power+ → Switch A 23-24 → Switch B 23-24 → ... → Safety relay channel 2
• Any door opens, corresponding channel opens, safety relay triggers stop
• Note number of series connections should not be too many, pay attention to line voltage drop and contact capacity (4A)

Q4: What does latching force 30N mean for this safety switch? Can it be forcibly opened? Will forcible opening cause damage? A: Latching force 30N refers to the minimum external force required to keep the door lock mechanism engaged when the solenoid is de-energized and locked — that is, in the locked state, at least about 30N (about 3 kgf) of external force is required to overcome the holding force of the door lock mechanism and forcibly open it.

What does 30N mean?

• 30N ≈ 3.06 kgf (kilogram-force)
• Equivalent to the force required to lift about 3 kg weight by hand
• Normal door opening force for adults is usually between 10-50N, depending on door size and weight
• 30N latching force can prevent accidental touch, light collision from opening the door, but cannot prevent adults from consciously forcibly opening the door

Can it be forcibly opened?

• Theoretically yes: If sufficient force (much greater than 30N) is applied, the locked safety door can be forcibly opened. But this is not normal operation.
• Actually not recommended: Forcible opening may cause the following problems:
  1. Door lock mechanism damage: Forcible door opening may cause locking pin, cam, spring and other mechanical parts deformation or fracture, door lock mechanism permanently damaged, cannot normally lock
  2. Actuating key damage: Forcible door opening may cause actuating key bending, fracture, key replacement required
  3. Safety door damage: Forcible door opening may cause safety door deformation, hinge damage, door frame deformation
  4. Safety function failure: After door lock mechanism damaged, may not normally lock or release, safety function fails, entire switch replacement required
  5. Personnel injury risk: When forcibly opening, door may suddenly spring open, causing personnel collision injury; if machine is still running at this time, personnel entering hazardous area may cause serious injury

Handling after forcible opening:

• If safety door has been forcibly opened, should immediately check:
  1. Whether door lock mechanism can normally lock and release (energize/de-energize test)
  2. Whether actuating key is deformed, fractured
  3. Whether NC contacts can normally close and open (multimeter measurement)
  4. Whether safety door and door frame are deformed
• If any damage or abnormality found, should immediately replace product or actuating key, not allowed to continue using
• Even if appearance looks normal, also recommend performing complete safety function test to confirm safety function not affected

How to prevent forcible opening?

• Safety interlock switch with 30N latching force is mainly used to prevent accidental opening, not to prevent deliberate forcible opening
• If application scenario requires preventing deliberate forcible opening (such as high-hazard equipment, restricted areas), additional measures should be taken:
  1. Select safety interlock switch with higher latching force (such as heavy-duty solenoid lock with latching force above 1000N)
  2. Use together with safety door bolts, door locks and other mechanical locking devices
  3. Install tamper switches on safety doors to detect forcible opening behavior and alarm
  4. Strengthen site management and personnel training, prohibit forcible opening of safety doors
  5. For extremely high-risk areas, can adopt safety interlock systems with locking coding (such as RFID coded keys), only authorized personnel can unlock

Important note: The purpose of safety interlock switch is to ensure safety through safety interlock logic (door opens → machine stops), not solely relying on physical latching force to prevent personnel entry. Even if the door is forcibly opened, the NC contacts will also open, triggering machine safety stop, thereby ensuring personnel safety. 30N latching force is sufficient to prevent most accidental opening situations, combined with safety stop logic, already can meet safety requirements of most industrial applications.

Q5: Is this product in stock? What is the lead time? What is the price?

A: This model is currently in order available status, standard lead time 4-8 weeks (ordered through professional procurement channels or allocated from global inventory). The AZM 170 series is a commonly used solenoid safety interlock switch in the industrial safety field with large usage, but specific inventory situation fluctuates with market.

• Price: Specific price subject to our formal quotation, price depends on purchase quantity, supply channel, whether includes technical service and other factors. Solenoid safety interlock switch is a safety-specific product, price higher than ordinary limit switches, bulk procurement can enjoy tiered discounts.
• Expedited service: If you have urgent needs (such as equipment fault emergency repair, urgent project commissioning, safety audit rectification), we can try to coordinate global stock inventory or expedited ordering, specific please contact our sales team.
• Please indicate required quantity, control voltage (confirm 230VAC), actuating key model (B1/B5/B6 etc., if needed), project name, desired delivery time, and destination when inquiring, we will do our best to coordinate the fastest delivery solution and optimal price.
• If you need to purchase compatible actuating keys, cable glands, safety relays, safety PLCs, safety light curtains and other safety products simultaneously, we can provide combined quotation for whole-station safety product packages with more favorable prices.

Q6: How to judge and replace a faulty safety interlock switch? Does safety function need re-verification after replacement? How to use manual release?

A: Common faults and judgment methods:

1. Solenoid not locking/not releasing:
   • Symptom: Lock does not release when energized, or lock does not engage when de-energized
   • Judgment: Measure voltage at A1-A2 terminals with multimeter, confirm 230VAC supply normal; if supply normal but solenoid does not actuate, may be solenoid coil burned or mechanical mechanism jammed
   • Check: Listen for solenoid actuation sound (normal should have "click" sound), check door lock mechanism for foreign object jamming
2. NC contacts not actuating/poor contact:
   • Symptom: Contacts do not close when door closed, or contacts do not open when door opened
   • Judgment: Measure continuity at 13-14, 23-24 terminals with multimeter, observe whether contact status normally changes when opening/closing door
   • Possible causes: Contact welding (stuck), contact oxidation, actuating key position incorrect, mechanism jamming
3. Contact welding (stuck):
   • Symptom: NC contacts still closed (not opening) after door opened, safety relay does not trigger stop
   • Judgment: Measure NC contacts with multimeter in door open state, if still conducting indicates contact welding
   • Note: Positive-break mechanism should forcibly open welded contacts; if still conducting after positive-break, indicates severe contact welding or mechanism damage, must replace
4. Door lock mechanism jamming:
   • Symptom: Difficult key insertion/removal, door lock engagement/release not smooth, abnormal sound
   • Possible causes: Mechanism dust ingress, lubrication failure, part deformation, actuating key poor alignment
5. Housing damage/protection failure:
   • Symptom: Housing cracks, deformation, cable entry seal failure, water/dust ingress
   • Judgment: Visual inspection of housing and seals; IP65 protection failure may cause internal contact and mechanism corrosion
6. Manual release failure:
   • Symptom: Door lock does not release after operating manual release device
   • Possible causes: Manual release mechanism damaged, requires greater force, incorrect operation method

Replacement steps:

1. Stop machine, de-energize, tag out (LOTO), confirm equipment completely stopped and no residual energy
2. Disconnect all wiring of safety interlock switch (solenoid A1-A2, NC contacts 13-14, 23-24)
3. Remove mounting screws of switch body, take out old switch
4. Confirm new switch model (AZM 170-02ZRK 230VAC) and part number (3BHB006872P0002) match old switch
5. Install new switch to original position, tighten mounting screws
6. Re-wire per original wiring method (solenoid and NC contacts), ensure IDC termination reliable
7. Check alignment between actuating key and new switch, key operates smoothly when opening/closing door
8. Restore power, perform safety function verification (see below)

Safety function must be re-verified after replacement! Safety interlock switch is safety-related equipment. After replacement, complete safety function verification test must be performed to confirm normal safety function before putting into use:

1. Contact operation test: Measure two groups of NC contacts with multimeter when opening/closing door, confirm contacts closed when door closed, open when door opened, positive-break reliable
2. Lock/release test: Confirm lock engaged (door cannot open) when de-energized, lock released (door can open) when energized
3. Safety stop test: Simulate door opening, confirm safety relay/safety PLC triggers safety stop, related machine motions stop
4. Recovery test: After door closed and locked, confirm machine can normally start
5. Manual release test: Operate manual release in de-energized state, confirm door can open, function normal after recovery
6. Fault simulation test (if safety relay supports): Simulate one channel disconnection, confirm safety relay detects fault and locks
7. Record all test results, include in equipment safety file

Manual release usage method:

1. Applicable scenarios: Only in emergency situations (such as power failure, personnel trapped, door lock cannot normally release during equipment maintenance)
2. Operation method:
   • Locate manual release hole/device on side of switch body
   • Use special tool (such as hex wrench, special key, subject to product manual) to insert into manual release hole
   • Rotate or push tool per manual instruction direction, trigger manual release mechanism
   • After feeling door lock mechanism released, can open safety door
3. Notes:
   • Manual release requires special tool, preventing unauthorized personnel misoperation
   • Before manual release, should confirm equipment has stopped running, no hazard
   • After manual release and door opening, entering equipment area still requires additional safety measures (tagging, monitoring)
   • After maintenance completed, close safety door, remove manual release tool, confirm door lock automatically restores locking function
   • Re-energize test, confirm solenoid lock/release and NC contact functions normal
   • Manual release must not be used as normal door opening method; frequent use may wear mechanism
4. If manual release also cannot open door: May be severe damage or jamming of door lock mechanism, should contact professional technical personnel, must not forcibly pry door, to avoid greater damage and safety risks

Maintenance recommendations:

• Recommend checking safety interlock switch function monthly (lock/release, contact operation, manual release)
• Recommend performing complete safety function verification test and contact inspection annually
• Record operation count, when approaching B10D life (2 million operations), replace in advance
• Stock appropriate quantity of same model spare parts for quick replacement in case of failure.
