ABB ACS800-01-0040-3+P901+D150+N652 Industrial Drive | Wall-mounted 40A

ABB ACS800-01-0040-3 wall-mounted industrial drive, rated output current 40A, input 380/400/415V three-phase, DTC direct torque control, corresponding to 22kW (light-overload) / 18.5kW (heavy-duty), R4 frame IP21 protection. Configured with +P901 coated boards, +D150 DC reactor, +N652 control program. Order available.

online consultation

Product Details

1. Product Overview

The ABB ACS800-01-0040-3+P901+D150+N652 is a Wall-mounted Single Drive from ABB's classic ACS800 series industrial drives, with rated output current 40A, input voltage 380/400/415V three-phase AC, corresponding to typical motor power of approximately 22kW (light-overload) / 18.5kW (heavy-duty), frame size R4, standard protection degree IP21.

The ACS800-01 wall-mounted drive integrates all necessary components including rectifier unit, DC bus, inverter unit, control board (RMIO), I/O terminals, communication interface, line reactor, EMC filter, and braking chopper in a compact wall-mounted enclosure. Users only need to wall-mount it, connect input power, output motor, and control signals to put it into operation, without additional cabinet configuration — convenient installation, space-saving, a classic choice for small-to-medium power industrial motor speed control.

This model is configured with three option codes:

+P901: Coated Boards — the drive's internal PCBs are coated with conformal coating, providing additional protection in harsh industrial environments with high humidity, corrosive gases, and dust, improving operational reliability and service life.
+D150: DC Reactor — built-in DC bus reactor, used to suppress input side harmonic current, improve power factor, reduce interference to the power grid, enhance system stability, while protecting the rectifier bridge and DC bus capacitors, extending drive service life.
+N652: Control Program / I/O Configuration Option (N-prefixed options are usually related to control program or I/O configuration, specific function Contact via email for confirmation).

The ACS800 series uses ABB's patented DTC (Direct Torque Control) technology, achieving high-precision control of motor torque and speed without a motor encoder. DTC technology directly controls the IGBT switching status by real-time calculating motor flux and torque, featuring fast response, high torque control accuracy, excellent low-speed performance, and high starting torque. It can drive various motor types including asynchronous motors, synchronous motors, and servo motors, suitable for almost all industrial motor speed control applications.

This drive is equipped with standard Modbus RTU fieldbus communication and supports various optional communication protocols including Profibus DP, DeviceNet, CANopen, Ethernet/IP, Profinet, Modbus TCP, etc., enabling easy integration with various PLCs, DCS, and industrial automation systems. It is equipped with rich I/O interfaces including digital inputs, digital outputs, analog inputs, and analog outputs, meeting signal connection requirements for most applications. Built-in multiple Application Macros (Standard, PID Control, Torque Control, Sequencer, etc.) and PID controller simplify parameter setting and commissioning.

For safety functions, the ACS800 supports various optional safety functions including Prevention of Unexpected Start-up (+Q950), Safe Torque Off STO (+Q967), etc., meeting EU Machinery Directive and functional safety standard requirements. R4 and above frames are equipped with standard braking choppers, which, together with external braking resistors, can achieve fast braking and energy consumption.

The ACS800 series is one of ABB's most successful industrial drive platforms in history, with a huge global installed base, widely used in petrochemical, natural gas, power, metallurgy, mining, cement, paper, water treatment, marine, hoisting, HVAC, and almost all industrial sectors. Although the ACS800 series has been gradually succeeded by the new generation ACS880 series, a large number of ACS800 drives are still in operation worldwide, and spare parts and new demand continue to exist.

Note: This product is an ABB ACS800 series wall-mounted industrial drive. Specific configuration (I/O count, communication protocol, safety functions, braking unit, +N652 specific function, etc.) may vary depending on option codes. Some parameters are marked "Contact via email for confirmation." Installation, commissioning, and maintenance should be performed by professional engineers trained in ABB drives.

2. Specifications

表格

Parameter	Value
Brand	ABB (ABB Group, Switzerland)

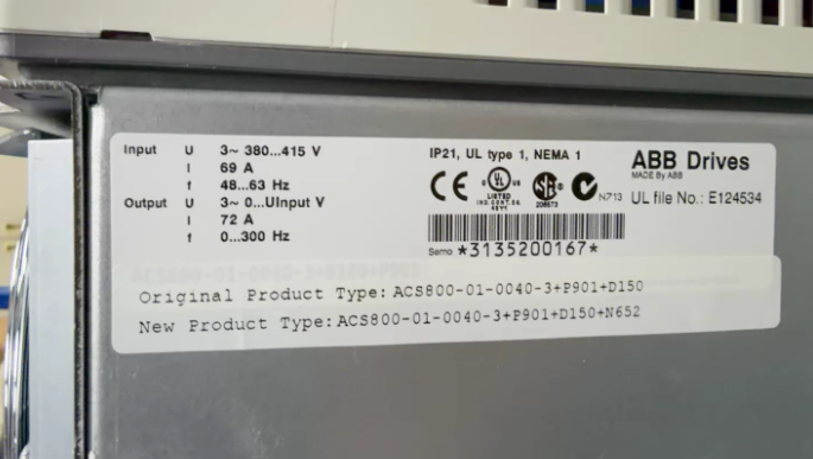

Model	ACS800-01-0040-3+P901+D150+N652
Product Type	Industrial Drive Wall-mounted Single Drive
Series	ACS800
Mounting Type	Wall-mounted (IP21 standard protection)
Rated Output Current	40 A
Typical Motor Power (Light-overload)	22 kW (reference, subject to application)
Typical Motor Power (Heavy-duty)	18.5 kW (reference, subject to application)
Input Voltage	380 / 400 / 415 V AC, 3-phase, ±10%
Input Frequency	48 ~ 63 Hz
Output Voltage	0 ~ input voltage (3-phase sinusoidal PWM)
Output Frequency	0 ~ 300 Hz (typical, Contact via email)
Control Technology	DTC (Direct Torque Control)
Frame Size	R4
Protection Degree	IP21 (standard)
Option +P901	Coated Boards
Option +D150	DC Reactor (Contact via email for confirmation)
Option +N652	Control Program / I/O Configuration (Contact via email for confirmation)
Operating Temperature	-15 ~ +40°C (no derating); +40 ~ +50°C derating (1%/°C)
Storage Temperature	-40 ~ +70°C
Relative Humidity	5 ~ 95% RH, no condensation (Contact via email)
Altitude	≤1000m no derating; >1000m derating (Contact via email)
Braking Chopper	Standard (R4 and above frames), external braking resistor
Line Reactor	Standard (built-in ACS800-01 wall-mounted)
EMC Filter	Standard (built-in ACS800-01 wall-mounted)
Digital Inputs	6 standard (Contact via email, expandable)
Digital Outputs	3 standard (Contact via email, expandable)
Analog Inputs	2 standard (Contact via email, expandable)
Analog Outputs	2 standard (Contact via email, expandable)
Standard Communication	Modbus RTU
Optional Communication	Profibus DP, DeviceNet, CANopen, Ethernet/IP, Profinet, Modbus TCP etc.
Optional Safety Functions	Prevention of Unexpected Start-up (+Q950), Safe Torque Off STO (+Q967)
Application Macros	Standard, PID Control, Torque Control, Sequencer etc.
Built-in PID	Yes (1 set, Contact via email)
Cooling Method	Air cooling
Noise Level	Contact via email (reference ≤67 dB(A))
Weight	Contact via email (R4 frame reference approx. 25-35kg)
Dimensions (H×W×D)	Contact via email (R4 frame reference)
Certifications	CE, UL, cUL, RoHS (Contact via email, subject to actual config)
Origin	Contact via email for confirmation (ABB global manufacturing)
HS Code	Contact via email for confirmation (reference 85044090)
Stock Status	Order available
Warranty	12 months

3. Key Features

ABB Classic ACS800 Platform, DTC Direct Torque Control — The ACS800 is ABB's classic high-performance industrial drive platform, using patented DTC (Direct Torque Control) technology, achieving high-precision motor torque and speed control without an encoder, with fast response, high torque control accuracy, excellent low-speed performance, and high starting torque. It can drive various motor types including asynchronous, synchronous, and servo motors, suitable for almost all industrial motor speed control applications.
Wall-mounted Integrated Design, Easy Installation Space-saving — The ACS800-01 is a wall-mounted single drive form with IP21 protection, integrating all necessary components including rectifier, DC bus, inverter, control, I/O, communication, line reactor, EMC filter, and braking chopper in a compact enclosure, without additional cabinet configuration, wall-mount installation ready to use, convenient installation, space-saving, a classic choice for small-to-medium power industrial motor speed control.
40A Rated Output, Covering 22kW/18.5kW Power Range — Rated output current 40A, input 380/400/415V three-phase, corresponding to typical motor power of approximately 22kW (light-overload) / 18.5kW (heavy-duty), R4 frame, covering common motor speed control needs in the medium power range, suitable for various load types including fans, pumps, conveyors, mixers, compressors, and hoists.
+P901 Coated Boards Option, for Harsh Industrial Environments — Configured with +P901 coated boards option, the drive's internal PCBs are coated with conformal coating, providing additional protection in high humidity, corrosive gas, and dust harsh industrial environments, significantly improving operational reliability and service life, especially suitable for petrochemical, chemical, metallurgy, mining, water treatment, paper industries with harsh environmental conditions.
+D150 DC Reactor, Harmonic Suppression Power Factor Improvement — Configured with +D150 DC reactor option, built-in DC bus reactor, used to suppress input side harmonic current, improve power factor, reduce interference to the power grid, enhance system stability, while protecting the rectifier bridge and DC bus capacitors, extending drive service life, suitable for applications with high power quality requirements.
Rich Communication Protocols, Seamless Automation Integration — Standard Modbus RTU fieldbus communication, supporting various optional communication protocols including Profibus DP, DeviceNet, CANopen, Ethernet/IP, Profinet, Modbus TCP, etc., enabling easy integration with Siemens, Rockwell, Schneider and other brand PLCs and various DCS systems for remote monitoring, parameter setting, fault diagnosis, and data acquisition, meeting communication needs of different industrial automation systems.
Rich I/O and Application Macros, Fast Commissioning Simplified Configuration — Standard digital inputs/outputs, analog inputs/outputs, meeting signal connection needs for most applications, supporting I/O extension modules. Built-in multiple application macros (Standard, PID Control, Torque Control, Sequencer, etc.), users can quickly select according to application scenarios, simplifying parameter setting and commissioning. Built-in PID controller can directly implement closed-loop control of pressure, flow, temperature and other process variables without an additional PID controller.
Comprehensive Protection Functions, Ensuring Safe Equipment Operation — Built-in comprehensive protection functions including overcurrent, overvoltage, undervoltage, overtemperature, ground fault, motor overload, and short circuit protection, real-time monitoring drive and motor operating status, fast response and equipment protection under abnormal conditions, reducing failure losses. Supports fault recording and historical data storage for fault diagnosis and maintenance analysis.
Standard Line Reactor and EMC Filter, Low Harmonic Low Interference — The ACS800-01 wall-mounted drive is equipped with standard line reactor and EMC filter, effectively suppressing input side harmonic current, reducing electromagnetic interference, improving power factor, meeting EN 61800-3 and other EMC standard requirements, reducing interference to the power grid and surrounding electronic equipment, suitable for industrial environments with high EMC requirements.
Wide Global Applications, Mature Spare Parts System — The ACS800 series has a huge global installed base, widely used in petrochemical, natural gas, power, metallurgy, mining, cement, paper, water treatment, marine, hoisting, HVAC, and almost all industrial sectors. After years of market verification, the product is mature and reliable, with a complete spare parts supply system and rich technical support resources, making it a classic choice for industrial motor speed control.

5. Model Explanation

Product Model: ACS800-01-0040-3+P901+D150+N652

Product Description: ABB ACS800 series wall-mounted industrial drive, rated output current 40A, input 380/400/415V three-phase, DTC direct torque control, R4 frame IP21 protection, configured with +P901 coated boards, +D150 DC reactor, +N652 control program option

Model Breakdown:

表格

Component	Meaning
ACS800	ABB industrial drive series name (Advanced Control System 800)
01	Product form: Wall-mounted Single Drive, IP21 protection
0040	Rated output current: 40 A
3	Voltage class: 380 / 400 / 415 V AC, three-phase
+P901	Option code: Coated Boards
+D150	Option code: DC Reactor (Contact via email for confirmation)
+N652	Option code: Control Program / I/O Configuration (Contact via email for confirmation)

ACS800-01 Product Form Explanation:

01 = Wall-mounted Single Drive
Distinguished from 02 (floor-standing), 04 (cabinet-installation module), 07 (cabinet-built) and other mounting forms
Standard protection degree IP21, optional IP55
Built-in line reactor, EMC filter, braking chopper (R4 and above)
Power range 0.55~200kW (full series), this model 40A belongs to medium power range

0040 Current and Power Correspondence Explanation:

Rated output current: 40 A
Light-overload application: typical motor power approx. 22kW
- Allows 110% overload for 1 minute, or periodic overload
- Suitable for variable torque loads such as fans and pumps
Heavy-duty application: typical motor power approx. 18.5kW
- Allows 150% overload for 1 minute (once every 5 minutes)
- Suitable for constant torque/heavy-duty loads such as conveyors, mixers, hoists
Specific power matching needs to be confirmed based on motor rated current, load characteristics, and overload requirements

Voltage Class 3 Explanation:

3 = 380 / 400 / 415 V AC, three-phase, ±10%
Input frequency: 48~63Hz
Suitable for most industrial grid voltage standards worldwide
Distinguished from 2 (208~240V), 5 (380~500V), 7 (525~690V) and other voltage classes

R4 Frame Size Explanation:

R4 = Frame size number 4
Suitable for medium power range drives
Wall-mounted installation, compact structure
Specific dimensions and weight: Contact via email for confirmation

Option Code Detailed Explanation:

+P901 — Coated Boards

Full name: Conformal Coated Printed Circuit Boards
Drive internal PCBs coated with conformal coating (acrylic, polyurethane, or silicone)
Function: Moisture-proof, mold-proof, salt-spray-proof, dust-proof, corrosive gas-proof, improving reliability in harsh environments
Applicable industries: Petrochemical, chemical, metallurgy, mining, water treatment, paper, offshore platforms, etc.
Note: Coated boards option does not change electrical performance, only improves environmental adaptability

+D150 — DC Reactor

Built-in DC bus reactor
Function: Suppress input side harmonic current, improve power factor, reduce interference to the power grid, protect rectifier bridge and DC bus capacitors
Note: D150 may have different meanings in different ACS800 sub-series, specific function of this model Contact via email for confirmation

+N652 — Control Program / I/O Configuration

N-prefixed options are usually related to Control Program or I/O configuration
May involve specific application macros, I/O configurations, or firmware functions
Specific function: Contact via email for confirmation (recommend providing drive nameplate or parameter list)

ACS800 Series Common Model Comparison Reference:

表格

Model	Rated Current	Typical Power (Light/Heavy)	Frame
ACS800-01-0011-3	11A	5.5kW / 4kW	R3
ACS800-01-0016-3	16A	7.5kW / 5.5kW	R3
ACS800-01-0025-3	25A	11kW / 7.5kW	R3
ACS800-01-0030-3	30A	15kW / 11kW	R4
ACS800-01-0040-3	40A	22kW / 18.5kW	R4
ACS800-01-0050-3	50A	30kW / 22kW	R4

Note: The above comparison data comes from ABB public catalog, for reference only, specific subject to official latest data.

Related Products (ordered separately, Contact via email for confirmation):

Braking Resistor
Output Reactor
EMC Filter
Communication Module (Profibus/DeviceNet/CANopen/Ethernet etc.)
I/O Extension Module
Control Panel (CDP 312R etc.)
Safety Function Board (AGPS-21C, ASTO etc.)
Additional Input Reactor (if extra enhancement needed)

Official Documentation Reference:

ACS800-01/U1 Hardware Manual
ACS800 Firmware Manual
ACS800 Single Drives Catalog

6. Why Choose Us

Professional Procurement, Genuine ABB Quality Guaranteed — All ABB drives and spare parts obtained through professional procurement channels, ensuring genuine ABB original products with product identification, factory test reports, and quality documents, 12-month quality warranty. Pre-shipment appearance inspection, model confirmation, part number verification, and packaging check performed.
Worldwide Delivery, Professional Industrial Electronics Logistics — DHL/FedEx/UPS international courier, global delivery available. Industrial drives use shock-proof moisture-proof anti-static professional packaging, ensuring safe transport of IGBT modules, capacitors, control boards and other precision electronic components. Expedited logistics and customs clearance available, delivery to 200+ countries, meeting urgent project and maintenance needs.
Professional Technical Support, Full-process Service from Selection to Commissioning — Drive selection consultation (confirming motor power, current, voltage, load type, overload requirement, communication protocol, environmental condition, option code matching), installation guidance (wall-mount installation dimensions, wiring, grounding specifications, EMC requirements), parameter commissioning (application macro selection, motor ID run, PID tuning, communication configuration), fault diagnosis (overcurrent/overvoltage/overtemperature/ground fault cause analysis), and spare parts list review, helping users correctly select, install and maintain.
Flexible Procurement, Project Bulk and Spare Parts Framework Agreements — Single unit and bulk project orders, tiered discounts. Complete drive package solutions (drive + braking resistor + reactor + filter + communication module + control panel combination) and annual spare parts framework agreements available, helping users optimize procurement cost, ensure spare parts supply, minimize downtime risk. Customized quotations and long-term cooperation solutions available for OEM customers and system integrators.
Pre-shipment Verification, Test Report Available — Appearance, packaging, model, configuration checks before shipment; drive power-on test report available if necessary (basic function test, parameter reading, appearance inspection, accessory inventory), ensuring delivered product in good condition, accurate configuration, complete accessories. For urgent project needs (equipment retrofit, production line commissioning, fault repair), priority inventory coordination and expedited shipping available.

7. Frequently Asked Questions (FAQ)

Q1: What is ACS800-01-0040-3+P901+D150+N652? What is the power? What do the option codes mean?

A: The ACS800-01-0040-3+P901+D150+N652 is a Wall-mounted Single Drive from ABB's classic ACS800 series industrial drives.

Basic info: Brand ABB (Switzerland), series ACS800, model ACS800-01-0040-3+P901+D150+N652, product form Wall-mounted Single Drive (IP21 standard protection), rated output current 40A, input voltage 380/400/415V AC three-phase ±10%, control technology DTC direct torque control, frame size R4.

What is the power?

Light-overload application (variable torque loads such as fans and pumps): typical motor power approx. 22kW
Heavy-duty application (constant torque/heavy-duty loads such as conveyors, mixers, hoists): typical motor power approx. 18.5kW
Specific power matching needs to be confirmed based on motor rated current, load characteristics, and overload requirements. We recommend providing motor nameplate parameters, and we can help confirm compatibility.

What do the option codes mean?

+P901: Coated Boards — drive internal PCBs coated with conformal coating, for high humidity, corrosive gas, dust harsh environments.
+D150: DC Reactor — built-in DC bus reactor, suppress input side harmonics, improve power factor, reduce grid interference (specific function Contact via email for confirmation).
+N652: Control Program / I/O Configuration option — N-prefixed options usually related to control program or I/O configuration, specific function Contact via email for confirmation.

What applications is it used for? ACS800 series drives are widely used in almost all industrial motor speed control applications, including fans, pumps, compressors, conveyors, elevators, hoists, mixers, grinders, centrifuges, machine tools, textile machinery, printing machinery, HVAC, covering petrochemical, natural gas, power, metallurgy, mining, cement, paper, water treatment, marine industries. The +P901 coated boards option is especially suitable for industries with harsh environmental conditions.

Q2: What is the difference between ACS800-01 wall-mounted and ACS800-04 module? How to choose?

A: ACS800-01 and ACS800-04 are two different mounting forms in the ACS800 series, each with characteristics and applicable scenarios.

ACS800-01 Wall-mounted (this model):

Mounting: Wall-mounted, independent enclosure, can be directly wall-mounted
Protection: Standard IP21, optional IP55
Built-in: Line reactor, EMC filter, braking chopper (R4 and above) all built-in
Application: Single drive independent installation, field wall-mount, limited space, no additional cabinet needed
Advantages: Integrated design, easy installation, built-in EMC filter and line reactor, space and cost saving
Power range: 0.55~200kW

ACS800-04 Module:

Mounting: Module form, IP20 protection, must be installed in control cabinet
Protection: IP20 (standard)
Built-in: Basic drive components, line reactor and EMC filter optional as needed
Application: Multiple drives 集中安装 in control cabinet, system integration, OEM custom control cabinet, need unified cooling and wiring
Advantages: Compact structure, convenient multiple side-by-side installation, flexible option configuration, suitable for system integration
Power range: 0.55~1900kW

How to choose?

Single drive, field wall-mount, limited space → Choose ACS800-01 wall-mounted (this model), ready to use, no additional cabinet
Multiple drives 集中安装，system integration, OEM custom cabinet → Choose ACS800-04 module, convenient in-cabinet layout and unified cooling
Need IP55 high protection, dusty/wet field environment → Choose ACS800-01 (optional IP55)
Cost sensitive, already have control cabinet → Choose ACS800-04 module

Q3: How to select a drive? How to confirm if this model can drive my motor? Can option codes be changed?

A: Drive selection requires comprehensive consideration of motor parameters, load characteristics, application scenarios, environmental conditions, communication needs, option codes, and other factors.

Confirm Motor Parameters:

Motor rated power (kW)
Motor rated current (A) — the most critical parameter for selection
Motor rated voltage (V)
Motor type (asynchronous, synchronous, servo, etc.)
Motor insulation class

Confirm Load Characteristics:

Variable torque load (fans, pumps, compressors): select by light-overload
Constant torque load (conveyors, mixers, extruders): select by heavy-duty
Potential energy load (hoists, elevators): need braking resistor, high braking capability requirement
Overload requirement: frequent starting, impact load, short-time overload

Confirm Drive Current Margin:

Basic principle: Drive rated output current ≥ Motor rated current × Safety factor
Light-overload applications: Safety factor 1.0~1.1
Constant torque/heavy-duty applications: Safety factor 1.1~1.2
Frequent starting/impact load: Safety factor 1.2~1.5
This model rated current 40A, suitable for driving motors with rated current not exceeding approx. 35~38A (specific depends on load type)

Confirm Option Code Needs:

+P901 coated boards: needed for harsh environments (high humidity, corrosion, dust), optional for normal environments
+D150 DC reactor: select when high power quality requirement, need harmonic suppression
+N652 control program: specific application requirement, need to confirm specific function
Option codes can be configured according to needs when ordering. For already delivered drives, option codes usually cannot be changed (some hardware options can be added later, but need professional evaluation)

How to confirm if this model can drive my motor? Please provide motor nameplate photo or complete parameters (power, current, voltage, speed, insulation class), load type, overload requirement, site environmental conditions, and we can help check whether the drive rated current, overload capability, and voltage class match, and give clear selection confirmation and recommendations.

Q4: How to install and commission? What to pay attention to? Can I install it myself?

A: Installation and commissioning of ACS800 drives requires certain professional knowledge and skills, recommended to be performed by professional engineers trained in ABB drives.

Installation Key Points:

Wall-mount installation: ACS800-01 is wall-mounted, must be vertically mounted on a sturdy wall or mounting plate, ensure cooling air duct unobstructed.
Installation space: Maintain sufficient heat dissipation and maintenance space around the drive (above, below, left and right), refer to hardware manual.
Environmental conditions: Ambient temperature not exceeding 40°C (no derating), humidity 5~95% no condensation, avoid corrosive gases and dust. +P901 coated boards can adapt to harsher environments.
Grounding: Must be reliably grounded, motor cable shield 360° grounded, reduce EMI interference.
Wiring:
- Input power connected to L1/L2/L3 (or U1/V1/W1)
- Output connected to motor U2/V2/W2 (or T1/T2/T3), no capacitors allowed on output side
- Braking resistor connected to +/-BRK terminals (R4 and above standard braking chopper)
- Control signals connected to I/O terminals

Commissioning Key Points:

Pre-power check wiring, no short circuit, reliable grounding, input voltage normal
Power-on check display normal, no fault alarm, fan running
Parameter setting: select application macro, set motor parameters, perform motor ID run, set acceleration/deceleration time, I/O configuration, communication parameters, PID parameters
No-load test: motor disconnected from load, jog test rotation direction, gradually increase speed test
Load test: connect load, gradually load test, confirm all functions normal
Parameter backup

Precautions:

After power-off, wait at least 15 minutes (confirm DC bus voltage drops to safe level) before opening cover
No capacitors, power factor correction capacitors, surge absorbers allowed on drive output side
When motor cable length exceeds 50m (shielded) or 100m (unshielded), recommend installing output reactor
Long cables or old motors recommend installing dv/dt filter
+D150 DC reactor is already built-in, no additional installation needed

Can I install it myself?

If you have drive installation and commissioning experience, are familiar with electrical specifications and ABB parameter settings, you can install and commission yourself.
If no experience, strongly recommend contacting professional service provider for installation and commissioning, ensuring safety and correct operation.
First commissioning recommend disconnecting load.

Q5: In stock? Lead time? Price? Can I still buy ACS800?

A: Currently Order Available. The ACS800 series has gradually entered late lifecycle, some models have limited stock, specific stock fluctuates.

Lead time: Standard 4-8 weeks (ordering from ABB through professional channels or global stock allocation). Some common models may be in stock, specific subject to formal quotation. Custom configurations with option codes (+P901+D150+N652) may require factory ordering, longer lead time.
Price: Subject to formal quotation, depends on quantity, supply channel, option configuration, whether includes technical service and commissioning support. Bulk procurement enjoys tiered discounts.
Can I still buy ACS800? The ACS800 series has been gradually succeeded by the new generation ACS880, some models may be discontinued or entering final order period. However, some ACS800 models (including this model) can still be purchased through professional channels. Specific stock and lead time need to be confirmed by contacting via email. If ACS800 lead time is long or discontinued, we can provide ACS880 replacement model recommendations, need to confirm installation dimensions, wiring, communication protocol, and parameter compatibility.
Expedited service: For urgent needs, can try to coordinate global stock or expedited ordering.
Please indicate: motor power and current, load type, input voltage, communication protocol requirements, environmental conditions, option code requirements, required quantity, desired delivery time and destination when inquiring.
Supporting products (braking resistor, output reactor, communication module, control panel, etc.) can provide combined quotation and annual spare parts framework agreement.

ꄴPrevious： ABB ACS800-01-0040-7+C132+L503 Marine Drive | Wall-mounted 40A 690V

ꄲNext： ABB ACS800-04N-12A6-4 Industrial Drive | Single Drive Module 12.6A
