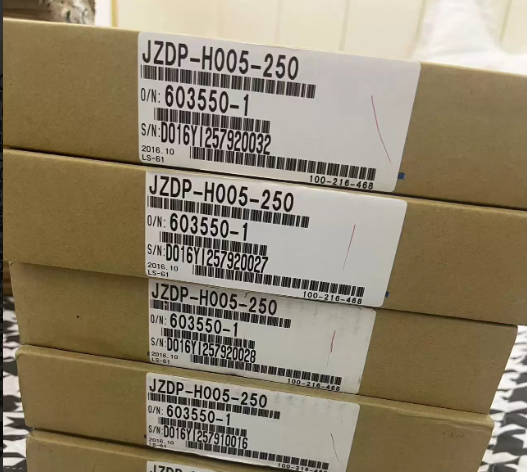

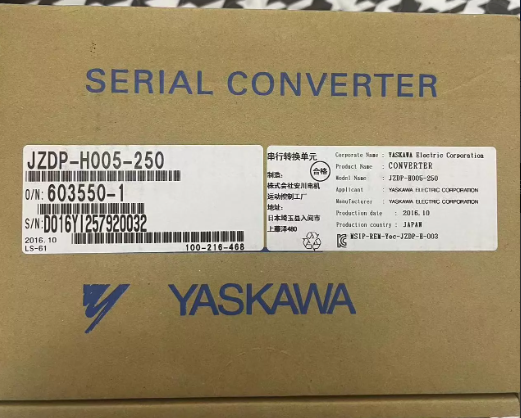

Yaskawa Serial Converter Unit | JZDP-H005-250 | 1/256 Pitch Resolution | RENISHAW Encoder

Yaskawa serial converter unit JZDP-H005-250, compatible with Sigma-7 series linear servomotors, supports external RENISHAW encoder input, signal amplitude alarm and thermal protection, 1/256 pitch resolution, max response frequency 250kHz, differential sine/cosine input, serial differential output with built-in 120Ω terminating resistor, converts analog encoder signals to serial data for servo drives, compact and lightweight. Order available.

online consultation

Product Details

1. Product Overview

The Yaskawa Serial Converter Unit JZDP-H005-250 is a peripheral device for Yaskawa Sigma-7 series linear servomotor systems, used to convert analog sine/cosine signals output by external RENISHAW linear scales/encoders into serial digital signals recognizable by Yaskawa servo drives (SERVOPACK), enabling high-precision position feedback and closed-loop control for linear servomotors.

This serial converter unit belongs to the JZDP-H series, featuring signal amplitude alarm function and thermal protection function, with signal resolution of 1/256 pitch (1/256 of one cycle of the input two-phase sine wave), maximum response frequency 250kHz, meeting the position feedback requirements in high-speed linear motion applications. The unit model code 005 indicates compatibility with encoders manufactured by RENISHAW, and no Hall sensor input; the suffix 250 indicates compatibility with a specific specification of linear servomotor.

In linear servomotor systems, the linear scale/encoder is usually installed near the motor, outputting analog sine/cosine (sin/cos) signals and reference (Ref) signals. These analog signals need to be interpolated, A/D converted, and serially encoded by the serial converter unit before being transmitted to the servo drive for position closed-loop control. The JZDP-H005-250 is the key device performing this signal conversion function, converting the analog differential signals of the RENISHAW encoder into standard serial differential signals for Yaskawa servo drives, connected to the encoder interface of the servo drive via a dedicated cable.

This unit adopts a balanced differential output circuit (SN75LBC176 or equivalent), with a built-in 120Ω terminating resistor, providing strong anti-interference capability, suitable for stable transmission of high-speed serial data in complex electromagnetic environments on industrial sites. The input side supports differential sine/cosine signals with input amplitude range 0.4V to 1.2V, and reference signal input level 1.5V to 3.5V. The unit is powered by the servo drive, with typical current consumption of 120mA and maximum 350mA.

The JZDP-H005-250 is equipped with a signal amplitude alarm function. When the encoder input signal amplitude is too low (possibly caused by encoder contamination, excessive installation gap, cable failure, etc.), the unit outputs an alarm signal, reminding maintenance personnel to check the encoder status in time, avoiding reduced control accuracy or operational faults caused by degraded position feedback signal quality. It is also equipped with thermal protection function, activating protection when the internal temperature of the unit is too high, ensuring safe and reliable operation.

This serial converter unit is compact and lightweight, convenient for installation near the linear motor or in the control cabinet. The connection cable between the serial converter unit and the servo drive must be prepared by the customer. The product is RoHS compliant (all H/J series models are RoHS compliant without the -E suffix).

Note: The model definition of this product JZDP-H005-250 is based on Yaskawa official nomenclature document (No. 900-289-836), and electrical parameters are based on Yaskawa Sigma series user manuals. Installation and wiring must be performed by professional engineers qualified in servo system commissioning, strictly following Yaskawa servo system installation and wiring specifications. The connection cable between the serial converter unit and the servo drive must be prepared by the customer; cable specifications please refer to the Yaskawa user manual.

2. Specifications

表格

Parameter	Value
Brand	Yaskawa Electric Corporation
Model	JZDP-H005-250
Product Type	Serial Converter Unit
Applicable Series	Sigma-7 series linear servomotor systems
Applicable Voltage Class	400V three-phase (reference)
Unit Model Code	H005
Function Configuration	Signal amplitude alarm + Thermal protection
Signal Resolution	1/256 pitch (1/256 of one cycle of input two-phase sine wave)
Compatible Encoder Manufacturer	RENISHAW
Hall Sensor Input	None
Applicable Linear Servomotor Code	250
Max. Response Frequency	250 kHz
Power Supply	Powered by SERVOPACK (servo drive)
Current Consumption (typical)	120 mA
Current Consumption (max.)	350 mA
Analog Input Signals	Sine (sin) / Cosine (cos) / Reference (Ref), differential input
Differential Input Amplitude	0.4 V to 1.2 V
Reference Input Signal Level	1.5 V to 3.5 V
Output Signal	Serial data (position feedback signal)
Output Method	Balanced differential output
Output Circuit	SN75LBC176 or equivalent
Built-in Terminating Resistor	120 Ω
Signal Amplitude Alarm Function	Yes (alarm when encoder input signal amplitude is too low)
Thermal Protection Function	Yes
Connection Cable	Cable between serial converter unit and servo drive must be prepared by customer
Dimensions (reference)	Approx. 90 mm × 60 mm × 23 mm
Weight (reference)	Approx. 0.15 kg
Vibration Resistance	Compliant with JIS B 3502 (Contact via email for specific parameters)
Shock Resistance	Contact via email (reference 15G)
Operating Ambient Temperature	Contact via email (reference 0 to +55°C)
Storage Ambient Temperature	Contact via email (reference -25 to +85°C)
Operating Ambient Humidity	Contact via email (reference 30 to 95% RH, non-condensing)
Protection Degree	Contact via email
Cooling Method	Natural cooling
RoHS Compliant	Yes (all H/J series models are RoHS compliant)
Origin	Contact via email (Japan)
HS Code	Contact via email (reference 8543 electrical machines)
Stock Status	Order available
Warranty	12 months

5. Model Explanation

Model: JZDP-H005-250

Product Description: Yaskawa Sigma-7 series linear servomotor serial converter unit, compatible with RENISHAW encoder, signal amplitude alarm + thermal protection, 1/256 pitch resolution, no Hall sensor input

Yaskawa Official Nomenclature Document: No. 900-289-836 (LINEAR SLIDER / LINEAR SERVO MOTOR / SERIAL CONVERTER (SGT, SGL, JZDP Series))

JZDP Series Overview:

JZDP is the series designation for Yaskawa servo instrument "Serial Converter"
The function of the serial converter unit is to convert analog sine/cosine signals output by external linear scales/encoders into serial digital signals recognizable by Yaskawa servo drives, enabling high-precision position feedback for linear servomotors

Unit Model (Type H) Function Description:

Type H: Signal amplitude alarm function + thermal protection function, resolution 1/256 pitch
Other models in the series (reference):
- Type A: Standard
- Type D: Signal amplitude alarm function, resolution 1/256 pitch
- Type G: Signal amplitude alarm function, resolution 1/4096 pitch
- Type H: Signal amplitude alarm + thermal protection, resolution 1/256 pitch (this product)
- Type J: Signal amplitude alarm + thermal protection, resolution 1/4096 pitch

Unit Code 005 Description:

005 = Compatible with encoders manufactured by RENISHAW, no Hall sensor input
Other unit codes in the series (reference):
- 003 = Compatible with HEIDENHAIN encoders, no Hall sensor
- 005 = Compatible with RENISHAW encoders, no Hall sensor (this product)
- 006 = Compatible with HEIDENHAIN encoders, with Hall sensor
- 008 = Compatible with RENISHAW encoders, with Hall sensor

Suffix 250 Description:

250 = Applicable to a specific specification of linear servomotor. For the specific compatible motor model, please Contact via email or refer to the Yaskawa selection catalog.

RoHS Compliance Note:

All Type H and Type J models are RoHS compliant without the -E suffix
Type A/D/G models, if RoHS compliant, carry the -E suffix at the end of the model number

Related Products (ordered separately, Contact via email for confirmation):

Yaskawa Sigma-7 series linear servomotors (SGLFW2 / SGLGW2 series moving coils and magnet tracks)
Yaskawa Sigma-7 series servo drives (SGD7S, etc.)
Serial converter unit connection cable (must be prepared by customer, specifications refer to Yaskawa user manual)
RENISHAW linear scales/encoders (such as RGH22 series, etc.)
Other Yaskawa servo system peripheral devices (reactors, filters, braking resistors, etc.)

Official Documentation Reference:

Yaskawa JZDP series nomenclature (No. 900-289-836)
Yaskawa Sigma-7 series linear servomotor user manual
Yaskawa SGD7S series servo drive user manual
Yaskawa serial converter unit technical specification

6. Why Choose Us

Professional Procurement, Genuine Yaskawa Quality Guaranteed — All Yaskawa servo products and peripheral devices obtained through professional procurement channels, ensuring genuine Yaskawa original products, with product identification and factory inspection certificates, 12-month quality warranty. Pre-shipment appearance inspection, model confirmation, part number verification, and packaging check performed.
Worldwide Delivery, Professional Industrial Electronics Logistics — DHL/FedEx/UPS international courier, global delivery available. Serial converter units and other precision industrial electronic devices use shock-proof moisture-proof anti-static professional packaging, ensuring safe transport. Expedited logistics and customs clearance available, delivery to 200+ countries, meeting urgent project and maintenance needs.
Professional Technical Support, Servo System Full-process Service — Serial converter unit selection consultation (confirming compatible motor model, encoder manufacturer, resolution requirements, cable specifications), installation guidance (installation location selection, encoder wiring specifications, servo drive connection guidance), parameter commissioning (servo drive encoder parameter configuration, signal amplitude alarm threshold setting, position feedback accuracy verification), fault analysis (alarm code troubleshooting, encoder signal quality diagnosis, cable fault detection, spare parts replacement guidance), and spare parts list review, helping users correctly select, install and maintain.
Flexible Procurement, Project Bulk and Spare Parts Framework Agreements — Single unit and bulk project orders, tiered discounts. Complete servo system package solutions available (linear servomotor + servo drive + serial converter unit + encoder + reactor + filter + cable combination) and annual spare parts framework agreements, helping users optimize procurement cost, ensure spare parts supply, minimize downtime risk. Customized quotations and long-term cooperation solutions available for CNC machine tools, semiconductor equipment, electronics manufacturing, packaging machinery, logistics automation and other industry users.
Pre-shipment Verification, Test Report Available — Appearance, packaging, model checks before shipment; serial converter unit test report available if necessary (power-on test, signal input/output test, alarm function test, appearance inspection, accessory inventory), ensuring delivered product in good condition. For urgent project needs (equipment fault repair, production line emergency repair, project commissioning), priority inventory coordination and expedited shipping available.

7. Frequently Asked Questions (FAQ)

Q1: What is JZDP-H005-250? What are the main parameters?

A: JZDP-H005-250 is a Serial Converter Unit manufactured by Yaskawa Electric Corporation, belonging to the JZDP-H series, specifically designed for Yaskawa Sigma-7 series linear servomotor systems, used to convert analog sine/cosine signals output by external RENISHAW linear scales/encoders into serial digital signals recognizable by Yaskawa servo drives.

Core parameters: Brand Yaskawa, model JZDP-H005-250, product type Serial Converter Unit, applicable series Sigma-7 linear servomotor systems, function configuration signal amplitude alarm + thermal protection, signal resolution 1/256 pitch, compatible encoder manufacturer RENISHAW, no Hall sensor input, max response frequency 250kHz, power supply by SERVOPACK, current consumption typical 120mA / max 350mA, analog input sine/cosine/Ref differential input amplitude 0.4-1.2V, output serial data balanced differential output (SN75LBC176 or equivalent) with built-in 120Ω terminating resistor, dimensions reference approx. 90×60×23mm, weight reference approx. 0.15kg, RoHS compliant (all H/J series models).

Main applications: Used in linear servomotor systems to convert analog position feedback signals from RENISHAW linear scales/encoders into serial digital signals, transmitted to Yaskawa servo drives for high-precision position closed-loop control. Widely used in CNC machine tools, semiconductor manufacturing equipment, electronics placement machines, precision positioning tables, packaging machinery, logistics automation equipment, inspection and measurement equipment, and other applications requiring high-precision linear motion control.

Note: The connection cable between the serial converter unit and the servo drive must be prepared by the customer; cable specifications please refer to the Yaskawa user manual. Installation and wiring must be performed by professional engineers qualified in servo system commissioning.

Q2: What do H, 005, and 250 in JZDP-H005-250 mean?

A: According to Yaskawa official nomenclature document (No. 900-289-836), the meanings of each part of JZDP-H005-250 are as follows:

JZDP: Series designation, representing Yaskawa servo instrument "Serial Converter".

H: Unit model code, representing function configuration:

Type H = Signal amplitude alarm function + Thermal protection function, resolution 1/256 pitch
Other models in series: A (Standard), D (Signal amplitude alarm, 1/256 pitch), G (Signal amplitude alarm, 1/4096 pitch), J (Signal amplitude alarm + thermal protection, 1/4096 pitch)

005: Unit code, representing compatible encoder type and Hall sensor configuration:

005 = Compatible with encoders manufactured by RENISHAW, no Hall sensor input
Other codes: 003 (HEIDENHAIN encoder, no Hall), 006 (HEIDENHAIN encoder, with Hall), 008 (RENISHAW encoder, with Hall)

250: Applicable linear servomotor code, indicating this serial converter unit is compatible with a specific specification of Yaskawa linear servomotor. For the specific compatible motor model, please Contact via email or refer to the Yaskawa selection catalog.

Selection suggestions:

Select 003/005/006/008 code based on the linear scale/encoder manufacturer used
Select the corresponding code based on whether Hall sensor input is required
Select A/D/G/H/J model based on required resolution and functions
Confirm the suffix code based on the linear servomotor model used
If you have selection questions, please provide the motor model and encoder model, and we can assist in confirming the compatible serial converter unit model

Q3: What is the function of a serial converter unit? Why is it needed?

A: The Serial Converter Unit is a key signal conversion device in linear servomotor systems. Its main functions and necessity are as follows:

Functions:

Signal conversion: Converts analog sine/cosine (sin/cos) signals and reference (Ref) signals output by external linear scales/encoders through interpolation, A/D conversion, and serial encoding, into high-speed serial digital signals recognizable by Yaskawa servo drives.
Position feedback: Transmits real-time position information of the linear motor to the servo drive in serial data format, enabling high-precision position closed-loop control.
Signal processing: Amplifies, filters, and interpolates encoder analog signals, improving position feedback resolution and accuracy.
Alarm monitoring: Type H/J units have signal amplitude alarm function, real-time monitoring of encoder input signal quality, outputting an alarm when signal amplitude is too low, reminding maintenance personnel to check encoder status.
Thermal protection: Type H/J units have thermal protection function, activating protection when internal temperature is too high, ensuring device safety.

Why a serial converter unit is needed:

Signal format mismatch: External linear scales (such as RENISHAW, HEIDENHAIN) usually output analog sine/cosine signals (1Vp-p differential), while Yaskawa servo drive encoder interfaces receive serial digital signals. The two formats do not match, and format conversion must be performed through a serial converter unit.
Improve resolution: One cycle of the analog sine signal of a linear scale corresponds to one pitch (such as 20μm, 40μm), and direct use has lower resolution. The serial converter unit improves position feedback resolution by interpolation (e.g., 1/256 pitch), subdividing one cycle into 256 parts.
Long-distance transmission: Analog signals are susceptible to interference and attenuation during long-distance transmission, while serial differential signals have stronger anti-interference capability, suitable for longer distance transmission from the motor end to the control cabinet.
System compatibility: Yaskawa servo drives are designed to receive serial encoder signals. The serial converter unit enables third-party linear scales (RENISHAW, HEIDENHAIN, etc.) to be compatible with Yaskawa servo systems.

System connection diagram: Linear scale/encoder (analog sin/cos output) → Serial converter unit JZDP-H005-250 (analog to serial) → Servo drive SGD7S (serial encoder interface) → Linear servomotor

Q4: Which RENISHAW encoders is JZDP-H005-250 compatible with? How to wire it?

A: JZDP-H005-250 is compatible with linear scales/encoders manufactured by RENISHAW that output analog sine/cosine signals.

Common compatible RENISHAW encoder series (reference):

RGH22 series (such as RGH22B, RGH22D, RGH22X, RGH22Z, RGH22Y, etc.)
Other RENISHAW linear scales outputting analog sine/cosine differential signals (1Vp-p)
For the specific compatible model, please Contact via email and provide the complete encoder model for confirmation

Wiring instructions (reference):

Input side (encoder → serial converter unit):

Sine signal sin+ / sin-: differential input, amplitude 0.4-1.2V
Cosine signal cos+ / cos-: differential input, amplitude 0.4-1.2V
Reference signal Ref+ / Ref-: differential input, level 1.5-3.5V
Encoder power supply: powered by serial converter unit or external power supply (specific please refer to Yaskawa user manual)
Shield: single-end grounded, usually grounded at the serial converter unit side

Output side (serial converter unit → servo drive):

Serial data+ / data-: balanced differential output, connected to the servo drive encoder interface
Built-in 120Ω terminating resistor
Cable: must be prepared by customer, recommended to use twisted-pair shielded cable, cable length please refer to the maximum length specified in the Yaskawa user manual
Shield: single-end grounded

Wiring precautions:

The connection cable between the serial converter unit and the servo drive must be prepared by the customer. Ordinary cables must not be used; twisted-pair shielded encoder cables meeting Yaskawa specifications must be used.
Encoder cables and power cables should be routed separately, avoiding parallel routing, to reduce electromagnetic interference.
All shields should be single-end grounded, usually grounded at the control cabinet side (servo drive side), avoiding ground loops.
Before wiring, ensure the power is completely off to prevent electric shock and equipment damage.
For specific wiring diagrams and pin definitions, please refer to the Yaskawa Sigma-7 linear servomotor user manual and SGD7S servo drive user manual.

Q5: In stock? Lead time? Price?

A: Currently Order Available. Specific stock of Yaskawa servo products fluctuates with market.

Lead time: Standard 2-8 weeks (serial converter unit is a peripheral device for Yaskawa servo systems, some common models may be in stock, specific subject to formal quotation).
Price: Subject to formal quotation, depends on quantity, supply channel, whether includes technical service and on-site commissioning support, etc. Bulk procurement enjoys tiered discounts.
Package solutions: Complete servo system package solutions available (linear servomotor + servo drive + serial converter unit + encoder + reactor + filter + cable combination), combined procurement price more favorable.
Expedited service: For urgent needs (equipment fault repair, production line emergency repair, project commissioning), we can try to coordinate stock or expedited ordering, please contact sales team.
Please indicate: required quantity, desired delivery time and destination, compatible linear servomotor model and encoder model, whether cables or other accessory products needed when inquiring; we will coordinate fastest delivery and optimal price.
