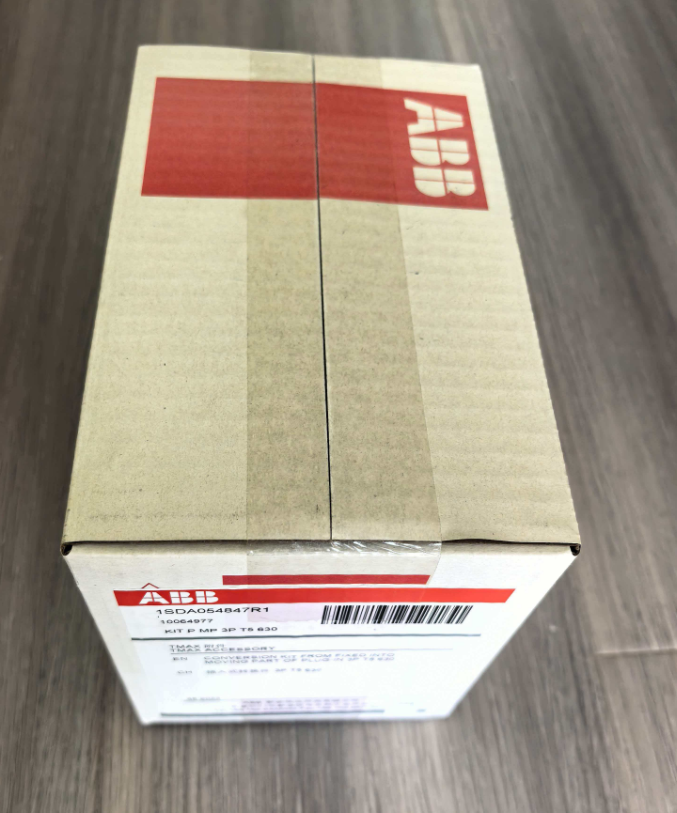

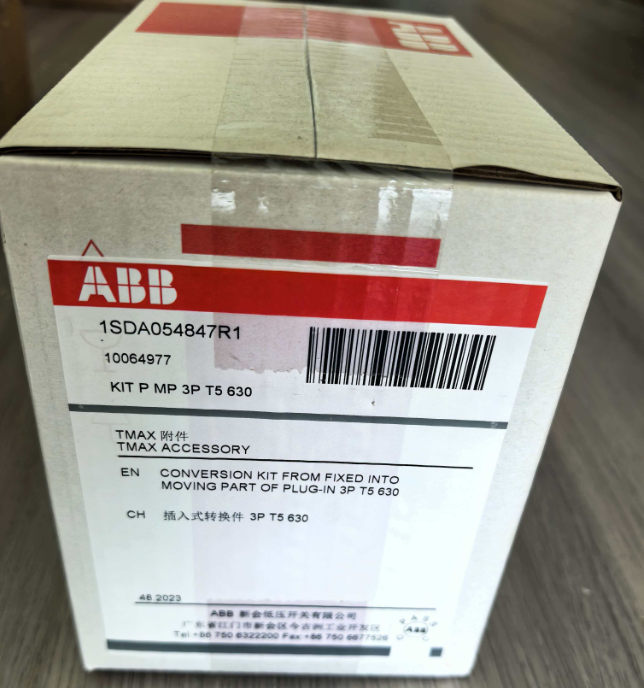

ABB 1SDA054847R1 T5 630A 3-Pole Plug-in Conversion Kit
I. Product Overview
The ABB 1SDA054847R1 (product name KIT MP T5 630 P 3p) is a plug-in conversion kit for ABB Tmax T5 series molded case circuit breakers, suitable for T5 630A frame 3-pole circuit breakers. This kit is used to convert fixed circuit breakers to plug-in moving parts, enabling quick plug-in and removal of circuit breakers in power distribution systems without disconnecting main circuit wiring.
The product belongs to the ABB SACE Tmax T series circuit breaker accessories, complies with IEC standards, and has a net weight of 0.70kg. As a safety-related component, this conversion kit must be installed by professional electrical personnel. It is widely used in industrial power distribution systems, motor control centers, data centers, commercial buildings, and other applications requiring frequent maintenance and quick circuit breaker replacement.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | ABB |
| Order Number | 1SDA054847R1 |
| Product Name | KIT MP T5 630 P 3p |
| Product Type | Circuit Breaker Plug-in Conversion Kit |
| Compatible Circuit Breaker Series | ABB SACE Tmax T5 Series |
| Frame Current | 630A |
| Number of Poles | 3-Pole (3P) |
| Function | Converts fixed circuit breaker to plug-in moving part |
| Installation | Professional installation required (safety-related component) |
| Applicable Standards | IEC |
| Net Weight | 0.70kg |
| EAN Code | 8015644559724 |
| Minimum Order Quantity | 1 piece |
| Packaging | 1 piece per kit |
| Operating Temperature Range | Contact via email for confirmation |
| Dimensions | Contact via email for confirmation |
| Material | Contact via email for confirmation |
| Country of Origin | Contact via email for confirmation |
III. Product Features
- Specifically designed for ABB Tmax T5 630A 3-pole circuit breakers for perfect compatibility
- Converts fixed circuit breakers to plug-in moving parts for quick plug-in and removal
- No need to disconnect main circuit wiring during maintenance and replacement, reducing downtime
- Suitable for power distribution systems requiring frequent maintenance and quick replacement
- ABB original quality with stable and reliable performance, complying with IEC standards
- Compact structure for easy installation, net weight only 0.70kg
- Safety-related component requiring professional electrical installation for safety and reliability
- Widely used in industrial power distribution, motor control centers, data centers and more
IV. Typical Applications
- Industrial power distribution system circuit breaker cabinet retrofitting
- Motor Control Center (MCC) draw-out circuit breaker configuration
- Data center power distribution system quick maintenance
- Commercial building low-voltage distribution cabinet retrofitting
- Petrochemical plant power distribution systems
- Power plant auxiliary power distribution systems
- Rail transit power distribution systems
- Mining equipment power distribution systems
- Marine power distribution systems
- Renewable energy power station distribution systems
V. Model Description
1SDA054847R1 is the complete order number for the ABB Tmax T5 series circuit breaker plug-in conversion kit. In the product name KIT MP T5 630 P 3p:
- KIT: Kit
- MP: Moving Part
- T5: Compatible with Tmax T5 series circuit breakers
- 630: Frame current 630A
- P: Plug-in
- 3p: 3-pole
For details on conversion kits of other current ratings and pole counts in the same series, please contact via email for confirmation. We will provide detailed selection manuals and technical support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What circuit breaker models is the 1SDA054847R1 compatible with?
A: This conversion kit is compatible with ABB Tmax T5 series 630A frame 3-pole circuit breakers, used to convert fixed circuit breakers to plug-in moving parts.
Q2: What is the function of this kit?
A: This kit is used to convert fixed circuit breakers to plug-in moving parts, enabling quick plug-in and removal of circuit breakers in power distribution systems without disconnecting main circuit wiring.
Q3: Can I install this conversion kit myself?
A: No. This product is a safety-related component and must be installed by professional electrical personnel to ensure installation quality and electrical safety.
Q4: Are there conversion kits for other current ratings and pole counts in the same series?
A: Yes. The ABB Tmax T series offers plug-in conversion kits in various current ratings (400A, 630A, etc.) and pole counts (3P, 4P). For specific models, please contact via email for confirmation, and we will recommend suitable models.
