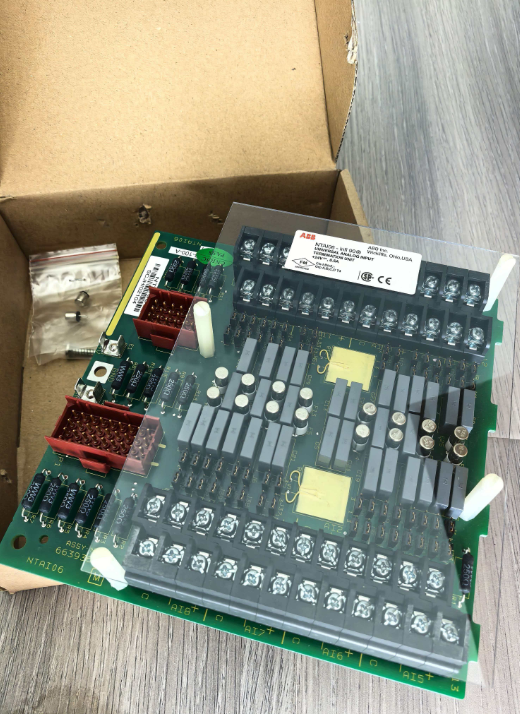

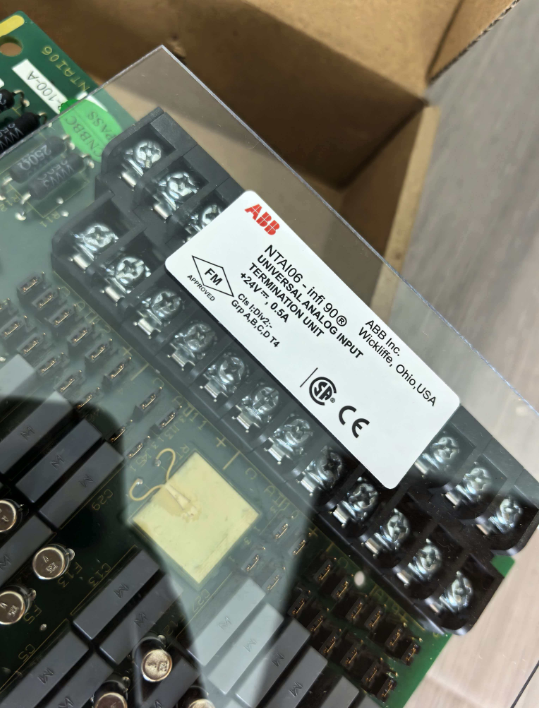

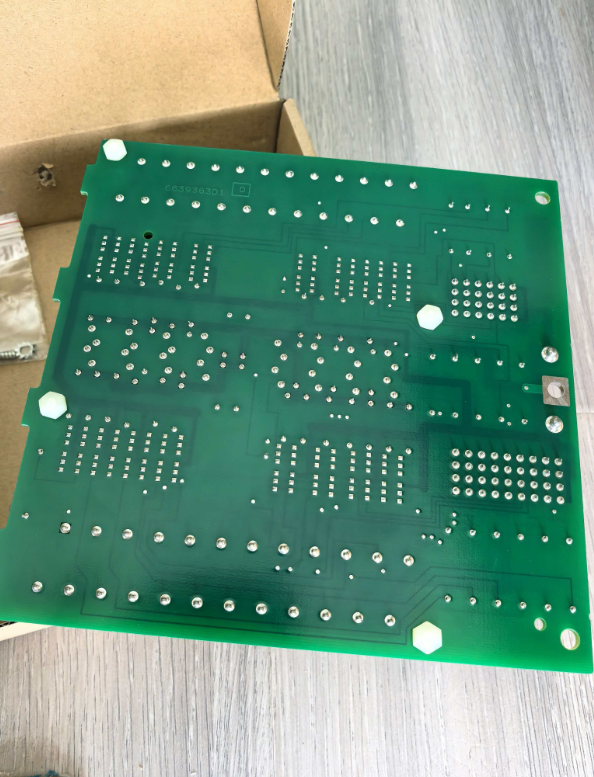

ABB NTAI16-A 16-Channel Analog Input Termination Unit
I. Product Overview
The ABB NTAI16-A is a Universal Analog Input Termination Unit (also known as a termination board) in the ABB (formerly Bailey Controls) INFI 90 Distributed Control System (DCS). This module provides 16 universal analog input channels, supporting the connection and termination of various analog signal types, and is an important component for field analog signal acquisition and processing in the INFI 90 system.
The NTAI16-A supports ±10V DC voltage input, 4-20mA current input, and resistance input, employing a 12-bit or higher precision A/D converter to ensure accurate signal acquisition. The module features channel-to-channel and channel-to-ground electrical isolation, effectively suppressing common-mode interference and ground loop effects. Operating voltage is 24V DC, with IP20 protection rating, suitable for installation on field termination panels (NFTP01) inside control cabinets. Widely used in industrial process control fields such as power, petrochemical, metallurgy, paper, and water treatment.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | ABB (formerly Bailey Controls) |
| Model | NTAI16-A |
| Product Type | Universal Analog Input Termination Unit / Termination Board |
| System Series | Bailey INFI 90 DCS System |
| Number of Channels | 16 universal analog input channels |
| Voltage Input | ±10 V DC |
| Current Input | 4–20 mA |
| Resistance Input | Supported |
| A/D Conversion Resolution | 12-bit or higher precision |
| Electrical Isolation | Channel-to-channel and channel-to-ground electrical isolation |
| Operating Voltage | 24V DC (typical) |
| Voltage Input Impedance | >1MΩ |
| Current Input Impedance | 50Ω |
| EMI Immunity | Complies with IEC 61000 standard |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Weight | 0.5 kg |
| Dimensions | 3.5 × 32 × 28 cm |
| Mounting | Field termination panel (NFTP01) mounting |
| Applicable Standards | IEC 61000 |
| Power Consumption | Contact via email for confirmation |
| Storage Temperature | Contact via email for confirmation |
| Relative Humidity | Contact via email for confirmation |
| Country of Origin | Contact via email for confirmation |
III. Product Features
- 16 universal analog inputs supporting voltage, current, and resistance signal types
- 12-bit or higher precision A/D conversion ensuring accurate signal acquisition
- Channel-to-channel and channel-to-ground electrical isolation for effective common-mode interference suppression
- 24V DC power supply compatible with industrial control system standard power
- Voltage input impedance >1MΩ, current input impedance 50Ω for good signal matching
- Complies with IEC 61000 EMI immunity standard for complex industrial environments
- IP20 protection rating suitable for control cabinet installation
- Operating temperature 0°C to +60°C adapting to industrial field environments
- Specifically designed for Bailey INFI 90 DCS system for perfect compatibility
- Compact structure, weight only 0.5kg for easy installation and maintenance
IV. Typical Applications
- Power industry: power plant DCS system analog signal acquisition and termination
- Petrochemical: refining plant process control signal acquisition
- Metallurgy: steel mill automation control system signal processing
- Paper industry: paper machine control system analog acquisition
- Water treatment: wastewater treatment plant process control system
- Cement industry: cement plant automation control system
- Natural gas: gas pipeline monitoring and data acquisition system
- Pharmaceutical: pharmaceutical production process control system
- Food and beverage: production process automation control
- HVAC: large building building automation system
V. Model Description
NTAI16-A is the complete model number for the ABB (formerly Bailey Controls) INFI 90 DCS system analog input termination unit. Where:
- NT: Termination Unit series prefix
- AI: Analog Input
- 16: 16 channels
- A: Version/configuration code
This termination unit is typically used with analog input sub-modules (such as IMASI, etc.) in the INFI 90 system, connected via prefabricated cables to achieve field analog signal termination and signal conditioning.
For detailed wiring diagrams, compatible module models, and system configuration information for this model, please contact via email for confirmation. We will provide detailed technical documentation and technical support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What type of module is the NTAI16-A
A: The NTAI16-A is a Universal Analog Input Termination Unit (termination board) in the ABB (formerly Bailey) INFI 90 DCS system, providing 16 universal analog input channels for field analog signal termination and connection.
Q2: What input signal types does this module support
A: The NTAI16-A supports ±10V DC voltage input, 4-20mA current input, and resistance input, compatible with common analog signal types in industrial process control.
Q3: What control system is the NTAI16-A compatible with?
A: This module is specifically designed for the ABB Bailey INFI 90 Distributed Control System (DCS), typically used with analog input sub-modules in the system, connected via prefabricated cables.
Q4: Can you provide detailed wiring diagrams and compatible module information?
A: Yes. Please contact via email with your requirements, and we will provide detailed wiring diagrams, compatible module models, system configuration solutions, and technical support.
