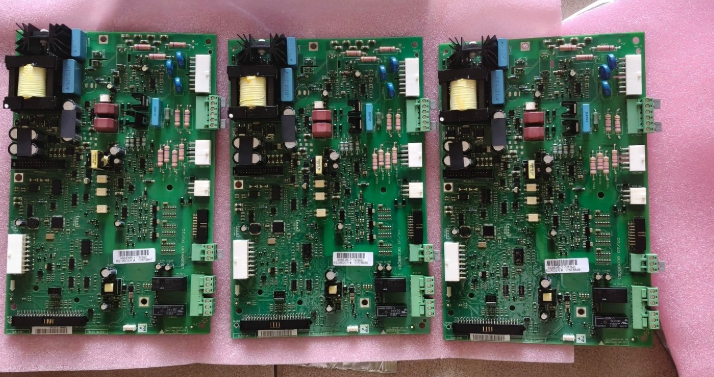

Danfoss 130B6038 DT/10 Power Board / Power Card
I. Product Overview
The Danfoss 130B6038 DT/10 is a power board/power card in the Danfoss VLT series frequency converters, compatible with FC301, FC302, FC202, FC102 and other series medium to high-power frequency converters, with power coverage from 75kW to 800kW. This power card is the core component of the converter's power drive section, responsible for power conversion, power drive and energy transmission, and is a key component for the converter to achieve motor speed regulation and torque control.
The 130B6038 DT/10 features card edge connectors and plug-in connector design for quick installation and replacement inside the converter. The power card itself does not have an independent cooling device and relies on the converter's cooling system (air or liquid cooling) for heat dissipation. The product has passed multiple international certifications such as CE, RoHS, UL, complying with industrial equipment safety and environmental standards. As a core spare part of the converter, this power card is widely used in variable frequency drive systems in industrial automation, HVAC, water treatment, mining, metallurgy, petrochemical and other fields, for converter maintenance, replacement and system upgrades.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | Danfoss |
| Part Number / PCB Number | 130B6038 |
| Version | DT/10 |
| Product Type | Power Board / Power Card |
| Compatible Converter Series | FC301, FC302, FC202, FC102 |
| Compatible Power Range | 75kW to 800kW |
| Input Voltage | Single/Three phase 220V / 380V (depending on converter configuration) |
| Rated Current | Contact via email for confirmation |
| Output Frequency Range | 0 to 1000Hz (depending on converter model) |
| Connection Method | Card edge connectors + plug-in connectors |
| Cooling Method | Dependent on converter cooling system (no onboard cooling) |
| Onboard Transformer | With transformer |
| Certifications | CE, RoHS, UL |
| Operating Temperature | Contact via email for confirmation |
| Storage Temperature | Contact via email for confirmation |
| Relative Humidity | Contact via email for confirmation |
| Protection Rating | Contact via email for confirmation |
| Dimensions | Contact via email for confirmation |
| Weight | Contact via email for confirmation |
| Mounting | Internal rack mounting in converter |
| Country of Origin | Contact via email for confirmation |
| Applicable Standards | IEC 61800-5-1 and other converter standards |
III. Product Features
- Specifically designed for Danfoss FC301/FC302/FC202/FC102 series high-power converters for perfect compatibility
- Power coverage from 75kW to 800kW for various high-power drive applications
- Card edge connectors and plug-in connector design for easy installation and replacement
- Integrated power conversion and power drive functions with compact structure
- Onboard transformer providing stable auxiliary power
- Dependent on converter cooling system for heat dissipation with simple and efficient design
- Multiple international certifications (CE, RoHS, UL) complying with industrial safety and environmental standards
- Danfoss quality for stable and reliable performance and long service life
- As a core converter spare part for convenient maintenance and system upgrades
- Widely used in variable frequency drive systems in various industrial automation fields
IV. Typical Applications
- Industrial automation production line variable frequency drive systems
- HVAC fan and pump variable frequency control
- Water treatment plant pump variable frequency speed regulation systems
- Mining equipment conveyor and crusher drives
- Metallurgical industry rolling mill and coiler drives
- Petrochemical pump and compressor variable frequency control
- Power plant auxiliary drive systems
- Marine propulsion and auxiliary drives
- Rail transit traction and auxiliary drives
- Renewable energy (wind, solar) power conversion systems
V. Model Description
130B6038 DT/10 is the complete part number for the Danfoss converter power board/power card. Where:
- 130B6038: Part number / PCB board number, standard material number for Danfoss converter internal components
- DT: Version series code (Danfoss Transformer/Drive Board)
- /10: Hardware version number, DT/10 is the 10th hardware version of this power card
The same part number 130B6038 exists in multiple hardware versions, including DT/08, DT/09, DT/10, etc. Different versions may have differences in component selection, layout optimization and performance improvements. Higher versions are generally backward compatible with lower versions, but specific compatibility needs to be confirmed based on the converter model and firmware version.
For specific converter models compatible with this power card, version compatibility, detailed electrical parameters and installation instructions, please contact via email for confirmation. We will provide detailed technical documentation and technical support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What converter models is the 130B6038 DT/10 compatible with?
A: This power card is compatible with Danfoss FC301, FC302, FC202, FC102 and other series medium to high-power frequency converters, with power coverage from 75kW to 800kW. Specific compatible models need to be confirmed based on the converter's power rating and configuration.
Q2: What is the difference between DT/10 and DT/08, DT/09? Are they interchangeable?
A: DT/08, DT/09, DT/10 are different hardware versions of the same part number 130B6038, with possible differences in component selection, layout optimization and performance improvements. Higher versions are generally backward compatible with lower versions, but specific compatibility needs to be confirmed based on the converter model and firmware version. We recommend contacting via email for confirmation.
Q3: Can this power card be purchased separately? Does it require professional installation?
A: Yes, it can be ordered separately as a converter spare part. Due to the involvement of high voltage and high-power circuits, the installation and replacement of this power card must be performed by professional electrical personnel to ensure installation quality and electrical safety.
Q4: Can you provide detailed electrical parameters and installation drawings?
A: Yes. Please contact via email with your requirements, including the specific converter model and power rating, and we will provide corresponding detailed electrical parameters, installation drawings, version compatibility instructions and technical support.
