KENPO KP-400 Portable Axial Fan 400mm AC200V 3-Phase
I. Product Overview
The KENPO KP-400 is a portable axial flow fan from KENPO, with impeller diameter 400mm (16 inch), specifically designed for industrial and marine ventilation applications. This fan is driven by AC200V 3-phase power supply, equipped with a high-performance axial impeller, capable of generating high air flow and high static pressure for efficient air delivery and ventilation.

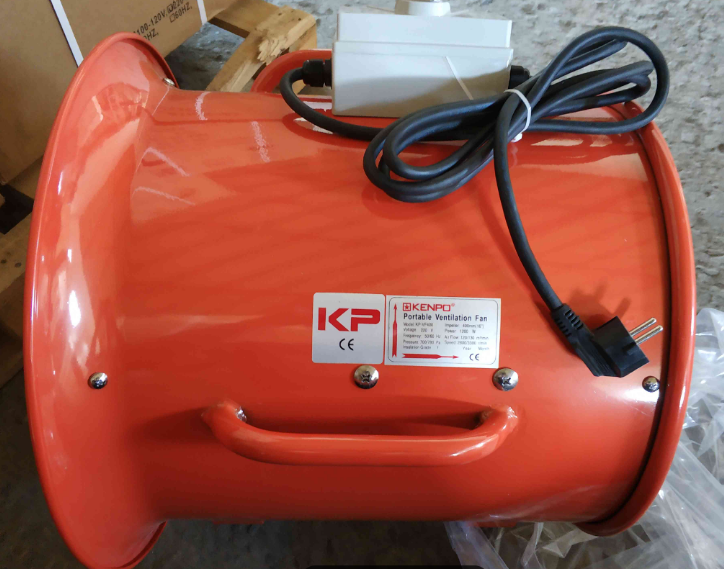

The KP-400 portable axial fan features a metal housing structure, durable and robust, adapting to harsh industrial and marine environments. The fan is equipped with a portable handle design, with moderate weight for convenient on-site movement and deployment. The product is CE certified, complying with European safety standards for safe use worldwide. This fan is widely used in ship cabin ventilation, industrial plant exhaust, tunnel and underground ventilation, welding fume extraction, basement ventilation, temporary construction ventilation, confined space air exchange and other scenarios, serving as the ideal equipment for industrial ventilation, marine ventilation and emergency ventilation. The fan can be used with flexible ventilation ducts for long-distance air supply or exhaust, meeting various complex ventilation requirements.

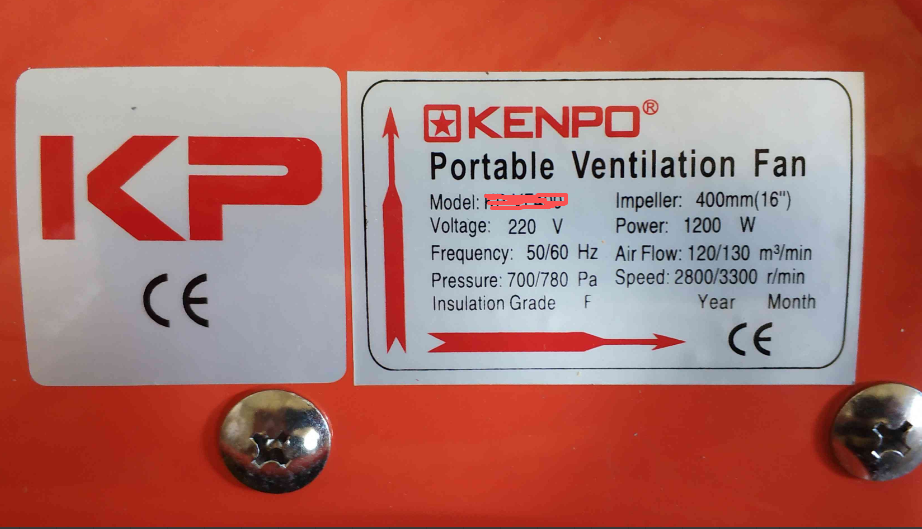

II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | KENPO |
| Model | KP-400 |
| Product Type | Portable Axial Flow Fan |
| Impeller Diameter | 400 mm (16 inch) |
| Power Supply | AC 200V 3-Phase |
| Rated Frequency | 50/60 Hz |
| Rated Power | Approx. 1200 W |
| Rated Current | Contact via email for confirmation |
| Speed | 2800 to 3300 r/min |
| Air Flow | 96 m³/min (5760 m³/h) |
| Static Pressure | 700 Pa |
| Total Pressure | Contact via email for confirmation |
| Noise | Approx. 80 dB(A) |
| Impeller Material | Metal (aluminum/steel impeller) |
| Housing Material | Metal (steel housing) |
| Bearing Type | Ball bearing |
| Insulation Class | Contact via email for confirmation |
| Degree of Protection | Contact via email for confirmation |
| Operating Temperature | Contact via email for confirmation |
| Portable Design | Equipped with handle for easy movement |
| Duct Connection | Compatible with flexible ventilation ducts |
| Dimensions | Contact via email for confirmation |
| Weight | Contact via email for confirmation |
| Certification | CE |
| Applicable Standards | Complies with relevant industrial ventilation equipment standards |
| Country of Origin | Contact via email for confirmation |
III. Product Features
- KENPO brand, professional ventilation equipment manufacturing, stable and reliable performance
- 400mm large diameter impeller, high air flow 96m³/min, high ventilation efficiency
- High static pressure 700Pa, compatible with long-distance ducts for remote air supply
- AC200V 3-phase power drive, power approx. 1200W, powerful performance
- Speed 2800-3300r/min, abundant air flow, quick response
- Metal housing structure, durable and robust, adapting to harsh industrial environments
- Portable handle design, moderate weight, convenient for on-site movement and deployment
- Ball bearing, low maintenance, long service life
- Noise approx. 80dB(A), industrial-grade noise level
- CE certified, complying with European safety standards, globally applicable
- Compatible with flexible ventilation ducts, meeting various complex ventilation requirements
- Widely used in ventilation and air exchange in marine, industrial, tunnel, construction and other fields
- Quality assurance with high cost-effectiveness
IV. Typical Applications
- Ship cabin ventilation and air exchange
- Industrial plant exhaust and fume extraction
- Tunnel and underground air supply and ventilation
- Welding fume extraction and dust removal
- Basement and confined space ventilation
- Temporary construction site ventilation
- Ship ballast tank ventilation
- Chemical warehouse ventilation and air exchange
- Paint booth exhaust and air exchange
- Emergency rescue ventilation equipment
V. Model Description
KP-400 is the model number for the KENPO portable axial fan, where:
- KP: KENPO portable axial fan series code
- 400: Impeller diameter 400mm (16 inch)
KENPO portable axial fans offer various specifications and configuration options, including different impeller diameters (200mm/300mm/400mm, etc.), power supply voltages (110V/220V/380V/440V, etc.), phase count (single-phase/3-phase), frequency (50Hz/60Hz), etc., to adapt to power supply standards and application requirements in different countries and regions. This series of products is CE certified, and some models can also provide other marine classification society certifications.
To confirm the detailed electrical parameters (rated current, insulation class, degree of protection, etc.), dimensions, weight, duct connection specifications, optional accessories and certification information for this model, please contact via email for confirmation. We will provide detailed technical documentation and technical support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What are the air flow and static pressure of the KP-400 portable axial fan?
A: The KP-400 portable axial fan has an air flow of 96m³/min (approx. 5760m³/h), static pressure of 700Pa, speed of 2800-3300r/min, and power of approx. 1200W, capable of meeting most industrial and marine ventilation requirements.
Q2: Can this fan be used with ducts?
A: Yes. The KP-400 portable axial fan is designed with a standard duct connection and can be used with flexible ventilation ducts (PVC-coated polyester ducts, etc.) for long-distance air supply or exhaust, meeting ventilation requirements in complex spaces such as tunnels, underground areas, and ship cabins.
Q3: What is the power supply specification of this fan?
A: This model is the AC200V 3-phase power supply version, with rated frequency 50/60Hz and rated power approx. 1200W. The KENPO series also offers various power supply specifications such as 110V single-phase, 220V single-phase/3-phase, 380V 3-phase, 440V 3-phase, to adapt to power supply standards in different countries and regions.
Q4: Can you provide dimensions and weight for this fan?
A: Yes. Please contact via email with your requirements, and we will provide corresponding dimension drawings, weight, duct connection specifications, mounting methods, optional accessories and technical support.
