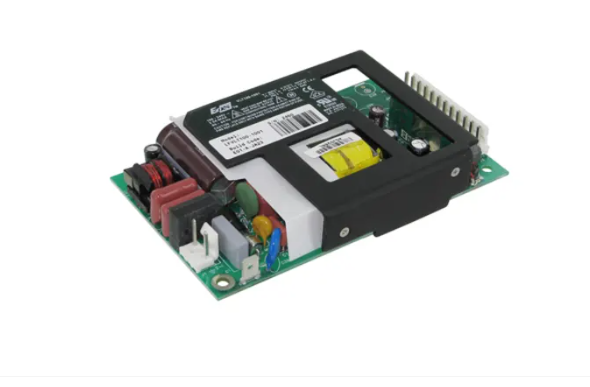

EOS VLT100-1001 Switching Power Supply Module 12V/7.5A 100W
I. Product Overview
The EOS VLT100-1001 is a VLT series 100W single output AC/DC switching power supply module manufactured by EOS Power (EOS Power India Private Ltd). This power supply module adopts advanced switching power supply technology, featuring a wide input voltage range (90-264VAC) compatible with mains standards in different regions worldwide, delivering stable 12VDC/7.5A DC output with rated output power of 100W and typical efficiency of 85%.
The VLT100-1001 features an open frame structure with compact dimensions of only 127×77.2×27.25mm (5.0×3.04×1.073 inches), achieving a power density of 6.7W/in³, suitable for embedded installation. The module adopts natural convection cooling without requiring a fan, ensuring quiet and reliable operation. The product is equipped with pin terminal block input/output connectors for convenient installation and wiring. This power supply module features comprehensive protection functions, including overcurrent protection (130% primary current limiting), short circuit protection (auto recovery <6 seconds), etc., ensuring safe operation of the power supply and load equipment. MTBF (Mean Time Between Failures) exceeds 100,000 hours (MIL-HDBK-217F standard) for high reliability. The VLT100-1001 is widely used in embedded power supply for industrial control equipment, communication equipment, instrumentation, medical equipment (non-medical grade), commercial equipment, LED lighting, security monitoring and other fields.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | EOS Power |
| Series | VLT Series |
| Model | VLT100-1001 |
| Product Type | AC/DC Switching Power Supply Module (Regulated) |
| Package Type | Open Frame |
| Rated Output Power | 100 W |
| Number of Outputs | 1 |
| Output Voltage | 12 VDC |
| Output Current | 7.5 A |
| Output Type | Fixed Output |
| Output Voltage Accuracy | ±2% |
| Input Voltage Range | 90 to 264 VAC |
| Input Frequency | 47 to 63 Hz |
| Max Input Current | 2.2 A (rms) |
| Efficiency | 85% (Typical) |
| Line Regulation | 0.3% |
| Load Regulation | 2.5% |
| Ripple and Noise | 3% |
| Hold-Up Time | 115V/230V: 6ms/15ms |
| Cooling Method | Natural Convection Cooling |
| Overcurrent Protection | 130% Primary Current Limiting |
| Short Circuit Protection | Auto Recovery < 6 seconds |
| MTBF | > 100,000 hours (MIL-HDBK-217F) |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | Contact via email for confirmation |
| Relative Humidity | Contact via email for confirmation |
| Mounting | Screw Mounting (Panel Mount) |
| Input Connector | Pin Terminal Block |
| Output Connector | Pin Terminal Block |
| Power Indicator | No |
| Pin Count | 16 |
| Dimensions (L×W×H) | 127 × 77.2 × 27.25 mm |
| Weight | Contact via email for confirmation |
| Medical Grade | No |
| RoHS | Compliant (with exemptions) |
| Safety Certifications | Contact via email for confirmation |
| EMC | Low conducted and radiated noise |
| Country of Origin | Contact via email for confirmation |
III. Product Features
- EOS Power quality, professional power supply manufacturing, stable and reliable performance
- 100W rated output power, 12VDC/7.5A single output
- Wide input voltage range 90-264VAC, compatible with global mains standards
- High efficiency typical 85%, energy saving, low heat generation
- Open frame structure, compact dimensions 127×77.2×27.25mm, power density 6.7W/in³
- Natural convection cooling, no fan required, quiet and reliable operation
- Line regulation 0.3%, load regulation 2.5%, stable output
- Comprehensive protection functions: overcurrent protection (130% current limiting), short circuit protection (auto recovery)
- MTBF >100,000 hours, high reliability, long service life
- Pin terminal block input/output, convenient installation and wiring
- Low conducted and radiated noise, good electromagnetic compatibility
- Optional cover kit available for different installation requirements
- Widely used in industrial control, communication, instrumentation and other embedded power supplies
- Quality assurance with high cost-effectiveness
IV. Typical Applications
- Industrial control equipment power supply
- Communication equipment and network equipment power supply
- Instrumentation and test equipment power supply
- Commercial equipment and office equipment power supply
- LED lighting driver power supply
- Security monitoring system power supply
- Automated production line control power supply
- Data acquisition and data logging equipment power supply
- Embedded systems and single-board computer power supply
- Equipment maintenance and fault replacement spare parts
V. Model Description
VLT100-1001 is the complete order number for the EOS Power VLT series switching power supply module. Where:
- VLT: VLT series AC/DC switching power supply (open frame, natural convection cooling)
- 100: Rated output power 100W
- 1001: Output configuration code (1 output, 12VDC/7.5A)
EOS Power VLT series power supplies offer various power ratings (60W/80W/100W, etc.) and output configuration options, including different output voltages (5V/12V/15V/24V, etc.), number of outputs (single/multiple), input ranges, mounting methods, etc., to adapt to different application requirements. The VLT100-1001 is the standard configuration model with 100W power rating and 12V single output.
To confirm the safety certification details, optional accessories (cover kit, etc.), dimension drawings, wiring diagrams, application notes and replacement models for this model, please contact via email for confirmation. We will provide detailed technical documentation and technical support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What are the output voltage and current of the VLT100-1001?
A: The VLT100-1001 is a single output AC/DC switching power supply with output voltage 12VDC, output current 7.5A, rated output power 100W, and output voltage accuracy ±2%.
Q2: What is the input voltage range of this power supply? Can it be used in China?
A: This power supply has an input voltage range of 90-264VAC and input frequency of 47-63Hz, featuring a wide input voltage design compatible with mains standards in different regions worldwide, including China's 220V/50Hz mains, and can be directly used in China.
Q3: Does this power supply require a fan for cooling?
A: No. The VLT100-1001 adopts natural convection cooling and can dissipate heat normally without a fan at 100W rated power, ensuring quiet and reliable operation. The product is designed with sufficient heat dissipation area to ensure stable operation within the 0-70°C operating temperature range.
Q4: What protection functions does this power supply have?
A: The VLT100-1001 features comprehensive protection functions, including: ①Overcurrent protection: 130% primary current limiting, activating current limiting protection when output current exceeds 130% of the rated value; ②Short circuit protection: automatically entering protection state upon output short circuit, automatically recovering normal operation within <6 seconds after the short circuit is removed. These protection functions ensure safe operation of the power supply and load equipment.
