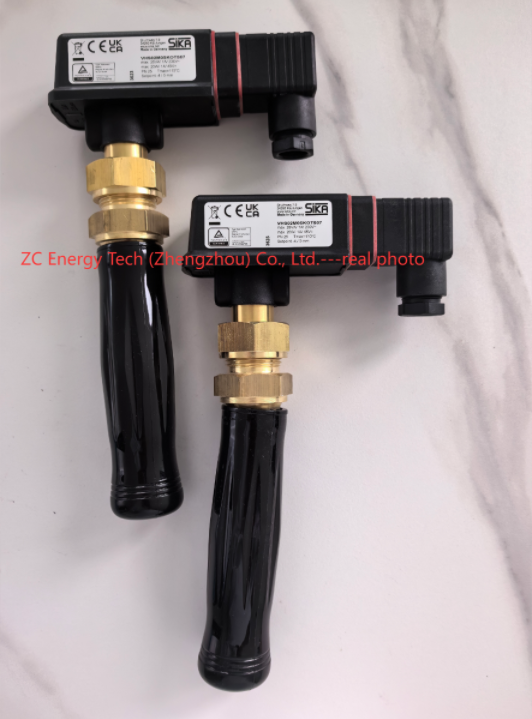

SIKA VHS02M0SKOTS07 Flow Switch Paddle Flow Switch

German SIKA VHS series paddle flow switch, model VHS02M0SKOTS07, featuring mechanical paddle operating principle, for monitoring volumetric flow of low-viscosity media (water, oil, etc.) in pipes, ensuring minimum flow to protect equipment from damage. Max. working pressure 25bar, medium temperature -25~110°C, ambient temperature -25~80°C, protection class IP65, switching capacity max. 1A/230VAC/26VA, setpoint tolerance ±15%, hysteresis 10~30%, brass/stainless steel material, with pipe section a

online consultation

Product Details

I. Product Overview

The SIKA VHS02M0SKOTS07 is a VHS series paddle flow switch manufactured by German SIKA (Dr. Siebert & Kühn GmbH & Co. KG), featuring a metal version design with pipe section and equipped with a plug connector. This flow switch is based on the well-established mechanical paddle operating principle, used for monitoring the volumetric flow of low-viscosity media (such as water, oil, etc.) in pipes, protecting high-quality systems and installations from damage by ensuring minimum flow rate.

The SIKA VHS series flow switches feature a modular design, configurable for different nominal diameters and setpoint ranges. The wide temperature and pressure ranges, material selection and connection options ensure a high level of versatility. The flowing medium hits the plate secured to the end of a paddle, and the resulting dynamic pressure deflects the plate, triggering a microswitch through a mechanical transmission mechanism to output a switching signal. Thanks to different paddle lengths, the switch points can be configured for a wide switching range.

The VHS02M0SKOTS07 features a metal housing design (brass or stainless steel material), equipped with pipe section and plug connector, with a robust structure suitable for high maximum flow conditions. The product has protection class IP65, max. working pressure 25bar, medium temperature range -25~110°C, ambient temperature -25~80°C, switching capacity max. 1A/230VAC/26VA, setpoint tolerance ±15%, setpoint hysteresis 10~30%. This flow switch is widely used in heating equipment, industrial cooling circuits, water treatment, drinking water applications, lubricating oil systems, hydraulic systems, etc., serving as a reliable solution for ensuring system flow safety and equipment protection.

II. Specifications

表格

Parameter	Value
Brand	SIKA (Germany)
Series	VHS Series (metal version with pipe section + plug connector)
Model	VHS02M0SKOTS07
Product Type	Paddle Flow Switch
Operating Principle	Mechanical paddle (plate) principle
Measuring Medium	Low-viscosity liquids (water, oil, etc.)
Nominal Diameter	Contact via email for confirmation
Process Connection	Contact via email for confirmation
Setpoint Range	Contact via email for confirmation
Maximum Flow Rate	Contact via email for confirmation
Setpoint Tolerance	±15%
Setpoint Hysteresis	10 to 30%
Switching Function	Contact closes at increasing flow, opens at decreasing flow (reversible)
Contact Type	Change-over contact
Max. Switching Current	1 A
Max. Switching Voltage	230 V AC, 48 V DC
Max. Rating	26 VA, 20 W
Max. Working Pressure	25 bar (362.5 psi)
Medium Temperature Range	-25 to 110 °C
Ambient Temperature Range	-25 to 80 °C
Degree of Protection	IP 65 (EN 60529)
Protection Class	Class II (EN 60730-1)
Electrical Connection	Plug connector
Housing Material	Brass/stainless steel (contact via email for confirmation)
Paddle Material	Contact via email for confirmation
Pressure Drop at Max. Flow	Approx. 0.01 bar
Explosion-proof Certification	Contact via email for confirmation (optional explosion-proof version VH...X)
Mounting	Pipe mounting (with pipe section)
Applicable Standards	EN 60529, EN 60730-1, etc.
Weight	Contact via email for confirmation
Country of Origin	Germany

III. Product Features

German SIKA quality, VHS series paddle flow switch, reliable performance
Mechanical paddle operating principle, mature and stable, no external power required to trigger switch
Metal version design with pipe section, robust structure, suitable for high flow conditions
Brass or stainless steel material options, adapting to different media and corrosive environments
Max. working pressure 25bar, medium temperature -25~110°C, wide operating condition adaptation
Protection class IP65, suitable for humid, dusty and other harsh industrial environments
Switching capacity max. 1A/230VAC/26VA, can directly drive control circuits
Setpoint tolerance ±15%, hysteresis 10~30%, stable and reliable switching action
Modular design, multiple nominal diameters and setpoint ranges available
Wide switching range configurable through different paddle lengths
Equipped with plug connector, convenient installation and wiring, easy maintenance
Pressure drop at max. flow only approx. 0.01bar, minimal impact on system
Optional explosion-proof version (VH...X), suitable for potentially explosive atmospheres
Widely used in heating, cooling, water treatment, lubricating oil systems, etc.
Ensures system minimum flow, protects high-quality equipment from damage

IV. Typical Applications

Heating equipment and heating system flow monitoring
Industrial cooling circuits and cooling water system flow protection
Water treatment and wastewater treatment plant flow monitoring
Drinking water applications and water purification system flow control
Lubricating oil system flow monitoring and low flow protection
Hydraulic system flow monitoring
Pump protection and pump dry-running protection
Heat exchanger flow monitoring
Compressor cooling system flow protection
Generator set lubricating oil and cooling water system flow monitoring

V. Model Description

VHS02M0SKOTS07 is the complete model number for the SIKA VHS series flow switch. Where:

VHS: Series code (metal version flow switch with pipe section, equipped with plug connector)
02: Nominal diameter/pipe section code
M: Material code (brass/stainless steel)
0SKOTS07: Configuration code (setpoint range, paddle length, process connection, electrical connection, certifications, etc.)

The SIKA VHS series offers rich configuration options, including different nominal diameters (DN 8~50), process connections (threaded, flange, welding adapter, etc.), materials (brass, stainless steel), setpoint ranges, paddle lengths, electrical connection methods (plug connector, cable), explosion-proof certifications, etc., to adapt to different application requirements. Each segment code in the model corresponds to different configuration options, and the specific configuration needs to refer to the SIKA official selection manual.

To confirm the detailed configuration analysis for this model (nominal diameter, process connection, material, setpoint range, paddle length, electrical connection, etc.), please contact via email for confirmation. We will provide detailed technical documentation and selection support.

VI. Why Choose Us

Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
Strict quality inspection process ensuring reliable product quality
Professional engineering team providing technical support and selection consultation
Quick response, efficient logistics, orders accepted
Quality assurance, worry-free after-sales service

VII. FAQ

Q1: What is the operating principle of the VHS series flow switch?

A: The VHS series adopts a mechanical paddle (plate) operating principle. The flowing medium hits the plate secured to the end of a paddle, and the resulting dynamic pressure deflects the plate, triggering an internal microswitch through a mechanical transmission mechanism to output a switching signal. When the flow drops below the setpoint, the plate resets under spring force, and the switch contact returns to its original state. By replacing paddles of different lengths, the switch setpoint can be adjusted over a wide range.

Q2: Can this flow switch be used for oil media?

A: Yes. The VHS series flow switches are suitable for low-viscosity liquid media, including water, oil, etc. In oil applications such as lubricating oil systems and hydraulic systems, flow switches are commonly used to monitor oil flow, ensuring equipment is adequately lubricated and cooled, preventing equipment damage caused by low flow. For the specific applicable medium viscosity range and compatibility, please refer to the SIKA official technical documentation or contact via email for confirmation.

Q3: Can the setpoint be adjusted in the field?

A: The setpoint of the VHS series flow switch is mainly configured by selecting paddles of different lengths, and is set at the factory according to the selection. Some models may support field fine-tuning, but it is recommended to determine the setpoint range during selection and have it adjusted by professional personnel. The setpoint tolerance is ±15% and the hysteresis is 10~30%. For field adjustment, please refer to the product installation manual and operate by professional personnel.

Q4: Can you provide detailed configuration and selection support for this model?

A: Yes. Please contact via email with your application conditions, including measuring medium, medium temperature, working pressure, pipe diameter, flow range, required setpoint, process connection method, electrical requirements, explosion-proof requirements, etc. We will provide corresponding detailed configuration analysis, selection recommendations, installation guides and technical support.
