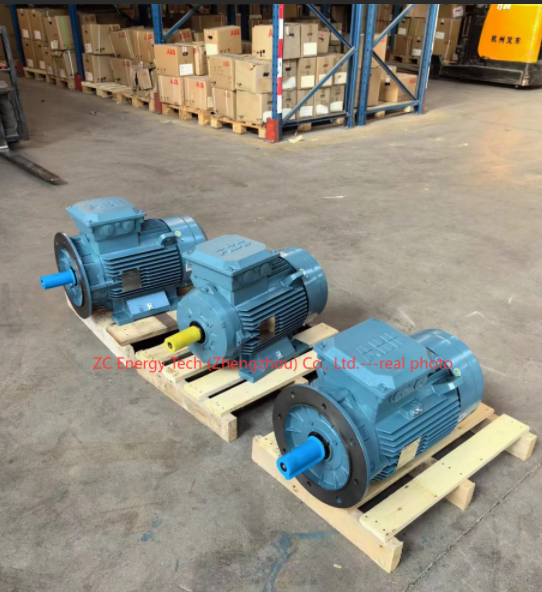

ABB M2QA 80M4A 3GQA082301-*SA Three-Phase Induction Motor 0.55kW 4-Pole
I. Product Overview
The ABB M2QA 80M4A is an M2QA series low-voltage general purpose three-phase asynchronous motor manufactured by Swiss ABB, with rated power 0.55kW, 4-pole design, synchronous speed 1500rpm (full load approximately 1410rpm). This motor adopts a totally enclosed three-phase squirrel cage structure, compliant with IEC international standards and GB national standards. It is ABB's classic general-purpose motor product, widely used for power drive of various industrial equipment.
The M2QA series is ABB's classic low-voltage three-phase asynchronous motor series, covering frame sizes H71-H355, power range 0.75-315kW (some specifications down to 0.55kW), 2-8 poles, with aluminum housing (small frames) or cast iron housing (large frames), totally enclosed fan cooled (TEFC, IC411) design, protection class IP55, insulation class F, suitable for general industrial environments. The M2QA series motors feature high efficiency, good reliability, low noise, low vibration and long service life.
The M2QA 80M4A is an IEC standard 80M frame, 4-pole, 0.55kW specification motor, rated voltage 380V/400V AC (delta connection, 50Hz), also applicable for 660V/690V Y connection and other voltage levels (according to order code). The motor has protection class IP55, dust-proof and splash-proof, suitable for indoor and outdoor general industrial environments. Insulation class F with class B temperature rise, leaving sufficient temperature rise margin to extend insulation life. The motor is standard horizontal IMB3 mounting (foot-mounted), and can also be selected with IMB5 (flange mounting), IMB35 (foot+flange) and other mounting arrangements according to the order code. Bearings use deep groove ball bearings (6204-2Z/C3), standard at D-end/N-end, lifetime grease lubrication, maintenance-free. Motor duty is S1 continuous duty, cooling method IC411.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | ABB |
| Series | M2QA |
| Model | M2QA 80M4A |
| Order Code | 3GQA082301-SA ( is mounting/variant code) |
| Product Type | Three-Phase Asynchronous Motor (Squirrel Cage) |
| Rated Power | 0.55 kW |
| Number of Poles | 4 |
| Synchronous Speed | 1500 rpm (50Hz) |
| Full Load Speed | Approx. 1410 rpm |
| Rated Voltage | 380V Δ / 660V Y (50Hz); 400V Δ / 690V Y (50Hz) |
| Rated Frequency | 50 Hz (60Hz available, contact via email for confirmation) |
| Rated Current | Approx. 1.50 A (400V, 50Hz) |
| Efficiency | 73.5% (full load, 50Hz) |
| Power Factor (cosφ) | 0.72 |
| Locked Rotor Current Ratio | 5.2 ×In |
| Rated Torque | 3.73 N·m |
| Locked Rotor/Max Torque Ratio | Contact via email for confirmation |
| Frame Size | IEC 80M |
| Housing Material | Aluminum alloy (aluminum housing) |
| Degree of Protection | IP55 |
| Insulation Class | F |
| Temperature Rise | Class B (80K) |
| Cooling Method | IC411 (TEFC totally enclosed fan cooled) |
| Duty | S1 continuous duty |
| Mounting Arrangement | IMB3 (horizontal foot-mounted) standard; IMB5/IMB35 available (contact via email for confirmation) |
| Bearings | D-end 6204-2Z/C3, N-end 6204-2Z/C3 (deep groove ball bearings) |
| Terminal Box | Standard terminal box (contact via email for confirmation) |
| Applicable Standards | IEC 60034, GB 755, etc. |
| Approvals | CE, CCC, etc. (contact via email for confirmation) |
| Weight | Contact via email for confirmation |
| Country of Origin | Contact via email for confirmation (China/Finland, etc.) |
III. Product Features
- ABB quality, M2QA series classic low-voltage general purpose three-phase asynchronous motor, reliable performance
- 0.55kW, 4-pole, 1500rpm synchronous speed, suitable for general industrial drive
- Totally enclosed three-phase squirrel cage structure (TEFC), protection class IP55, dust-proof and splash-proof
- Aluminum housing lightweight design, good heat dissipation, light weight
- Insulation class F with class B temperature rise, long insulation life
- Efficiency 73.5%, power factor 0.72, economical operation
- Deep groove ball bearings (6204-2Z/C3), lifetime grease lubrication, maintenance-free
- Low noise, low vibration, smooth operation
- Standard IMB3 horizontal foot-mounted installation, IMB5/IMB35 available
- Suitable for 380V/400V power systems, other voltage levels customizable
- IEC 60034 and GB compliant, multiple international certifications
- Widely used in pumps, fans, conveyors, machine tools and other equipment
- S1 continuous duty, suitable for long-running working conditions
- IC411 self-ventilated cooling, no external cooling required
IV. Typical Applications
- Drive for industrial water pumps and water supply systems
- Drive for fans and blowers
- Drive for conveyors and transportation systems
- Spindle and feed drive for machine tools and processing equipment
- Drive for mixers and agitators
- Drive for compressors
- Drive for agricultural machinery and food processing machinery
- Drive for packaging machinery and printing machinery
- Drive for ventilation and air conditioning (HVAC) equipment
- Power drive for general industrial machinery
V. Model Description
M2QA 80M4A is the complete model number for the ABB M2QA series three-phase asynchronous motor. Where:
- M2QA: ABB motor series code (new generation M2QA low-voltage general purpose three-phase asynchronous motor)
- 80: IEC frame size (center height 80mm)
- M: Frame length code (M = medium frame)
- 4: Number of poles (4-pole)
- A: Design/core length code (A = basic type)
Order code 3GQA082301-*SA explanation:
- 3GQA: ABB motor product code prefix
- 082301: Product code corresponding to the M2QA 80M4A basic model
- *: Variant code for mounting arrangement, etc. (e.g. ASA indicates IMB3 horizontal foot-mounted, specific meaning contact via email for confirmation)
- SA: Version/variant suffix code
In the ABB M2QA series motor order codes, mounting arrangement (B3/B5/B35, etc.), voltage/frequency, protection class and other features are indicated by variant codes. To confirm the specific meaning of the * in 3GQA082301-*SA (mounting arrangement, voltage level, etc.), please contact via email for confirmation. We will provide detailed order code explanation and selection support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What are the rated power and speed of M2QA 80M4A?
A: The rated power of M2QA 80M4A is 0.55kW, 4-pole design, synchronous speed 1500rpm at 50Hz, full load speed approximately 1410rpm. This motor is suitable for load conditions requiring 0.55kW drive power at approximately 1400rpm, such as small pumps, fans, conveyors and other equipment.
Q2: How to select the voltage level of this motor?
A: The standard voltage of M2QA 80M4A is 380V Δ/660V Y (50Hz) or 400V Δ/690V Y (50Hz), with the factory wiring determined by the order code. For domestic three-phase power of 380V, delta connection is used; for 400V power systems, delta connection is used. For other voltage levels (such as 220V, 415V, etc.), customization is available through order variant codes. Please contact via email for confirmation.
Q3: What is the mounting arrangement of this motor?
A: The standard mounting arrangement of M2QA 80M4A is IMB3 (horizontal foot-mounted), meaning the motor is installed horizontally with foot fixing. Through order codes, IMB5 (flange mounting), IMB35 (foot+flange mounting) and other mounting arrangements can be customized to suit different equipment installation requirements. The * in order code 3GQA082301-*SA is the variant code for mounting arrangement, etc. Please contact via email for confirmation.
Q4: Can this motor directly replace motors of the same specification from other brands?
A: M2QA 80M4A is an IEC standard 80M frame, 0.55kW, 4-pole, B3 horizontal mounting motor. As long as the mounting dimensions (foot hole spacing, shaft diameter, shaft extension length, etc.) comply with IEC standards, it can be interchanged with IEC standard motors of the same specification. However, it is recommended to verify shaft diameter, keyway dimensions, mounting hole spacing, voltage level and load characteristics before replacement to ensure compatibility. For technical support, please contact via email.
