Lilaas LF70L-01-97 Azimuth Control Lever

Lilaas LF70L-01-97 azimuth control lever from Norway, suitable for azimuth thruster/steerable propeller control of vessels. RPM handle movement ±60° (electrical 245°), azimuth handle movement 360° continuous (electrical 360°), dual potentiometer output (RPM: 5kΩ linear; Azimuth: 5kΩ sine/cosine), 16-pin connector with plug, protection class IP66, integrated illuminated scales, detents at RPM zero and every 90° for azimuth, type approved by DNV/ABS/BV/GL/LR and other classification societies.

online consultation

Product Details

I. Product Overview

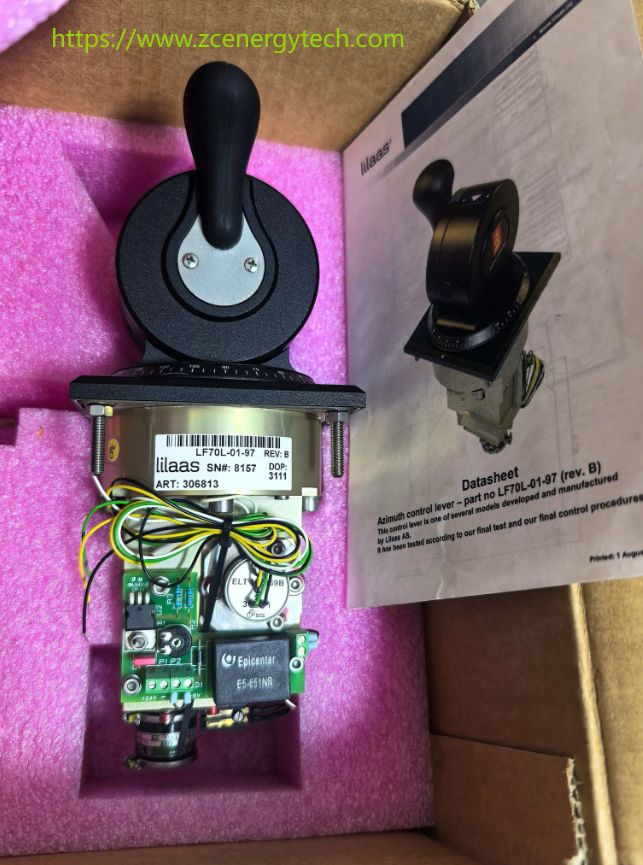

The Lilaas LF70L-01-97 is an azimuth control lever from the LF70 series manufactured by Lilaas AS, Norway, used for controlling azimuth thrusters (steerable propellers) of vessels, providing dual-axis control of thruster speed (RPM) and azimuth angle.

Lilaas AS is a world leading manufacturer of various types of control levers and joysticks for marine and offshore use, headquartered in Horten, Norway. Its product range includes single-axis control levers, hand wheels, rudder controls, azimuth control units and multi-axis joysticks, widely applied for propulsion control of various vessels from small fishing boats and ferries, via supply vessels to large tankers and cruise ships. Lilaas products are certified by DNV, and the company is certified under NS-EN ISO 9001:2008.

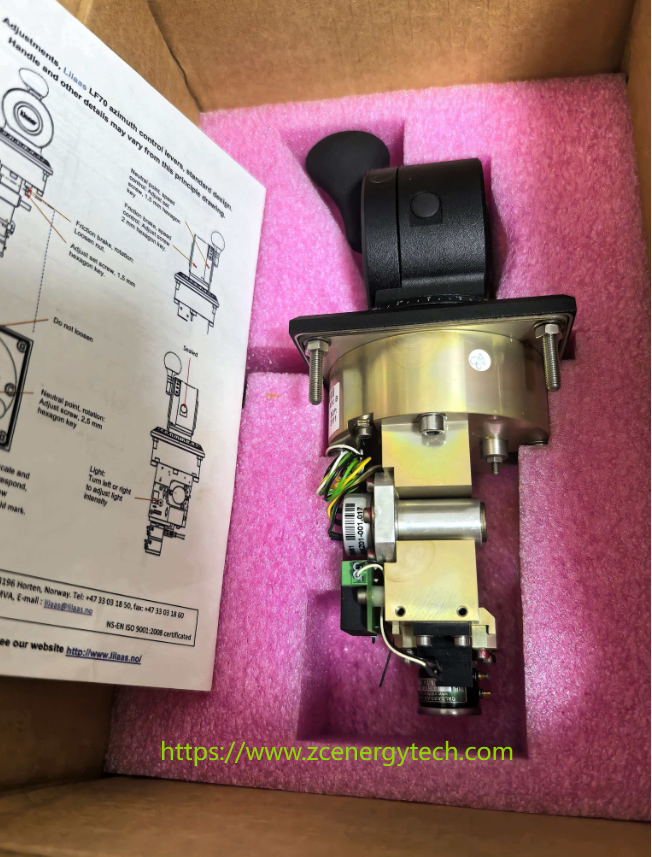

The LF70 azimuth control lever is manufactured with high-quality materials and precision design, featuring robust construction and minimum maintenance. The lever provides two-axis control: RPM handle movement ±60° and azimuth handle 360° continuous rotation, with built-in potentiometers outputting control signals to the propulsion control system. The product features protection class IP66 and integrated illuminated scales, suitable for demanding bridge environments, and has passed multiple classification society type approvals.

II. Specifications

表格

Parameter	Value
Brand	Lilaas (Norway)
Series	LF70
Model	LF70L-01-97
Product Type	Azimuth Control Lever
Control Axes	2 (RPM + Azimuth)
RPM Movement, handle / electrical	±60° / 245°
Azimuth Movement, handle / electrical	360° / 360°
RPM Potentiometer	Single 5 kΩ, linear
Azimuth Potentiometer	Single 5 kΩ, sine/cosine
Potentiometer Type	Plastic conductive type, to be used as voltage divider; wiper current max. 1 mA
Termination	16-pin connector with plug
Protection Class	IP66
Scales	Integrated illumination; RPM scale: FWD, AFT
Detents	RPM: Zero. Azimuth: Every 90°
Materials	Steel A2, Al, POM
Surface Finish	Alodine, powder coating
Weight	Approx. 2.2 kg
Panel Plate	96 × 96 × 8 mm, cut-out 87 × 87 mm
Type Approvals	EN/IEC 60945, ABS, BV, DNV, GL, KR, LR, NK, RINA, RS, CRS
Application Environment	Ship bridge and offshore control environments
Manufacturer	Lilaas AS (Norway)
Customization Options	Panel plate, handle, potentiometer, movement limits, detents, micro switch, termination, motorized, etc. (contact via email for confirmation)

III. Product Features

Original Lilaas quality from Norway, world leading marine control lever manufacturer
Azimuth dual-axis control (RPM + Azimuth), one-lever thruster control
Azimuth handle 360° continuous rotation, flexible and intuitive operation
Dual potentiometer output: 5kΩ linear (RPM) + 5kΩ sine/cosine (Azimuth), stable signals
16-pin connector with plug, convenient and reliable connection
Protection class IP66, dust-proof and waterproof, suitable for harsh marine environments
Integrated illuminated scales, clear operation at night
Detents at RPM zero and every 90° for azimuth, clear operating feel
High-quality materials (Steel A2, Al, POM), robust and durable, minimum maintenance
Type approved by DNV/ABS/BV/GL/LR and other classification societies
Standard 96×96mm panel plate mounting, 87×87mm cut-out
Customizable panel, handle, movement, detents, motorized drive and other options
Suitable for fishing boats, ferries, supply vessels, tankers, cruise ships and other vessels

IV. Typical Applications

Control of vessel azimuth thrusters (steerable propellers)
Vessel main engine speed and thrust direction control
Ship bridge propulsion control systems
Manual thruster control for dynamic positioning (DP) systems
Propulsion control for tugs, workboats and supply vessels
Bridge control for ferries and passenger vessels
Propulsion control for fishing vessels
Auxiliary propulsion control for tankers, cargo ships and cruise ships
Propulsion control for offshore platforms and marine engineering vessels
Integration with vessel automation and integrated control systems

V. Model Description

LF70L-01-97 is the complete model number for the Lilaas LF70 series azimuth control lever, with the following field meanings:

LF70: Series code (Lilaas azimuth control lever series)
L: Handle/mounting orientation configuration code (L indicates left-hand configuration, R for right-hand; LF70L is typically used for port side/specific mounting positions, contact via email for confirmation)
01: Standard configuration code (basic control configuration)
97: Suffix configuration code (handle type, scale, movement, potentiometer or other special configuration combination, specific meaning contact via email for confirmation)

The Lilaas LF70 series offers multiple basic models (such as LF70L-01-21, LF70R-01-21, LF70L-01-114, etc.) and rich customization options including panel plate, handle type, potentiometer specification, movement limits, detents, micro switch, termination and motorized drive. To confirm the complete configuration meaning of the "97" suffix code in LF70L-01-97 and specific specifications, please contact via email for confirmation. We will provide detailed technical information and selection support.

VI. Why Choose Us

Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
Strict quality inspection process ensuring reliable product quality
Professional engineering team providing technical support and selection consultation
Quick response, efficient logistics, orders accepted
Quality assurance, worry-free after-sales service

VII. FAQ

Q1: What is LF70L-01-97 and where is it used?

A: LF70L-01-97 is an LF70 series azimuth control lever from Lilaas, Norway, used for controlling azimuth thrusters (steerable propellers) of vessels. The lever simultaneously controls thruster speed (RPM) and azimuth angle, widely applied for propulsion control of fishing boats, ferries, supply vessels, tankers, cruise ships and other vessels.

Q2: What are the electrical output signals of this control lever?

A: The lever features dual potentiometer outputs: a single 5kΩ linear potentiometer for RPM and a single 5kΩ sine/cosine potentiometer for Azimuth. The potentiometers are plastic conductive type, to be used as voltage dividers, with wiper current not exceeding 1mA. Outputs connect to the propulsion control system via a 16-pin connector with plug.

Q3: What is the protection class and operating movement of this lever?

A: Protection class is IP66, dust-proof and waterproof. RPM handle movement is ±60° (electrical travel 245°), and azimuth handle allows 360° continuous rotation (electrical travel 360°). Detents are provided at RPM zero position and every 90° for azimuth.

Q4: Which approvals does this product hold?

A: The LF70 series azimuth control levers are type approved to EN/IEC 60945 and by ABS, BV, DNV, GL, KR, LR, NK, RINA, RS, CRS classification societies, meeting marine equipment certification requirements. For details on specific classification society approvals, please contact via email for confirmation.
