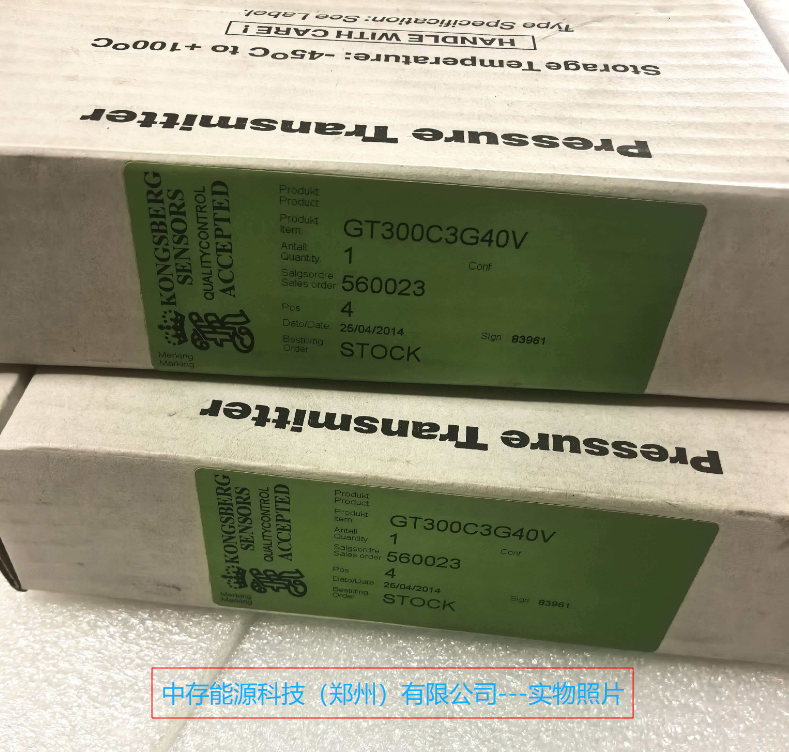

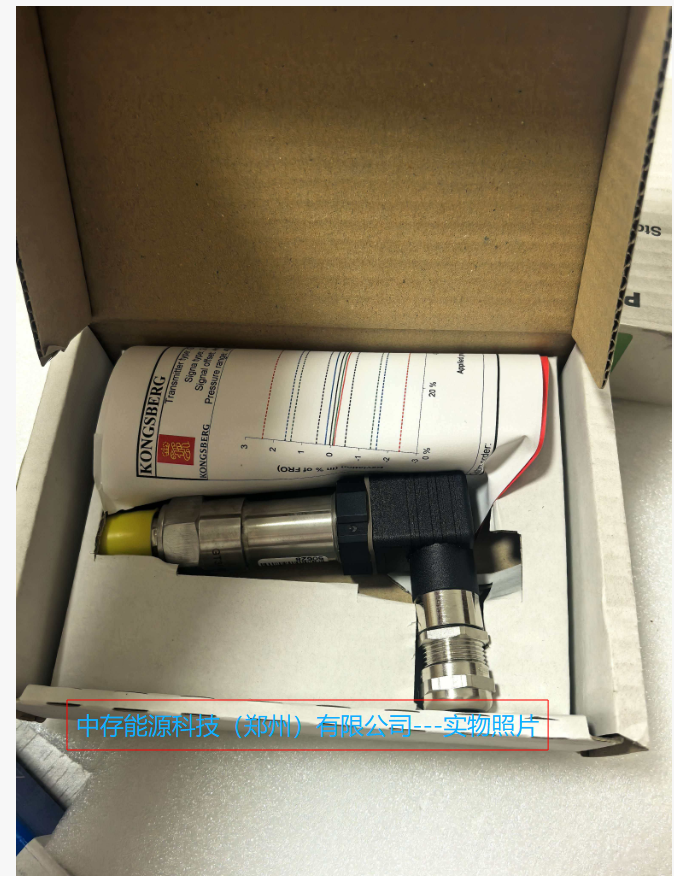

Kongsberg GT300C3G40V Marine Pressure Transmitter 0-40bar 4-20mA
I. Product Overview
The Kongsberg GT300C3G40V is a GT300 series marine pressure transmitter manufactured by Kongsberg, Norway. In the model number, "G" indicates gauge pressure measurement and "40" indicates a range of 0-40 bar. The transmitter is specially designed for general purpose pressure measurement in ship engine rooms, and can be widely applied for pressure monitoring of seawater, fresh water, lubricating oil, fuel oil and other media.
The GT300 series pressure transmitter can be mounted directly to the measuring point, or mounted in a bracket fixed to a bulkhead with a control valve below, providing flexible installation. The transmitter features standard 2-wire 4-20mA current output, supply voltage 24VDC (12-32VDC depending on load resistance), accuracy better than ±0.5% of full range, long-term stability better than ±0.2% FRO/year, delivering reliable performance.
The GT300C3G40V features 1/2" and 1/4" thread pressure connections, and electrical connection is made via an M gland on a DIN plug, providing reliable protection. The transmitter is suitable for various pressure measurement applications in ship engine rooms, and serves as a companion instrument of Kongsberg vessel automation and monitoring systems, widely applied on merchant vessels, offshore vessels and other ship types.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | Kongsberg (Norway) |
| Series | GT300 |
| Model | GT300C3G40V |
| Product Type | Marine Pressure Transmitter |
| Measurement Type | Gauge |
| Range | 0 ~ 40 bar (G) |
| Output Signal | 4 ~ 20 mA (2-wire) |
| Supply Voltage | 24 VDC (12 ~ 32 VDC depending on load resistance) |
| Accuracy | < ±0.5% of full range output (FRO) |
| Temperature Drift | < ±0.05% FRO / ℃ |
| Compensated Temperature Range | -25℃ ~ 85℃ |
| Long-term Stability | < ±0.2% FRO / year |
| Pressure Connection | 1/2" and 1/4" threads |
| Electrical Connection | M gland on DIN plug |
| Load Resistance | 0 ~ 1020 Ω (depending on supply voltage) |
| Current Limit | 3.8 mA ≤ I ≤ 21.6 mA |
| Transmitter Fault Signal | I ≤ 3.6 mA |
| Burst Pressure | Up to 100 bar |
| Mounting | Directly at measuring point, or in bracket on bulkhead (with control valve below) |
| Application | General purpose pressure measurement in ship engine room |
| Manufacturer | Kongsberg (Norway) |
Note: For the specific configuration meanings of the "C3" and "V" codes in the model number, please contact via email for confirmation.
III. Product Features
- Original Kongsberg quality, professional brand of marine pressure transmitters
- Gauge pressure measurement, range 0-40 bar, for general engine room pressure measurement
- Standard 2-wire 4-20mA signal output, easy integration with control systems
- Accuracy better than ±0.5% of full range, accurate and reliable measurement
- Long-term stability better than ±0.2% FRO/year, minimal long-term drift
- Low temperature drift, adapts to engine room temperature variations
- 1/2" and 1/4" thread connections, compatible with various pressure ports
- M gland on DIN plug electrical connection, reliable wiring
- Direct mounting at measuring point or bracket mounting on bulkhead, flexible installation
- Suitable for seawater, fresh water, lubricating oil, fuel oil and other media
- Fault signal output (I≤3.6mA), facilitating system diagnostics
- Companion instrument of Kongsberg vessel automation and monitoring systems
- Marine grade design, suitable for demanding engine room environments
IV. Typical Applications
- Seawater/fresh water system pressure monitoring in ship engine rooms
- Lubricating oil system pressure measurement
- Fuel oil system pressure measurement
- Compressed air system pressure monitoring
- Ballast water system pressure measurement
- Pressure signal acquisition for vessel automation and monitoring/alarm systems
- Cooling water system pressure monitoring
- Hydraulic system pressure measurement
- Engine room equipment operating pressure monitoring
- General purpose pressure measurement on various vessels
V. Model Description
The model number GT300C3G40V fields are explained as follows:
- GT300: Product series code (Kongsberg GT300 series marine pressure transmitter)
- C3: Configuration code (pressure connection/structure configuration, specific meaning contact via email for confirmation)
- G: Measurement type, gauge
- 40: Range code, 0~40 bar
- V: Version/variant code (specific meaning contact via email for confirmation)
The Kongsberg GT300 series pressure transmitters offer multiple ranges and configuration options, including GT300, GT301, GT402, GT403, GT404, GT405 models, as well as the GT420/GT422/GT423 differential pressure transmitter series. To confirm the detailed configuration of the GT300C3G40V and differences from other models, please contact via email for confirmation. We will provide detailed technical documentation and selection support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What is GT300C3G40V and what is its measuring range?
A: GT300C3G40V is a GT300 series marine pressure transmitter from Kongsberg, gauge pressure measurement with range 0-40 bar, used for general purpose pressure measurement in ship engine rooms, suitable for seawater, fresh water, lubricating oil, fuel oil and other media.
Q2: What are the output signal and power supply requirements of this transmitter?
A: It features standard 2-wire 4-20mA current output, supply voltage 24VDC (12~32VDC depending on load resistance), load resistance 0~1020Ω, current limit 3.8~21.6mA, and fault signal output I≤3.6mA.
Q3: What are the accuracy and stability of this transmitter?
A: Accuracy is better than ±0.5% of full range (FRO), temperature drift better than ±0.05% FRO/℃, long-term stability better than ±0.2% FRO/year, compensated temperature range -25℃~85℃.
Q4: What are the connections and mounting methods of this transmitter?
A: Pressure connection is 1/2" and 1/4" threads, electrical connection via M gland on DIN plug. It can be mounted directly at the measuring point, or in a bracket fixed to a bulkhead with a control valve below.
