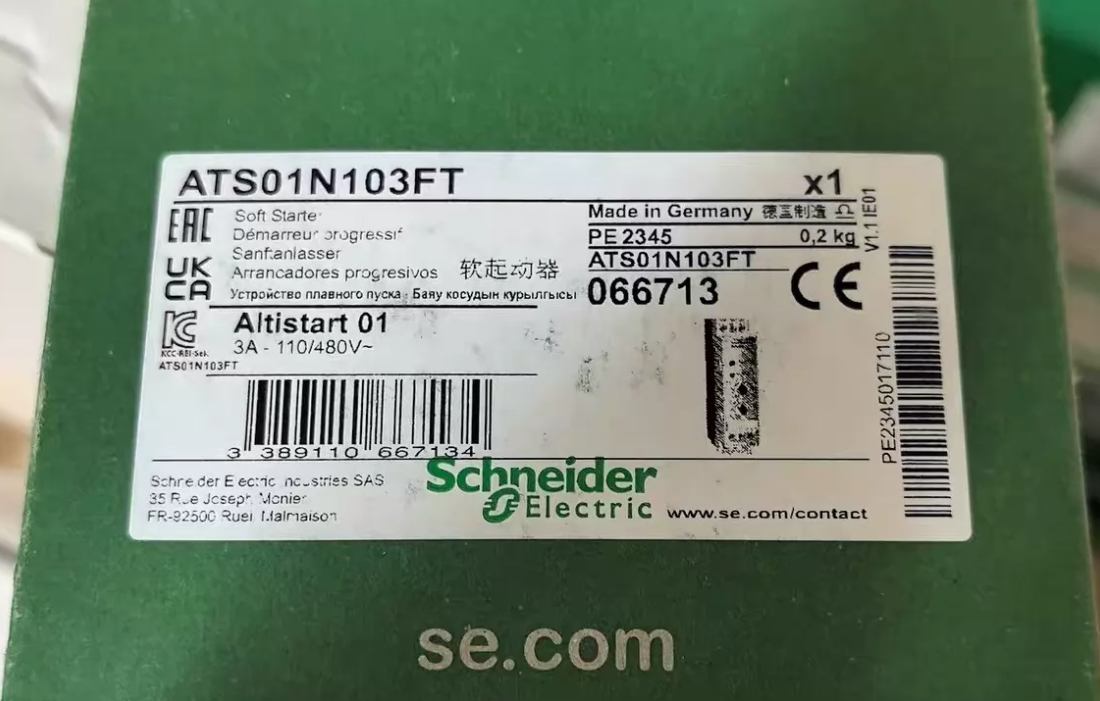

Schneider ATS01N103FT Altistart 01 Soft Starter 3A

Schneider ATS01N103FT Altistart 01 soft starter, Schneider Electric ATS01 series, rated current 3A, supply 110~480V, suitable for 0.37~1.1kW motors, 3-phase/single-phase, integrated bypass relay, DIN rail mounting, IP20, used for soft starting and soft stopping of asynchronous motors, smooth starting avoiding mechanical stress, widely used in small drive systems.

online consultation

Product Details

I. Product Overview

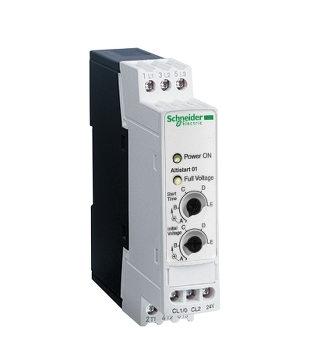

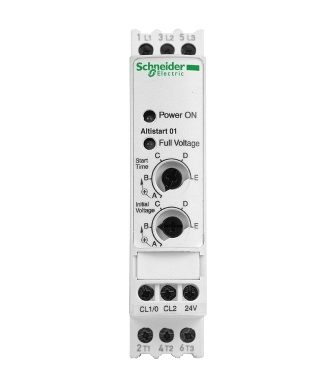

The Schneider ATS01N103FT is a soft starter from the Altistart 01 series manufactured by Schneider Electric of France, model ATS01N103FT. This soft starter has a rated current of 3A, supply voltage 110~480V, suitable for 0.37~1.1kW three-phase/single-phase asynchronous motors, used for soft starting and soft stopping, achieving smooth motor start, reducing starting current and avoiding mechanical shock.

The Altistart 01 (ATS01) is Schneider Electric's compact soft starter series, designed for simple machinery, covering 0.16~7.5HP. This series controls two phases of the motor supply, limiting starting current and providing deceleration. The ATS01N103FT has an integrated bypass relay that automatically switches to bypass after starting, reducing power dissipation and heat generation.

The ATS01N103FT has protection rating IP20, DIN rail mounting, with built-in heat sink. Dimensions 23×100×100mm, net weight 0.16kg. It is widely used in conveyors, conveyor belts, pumps, fans, compressors and other small drive applications.

II. Specifications

表格

Parameter	Value
Brand	Schneider Electric (France)
Model	ATS01N103FT
Product Type	Soft Starter
Series	Altistart 01 (ATS01)
Rated Current	3 A
Supply Voltage	110~480 V (-15%~+10%)
Motor Power	3-phase 230V/0.55kW, 3-phase 400V/1.1kW, 1-phase 230V/0.37kW
Phases	3-phase / Single-phase
Utilization Category	AC-53A
Start Control	Torque control starting
Bypass	Integrated bypass relay
Protection Rating	IP20
Power Dissipation	19W (transient) / 4W (full load and end of starting)
Supply Frequency	50/60Hz
Operating Temperature	-10~40°C (without derating)
Storage Temperature	-25~70°C
Humidity	0~95% (non-condensing)
Operating Altitude	≤1000m (no derating)
Mounting	DIN rail (35mm symmetrical rail or RHZ 66 adapter for asymmetrical rail)
Dimensions	23 (W) × 100 (D) × 100 (H) mm
Net Weight	0.16 kg
Cooling	Built-in heat sink
Standard	IEC 60947-4-2
Applicable Motor	Three-phase/single-phase squirrel-cage asynchronous motor
Typical Applications	Conveyors, conveyor belts, pumps, fans, compressors
Manufacturer	Schneider Electric (France)

III. Product Features

Schneider Altistart 01 soft starter
Model ATS01N103FT, rated current 3A
Supply 110~480V, suitable for 0.37~1.1kW motors
Supports 3-phase and single-phase motors
Integrated bypass relay, reduces power dissipation
DIN rail mounting, compact design
IP20 protection rating
Smooth starting, avoids mechanical stress
Reduces starting current, minimizes grid shock
Built-in heat sink
Suitable for simple machinery
Widely used in small drive applications

IV. Typical Applications

Small conveyor soft starting
Conveyor belt soft starting
Small water pump soft starting
Small fan soft starting
Small compressor soft starting
Simple machinery start control
Three-phase/single-phase asynchronous motor start control

V. Model Description

The ATS01N103FT fields are explained as follows:

ATS01: Schneider Altistart 01 soft starter series
N: Design version
1: Supply voltage code (110~480V)
03: Model code (rated current 3A)
FT: Other codes

Note: This soft starter supports both 3-phase and single-phase motors, with integrated bypass relay. To confirm control voltage, terminal configuration and other details, please contact via email for confirmation. We will provide technical documentation and selection support.

VI. Why Choose Us

Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
Strict quality inspection process ensuring reliable product quality
Professional engineering team providing technical support and selection consultation
Quick response, efficient logistics, orders accepted
Quality assurance, worry-free after-sales service

VII. FAQ

Q1: What is ATS01N103FT?

A: ATS01N103FT is a Schneider Altistart 01 series soft starter, rated current 3A, supply 110~480V, suitable for 0.37~1.1kW three-phase/single-phase asynchronous motors.

Q2: What are the key parameters of this soft starter?

A: Rated current 3A, supply 110~480V, suitable for 0.37~1.1kW motors, 3-phase/single-phase, IP20, integrated bypass relay, DIN rail mounting, net weight 0.16kg.

Q3: What protection functions does this soft starter have?

A: It has an integrated bypass relay that automatically switches to bypass after starting, reducing power dissipation and heat generation. For detailed protection functions, please contact via email.

Q4: How to confirm this soft starter's compatibility with the existing motor?

A: Please provide the existing motor power, rated voltage and rated current, contact via email, and we will assist in confirming compatibility and provide technical documentation.
