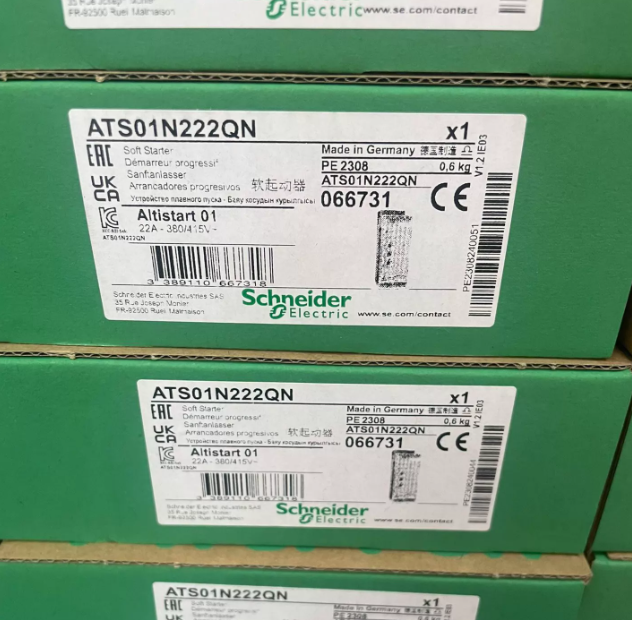

Schneider ATS01N222QN Altistart 01 Soft Starter 22A

Schneider ATS01N222QN Altistart 01 soft starter, Schneider Electric ATS01 series, rated current 22A, supply 380~415V, suitable for 7.5~11kW 3-phase motors, integrated bypass relay, DIN rail mounting, IP20, voltage ramp starting, adjustable starting time and torque, used for soft starting and soft stopping of asynchronous motors, smooth starting avoiding mechanical stress, widely used in medium-large drive systems.

online consultation

Product Details

I. Product Overview

The Schneider ATS01N222QN is a soft starter from the Altistart 01 series manufactured by Schneider Electric of France, model ATS01N222QN. This soft starter has a rated current of 22A, supply voltage 380~415V, suitable for 7.5~11kW three-phase asynchronous motors, used for soft starting and soft stopping, achieving smooth motor start, reducing starting current and avoiding mechanical shock.

The Altistart 01 (ATS01) is Schneider Electric's compact soft starter series, designed for simple machinery, covering 0.75~15kW. This series controls two phases of the motor supply, limiting starting current and providing deceleration. The ATS01N222QN has an integrated bypass relay that automatically switches to bypass after starting, reducing power dissipation and heat generation.

The ATS01N222QN has protection rating IP20, DIN rail mounting. Dimensions 45×154×131mm, net weight 0.56kg. It is widely used in pumps, fans, compressors and other simple machinery applications.

II. Specifications

表格

Parameter	Value
Brand	Schneider Electric (France)
Model	ATS01N222QN
Product Type	Soft Starter
Series	Altistart 01 (ATS01)
Rated Current	22 A
Supply Voltage	380~415 V (-10%~+10%)
Motor Power	3-phase 380~415V: 7.5kW (standard) / 11kW (light duty)
Power Range	7~11kW @ 380~440V
Phases	3-phase
Utilization Category	AC-53B
Start Control	Voltage ramp starting
Starting Time	1~10s (adjustable)
Deceleration Time	1~10s (adjustable)
Starting Torque	30%~80% (adjustable)
Bypass	Integrated bypass relay
Protection Rating	IP20
Power Dissipation	4.5W (full load and end of starting) / 124.5W (transient)
Supply Frequency	50/60Hz (-5%~+5%)
Logic Inputs	3 (LI1, LI2, BOOST)
Discrete Output	Relay output (R1A, R1C NO)
Operating Temperature	-10~40°C (without derating); 40~50°C (2% derating per °C)
Storage Temperature	-25~70°C
Humidity	5~95% (non-condensing)
Operating Altitude	≤1000m (no derating)
Mounting	DIN rail
Dimensions	45 (W) × 154 (H) × 131 (D) mm
Net Weight	0.56 kg
Standard	EN/IEC 60947-4-2
Approvals	CSA, UL, CCC, C-Tick, GOST
Applicable Motor	Three-phase squirrel-cage asynchronous motor
Typical Applications	Pumps, fans, compressors, simple machinery
Manufacturer	Schneider Electric (Germany)

III. Product Features

Schneider Altistart 01 soft starter
Model ATS01N222QN, rated current 22A
Supply 380~415V, suitable for 7.5~11kW 3-phase motors
Integrated bypass relay, reduces power dissipation
DIN rail mounting, compact design
IP20 protection rating
Voltage ramp starting, smooth start/stop
Adjustable starting time and torque
Avoids mechanical stress, extends equipment life
Reduces starting current, minimizes grid shock
Logic input interfaces
Suitable for simple machinery
Widely used in medium-large drive applications

IV. Typical Applications

Water pump soft start and soft stop control
Fan soft starting
Compressor soft starting
Simple machinery start control
Conveyor drive
Three-phase asynchronous motor start control

V. Model Description

The ATS01N222QN fields are explained as follows:

ATS01: Schneider Altistart 01 soft starter series
N: Design version
2: Supply voltage code (380~415V)
22: Model code (rated current 22A)
QN: Other codes

Note: This soft starter supports 3-phase motors, with integrated bypass relay. To confirm control voltage, terminal configuration and other details, please contact via email for confirmation. We will provide technical documentation and selection support.

VI. Why Choose Us

Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
Strict quality inspection process ensuring reliable product quality
Professional engineering team providing technical support and selection consultation
Quick response, efficient logistics, orders accepted
Quality assurance, worry-free after-sales service

VII. FAQ

Q1: What is ATS01N222QN?

A: ATS01N222QN is a Schneider Altistart 01 series soft starter, rated current 22A, supply 380~415V, suitable for 7.5~11kW three-phase asynchronous motors.

Q2: What are the key parameters of this soft starter?

A: Rated current 22A, supply 380~415V, suitable for 7.5~11kW 3-phase motors, IP20, integrated bypass relay, DIN rail mounting, net weight 0.56kg.

Q3: What protection functions does this soft starter have?

A: It has an integrated bypass relay that automatically switches to bypass after starting, reducing power dissipation and heat generation. For detailed protection functions, please contact via email.

Q4: How to confirm this soft starter's compatibility with the existing motor?

A: Please provide the existing motor power, rated voltage and rated current, contact via email, and we will assist in confirming compatibility and provide technical documentation.
