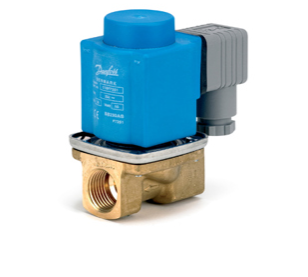

Danfoss EV220B 6-22 Pilot-operated Solenoid Valve (2/2-way, small size)
1. Product Overview
The EV220B 6-22 is Danfoss Sensing Solutions' small-size 2/2-way pilot-operated solenoid valve. With a brass body and internal threads G¼ to G1 covering DN6 to DN22, it is designed for small on/off flows of water, oil, compressed air and similar neutral media.
It is a pilot-operated diaphragm (servo) design: the coil lifts the pilot plunger and line pressure drives the diaphragm, so it operates from as low as 0.1 bar working differential across a wide 0.1–20 bar range. The standard function is normally closed (NC): closed when de-energized, open when energized.
Seals are available in EPDM, FKM/Viton or NBR to suit water, oil and neutral gases. Body and coil are ordered separately; coil enclosure reaches IP67. The compact, fast-acting valve suits machine integration, lubrication, pneumatic/hydraulic skids and small-bore water service.
2. Specifications
表格
| Item | Specification |
|---|---|
| Manufacturer | Danfoss |
| Series | EV220B |
| Model size | EV220B 6-22 (small size) |
| Product type | 2/2-way pilot-operated (diaphragm servo) solenoid valve |
| Nominal size | DN6 – DN22 |
| Connection | Internal thread G¼ – G1 |
| Body material | Brass |
| Seal material | EPDM, FKM (Viton), NBR |
| Function | Normally closed (NC, standard) |
| Flow range (water) | 0.2 – 19 m³/h (by DN) |
| Differential pressure range | 0.1 – 20 bar |
| Medium temperature | −30 to +100 °C |
| Ambient temperature | Up to +80 °C (depending on coil) |
| Media | Water, oil, compressed air, similar neutral media |
| Coil enclosure | Up to IP67 |
| Features | Diaphragm pilot design, single flow (arrow cast on body) |
| Installation | Vertical solenoid recommended |
| Ordering | Body and coil ordered separately; full code = DN, seal, NC/NO, coil voltage |
Per Danfoss official product page and data sheet EV220B 6-22 (AI236986441887). Note 6-22 is the NC brass G-thread version; 6-10 is DZR brass NC and 6-12 is the NO version. Confirm the Kv per DN and seal by the complete order code. For selection, please provide medium, temperature, pressure and coil voltage; email us for support.
5. Model Information
- Ordering number: EV220B 6-22 (series size; complete order code by DN/seal/coil, e.g. 032U prefix)
- Product description: Danfoss EV220B 6-22 2/2-way pilot-operated small-size solenoid valve, brass threaded G¼–G1.
- Material number note: EV220B is the product series; "6-22" denotes the DN6–22 small size. The complete Danfoss ordering number (e.g. 032U prefix) is determined by nominal size, seal (EPDM/FKM/NBR), NC/NO function and coil voltage; body and coil are ordered separately. To select the full code for your application, please email us.
- Series features:
- 2/2-way pilot-operated diaphragm design
- Brass body, internal thread G¼–G1
- Flow 0.2–19 m³/h, wide Δp 0.1–20 bar
- Operates from as low as 0.1 bar
- EPDM/FKM/NBR seals selectable
- Coil enclosure up to IP67
- Compact, suited to machine integration
- Related products in series: EV220B 6-10 (DZR brass NC), EV220B 6-12 (NO), EV220B 15-50 (mid sizes threaded), EV220B 65-100 (cast-iron flanged high capacity), EV220BW (drinking water)
- Matching products: Danfoss EV-series coils (042N, multiple voltages), coil plug/cable, fittings, strainers
- Official documents: Danfoss data sheet "Solenoid valve Type EV220B and EV220BW" (AI236986441887); "2/2-way servo-operated solenoid valves, type EV220B" (AI000086413713)
6. Why Choose Us
- Exact model match: We verify supply against your EV220B 6-22 size range and help determine the complete order code by DN, seal and coil voltage.
- Authorized channel supply: Danfoss industrial solenoid valves through regular channels, with documentation available on request.
- Selection support: We help confirm media/seal compatibility (EPDM/FKM/NBR), working differential, flow and NC/NO selection.
- Delivery & after-sales: Quotation, lead-time confirmation and order follow-up provided; for any parameter questions or alternatives, please email us.
7. FAQ
Q1: Is the EV220B 6-22 direct-acting or pilot-operated?
A: Pilot-operated diaphragm (servo). It operates from as low as 0.1 bar working differential, over a 0.1–20 bar range.
Q2: Which sizes and connections?
A: DN6–22, internal thread G¼–G1, brass body.
Q3: Normally open or closed?
A: 6-22 is normally closed (NC) standard: closed when de-energized, open when energized. The related 6-12 is the NO version.
Q4: What are flow and differential pressure?
A: Flow range 0.2–19 m³/h (by DN); working differential 0.1–20 bar.
Q5: Which media and temperature?
A: Water, oil, compressed air and similar neutral media; medium −30 to +100°C, ambient up to 80°C.
Q6: Is the coil ordered separately?
A: Yes, body and coil are ordered separately; coil voltage and enclosure rating are selected to suit the site. Please send your conditions and coil voltage; email us to confirm the complete order code.
