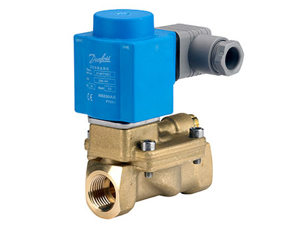

Danfoss EV220B 15-50 Pilot-operated Solenoid Valve (2/2-way, universal)

Danfoss EV220B series 2/2-way indirect servo-operated solenoid valve, brass/DZR/stainless-steel body, threaded G½–G2, DN15–50, Kv 4–18 m³/h by size, Δp 0.3–16 bar, medium −30 to +140°C (by seal), integral pilot strainer, adjustable closing time, coil enclosure up to IP67.
online consultation

Product Details

1. Product Overview

The EV220B 15-50 is Danfoss Sensing Solutions' universal 2/2-way indirect servo-operated solenoid valve. Bodies are available in brass, dezincification-resistant (DZR) brass and stainless steel, with threaded ports G½ to G2 covering DN15 to DN50, for water, steam, oil, compressed air and non-flammable gases.

It is pilot-operated: the coil lifts the pilot plunger and line pressure drives the main piston, so a minimum 0.3 bar working differential is required. A pilot strainer is fitted as standard to protect the pilot orifice, closing time is adjustable, and coil enclosures reach IP67 for demanding conditions.

Normally closed (NC) and normally open (NO) versions are offered, with EPDM, FKM/Viton and NBR seals to match water, hot water, steam, oil and neutral gases. Body and coil are ordered separately.

2. Specifications

表格

Item Specification
Manufacturer Danfoss
Series EV220B
Model size EV220B 15-50 (universal)
Product type 2/2-way indirect servo-operated (pilot piston) solenoid valve
Nominal size DN15, DN20, DN25, DN32, DN40, DN50
Connection Internal thread G½ – G2
Body material Brass, DZR brass, stainless steel
Seal material EPDM, FKM (Viton), NBR
Function NC / NO (selectable)
Kv (water) DN15: 4; DN20: 7.5–8; DN25: 11; DN32: 18 m³/h (by DN)
Differential pressure range 0.3 – 16 bar
Medium temperature −30 to +140 °C (by seal/body; EPDM water service ~0–90°C)
Ambient temperature Up to +80 °C (depending on coil)
Media Water, steam, oil, compressed air, non-flammable gases
Coil enclosure Up to IP67
Features Standard integral pilot strainer, adjustable closing time
Installation Vertical solenoid recommended
Ordering Body and coil ordered separately; full code = DN, body, seal, NC/NO, coil voltage

Per Danfoss official data sheet EV220B 15-50 (AI236986444669zh-001203) and product page. Medium-temperature limits vary with seal and body: EPDM for water/drinking water is ~0–90°C, FKM/NBR for oil service. For selection, please provide medium, temperature, pressure and coil voltage; email us for support.

5. Model Information

  • Ordering number: EV220B 15-50 (series size; complete order code by DN/body/seal/NC-NO/coil, e.g. 032U or 042N prefix)
  • Product description: Danfoss EV220B 15-50 2/2-way indirect servo-operated universal solenoid valve, threaded DN15–50.
  • Material number note: EV220B is the product series; "15-50" denotes the DN15–50 size range. The complete Danfoss ordering number is determined by nominal size, body material (brass/DZR/stainless), seal (EPDM/FKM/NBR), NC/NO function and coil voltage; body and coil are ordered separately. To select the full code for your application, please email us.
  • Series features:
    • 2/2-way indirect servo-operated (pilot piston) design
    • Brass/DZR/stainless body, threaded G½–G2
    • Multiple materials, seals and NC/NO to cover water/steam/oil/gas
    • Standard integral pilot strainer, adjustable closing time
    • Δp 0.3–16 bar, wide medium-temperature range
    • Coil enclosure up to IP67
  • Related products in series: EV220B 6-22 (smaller sizes), EV220B 65-100 (cast-iron flanged high-capacity), EV220BW (drinking water), EV220T/EV220W/EV228B (water shut-off / leak detection)
  • Matching products: Danfoss EV-series coils (042N, multiple voltages), coil plug/cable, fittings, strainers
  • Official documents: Danfoss data sheet "Solenoid valve EV220B type, EV220B 15-50" (AI236986444669zh-001203); "2/2-way servo-operated solenoid valves, type EV220B" (AI000086413713)

6. Why Choose Us

  1. Exact model match: We verify supply against your EV220B 15-50 size range and help determine the complete order code by DN, body, seal and coil voltage.
  2. Authorized channel supply: Danfoss industrial solenoid valves through regular channels, with documentation available on request.
  3. Selection support: We help confirm media/seal compatibility (EPDM/FKM/NBR), working differential, Kv flow and NC/NO selection.
  4. Delivery & after-sales: Quotation, lead-time confirmation and order follow-up provided; for any parameter questions or alternatives, please email us.

7. FAQ

Q1: Is the EV220B 15-50 direct-acting or pilot-operated?

A: Indirect pilot-operated (servo piston). A minimum 0.3 bar working differential is required; line pressure drives the main piston.

Q2: Which sizes and connections?

A: DN15–50, internal thread G½–G2. Bodies in brass, DZR brass and stainless steel.

Q3: Is it available normally open? How do I choose the seal?

A: Both NC and NO are available. Choose seal by medium: EPDM for water/hot water, FKM (Viton) for oil, NBR general oil-resistant.

Q4: What are Kv and differential pressure?

A: Kv by DN: DN15≈4, DN20≈7.5–8, DN25≈11, DN32≈18 m³/h; working differential 0.3–16 bar.

Q5: Which media and temperature?

A: Water, steam, oil, compressed air and non-flammable gases; medium −30 to +140°C (by seal/body; EPDM water ~0–90°C), ambient up to 80°C.

Q6: Is the coil ordered separately?

A: Yes, body and coil are ordered separately; coil voltage (24V DC, 230V AC, etc.) and enclosure rating are selected to suit the site. Please send your conditions and coil voltage; email us to confirm the complete order code.
