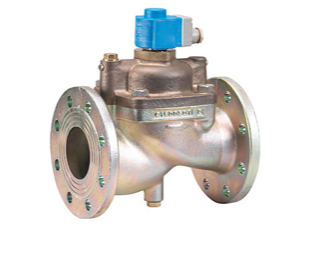

Danfoss EV220B 65-100 Pilot-operated Solenoid Valve (2/2-way, high capacity)

Danfoss EV220B series 2/2-way servo-operated (pilot piston) solenoid valve, cast-iron body, flanged DN65/80/100 (2½"/3"/4"), Kv 50–130 m³/h, Δp 0.25–10 bar, medium −25 to +90°C, integral pilot strainer and water-hammer damping, for water and similar neutral media.
online consultation

Product Details

1. Product Overview

The EV220B 65-100 is Danfoss Sensing Solutions' high-capacity 2/2-way servo-operated (pilot piston) solenoid valve. With a cast-iron body and flanged connections covering DN65, DN80 and DN100 (2½", 3", 4"), it is designed for large on/off flow rates of water and similar neutral media.

It is pilot-operated: when energized, the coil first lifts the pilot plunger, and the resulting pressure difference drives the main piston open — hence a minimum working differential of 0.25 bar is required. The main valve includes an integral pilot strainer to protect the pilot orifice and a water-hammer damping element to reduce closure noise at large sizes.

The standard function is normally closed (NC): de-energized the valve closes under spring/pressure, energized it opens. Seals are available in EPDM or NBR. Body and coil are ordered separately; coil voltage and enclosure rating (up to IP67) are selected to suit the application.

2. Specifications

表格

Item Specification
Manufacturer Danfoss
Series EV220B
Model size EV220B 65-100 (high-capacity)
Product type 2/2-way pilot-operated (servo piston) solenoid valve
Nominal size DN65, DN80, DN100 (2½", 3", 4")
Connection Flanged
Body material Cast iron
Seal material EPDM, NBR (selectable)
Function Normally closed (NC, standard)
Kv (water) 50 – 130 m³/h (by DN)
Differential pressure range 0.25 – 10 bar
Max. test pressure 15 bar
Medium temperature −25 to +90 °C
Ambient temperature Up to +80 °C (depending on coil)
Viscosity Up to 50 cSt
Medium Water and similar neutral liquids
Coil enclosure Up to IP67
Opening time Approx. 5 s (DN65/80/100)
Closing time DN65 ~7 s; DN80 ~15 s; DN100 ~29 s
Features Integral pilot strainer, water-hammer damping
Installation Vertical solenoid recommended, other orientations allowed
Ordering Body and coil ordered separately; full code includes DN, function, seal, coil voltage

Per Danfoss official data sheet EV220B 65-100 (AI243586443728) and product page. The Kv for a given DN, seal material and coil voltage must be confirmed by the complete order code. For selection, please provide medium, temperature, pressure and coil voltage; email us for support.

5. Model Information

  • Ordering number: EV220B 65-100 (series size; complete order code by DN/function/seal/coil — e.g. 016D6065 = DN65, NC, flanged, EPDM, Kv 50 m³/h)
  • Product description: Danfoss EV220B 65-100 2/2-way pilot-operated high-capacity solenoid valve, cast-iron flanged, DN65–100.
  • Material number note: EV220B is the product series; "65-100" denotes the high-capacity size range (DN65/80/100). The complete Danfoss ordering number (e.g. starting 016D) is determined by nominal size, NC/NO function, EPDM/NBR seal and coil voltage; body and coil are ordered separately. To select the full code for your application, please email us.
  • Series features:
    • 2/2-way pilot-operated (servo piston) design
    • Cast-iron body, flanged, DN65–100 high capacity
    • Kv 50–130 m³/h, Δp 0.25–10 bar
    • Integral pilot strainer protects the pilot orifice
    • Water-hammer damping reduces closure noise
    • Medium −25 to +90°C, coil enclosure up to IP67
    • NC normally closed standard
  • Related products in series: EV220B 15-50 (smaller threaded sizes, Kv 4–40 m³/h, Δp 0.3–16 bar); EV220BW series
  • Matching products: Danfoss EV-series coils (042N, multiple voltages), coil plug/cable, flange gaskets, strainers
  • Official documents: Danfoss data sheet "Solenoid valves Type EV220B EV220B 65-100" (AI243586443728); "2/2-way servo-operated solenoid valves, type EV220B" (AI000086413713)

6. Why Choose Us

  1. Exact model match: We verify supply against your EV220B 65-100 size range and help determine the complete order code by DN, seal and coil voltage.
  2. Authorized channel supply: Danfoss industrial solenoid valves through regular channels, with documentation available on request.
  3. Selection support: We help confirm media compatibility (EPDM/NBR), working differential, Kv flow and coil voltage matching.
  4. Delivery & after-sales: Quotation, lead-time confirmation and order follow-up provided; for any parameter questions or alternatives, please email us.

7. FAQ

Q1: Is the EV220B 65-100 direct-acting or pilot-operated?

A: Pilot-operated (servo piston). The coil first lifts the pilot plunger, and line pressure drives the main piston; a minimum 0.25 bar working differential is required.

Q2: What sizes and connections are available?

A: DN65, DN80 and DN100 (2½", 3", 4"), flanged, cast-iron body.

Q3: Normally open or normally closed?

A: The 65-100 high-capacity version is normally closed (NC) by standard: closed when de-energized, open when energized. Please confirm the function when ordering.

Q4: What are the Kv and flow?

A: Kv 50–130 m³/h (by DN), for large on/off flow of water and similar neutral media.

Q5: Which media and temperature?

A: Water and similar neutral liquids, medium −25 to +90°C, viscosity up to 50 cSt, ambient up to 80°C.

Q6: Is the coil ordered separately? How is voltage chosen?

A: Yes, body and coil are ordered separately. Coil voltage (e.g. 24V DC, 230V AC) and enclosure rating are selected to suit the site. Please send your conditions and coil voltage; email us to confirm the complete order code.
