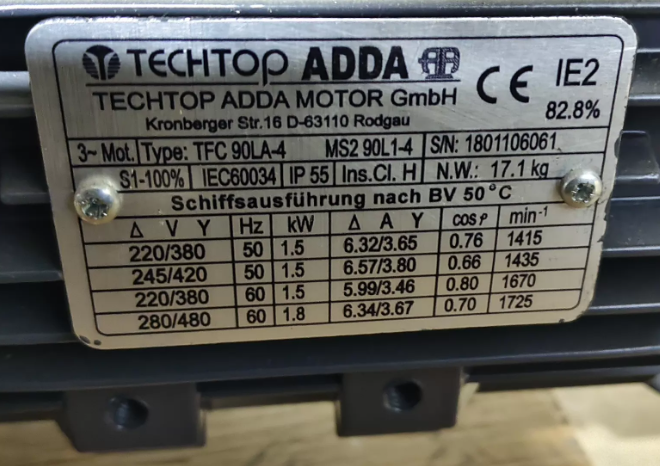

TECHTOP ADDA MS2 90L1-4 Three-Phase Asynchronous Motor
I. Product Overview
The TECHTOP ADDA MS2 90L1-4 is an aluminum housing three-phase asynchronous motor from Techtop (TECHTOP ADDA), part of the MS2 series IE2 efficiency motors. This motor has frame size 90L, 4-pole design, power approx. 1.5 kW.
The MS2 series motors use high-quality aluminum housing structure, compliant with IEC standard design, featuring high efficiency, reliable operation and attractive appearance. This series is suitable for various mechanical equipment drives.
The MS2 90L1-4 motor is a general-purpose three-phase asynchronous motor, widely used in fans, pumps, conveyors, packaging machinery and other industrial transmission applications.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | TECHTOP ADDA |
| Model | MS2 90L1-4 |
| Product Type | Three-phase asynchronous motor |
| Efficiency Class | IE2 |
| Frame Size | 90L |
| Poles | 4-pole |
| Rated Power | 1.5 kW |
| Rated Speed | Approx. 1400 r/min |
| Rated Voltage | 380 V / 400 V |
| Rated Frequency | 50 Hz |
| Protection Rating | IP55 |
| Insulation Class | F |
| Mounting | B3 / B5 / B14 |
| Housing Material | Aluminum alloy |
| Duty | S1 continuous duty |
| Ambient Temperature | -15°C ~ +40°C |
| Certifications | CE, CCC, ISO 9001 |
| Typical Applications | Fans, pumps, conveyors, industrial drives |
| Manufacturer | TECHTOP |
III. Product Features
- TECHTOP ADDA MS2 series three-phase asynchronous motor
- Model MS2 90L1-4
- IE2 efficiency class
- 90L frame, 4-pole
- Rated power 1.5 kW
- Aluminum housing structure, attractive appearance
- IP55 protection rating
- F-class insulation
- Compliant with IEC standard
- Reliable operation, high efficiency
- Suitable for multiple mounting methods
- Widely used in industrial transmission
IV. Typical Applications
- Fan drive
- Pump drive
- Conveyor transmission
- Packaging machinery
- Food processing machinery
- General industrial equipment drive
V. Model Description
The MS2 90L1-4 fields are explained as follows:
- MS2: MS2 series IE2 efficiency aluminum housing motor
- 90: Frame size 90mm
- L: Frame length (L long frame)
- 1: Core length index
- 4: 4-pole motor
Note: This motor is a TECHTOP ADDA MS2 series three-phase asynchronous motor. To confirm specific rated current, starting torque and mounting dimensions and other details, please contact via email for confirmation. We will provide technical documentation and selection support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What is MS2 90L1-4?
A: MS2 90L1-4 is a TECHTOP ADDA three-phase asynchronous motor, IE2 efficiency, 90L frame 4-pole, power 1.5kW, used for industrial equipment drive.
Q2: What are the key parameters of this motor?
A: IE2 efficiency, 90L frame, 4-pole, 1.5kW, 380V 50Hz, IP55 protection, F-class insulation.
Q3: What features does this motor have?
A: Aluminum housing, high efficiency, reliable operation, multiple mounting options. For detailed parameters, please contact via email.
Q4: How to confirm this motor's compatibility with the equipment?
A: Please provide the required power, speed and mounting dimensions of the equipment, contact via email, and we will assist in confirming compatibility and provide technical documentation.
