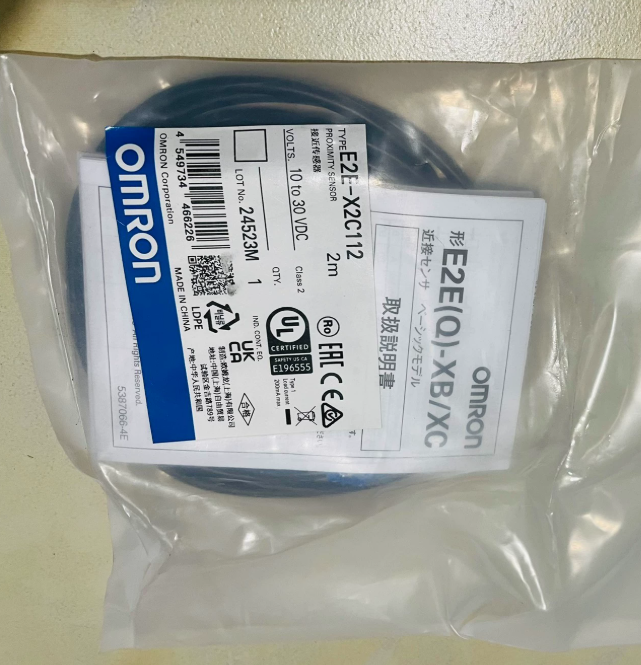

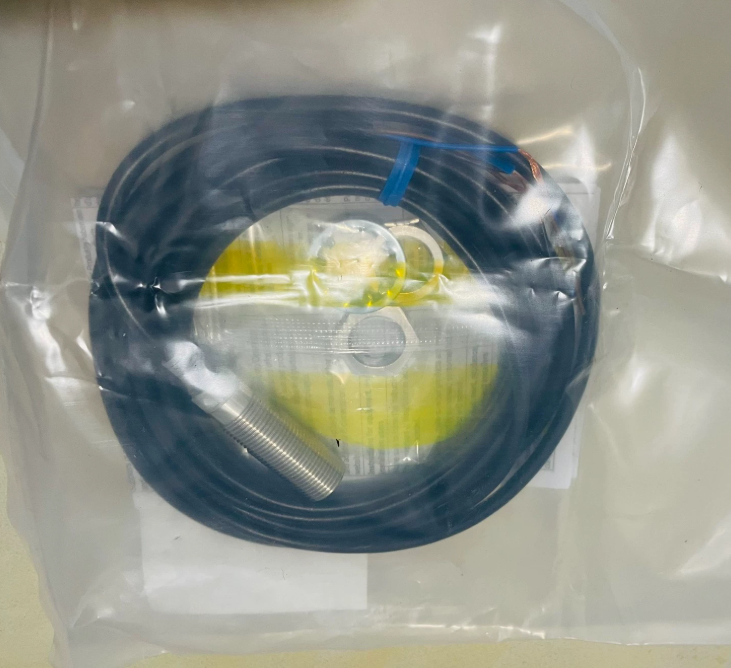

OMRON E2E-X2C112 2M OMS Proximity Sensor
I. Product Overview
The OMRON E2E-X2C112 2M OMS is an E2E NEXT series DC 3-wire inductive proximity switch from OMRON (Japan), model E2E-X2C112 2M OMS. This sensor is M12 size, shielded flush mounting, sensing distance 2mm, nickel-plated brass housing, NPN open collector output, NO normally open operation mode.
The E2E NEXT series is the high-performance inductive proximity sensor series from OMRON, widely used in industrial automation, manufacturing and machine tool fields. The E2E-X2C112 2M OMS is a standard proximity switch, NPN open collector output, suitable for metal object detection applications.
The E2E-X2C112 2M OMS is a cylindrical thread mounting proximity sensor.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | OMRON (Japan) |
| Model | E2E-X2C112 2M OMS |
| Series | E2E NEXT DC 3-wire |
| Product Type | Inductive Proximity Sensor |
| Size | M12 |
| Mounting Type | Shielded (Flush) |
| Sensing Distance | 2 mm ±10% |
| Setting Distance | 0 ~ 1.6 mm |
| Differential Travel | Max. 10% of sensing distance |
| Standard Sensing Object | Iron 12×12×1 mm |
| Response Frequency | 1500 Hz |
| Supply Voltage | DC 10 ~ 30V |
| Current Consumption | 16 mA max. |
| Output Type | NPN open collector |
| Control Output | 200 mA max. |
| Residual Voltage | 2V max. (load current 200mA, cable length 2m) |
| Indicator | Operation indicator (orange), Communication indicator (green) |
| Operation Mode | NO (Normally Open) |
| Protection Circuits | Load short-circuit protection, Output reverse connection protection, Power reverse connection protection, Surge suppressor |
| Overall Length | 47.1 mm |
| Thread Length | 29 mm |
| Connection Method | Cable |
| Cable Specification | PVC (oil-resistant) |
| Cable Length | 2 m |
| Housing Material | Nickel-plated brass |
| Sensing Surface Material | PBT |
| Protection Structure | IP67, IP67G (oil-resistant), IP69K |
| Operating Temperature | -40 °C ~ +85 °C |
| Weight | Approx. 95 g (packed) |
| Certifications | CE, UL, RoHS |
| Typical Applications | Industrial automation, manufacturing, machine tools |
| Manufacturer | OMRON |
III. Product Features
- OMRON E2E NEXT series inductive proximity sensor
- Model E2E-X2C112 2M OMS
- M12 size, shielded flush mounting
- Sensing distance 2mm ±10%
- Nickel-plated brass housing, PBT sensing surface
- DC 3-wire, NPN open collector output
- NO normally open operation mode
- DC10-30V supply
- PVC oil-resistant cable length 2m
- Response frequency 1500Hz
- Operation indicator (orange) + Communication indicator (green)
- IP67/IP67G/IP69K protection rating
- Oil-resistant design
- Four protection circuits (short circuit / reverse connection / surge)
- Wide temperature range -40~+85°C
- Suitable for industrial automation and manufacturing
- Widely used in machine tools and production line detection
IV. Typical Applications
- Industrial automation system position detection
- Manufacturing production line object detection
- Machine tool limit detection
- Metal workpiece counting and positioning
- Conveyor object detection
- Valve position feedback
V. Model Description
The E2E-X2C112 2M OMS fields are explained as follows:
- E2E: E2E series
- X2: Sensing distance 2mm
- C: DC 3-wire
- 112: NPN open collector, NO output, standard type
- 2M: Cable length 2m
- OMS: OMRON Standard
Note: This sensor is an E2E NEXT series DC 3-wire proximity switch. To confirm specific detection objects, mounting methods and other details, please contact via email for confirmation. We will provide technical documentation and selection support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What is E2E-X2C112 2M OMS?
A: E2E-X2C112 2M OMS is an OMRON E2E NEXT series DC 3-wire inductive proximity switch, M12 size, sensing distance 2mm, NPN NO output, 2m cable.
Q2: What are the key parameters of this sensor?
A: M12 size, sensing distance 2mm, DC 3-wire, NPN NO output, DC10-30V supply, 2m PVC oil-resistant cable.
Q3: What features does this sensor have?
A: Shielded flush mounting, oil-resistant design, IP69K protection, wide temperature range, four protection circuits. For detailed functions, please contact via email.
Q4: How to confirm this sensor's compatibility with the existing system?
A: Please provide the existing system sensing distance, output type and supply voltage requirements parameters, contact via email, and we will assist in confirming compatibility and provide technical documentation.
