Phoenix Contact TRIO-DIODE/12-24DC/2X10/1X20 Diode Redundancy Module
I. Product Overview
The Phoenix Contact TRIO-DIODE/12-24DC/2X10/1X20 is a TRIO POWER series diode redundancy module from Phoenix Contact (Germany), model TRIO-DIODE/12-24DC/2X10/1X20, order number 2866514. This module is a DIN rail mounted diode redundancy module, voltage range 12-24VDC, dual input 2×10A, single output 1×20A, with function monitoring, used for redundancy or parallel backup of two power supplies.
TRIO POWER is the economical DIN rail power supply series from Phoenix Contact, widely used in industrial automation, manufacturing and process control fields. The TRIO-DIODE/12-24DC/2X10/1X20 as a redundancy module ensures continuous system power supply when one power supply fails.

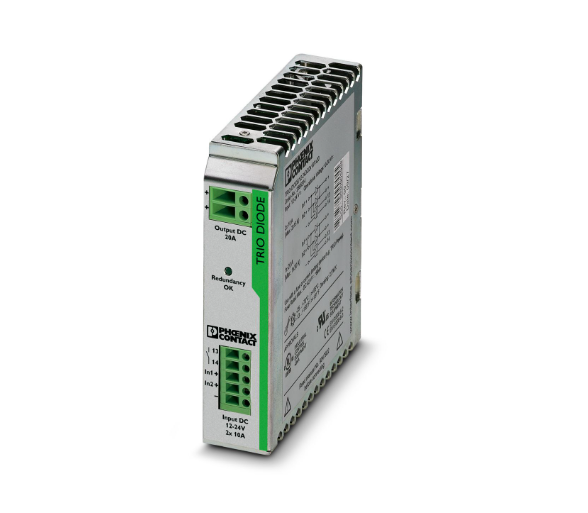

The TRIO-DIODE/12-24DC/2X10/1X20 is a DIN rail mounted diode redundancy module.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | Phoenix Contact (Germany) |
| Model | TRIO-DIODE/12-24DC/2X10/1X20 |
| Order Code | 2866514 |
| Product Type | Diode Redundancy Module |
| Series | TRIO POWER |
| Voltage Range | 12-24 V DC |
| Input | Dual, 2×10 A |
| Output | Single, 1×20 A |
| Function Monitoring | With function monitoring |
| Dimensions | W32mm × H130mm × D115mm |
| Application | Dual power supply redundancy / parallel backup |
| Features | Permanent redundancy monitoring |
| Mounting | DIN rail mounting |
| Certifications | CE, UL, RoHS |
| Typical Applications | Industrial automation, manufacturing, process control |
| Manufacturer | Phoenix Contact |
III. Product Features
- Phoenix Contact TRIO POWER series diode redundancy module
- Model TRIO-DIODE/12-24DC/2X10/1X20, order number 2866514
- Voltage range 12-24VDC
- Dual input 2×10A
- Single output 1×20A
- With function monitoring
- For dual power supply redundancy
- Permanent redundancy monitoring
- DIN rail mounting
- Ensures continuous system power supply when one power supply fails
- Suitable for industrial automation and process control
- Widely used in high-reliability power supply applications
IV. Typical Applications
- Dual power supply redundancy system
- Industrial automation system high-reliability power supply
- Critical equipment continuous power supply assurance
- PLC system redundant power supply configuration
- Process control system redundant power supply
- Manufacturing production line continuous power supply
V. Model Description
The TRIO-DIODE/12-24DC/2X10/1X20 fields are explained as follows:
- TRIO: TRIO POWER series
- DIODE: Diode module
- 12-24DC: Voltage range 12-24V DC
- 2X10: Dual input, 10A per channel
- 1X20: Single output, 20A
- Order code: 2866514
Note: This device is a TRIO POWER series diode redundancy module. To confirm wiring method, configuration parameters and other details, please contact via email for confirmation. We will provide technical documentation and selection support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What is TRIO-DIODE/12-24DC/2X10/1X20?
A: TRIO-DIODE/12-24DC/2X10/1X20 is a Phoenix Contact TRIO POWER series diode redundancy module, voltage range 12-24VDC, dual input 2×10A, single output 1×20A, with function monitoring, used for redundancy of two power supplies.
Q2: What are the key parameters of this module?
A: Voltage range 12-24VDC, dual input 2×10A, single output 1×20A, with function monitoring, DIN rail mounting.
Q3: What features does this module have?
A: Dual power supply redundancy, permanent redundancy monitoring, ensures continuous system power supply when one power supply fails. For detailed functions, please contact via email.
Q4: How to confirm this module's compatibility with the existing system?
A: Please provide the existing system power supply model and load requirements parameters, contact via email, and we will assist in confirming compatibility and provide technical documentation.
