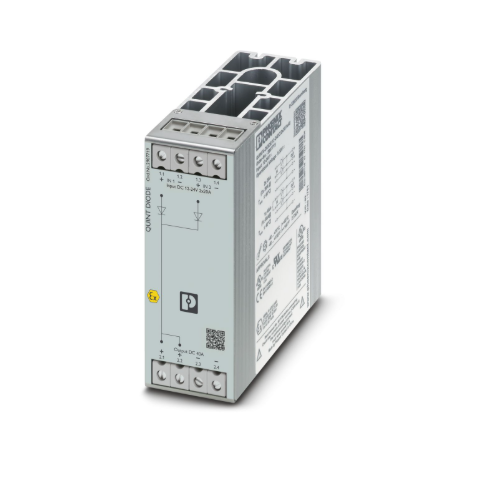

Phoenix Contact QUINT4-DIODE/12-24DC/2X20/1X40 Diode Redundancy Module
I. Product Overview
The Phoenix Contact QUINT4-DIODE/12-24DC/2X20/1X40 is a QUINT4 POWER series 4th generation diode redundancy module from Phoenix Contact (Germany), model QUINT4-DIODE/12-24DC/2X20/1X40, order number 2907719. This module is a DIN rail mounted diode redundancy module, voltage range 12-24VDC, dual input 2×20A, single output 1×40A, used for redundancy or parallel backup of two power supplies.
QUINT4 POWER is the 4th generation high-performance DIN rail power supply series from Phoenix Contact, widely used in industrial automation, manufacturing and process control fields. The QUINT4-DIODE/12-24DC/2X20/1X40 as a redundancy module ensures continuous system power supply when one power supply fails.
The QUINT4-DIODE/12-24DC/2X20/1X40 is a DIN rail mounted diode redundancy module.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | Phoenix Contact (Germany) |
| Model | QUINT4-DIODE/12-24DC/2X20/1X40 |
| Order Code | 2907719 |
| Product Type | Diode Redundancy Module |
| Series | QUINT4 POWER (4th Generation) |
| Voltage Range | 12-24 V DC |
| Input | Dual, 2×20 A |
| Output | Single, 1×40 A |
| Application | Dual power supply redundancy / parallel backup |
| Mounting | DIN rail mounting |
| Certifications | CE, UL, RoHS |
| Typical Applications | Industrial automation, manufacturing, process control |
| Manufacturer | Phoenix Contact |
III. Product Features
- Phoenix Contact QUINT4 POWER series 4th generation diode redundancy module
- Model QUINT4-DIODE/12-24DC/2X20/1X40, order number 2907719
- Voltage range 12-24VDC
- Dual input 2×20A
- Single output 1×40A
- For dual power supply redundancy
- DIN rail mounting
- Ensures continuous system power supply when one power supply fails
- Suitable for industrial automation and process control
- Widely used in high-reliability power supply applications
IV. Typical Applications
- Dual power supply redundancy system
- Industrial automation system high-reliability power supply
- Critical equipment continuous power supply assurance
- PLC system redundant power supply configuration
- Process control system redundant power supply
- Manufacturing production line continuous power supply
V. Model Description
The QUINT4-DIODE/12-24DC/2X20/1X40 fields are explained as follows:
- QUINT4: QUINT4 POWER series (4th Generation)
- DIODE: Diode module
- 12-24DC: Voltage range 12-24V DC
- 2X20: Dual input, 20A per channel
- 1X40: Single output, 40A
- Order code: 2907719
Note: This device is a QUINT4 POWER series 4th generation diode redundancy module. To confirm wiring method, configuration parameters and other details, please contact via email for confirmation. We will provide technical documentation and selection support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What is QUINT4-DIODE/12-24DC/2X20/1X40?
A: QUINT4-DIODE/12-24DC/2X20/1X40 is a Phoenix Contact QUINT4 POWER series 4th generation diode redundancy module, voltage range 12-24VDC, dual input 2×20A, single output 1×40A, used for redundancy of two power supplies.
Q2: What are the key parameters of this module?
A: Voltage range 12-24VDC, dual input 2×20A, single output 1×40A, DIN rail mounting.
Q3: What features does this module have?
A: Dual power supply redundancy, ensures continuous system power supply when one power supply fails. For detailed functions, please contact via email.
Q4: How to confirm this module's compatibility with the existing system?
A: Please provide the existing system power supply model and load requirements parameters, contact via email, and we will assist in confirming compatibility and provide technical documentation.
