Phoenix Contact QUINT4-PS/1AC/48DC/10 Power Supply
I. Product Overview
The Phoenix Contact QUINT4-PS/1AC/48DC/10 is a QUINT4 POWER series 1-phase switching power supply from Phoenix Contact (Germany), model QUINT4-PS/1AC/48DC/10, order number 2904611. This power supply is a 1-phase DIN rail mounted switching power supply, 100-240VAC input, 48VDC/10A output, used for DC power supply in industrial automation systems.
QUINT4 POWER is the 4th generation high-performance DIN rail power supply series from Phoenix Contact, widely used in industrial automation, manufacturing and process control fields. The QUINT4-PS/1AC/48DC/10 as a 1-phase power supply device provides 480W stable DC output power.

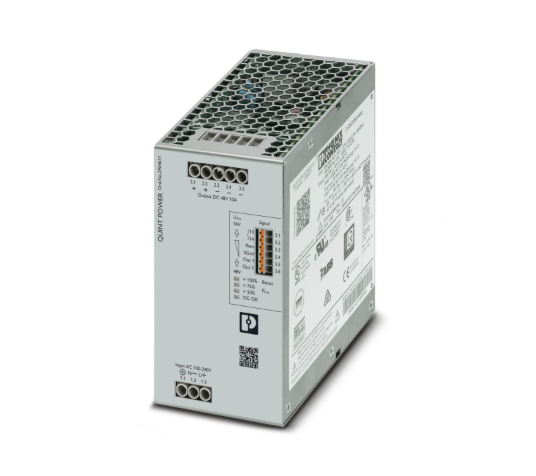

The QUINT4-PS/1AC/48DC/10 is a DIN rail mounted switching power supply.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | Phoenix Contact (Germany) |
| Model | QUINT4-PS/1AC/48DC/10 |
| Order Code | 2904611 |
| Product Type | Switching Power Supply |
| Series | QUINT4 POWER (4th Generation) |
| Input Voltage | 1-phase, 100-240 V AC (-15% ~ +10%) |
| Output Voltage | 48 V DC |
| Output Voltage Adjustment Range | 48 V DC ~ 56 V DC |
| Output Current | 10 A |
| Static Boost | 12.5 A |
| Dynamic Boost | 15 A (5 s) |
| Selective Fuse Breaking (ISFB) | 60 A (15 ms) |
| Efficiency | Typ. 94% (120V AC) / 95% (230V AC) |
| Residual Ripple | < 70 mVpp |
| MTBF | > 676000 h (40°C) |
| Operating Temperature | -25°C ~ +70°C |
| Mounting | DIN rail mounting |
| Certifications | CE, UL, RoHS |
| Typical Applications | Industrial automation, manufacturing, process control |
| Manufacturer | Phoenix Contact |
III. Product Features
- Phoenix Contact QUINT4 POWER series 1-phase switching power supply
- Model QUINT4-PS/1AC/48DC/10, order number 2904611
- 100-240VAC 1-phase input
- 48VDC/10A output
- Static Boost 12.5A
- Dynamic Boost 15A (5s)
- SFB selective fuse breaking technology
- DIN rail mounting
- Used for industrial automation system DC power supply
- Suitable for manufacturing and process control
- Widely used in industrial automation systems
IV. Typical Applications
- Industrial automation system DC power supply
- PLC system power supply
- Sensor and actuator power supply
- Industrial equipment control system power supply
- Process control system power supply
- Manufacturing production line power supply
V. Model Description
The QUINT4-PS/1AC/48DC/10 fields are explained as follows:
- QUINT4: QUINT4 POWER series (4th Generation)
- PS: Power Supply
- 1AC: 1-phase AC input
- 48DC: 48V DC output
- 10: 10A output current
- Order code: 2904611
Note: This device is a QUINT4 POWER series 1-phase switching power supply. To confirm wiring method, configuration parameters and other details, please contact via email for confirmation. We will provide technical documentation and selection support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What is QUINT4-PS/1AC/48DC/10?
A: QUINT4-PS/1AC/48DC/10 is a Phoenix Contact QUINT4 POWER series 1-phase switching power supply, 100-240VAC input, 48VDC/10A output, used for DC power supply in industrial automation systems.
Q2: What are the key parameters of this power supply?
A: 100-240VAC 1-phase input, 48VDC/10A output, DIN rail mounting.
Q3: What features does this power supply have?
A: Static Boost 12.5A, Dynamic Boost 15A (5s), SFB selective fuse breaking technology. For detailed functions, please contact via email.
Q4: How to confirm this power supply's compatibility with the existing system?
A: Please provide the existing system model and power consumption requirements parameters, contact via email, and we will assist in confirming compatibility and provide technical documentation.
