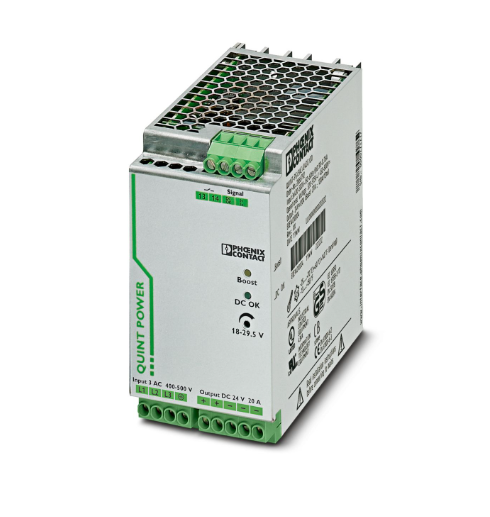

Phoenix Contact QUINT-PS/3AC/24DC/20 Power Supply
I. Product Overview
The Phoenix Contact QUINT-PS/3AC/24DC/20 is a QUINT POWER series 3-phase switching power supply from Phoenix Contact (Germany), model QUINT-PS/3AC/24DC/20, order number 2866792. This power supply is a 3-phase DIN rail mounted switching power supply, 320-575VAC input, 24VDC/20A output, used for DC power supply in industrial automation systems.
QUINT POWER is the high-performance DIN rail power supply series from Phoenix Contact, widely used in industrial automation, manufacturing and process control fields. The QUINT-PS/3AC/24DC/20 as a 3-phase power supply device provides 480W stable DC output power.
The QUINT-PS/3AC/24DC/20 is a DIN rail mounted switching power supply.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | Phoenix Contact (Germany) |
| Model | QUINT-PS/3AC/24DC/20 |
| Order Code | 2866792 |
| Product Type | Switching Power Supply |
| Series | QUINT POWER (GEN 3) |
| Input Voltage | 3-phase, 320-575 VAC |
| Output Voltage | 24 V DC ±1% |
| Output Voltage Adjustment Range | 18 V DC ~ 29.5 V DC |
| Output Current | 20 A (-25°C ~ 60°C) |
| POWER BOOST | 26 A (-25°C ~ 40°C, continuous) |
| Output Power | 480 W |
| IP Rating | IP20 |
| Operating Temperature | -25°C ~ +70°C |
| Mounting | DIN rail mounting |
| Dimensions (WxHxD) | 69 mm × 130 mm × 125 mm |
| Protection | SFB selective fuse breaking, varistor, gas discharge tube |
| Certifications | CE, UL, RoHS |
| Typical Applications | Industrial automation, manufacturing, process control |
| Manufacturer | Phoenix Contact |
III. Product Features
- Phoenix Contact QUINT POWER series 3-phase switching power supply
- Model QUINT-PS/3AC/24DC/20, order number 2866792
- 320-575VAC 3-phase input
- 24VDC/20A output
- 480W output power
- POWER BOOST 26A
- SFB selective fuse breaking technology
- DIN rail mounting
- Used for industrial automation system DC power supply
- Suitable for manufacturing and process control
- Widely used in industrial automation systems
IV. Typical Applications
- Industrial automation system DC power supply
- PLC system power supply
- Sensor and actuator power supply
- Industrial equipment control system power supply
- Process control system power supply
- Manufacturing production line power supply
V. Model Description
The QUINT-PS/3AC/24DC/20 fields are explained as follows:
- QUINT: QUINT POWER series
- PS: Power Supply
- 3AC: 3-phase AC input
- 24DC: 24V DC output
- 20: 20A output current
- Order code: 2866792
Note: This device is a QUINT POWER series 3-phase switching power supply. To confirm wiring method, configuration parameters and other details, please contact via email for confirmation. We will provide technical documentation and selection support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What is QUINT-PS/3AC/24DC/20?
A: QUINT-PS/3AC/24DC/20 is a Phoenix Contact QUINT POWER series 3-phase switching power supply, 320-575VAC input, 24VDC/20A output, used for DC power supply in industrial automation systems.
Q2: What are the key parameters of this power supply?
A: 320-575VAC 3-phase input, 24VDC/20A output, 480W output power, DIN rail mounting.
Q3: What features does this power supply have?
A: POWER BOOST 26A, SFB selective fuse breaking technology, wide voltage input range. For detailed functions, please contact via email.
Q4: How to confirm this power supply's compatibility with the existing system?
A: Please provide the existing system model and power consumption requirements parameters, contact via email, and we will assist in confirming compatibility and provide technical documentation.
