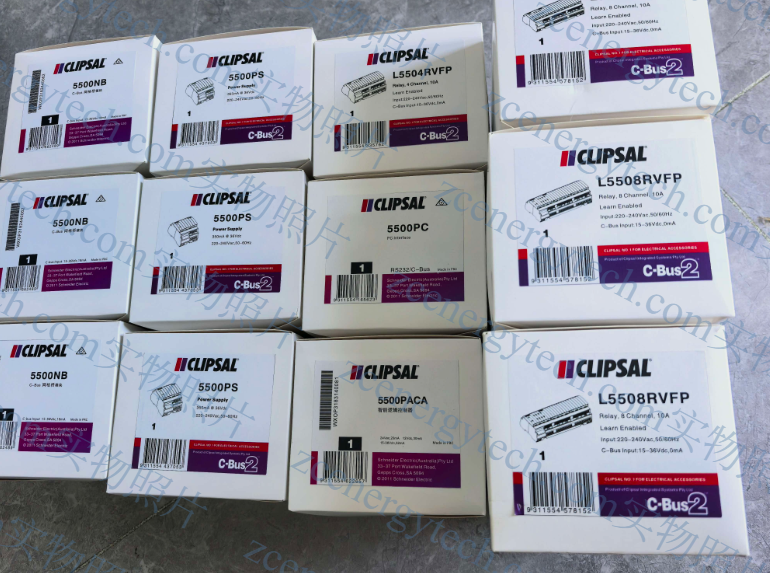

Schneider Electric Clipsal L5508RVFP C-Bus 8 Channel Relay
I. Product Overview
The Schneider Electric Clipsal L5508RVFP is a C-Bus system 8 channel relay module from the Clipsal brand under Schneider Electric, model L5508RVFP. This relay is an output unit, 8 channels × 10A, 250VAC, voltage free contacts, magnetically latched, used for C-Bus lighting control system relay output control.
C-Bus is the intelligent lighting control system from Clipsal Schneider Electric, widely used in intelligent buildings, office buildings and commercial premises for lighting control. The L5508RVFP as a system output unit provides 8 channel relay output control function.
The L5508RVFP is a DIN rail-mounted relay module.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | Schneider Electric Clipsal (Australia) |
| Model | L5508RVFP |
| Order Code | L5508RVFP |
| Product Type | Relay Module |
| Series | C-Bus System |
| Channels | 8 channels |
| Current per Channel | 10 A |
| Rated Voltage | 250 V AC |
| Contact Type | Voltage free, normally open, magnetically latched |
| C-Bus Supply | 15-36 V DC @ 18mA |
| Mounting | DIN rail mounting (12 modules) |
| Connection | Screw terminals |
| Dimensions | 215 x 85 x 65 mm |
| Weight | Approx. 725 g |
| Typical Applications | C-Bus lighting control system, intelligent building, building automation |
| Manufacturer | Schneider Electric |
III. Product Features
- Schneider Electric Clipsal C-Bus system 8 channel relay
- Model L5508RVFP, 8 channels × 10A
- 250VAC rated voltage
- Voltage free contacts, magnetically latched
- DIN rail mounting (12 modules)
- Used for C-Bus lighting control system relay output control
- Provides 8 channel relay output control function
- Suitable for intelligent buildings and building automation
- Widely used in office buildings and commercial premises lighting control
IV. Typical Applications
- C-Bus lighting control system relay output
- Intelligent building automation lighting control
- Office building lighting circuit control
- Commercial premises lighting zoning control
- Hotel lighting circuit control
- Industrial plant lighting relay output
V. Model Description
The L5508RVFP fields are explained as follows:
- L55: C-Bus system output unit series number
- 08: 8 channels
- RV: Relay Voltage Free
- F: Magnetically Latched
- P: Programming method (Learn mode)
Note: This device is a C-Bus system 8 channel relay module. To confirm wiring method, programming configuration and other details, please contact via email for confirmation. We will provide technical documentation and selection support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What is L5508RVFP?
A: L5508RVFP is a Schneider Electric Clipsal C-Bus system 8 channel relay, 8 channels × 10A, 250VAC, voltage free contacts, used for C-Bus lighting control system relay output control.
Q2: What are the key parameters of this relay?
A: 8 channels × 10A, 250VAC rated voltage, voltage free contacts, magnetically latched, DIN rail mounting (12 modules).
Q3: What features does this relay have?
A: Provides 8 channel relay output control function, magnetically latched contacts. For detailed functions, please contact via email.
Q4: How to confirm this relay's compatibility with the existing C-Bus system?
A: Please provide the existing C-Bus system circuit count and load parameters, contact via email, and we will assist in confirming compatibility and provide technical documentation.
