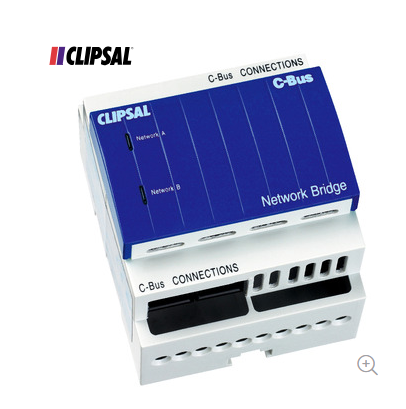

Schneider Electric Clipsal 5500NB C-Bus Network Bridge
I. Product Overview
The Schneider Electric Clipsal 5500NB is a C-Bus system network bridge from the Clipsal brand under Schneider Electric, model 5500NB. This device is a C-Bus network connection bridge, RJ45 interface, optically isolated, used for connecting two C-Bus networks.
C-Bus is the intelligent lighting control system from Clipsal Schneider Electric, widely used in intelligent buildings, office buildings and commercial premises for lighting control. The 5500NB as a system network connection device realizes communication connection and electrical isolation between two C-Bus networks.
The 5500NB is a DIN rail-mounted network bridge device.
II. Specifications
表格
| Parameter | Value |
|---|---|
| Brand | Schneider Electric Clipsal (Australia) |
| Model | 5500NB |
| Order Code | 5500NB |
| Product Type | Network Bridge |
| Series | C-Bus System |
| Function | Connect two C-Bus networks, optically isolated |
| Interface Type | RJ45 connectors (2 per network) |
| Mounting | DIN rail mounting (4 modules) |
| Operating Temperature | 0-45°C |
| Operating Humidity | 10-95% RH |
| Storage Temperature | -10~60°C |
| Dimensions | 72 x 85 x 65 mm |
| Weight | Approx. 95 g |
| Typical Applications | C-Bus lighting control system, intelligent building, building automation |
| Manufacturer | Schneider Electric |
III. Product Features
- Schneider Electric Clipsal C-Bus system network bridge
- Model 5500NB, RJ45 interface
- Optically isolated
- DIN rail mounting (4 modules)
- Used for connecting two C-Bus networks
- Realizes communication connection and electrical isolation between two C-Bus networks
- Suitable for intelligent buildings and building automation
- Widely used in office buildings and commercial premises lighting control
IV. Typical Applications
- C-Bus lighting control system network connection
- Intelligent building automation network expansion
- Office building lighting control system networking
- Commercial premises lighting network expansion
- Hotel lighting control system network connection
- Industrial plant lighting control network expansion
V. Model Description
The 5500NB fields are explained as follows:
- 5500: C-Bus system device series number
- NB: Network Bridge
Note: This device is a C-Bus system network bridge. To confirm communication protocol, wiring method and other details, please contact via email for confirmation. We will provide technical documentation and selection support.
VI. Why Choose Us
- Professional channel supply, comprehensive model coverage across multiple brands of industrial spare parts
- Strict quality inspection process ensuring reliable product quality
- Professional engineering team providing technical support and selection consultation
- Quick response, efficient logistics, orders accepted
- Quality assurance, worry-free after-sales service
VII. FAQ
Q1: What is 5500NB?
A: 5500NB is a Schneider Electric Clipsal C-Bus system network bridge, RJ45 interface, optically isolated, used for connecting two C-Bus networks.
Q2: What are the key parameters of this network bridge?
A: RJ45 connector interface, optically isolated, DIN rail mounting (4 modules), operating temperature 0-45°C.
Q3: What features does this network bridge have?
A: Realizes communication connection and electrical isolation between two C-Bus networks, DIN rail mounting. For detailed functions, please contact via email.
Q4: How to confirm this network bridge's compatibility with the existing C-Bus system?
A: Please provide the existing C-Bus system network architecture and device count parameters, contact via email, and we will assist in confirming compatibility and provide technical documentation.
