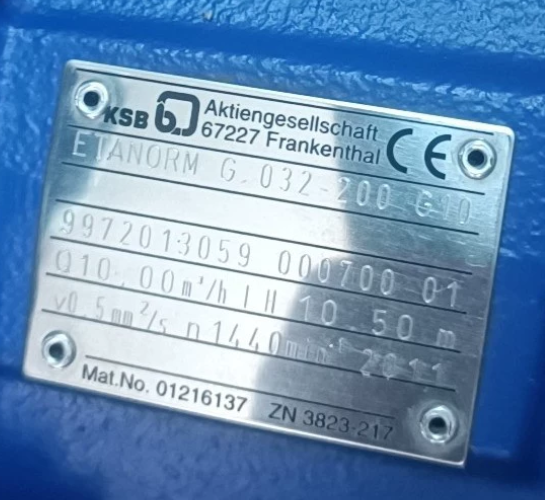

KSB ETANORM G 032-200 G10 Horizontal Centrifugal Pump

The KSB Etanorm G 032-200 G10 is a single-stage, single-suction horizontal volute casing pump to EN 733, back-pull-out design, DN32 discharge, 200 mm impeller, for water supply, cooling circuits and general industrial fluid handling.

online consultation

Product Details

1. Product Overview

ETANORM G 032-200 G10 is a KSB Etanorm-series standardized single-stage horizontal volute casing pump — one of the world's best-selling standard pumps. It is a radially split, foot-mounted back-pull-out pump whose hydraulic ratings and main dimensions comply with EN 733 (formerly DIN 24255); maintenance is possible without disconnecting the pipework or drive.

In the model: G = material/design version (standard cast iron); 032 = nominal discharge DN32; 200 = nominal impeller diameter 200 mm (suction is DN50 per EN 733); G10 = design version. At 2-pole drive (~2900 r/min) this size typically delivers about Q = 20 m³/h at H = 40 m, with high efficiency and reliable operation.

Etanorm handles clean water, cooling/chilled water and similar fluids; for thermal oil service use the Etanorm SYT version.

2. Specifications

表格

Item	Specification
Manufacturer	KSB
Model	ETANORM G 032-200 G10
Product type	Single-stage, single-suction horizontal volute pump
Standard	EN 733 (formerly DIN 24255)
Design	Back-pull-out, radially split, foot-mounted
Suction nozzle	DN50 (per EN 733 for DN32 discharge)
Discharge nozzle	DN32
Nominal impeller dia.	200 mm
Typical duty	Q ≈ 20 m³/h, H ≈ 40 m (2900 r/min)
Max. working pressure	16 bar
Fluid temperature	Up to ~140 °C (standard)
Casing material	Cast iron (G version)
Seal	Single/double mechanical seal (EN 12756)
Drive	2-pole three-phase motor (~2900 r/min); power per duty point
Installation	Horizontal, base-plate

5. Model Information

Model: ETANORM G 032-200 G10
Product description: KSB Etanorm standard single-stage horizontal pump, EN 733, DN32 discharge, 200 mm impeller.
Model decode: ETANORM = standard volute pump series; G = standard cast-iron version; 032 = discharge DN32; 200 = nominal impeller diameter 200 mm; G10 = design version. Motor power, seal and material are selected by duty point (flow, head, fluid). Please email us.
Series features:
- EN 733 standard, high interchangeability
- Back-pull-out design, no pipe removal for service
- Closed multi-vane impeller, high hydraulic efficiency
- Mechanical seal to EN 12756
- Up to 16 bar, 140 °C
- Water supply, cooling circuits, HVAC, general industry
Related products in series: Etanorm MyFlow / Etanorm Pro (integrated-variable-speed SuPremE motor); Etanorm SYT (thermal oil); Etaline / Etaline Z in-line pumps
Matching products: KSB SuPremE high-efficiency motor, coupling, base frame, mechanical seal, coupling guard

6. Why Choose Us

Exact model match: We verify ETANORM G 032-200 G10 as supplied.
Authorized channel supply: KSB Etanorm standard pumps through regular channels.
Selection support: We help confirm duty point, motor and seal.
Delivery & after-sales: Quotation, lead-time confirmation and order follow-up provided; for questions, please email us.

7. FAQ

Q1: What is ETANORM G 032-200 G10?

A: A KSB Etanorm single-stage, single-suction horizontal standard pump, EN 733, DN32 discharge, 200 mm impeller.

Q2: What do the numbers mean?

A: 032 = discharge DN32; 200 = nominal impeller diameter 200 mm; G = cast iron; G10 = design version.

Q3: Flow and head?

A: At 2-pole (~2900 r/min), typically ~Q=20 m³/h, H=40 m; see selection curve for exact point.

Q4: What fluids?

A: Clean water, cooling/chilled water and similar fluids; use SYT for thermal oil.

Q5: Max pressure/temperature?

A: Standard version up to 16 bar, ~140 °C.

Q6: Service-friendly?

A: Back-pull-out design allows pump cartridge removal without disconnecting pipes. For motors/seals, please email us.
