KSB 1AV3112A 1PC30381BA234GP1UD Three-Phase Motor
1. Product Overview
1AV3112A 1PC30381BA234GP1UD is a KSB low-voltage three-phase asynchronous motor used to drive its pump sets. Motor type 1AV3112A is built on the Simotics GP general-purpose platform (squirrel-cage rotor, fan-cooled). It has an aluminum enclosure, IE3 premium efficiency, 2 poles, IEC 112M frame, rated 4 kW (50 Hz) / 4.55 kW (60 Hz), about 2900 r/min at 50 Hz, IP55.

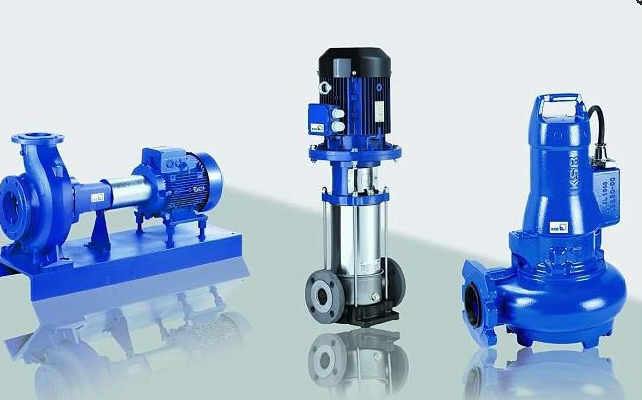

The order/config number 1PC30381BA234GP1UD specifies mounting, voltage, lead orientation and options; this motor typically drives KSB centrifugal pumps (e.g., Etanorm). Exact mounting (B3/B5/B35), voltage and options should be confirmed from the nameplate.
2. Specifications
表格
| Item | Specification |
|---|---|
| Brand | KSB |
| Motor type | 1AV3112A |
| Order/config no. | 1PC30381BA234GP1UD |
| Product type | Low-voltage three-phase asynchronous motor (squirrel-cage) |
| Platform | Simotics GP general-purpose motor |
| Poles | 2 |
| Frame | IEC 112M |
| Rated power | 4 kW (50 Hz) / 4.55 kW (60 Hz) |
| Rated speed | ~2900 r/min (50 Hz) |
| Efficiency class | IE3 (Premium Efficiency) |
| Enclosure | Aluminum |
| Protection | IP55 |
| Insulation/temp. | 155(F), utilized to 130(B) |
| Cooling | Fan-cooled (self) |
| Standard color | RAL 7030 |
| Mounting | B3 / B5 / B35 (per nameplate) |
| Typical use | Driving KSB pumps and general machinery |
5. Model Information
- Motor type: 1AV3112A
- Order/config no.: 1PC30381BA234GP1UD
- Product description: KSB-matched three-phase aluminum IE3 motor, 2-pole, 112M frame, 4 kW.
- Model decode: In 1AV3112A, 1AV3 = Simotics GP aluminum motor series; 112 = IEC frame 112; A = 2-pole version (4 kW). The long config number 1PC30381BA234GP1UD encodes mounting, voltage and options. To confirm mounting, voltage or brake options, please provide the nameplate or email us.
- Series features:
- Aluminum three-phase IE3 motor
- 2-pole 4 kW, IEC 112M frame
- Fan-cooled, IP55
- 155(F) insulation to 130(B) utilization
- KSB pump drives and general machinery
- Related products in series: Other Simotics GP frames/poles (4-/6-pole); KSB Etanorm centrifugal pumps
- Matching products: KSB centrifugal pumps, coupling, base frame
6. Why Choose Us
- Exact model match: We verify 1AV3112A 1PC30381BA234GP1UD as supplied.
- Authorized channel supply: KSB-matched motors through regular channels.
- Selection support: We help confirm mounting, voltage and pump matching.
- Delivery & after-sales: Quotation, lead-time confirmation and order follow-up provided; for questions, please email us.
7. FAQ
Q1: What is 1AV3112A?
A: A KSB-matched three-phase aluminum IE3 motor, 2-pole, IEC 112M frame, 4 kW.
Q2: Power and speed?
A: 4 kW (50 Hz), ~2900 r/min (2-pole).
Q3: Efficiency and protection?
A: IE3 premium efficiency, IP55.
Q4: What is 1PC30381BA234GP1UD?
A: The order/config number for mounting, voltage and options; details per nameplate.
Q5: What does it drive?
A: Typically KSB pump sets and general machinery.
Q6: How to choose mounting?
A: B3 (foot), B5 (flange) or B35 (foot+flange), per nameplate. For other frames, please email us.
