KONGSBERG RCU602 383962

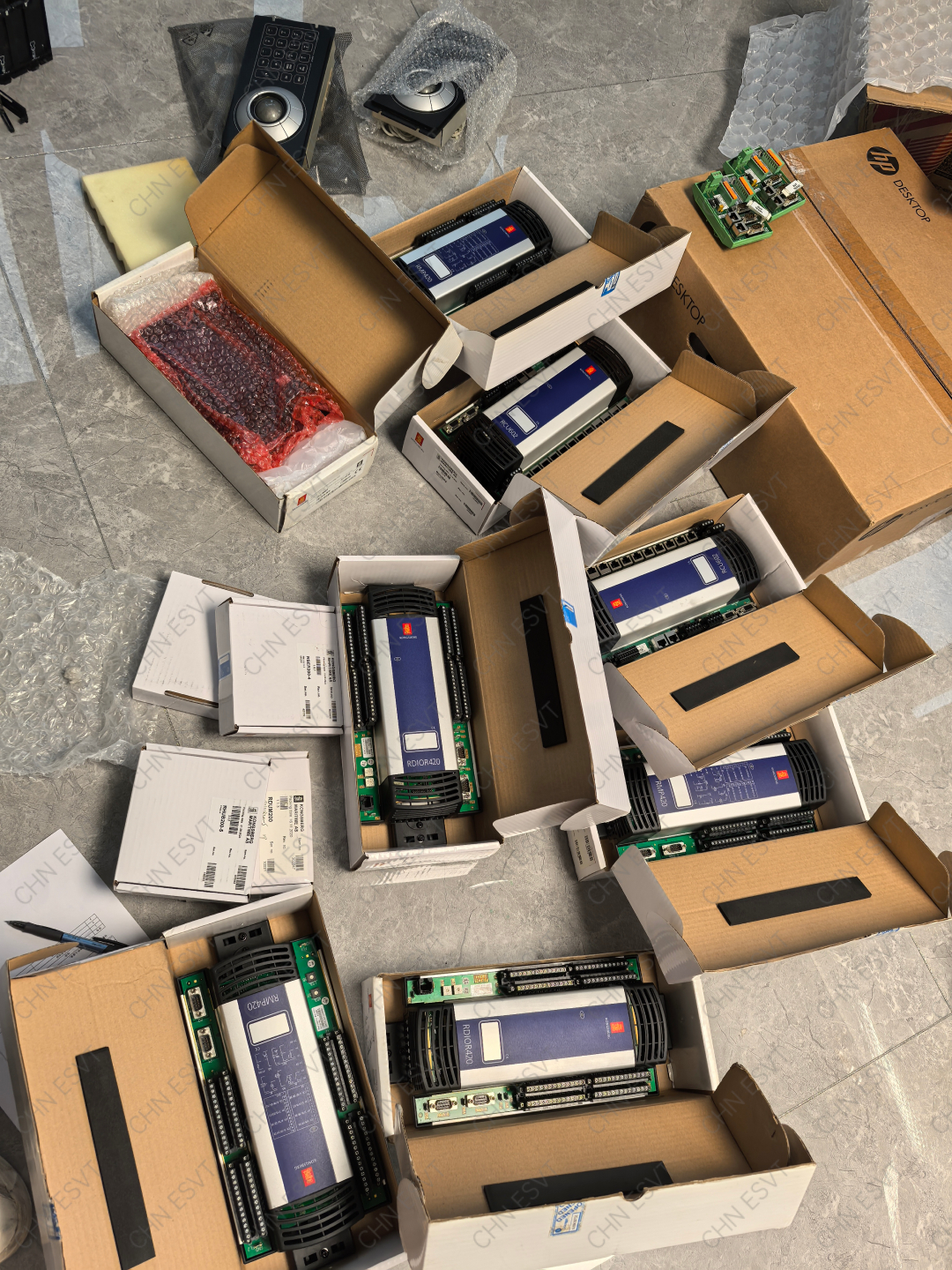

KONGSBERG RCU602 Remote Controller Unit
RCU602 is a high-performance general-purpose real-time process control computer launched by Konsberg (KONGSBERG), which is widely used in various KM systems in onshore and offshore facilities. The processor core features an embedded Power PC™ architecture (P2041,1.5GHz), 2GB of RAM and 256MB of flash memory, and supports single-, dual-and triple-machine redundant topologies.
Core Features:
-
Dual Ethernet LAN Process Network
-
dual redundant network interfaces, supporting redundant RCU configuration
-
Dual field network interfaces for connecting third-party Ethernet field devices
-
Dual Remote I/O Process Bus (RBUS)
-
4 common digital input channels
-
4 general digital output channels
-
1 watchdog digital output channel
-
24 serial interfaces (via RSER200 module)
-
2-way PROFIBUS channel
-
2 CANBUS channels
Application Areas:dynamic positioning system, thruster control/steering system, navigation sensor integrator, integrated process control system, alarm and monitoring system.
power supply and protection:24VDC power supply, power consumption ≤ 20W, with redundant power input, power alarm monitoring, surge current and overvoltage protection, enhanced watchdog function.
Environmental Adaptability:operating temperature -15°C to 70°C, protection class IP20,MTBF up to 22 years, in line with IACS E10, DNV GL 2.4 and other certification standards.
rcu602 price and inquiry:price is affected by purchase quantity, delivery time and configuration requirements, please consult online for real-time quotation.
