ABB 3BHB045668R0008 IGCT Gate Unit Replacement Kit | 91mm IGCT | GV C736 CE101 | PCS6000 MV Drive | Order Available

Original ABB 3BHB045668R0008 IGCT Gate Unit (GU) replacement kit, for 91mm size IGCT module, compatible model GV C736 CE101 (GVC736CE101, order no. 3BHE039203R0101). This gate unit provides precise gate drive signals, real-time status monitoring, and fast fault protection for IGCT power modules, handling IGCT on/off timing control, overcurrent/overtemperature/short-circuit fast turn-off, fiber-optic isolated communication, and system interlock. Compatible with ABB PCS6000 medium voltage drives a
online consultation

Product Details

1. Product Overview

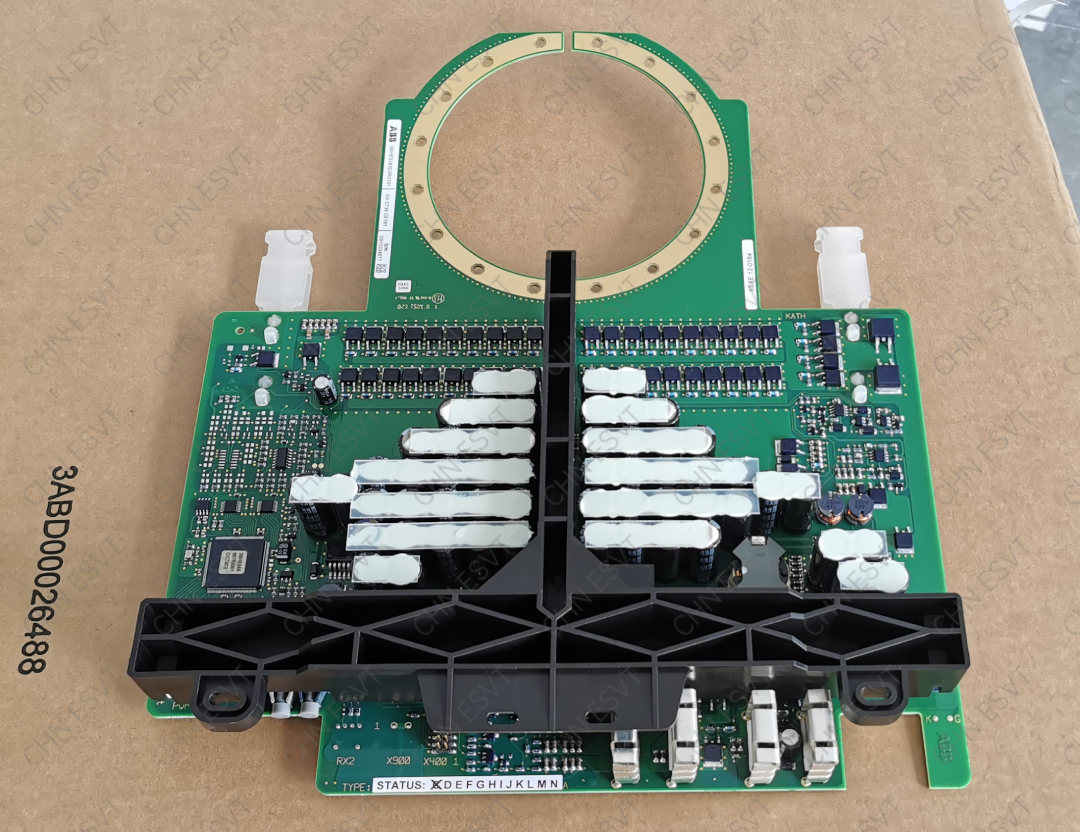

The ABB 3BHB045668R0008 is an IGCT Gate Unit (GU) replacement kit, specifically designed for 91mm size IGCT (Integrated Gate-Commutated Thyristor) modules, compatible model GV C736 CE101 (also written as GVC736CE101, IGCT module order no. 3BHE039203R0101).

IGCT is a high-power semiconductor device developed by ABB, combining the high voltage and high current capability of GTO (Gate Turn-Off Thyristor) with the fast switching characteristics of IGBT. It is widely used in medium voltage drives, STATCOM, wind power converters, and other high-power power electronics equipment. The Gate Unit (GU) is the core drive control component of the IGCT module, responsible for providing precise gate drive signals to ensure reliable IGCT turn-on and turn-off, while providing status monitoring and fault protection functions.

This gate unit is compatible with the ABB PCS 6000 medium voltage drive series and high-power industrial drive systems, handling key tasks such as IGCT on/off timing control, overcurrent/overtemperature/short-circuit fast turn-off protection, fiber-optic isolated communication, and system interlock. It is equipped with 4 fiber-optic communication interfaces (transceiver) and terminal blocks (DI/DO and power), supports hot-swap maintenance for quick on-site replacement.

The 3BHB045668 series is the IGCT gate unit replacement kit series, with different suffixes corresponding to different IGCT sizes: for example, 3BHB045668R0002 is for 51mm IGCT (GV C703 AE01), and this model 3BHB045668R0008 is for 91mm IGCT (GV C736 CE101). The replacement kit format allows users to perform on-site replacement when the gate unit fails, without replacing the entire expensive IGCT module, reducing maintenance costs and downtime.

2. Specifications

表格

Parameter Value
Brand ABB (Switzerland)
Order No. 3BHB045668R0008
Product Type IGCT Gate Unit (GU) Replacement Kit
Compatible IGCT Size 91 mm
Compatible IGCT Module Model GV C736 CE101 (GVC736CE101)
Compatible IGCT Module Order No. 3BHE039203R0101
Series 3BHB045668 Series Gate Unit Replacement Kit
Other Models in Series 3BHB045668R0002 (51mm IGCT, GV C703 AE01)
Compatible Drive ABB PCS 6000 Medium Voltage Drive Series
Compatible Drive Systems High-power industrial drive systems
Core Functions IGCT gate drive, status monitoring, fault protection
On/Off Control Precise timing control (to be confirmed)
Overcurrent Protection Fast turn-off protection (to be confirmed)
Overtemperature Protection Junction temperature monitoring and protection (to be confirmed)
Short-Circuit Protection Fast short-circuit protection (to be confirmed)
Communication Interface 4 fiber-optic communication interfaces (transceiver)
Terminal Block DI/DO and power terminal block
Maintenance Hot-swap supported
Cooling Method Natural convection or forced air cooling (compatible with control cabinet cooling system)
Cooling Control Junction temperature monitoring linked cooling control
Supply Voltage To be confirmed (typically 24V DC or dedicated power supply)
Power Consumption To be confirmed
Operating Temperature To be confirmed
Storage Temperature To be confirmed
Protection Degree To be confirmed (PCB board level, installed in control cabinet)
Standards IEC relevant standards (to be confirmed)
Certification CE (to be confirmed)
Weight To be confirmed
Dimensions To be confirmed
Kit Contents Gate unit board and necessary accessories (specific list to be confirmed)
Country of Origin To be confirmed (ABB European factory)
Stock Status Order available

3. Key Features

  1. Precise Gate Drive Control — Provides precise gate drive signals for 91mm IGCT modules, matching IGCT gate charge and switching timing, ensuring reliable IGCT turn-on and turn-off, achieving optimal switching performance and minimum losses.
  2. Fast Fault Protection — Equipped with overcurrent, overtemperature, short-circuit and other fast protection functions, quickly turning off the IGCT when a fault occurs, protecting the power module and entire drive system from damage, improving system reliability.
  3. Fiber-Optic Isolated Communication — Equipped with 4 fiber-optic communication interfaces (transceiver), 实现 high-speed electrically isolated communication between gate unit and main control system, strong anti-interference capability, ensuring reliable communication in high-voltage high-current electromagnetic environments.
  4. System Interlock Function — Handles system interlock tasks, working in coordination with the drive main control system, 实现 safe shutdown and interlock protection in case of fault or abnormality, ensuring personnel and equipment safety.
  5. Hot-Swap Maintenance Design — Supports hot-swap maintenance, when the gate unit fails it can be quickly replaced without shutdown or with minimal downtime, significantly reducing maintenance time and downtime losses, improving system availability.
  6. PCS6000 Original Factory Compatibility — Specifically designed for ABB PCS 6000 medium voltage drive series, perfectly matched with IGCT module GV C736 CE101, plug-and-play, no additional debugging or configuration required, ensuring system compatibility and stability.
  7. Junction Temperature Monitoring and Cooling Linkage — Equipped with IGCT junction temperature monitoring function, linked with control cabinet cooling system, automatically adjusting cooling strategy based on temperature, ensuring IGCT operates within optimal temperature range, extending device life.
  8. Replacement Kit Reduces Maintenance Cost — Provided in Replacement Kit format, when the gate unit fails only the gate unit needs to be replaced, no need to replace the entire expensive IGCT module, significantly reducing maintenance costs and spare parts inventory pressure.
  9. Dedicated for 91mm High-Power IGCT — Specifically designed for 91mm large-size IGCT, 91mm IGCT is the mainstream size of ABB high-power IGCT platform, suitable for 4.5kV/6.5kV voltage levels, single inverter output power up to several megawatts.
  10. ABB Original Factory Quality — Designed and manufactured by ABB, ABB is the pioneer and leader of global IGCT technology, IGCT products passed strict quality inspection and long-term industrial field validation, widely used in global high-power power electronics equipment.

4. Typical Applications

  • ABB PCS 6000 Medium Voltage Drives: Gate unit replacement spare parts for 91mm IGCT modules in PCS6000 series medium voltage drives, for drive power unit maintenance and replacement
  • High-Power Industrial Drive Systems: Gate unit spare parts for medium voltage drives in rolling mills, grinding mills, fans, pumps and other high-power industrial drive equipment
  • Marine Engineering and Ship Propulsion: IGCT gate unit maintenance in ship electric propulsion systems, offshore platform high-power drive equipment
  • Wind Power Converters: IGCT gate unit spare parts in doubly-fed and full-power wind turbine converters (for models using IGCT technology)
  • STATCOM and Power Quality: IGCT gate units in Static Synchronous Compensators (STATCOM), Active Power Filters (APF), Dynamic Voltage Restorers (DVR) and other power quality equipment
  • VSC-HVDC: IGCT gate unit spare parts in Voltage Source Converter HVDC transmission systems
  • Rail Transit Traction: IGCT gate unit maintenance in electric locomotives, EMUs, metro traction converters
  • Metallurgy Industry: IGCT gate unit spare parts for high-power applications such as steel mill rolling mill drives, electrolytic aluminum rectification, mine grinding mill drives
  • Oil & Gas: High-power drive equipment in oil and gas pipeline compressor drives, LNG terminals, drilling platforms
  • Power Industry: Power plant auxiliary drives, pumped storage, SVG static var generators and other equipment
  • Other high-power power electronics equipment using ABB 91mm IGCT technology

5. Model Explanation

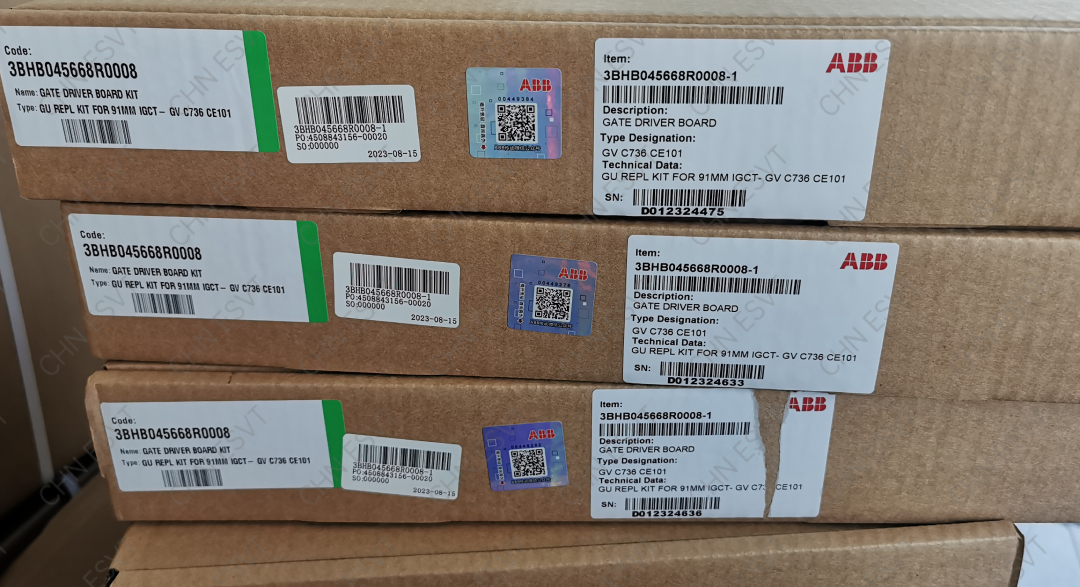

Complete Order No.: 3BHB045668R0008

Product Description: GU REPL KIT FOR 91MM IGCT- GV C736 CE101

Model code breakdown:

  • 3BHB045668: ABB IGCT gate unit replacement kit series code
  • R: Revision code
  • 0008: Specific configuration code, corresponding to 91mm IGCT / GV C736 CE101

Compatible IGCT Module:

  • Model: GV C736 CE101 (also written as GVC736CE101)
  • Order No.: 3BHE039203R0101
  • Type: 91mm Reverse Conducting IGCT (RC-IGCT) module
  • Voltage Level: 4.5kV / 6.5kV (specific level to be confirmed)

Replacement Kit Comparison (Same Series):

表格

Order No. IGCT Size Compatible IGCT Model
3BHB045668R0002 51 mm GV C703 AE01
3BHB045668R0008 91 mm GV C736 CE101

IGCT Size Platform Description:

  • ABB RC-IGCT (Reverse Conducting IGCT) available in 51mm, 68mm, 91mm sizes
  • 91mm is the largest size, suitable for high-power applications
  • Voltage levels: 4.5kV and 6.5kV
  • Single 2-level inverter output power up to 8MW

6. Installation & Maintenance Instructions

Installation Notes:

  • Before installation, confirm gate unit model matches IGCT module model (GV C736 CE101)
  • Replacement must be performed in de-energized state, ensure high-voltage capacitors are fully discharged
  • Wear anti-static wrist strap to avoid electrostatic damage to gate unit circuit board
  • Check fiber-optic interfaces are clean, ensure reliable fiber connection
  • Confirm terminal block wiring correct, power polarity correct
  • After installation perform functional test, confirm gate unit communication with main control system normal

Maintenance Recommendations:

  • Regularly inspect gate unit operating status, check for alarms and fault records via drive monitoring system
  • Regularly clean control cabinet and cooling system, ensure gate unit operating temperature within specified range
  • Recommended to stock critical spare parts (gate unit replacement kit) for quick replacement in case of failure
  • For gate unit fault codes and diagnostic information, refer to ABB PCS6000 drive maintenance manual
  • After replacement record replacement date and operating time for spare parts management and life tracking

Safety Notes:

  • IGCT modules operate in high-voltage high-current environments, maintenance must strictly follow high-voltage safety operating procedures
  • After power-off wait for high-voltage capacitors to discharge (usually several minutes), and use voltage tester to confirm no voltage
  • Gate unit and IGCT module are tightly connected, avoid excessive force during replacement to damage connectors
  • After replacement first power-on recommended in low-voltage test mode, confirm correct before normal operation

7. Why Choose Us

  1. Factory Order, Quality Guaranteed — All products sourced directly from ABB factory or authorized channels, ensuring genuine originals with factory packaging and quality certificates. Standard lead time 4-12 weeks, rush orders can be coordinated for expedited delivery.
  2. Worldwide Delivery — Supports DHL, FedEx, UPS and other international couriers. Can also ship via your designated freight forwarder to 200+ countries.
  3. Professional Technical Support — Selection consultation (confirming IGCT size and compatible model), compatibility confirmation, technical parameter answers, and alternative model recommendation services to help you quickly identify the correct gate unit model.
  4. Flexible Procurement — Supports small-batch sample orders and large-volume project orders with tiered pricing discounts. Project-specific quotations and spare parts framework agreements available.
  5. Pre-shipment Inspection — Appearance check, packaging verification, model confirmation, and function test performed before shipment to ensure delivered products are intact, model-accurate, and functional.

8. Frequently Asked Questions (FAQ)

Q1: Is this product an IGCT module or a gate unit? What is the difference from GV C736 CE101?

A: The 3BHB045668R0008 is an IGCT Gate Unit (GU) replacement kit, not a complete IGCT module. GV C736 CE101 (order no. 3BHE039203R0101) is the complete 91mm IGCT power module, including IGCT chip, anti-parallel diode, and gate unit. The gate unit is the drive control circuit board within the IGCT module, responsible for driving and protecting the IGCT chip. When the gate unit fails, you can replace only the gate unit (this product), without replacing the entire expensive IGCT module, thereby reducing maintenance costs.

Q2: Which drives is this gate unit compatible with? Can it be used in my PCS6000?

A: This gate unit is specifically designed for the ABB PCS 6000 medium voltage drive series, compatible with 91mm IGCT module GV C736 CE101. If your PCS6000 drive uses 91mm IGCT modules (GV C736 CE101), then this gate unit replacement kit can be used. However, the PCS6000 series has multiple power ratings and configurations, some models may use 51mm or 68mm IGCT. Please confirm the specific model of the IGCT module in your drive (whether it is GV C736 CE101), or provide the drive model and power rating, and we can assist in confirming compatibility.

Q3: What are the symptoms of gate unit failure? How to determine if replacement is needed?

A: Gate unit failure typically manifests as:

  1. Drive reports IGCT-related fault codes (such as gate power failure, communication failure, trigger failure, etc.)
  2. A power unit frequently trips or cannot start
  3. Fiber-optic communication interruption, main control system cannot communicate with that IGCT
  4. IGCT abnormal heating or temperature alarm
  5. Drive output current imbalance or waveform abnormality Diagnosis methods: Check fault records and alarm codes via drive monitoring software, compare with fault code manual to confirm if it is a gate unit fault; you can also use the swap method (swap the suspected faulty gate unit with a normal one) to confirm. It is recommended that diagnosis and replacement be performed by trained professional engineers.

Q4: Does replacing the gate unit require professional personnel? Can I replace it myself?

A: Replacing the gate unit involves high-voltage safety operations, it is recommended that replacement be performed by ABB-trained professional engineers or qualified electrical technicians. During replacement, you need to:

  1. Strictly follow high-voltage safety operating procedures (power off, voltage test, discharge, lockout/tagout)
  2. Wear anti-static wrist strap to avoid electrostatic damage to the circuit board
  3. Correctly connect fiber optics and terminal blocks, ensure communication and power correct
  4. Perform functional test and parameter confirmation after replacement If you do not have relevant experience and qualifications, it is recommended to contact ABB authorized service team or professional maintenance service provider for replacement, to ensure personal safety and equipment safety.

Q5: Do the gate unit and IGCT module need to be replaced together? What is the service life?

A: Not necessarily. The gate unit and IGCT chip are relatively independent components, when the gate unit fails usually only the gate unit needs to be replaced, no need to replace the entire IGCT module. However, if the IGCT chip itself is damaged (such as breakdown, short circuit), then the entire IGCT module needs to be replaced. The design life of IGCT modules is typically 10-20 years (depending on operating conditions and load rate), and the gate unit, as an electronic circuit board, its life may be affected by environmental factors such as temperature, humidity, and vibration. Under good operating conditions, the gate unit can operate stably for a long time; regular inspection and preventive maintenance are recommended, and critical spare parts should be stocked to reduce downtime.

Q6: Is this product in stock? What is the lead time?

A: This model is currently in order available status, standard lead time 4-12 weeks (ordered from ABB factory). IGCT gate units are dedicated industrial spare parts, with limited stock inventory, usually requiring production to order or allocation from global inventory. If you have urgent needs (such as equipment failure downtime), we can try to coordinate global stock inventory or expedited ordering. Please indicate required quantity and desired delivery time when inquiring, and we will do our best to coordinate the fastest delivery solution. For critical equipment, it is recommended to stock 1-2 sets of gate unit spare parts in advance to handle sudden failures.

Q7: Can you provide technical support and installation guidance?

A: Yes. We provide the following technical support services:

  1. Selection Confirmation: Confirm gate unit compatibility based on your drive model and IGCT module model
  2. Fault Diagnosis Guidance: Analyze fault codes via phone or remote assistance, determine if it is a gate unit fault
  3. Installation Guidance: Provide replacement step instructions and precautions, guide on-site engineers through replacement
  4. Parameter Setting: Assist in confirming parameters and functional testing after replacement
  5. Alternative Solutions: If the original model is discontinued or out of stock, provide alternative model or upgrade solution recommendations For technical questions, please feel free to contact our sales and technical support team.
