Fluke 789 ProcessMeter

The Fluke 789 ProcessMeter combines a digital multimeter with a 4–20 mA loop calibrator, with 24 V loop power and simultaneous mA/% display, for field process calibration and loop testing.

online consultation

Product Details

1. Product Overview

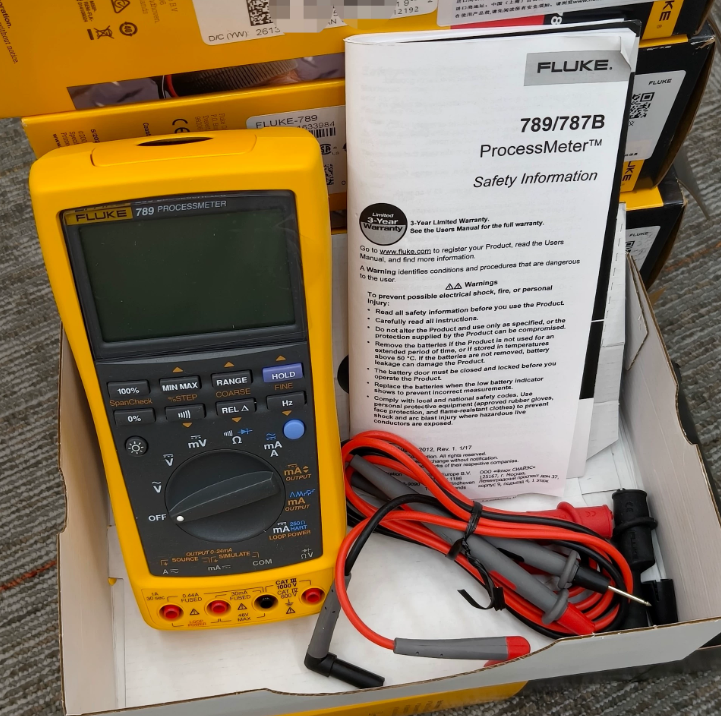

The Fluke 789 (ProcessMeter™) is a handheld, battery-powered process calibrator that combines a digital multimeter with a loop calibrator, used to measure electrical parameters, source/simulate 4–20 mA to test process instruments, and provide 24 V loop power.

Compared with the 787B, the 789 uniquely adds a 20 mA current source/simulate, simultaneous mA and percent (%) readout, 24 V loop power, and a HART mode (250 Ω resistor with loop power). It can measure and source mA at once, suiting field calibration and troubleshooting of transmitters, controllers, recorders and PLC inputs. Dual display, backlight with two brightness levels, external-access 4×AA batteries, CAT III 600 V.

2. Specifications

表格

Item	Specification
Manufacturer	Fluke
Model	789 ProcessMeter™
Product type	Process meter (DMM + loop calibrator)
mA measurement	0–30 mA, 0.001 mA resolution, 0.05% + 2 LSD
Source/simulate	0–20 mA or 4–20 mA, 0.05% of span
Drive capability	24 V compliance or 1200 Ω @ 20 mA
Loop power	24 V (789 exclusive)
HART mode	Loop power with added 250 Ω resistor
Voltage measurement	AC/DC voltage (DMM function)
R/freq/continuity/diode	Resistance, frequency (to 19.999 kHz), continuity beeper, diode test
Display	Simultaneous mA/% dual display, 2-level backlight
Safety rating	CAT III 600 V
Power	4×AA batteries, externally accessible

5. Model Information

Model: Fluke 789 ProcessMeter™
Product description: Process meter, DMM + 4–20 mA loop calibration, 24 V loop power.
Material number note: 789 is the basic process meter; vs the 787B it adds 20 mA source/simulate, mA/% simultaneous readout and 24 V loop power. For documenting, wireless (Fluke Connect) or higher-accuracy models, please email us.
Series features:
- DMM + loop calibrator in one
- 24 V loop power and HART mode (789 exclusive)
- mA/% simultaneous dual display, measure and source at once
- 1200 Ω mA drive @ 20 mA
- CAT III 600 V, 4×AA batteries
Related products in series: Fluke 787B ProcessMeter; 754/753 documenting process calibrators
Matching products: Test leads, alligator clips, thermocouple probe, magnetic hanger

6. Why Choose Us

Exact model match: We verify supply of the Fluke 789 with 24 V loop power and mA/% dual display.
Authorized channel supply: Fluke process calibrators through regular channels.
Selection support: We help choose between the 789, 787B and 754 per requirements.
Delivery & after-sales: Quotation, lead-time confirmation and order follow-up provided; for questions, please email us.

7. FAQ

Q1: What is the Fluke 789?

A: The Fluke ProcessMeter — a handheld process calibrator combining a DMM and a 4–20 mA loop calibrator.

Q2: 789 vs 787B?

A: The 789 adds 20 mA source/simulate, simultaneous mA/% readout and 24 V loop power; the 787B lacks these.

Q3: Can it measure and source mA?

A: Yes — measures to 30 mA (0.001 mA resolution) and sources/simulates 0–20 or 4–20 mA, driving 1200 Ω at 20 mA.

Q4: What is the 24 V loop power for?

A: It powers a two-wire transmitter loop so you can read loop current in the field without an external supply.

Q5: Does it support HART?

A: Yes — HART mode adds a 250 Ω resistor under loop power for a HART communicator.

Q6: Safety rating and power?

A: CAT III 600 V, 4×AA batteries. For other models, please email us.
